Isuzu WW
▶
BUSES
▶
LT
▶
10892 - LT134-RHD EXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

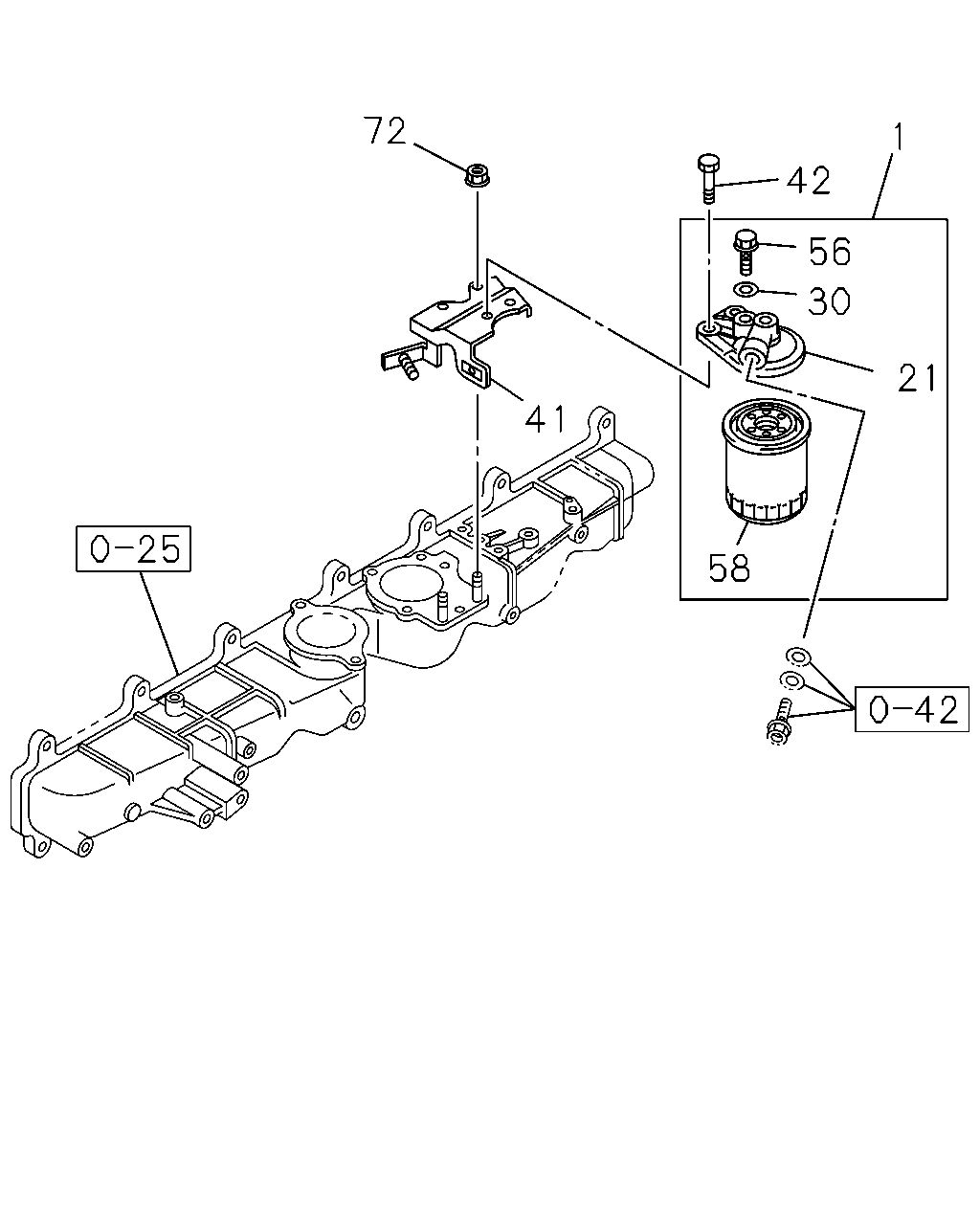

0-41 — FUEL FILTER AND BRACKET
(#30233) — 12 parça
72
1
42
56
30
21
41
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-890-4
01
1
0107-
21
COVER; UPR,FUEL FILTER
1-13212-108-1
01
1
0107-0710
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0107-0206
41
BRACKET; FUEL FILTER
8-97602-219-0
01
1
0107-
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28081-035-0
02
1
0107-0112
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28681-035-0
02
1
0201-0512
42
BOLT; FUEL FILTER
M10X35 FLANGE
0-28651-035-0
02
1
0601-
56
PLUG; FUEL FILTER
M14X9
9-99202-314-0
01
1
0107-0206
58
ELEMENT; FUEL FILTER
1-13240-079-1
01
1
0107-0711
58
ELEMENT; FUEL FILTER
8-98036-654-0
01
1
0712-
72
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-110-0
02
1
0107-0602
72
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-110-0
02
1
0603-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
