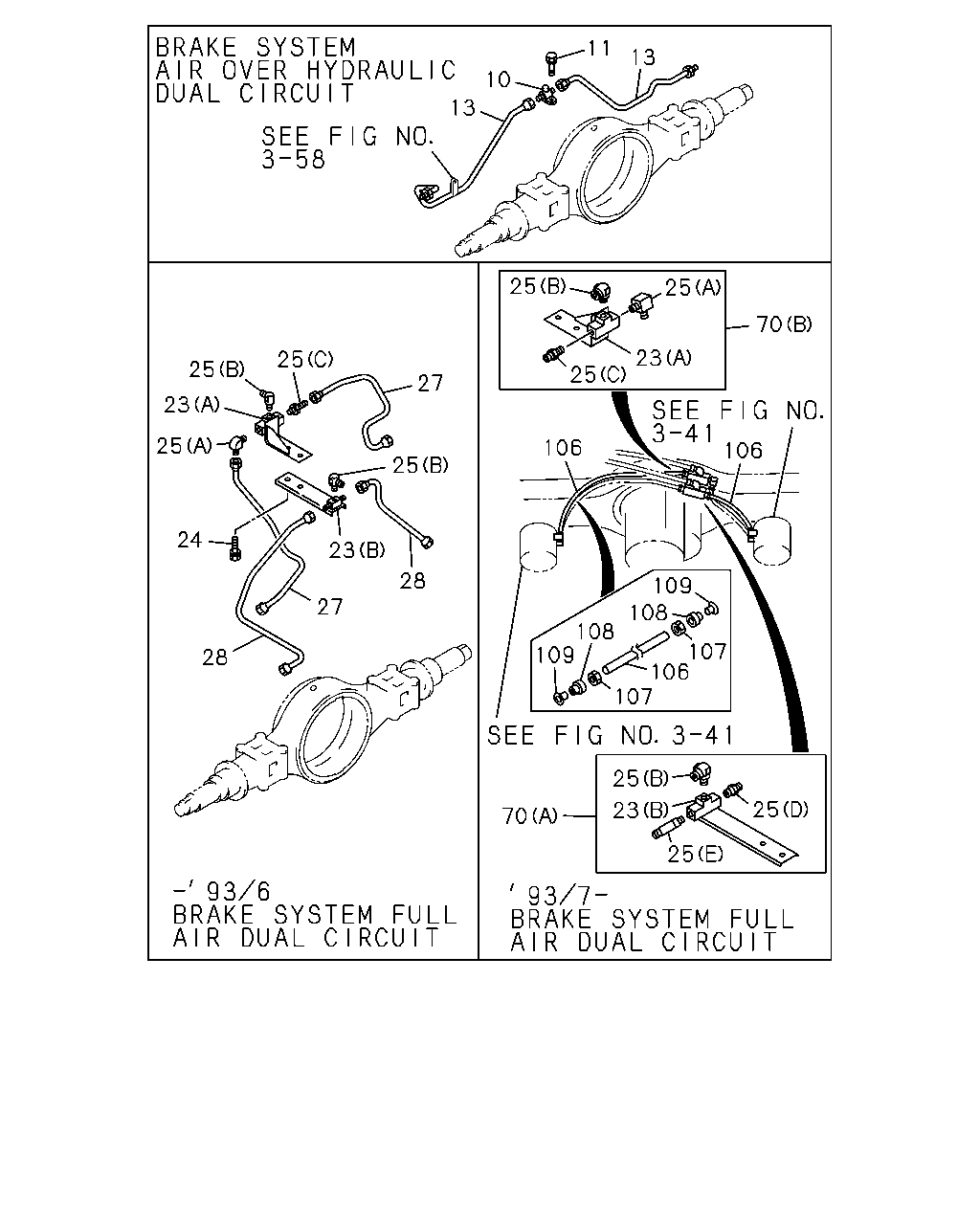

3-55 — BRAKE PIPING; OIL,REAR (#3023) — 99 parça

25 25 23 25 70 28 27 23 28 25 27 25 25 23 25 24 109 108 108 109 107 106 107 106 106 25 23 25 70 25 13 11 10 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	NIPPLE; RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09903-668-3	01	1	9002-	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	9-01901-025-0	01	1	9002-9204	●	●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9205-9409		●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE	0-28681-020-0	01	1	9410-9410		●
11	BOLT; NIPPLE,RR AXLE CASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 W/LK WASHER	0-50041-025-0	01	1	9411-		●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47416-068-1	01	1	9002-	●	●
13	PIPE; BRK,RR AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47416-066-1	01	1	9002-	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-385-0	01	1	9002-9306	●	●	●	●
23	NIPPLE; W/BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A)	1-47475-537-0	01	1	9002-9306	●	●	●	●
23	NIPPLE; W/BRKT BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-47470-380-0	01	1	9307-		●		●
23	NIPPLE; W/BRKT BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-47475-537-0	01	1	9307-		●		●
24	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●	●	●
24	BOLT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-9306	●	●	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306	●	●	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306			●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9002-9306	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9002-9306	●	●	●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●	●	●
25	CONNECTOR EXC. HONG KONG EQUIPMENT(PQ1) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306			●	●
25	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-9306	●	●
25	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> (B) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9307-		●		●
25	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (B) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9307-		●		●
25	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> (D)	1-09660-572-0	01	1	9307-		●		●
25	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> (E)	1-09660-574-0	01	1	9307-		●		●
25	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (C)	1-09660-569-0	01	1	9307-		●		●
25	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (A)	1-09660-570-0	01	1	9307-		●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=725 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306	●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=923 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=702 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306	●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=937 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306	●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=733 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306		●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=929 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=709 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306		●		●
27	PIPE; AIR,3 WAY TO MAXI BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=943 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306		●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=784 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=791 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306	●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=682 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306	●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=855 SERVICED BY L=900	1-47437-966-0	01	1	9002-9306	●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=790 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306		●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 17.5"<B5D> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=791 SERVICED BY L=800	1-47434-475-0	01	1	9002-9306		●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=689 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306		●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FINAL GEAR 18.5"<C1C> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=854 SERVICED BY L=900	1-47437-966-0	01	1	9002-9306		●		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 17.5"<B5D> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=900 SERVICED BY L=1000	1-47426-414-0	01	1	9002-9306	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 17.5"<B5D> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1000 SERVICED BY L=1100	1-47426-415-0	01	1	9002-9306	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 18.5"<C1C> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1000 SERVICED BY L=1100	1-47426-415-0	01	1	9002-9306	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 18.5"<C1C> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1100 SERVICED BY L=1250	1-47426-416-0	01	1	9002-9306	●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 17.5"<B5D> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=900 SERVICED BY L=1000	1-47426-414-0	01	1	9002-9306		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 17.5"<B5D> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1000 SERVICED BY L=1100	1-47426-415-0	01	1	9002-9306		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 18.5"<C1C> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1000 SERVICED BY L=1100	1-47426-415-0	01	1	9002-9306		●
28	PIPE; AIR,3 WAY TO POWER CHAMBER FINAL GEAR 18.5"<C1C> BRAKE SYSTEM SPRING BRAKE DELETE(JE2) L=1100 SERVICED BY L=1250	1-47426-416-0	01	1	9002-9306		●
70	UNION; NYLON TUBE BRAKE POWER CHAMBER FORWARD<BCQ> (A)	1-47470-379-0	01	1	9307-		●		●
70	UNION; NYLON TUBE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (B)	1-47470-368-0	01	1	9307-		●		●
106	TUBE; NYLON BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=30000 OD=3/8"	1-09368-247-0	02	1	9307-		●		●
106	TUBE; NYLON BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=30000 OD=1/2"	1-09368-251-0	02	1	9307-		●		●
107	NUT; SLEEVE BRAKE POWER CHAMBER FORWARD<BCQ> OD=3/8"	1-09660-557-0	04	1	9307-		●		●
107	NUT; SLEEVE BRAKE POWER CHAMBER FORWARD<BCQ> OD=1/2"	1-09660-558-0	04	1	9307-		●		●
108	SLEEVE; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> ID=9.75 OD=12.17 L=9.91	1-09666-060-0	04	1	9307-		●		●
108	SLEEVE; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> ID=12.93 OD=15.85 L=10.92	1-09666-061-0	04	1	9307-		●		●
109	RING; INSERT BRAKE POWER CHAMBER FORWARD<BCQ> OD=1/2"	1-09669-107-0	04	1	9307-		●		●
109	RING; INSERT BRAKE POWER CHAMBER FORWARD<BCQ> OD=3/8"	1-09669-108-0	04	1	9307-		●		●

4 52 3 7 2 6 1 5 3 32 46 49 75 75 36 33 39 31 36 39 33 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=600	1-09364-197-0	01	1	9002-	●	●
2	GASKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17	9-09920-472-0	01	1	9002-	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-47475-112-0	01	1	9002-9304	●	●
3	BRACKET; FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-47476-575-1	01	1	9305-	●	●
3	BRACKET; FLEX HOSE,RR BRK CONCRETE PUMP<RA5>	1-47465-781-0	01	1	9002-9103		●
3	BRACKET; FLEX HOSE,RR BRK CONCRETE PUMP<RA5>	1-47476-573-1	01	1	9104-		●
4	NUT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9002-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	02	1	9002-9302	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2	9-09150-512-0	01	1	9002-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=538 SERVICED BY L=550	9-47415-351-0	01	1	9002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION CONCRETE PUMP<RA5> L=733 SERVICED BY L=800	1-47434-384-0	01	1	9002-9012		●
31	PIPE; OIL,AIR MASTER TO UNION CONCRETE PUMP<RA5> L=733 SERVICED BY L=800	1-47434-384-0	01	1	9101-		●
32	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 L=40	9-09223-006-1	01	1	9002-	●	●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=662 SERVICED BY L=700	1-47434-466-0	01	1	9002-9306	●
33	PIPE; OIL,UNION TO UNION CONCRETE PUMP<RA5> L=1638 SERVICED BY L=1700	1-47434-393-0	01	1	9002-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1612 SERVICED BY L=1620	1-47434-392-0	01	1	9002-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5400MM(54W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2362 SERVICED BY L=2650	1-47434-399-0	01	1	9002-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1029 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●	●
36	PIPE; OIL,UNION TO UNION CONCRETE PUMP<RA5> L=1500 SERVICED BY L=1620	1-47434-392-0	01	1	9002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=2833 SERVICED BY L=2900	1-47434-400-0	01	1	9002-	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE CONCRETE PUMP<RA5> L=1757 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●
46	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M12	9-09840-280-0	01	1	9002-	●	●
49	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=12.2	9-09150-512-0	01	1	9002-9312	●	●
52	GROMMET; OIL PIPE CONCRETE PUMP<RA5> ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-		●
75	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) M12 ELBOW	9-09225-206-1	01	1	9002-	●	●
75	UNION; OIL PIPE CONCRETE PUMP<RA5> (A) M12 L=40	9-09223-006-1	01	1	9002-		●

31 33 39 36 31 36 33 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=538 SERVICED BY L=550	9-47415-351-0	01	1	9002-	●	●
31	PIPE; OIL,AIR MASTER TO UNION CONCRETE PUMP<RA5> L=733 SERVICED BY L=800	1-47434-384-0	01	1	9002-9012		●
31	PIPE; OIL,AIR MASTER TO UNION CONCRETE PUMP<RA5> L=733 SERVICED BY L=800	1-47434-384-0	01	1	9101-		●
33	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=662 SERVICED BY L=700	1-47434-466-0	01	1	9002-9306	●
33	PIPE; OIL,UNION TO UNION CONCRETE PUMP<RA5> L=1638 SERVICED BY L=1700	1-47434-393-0	01	1	9002-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1612 SERVICED BY L=1620	1-47434-392-0	01	1	9002-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5400MM(54W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2362 SERVICED BY L=2650	1-47434-399-0	01	1	9002-		●
36	PIPE; OIL,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=1029 SERVICED BY L=1100	1-47434-387-0	01	1	9002-	●	●
36	PIPE; OIL,UNION TO UNION CONCRETE PUMP<RA5> L=1500 SERVICED BY L=1620	1-47434-392-0	01	1	9002-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=2833 SERVICED BY L=2900	1-47434-400-0	01	1	9002-	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE CONCRETE PUMP<RA5> L=1757 SERVICED BY L=2000	1-47434-395-0	01	1	9002-		●
