0-37 — TURBOCHARGER (#30229) — 17 parça

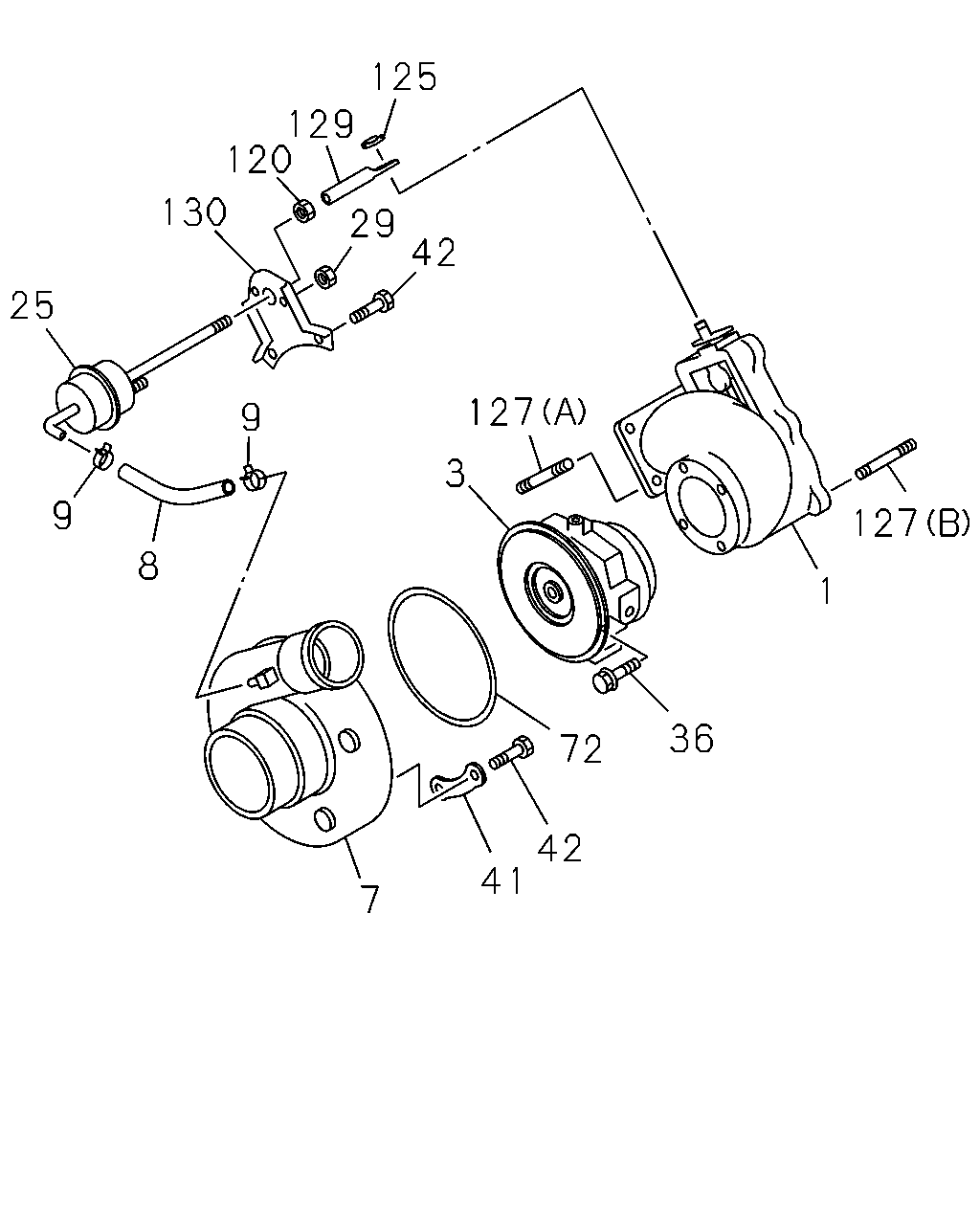

çizim 82752
125 129 120 130 29 42 25 127 9 3 9 127 8 1 36 72 42 41 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14415-121-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14411-071-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14414-125-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97601-888-0 		8-97601-416-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14419-134-0 02 1 -
25 ACTUATOR; TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14460-026-0 01 1 -
29 NUT; WASTE GATE CONT,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14419-127-0 02 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 8-97601-888-0 		1-14419-150-0 04 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14419-162-0 03 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		8-97600-404-0 08 1 -
72 GASKET; BRG HSG,TURBOCHARGER
ASM PART: A = 8-97601-888-0 		1-14459-064-0 01 1 -
120 NUT; CONT LINK
ASM PART: A = 8-97601-888-0 		8-97600-400-0 01 1 -
125 RING; SNAP,CONT LINK
ASM PART: A = 8-97601-888-0 		1-14419-108-0 01 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: A = 8-97601-888-0 		1-14419-137-0 02 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: A = 8-97601-888-0 		1-14419-141-0 01 1 -
129 ROD END; TURBO
ASM PART: A = 8-97601-888-0 		8-97600-401-0 01 1 -
130 BRACKET; ACTUATOR,TURBO
ASM PART: A = 8-97601-888-0 		8-97600-403-0 01 1 -
