10892 - LT134-RHD EXC.EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

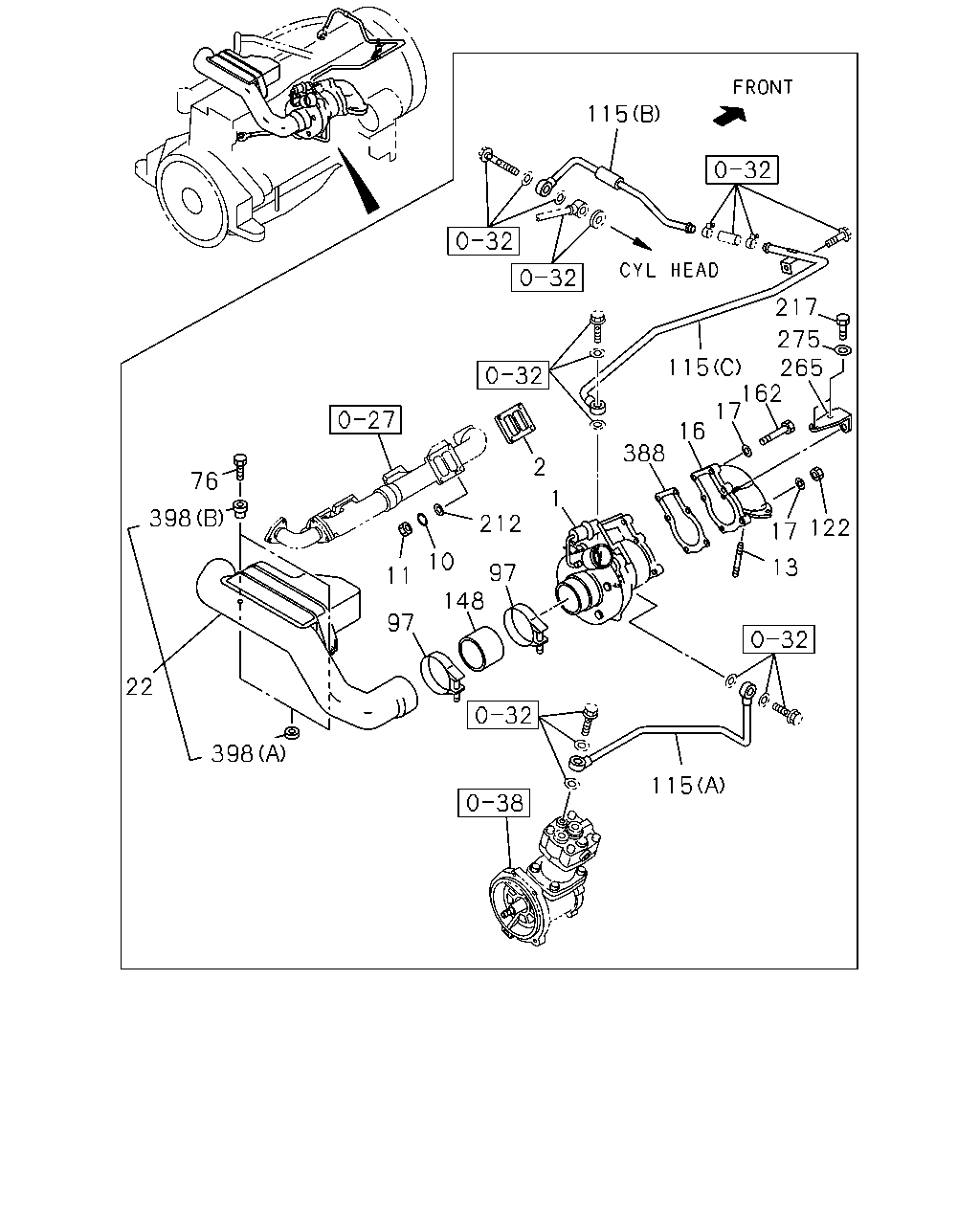

0-36 — TURBOCHARGER SYSTEM
(#30228) — 29 parça
115
217
275
115
265
162
17
16
388
2
76
1
398
17
212
122
10
13
97
148
11
97
22
398
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97601-888-0
01
1
0107-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
0107-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
0107-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
0107-
13
STUD; EXH PIPE
M12X103 L=123
8-94394-656-0
01
1
0107-
16
ADAPTER; EXH PIPE
8-94395-767-0
01
1
0107-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
0107-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97600-662-1
01
1
0107-
76
BOLT; AIR DUCT
M8X35 FLANGE
0-28680-835-0
02
1
0107-0512
76
BOLT; AIR DUCT
M8X35 FLANGE
0-28650-835-0
02
1
0601-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
02
1
0811-0811
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
04
1
0812-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=100
9-09915-599-0
02
1
0107-0211
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-144-0
02
1
0212-0306
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
1-09707-199-0
04
1
0307-0810
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-113
1-09707-199-0
02
1
0811-0811
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94392-949-0
01
1
0107-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-97601-714-0
01
1
0107-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-97601-891-0
01
1
0107-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
0107-
148
HOSE; TURBOCHARGER,INL
ID=89 L=80
1-09360-356-1
01
1
0107-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
0107-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
0107-
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
0107-
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
0107-
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
0107-
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-1
01
1
0107-
398
MOUNTING
(A) ID=19.5
8-94202-456-3
02
1
0107-
398
MOUNTING
(B)
8-97600-053-0
02
1
0107-
