0-31 — THERMOSTAT AND HOUSING (#30225) — 15 parça

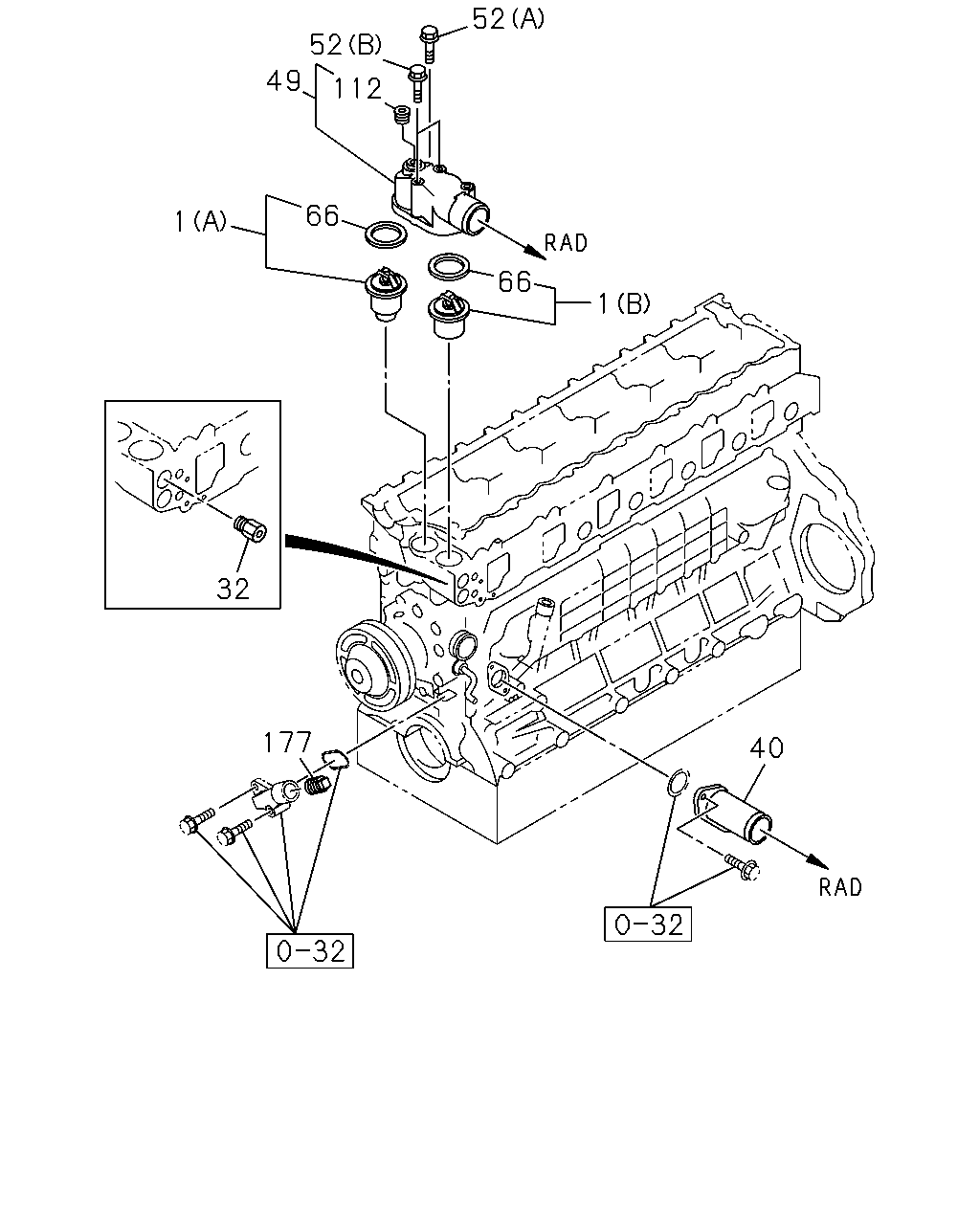

çizim 84810
52 52 49 112 66 1 66 1 32 177 40
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
(B) 82?C 		8-97602-037-0 01 1 0107-0112
1 THERMOSTAT
(B) 82?C 		8-97602-393-1 01 1 0201-
1 THERMOSTAT
(A) 82?C 		8-97602-048-2 01 1 0107-
32 CONNECTOR; HTR 8-97601-492-0 01 1 0107-
40 DUCT; WATER,SUCTION 8-94397-005-2 01 1 0107-
49 PIPE; WATER OUTLET 8-97602-040-0 01 1 0107-
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0107-0112
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 03 1 0201-0512
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 03 1 0601-
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0112
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0201-0512
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0107-
112 PLUG 8-94390-527-0 01 1 0107-
177 PLUG; PIPE,WATER DUCT
PT1/2 		9-09204-521-0 01 1 0107-
