0-12 — CYLINDER BLOCK (#30215) — 70 parça

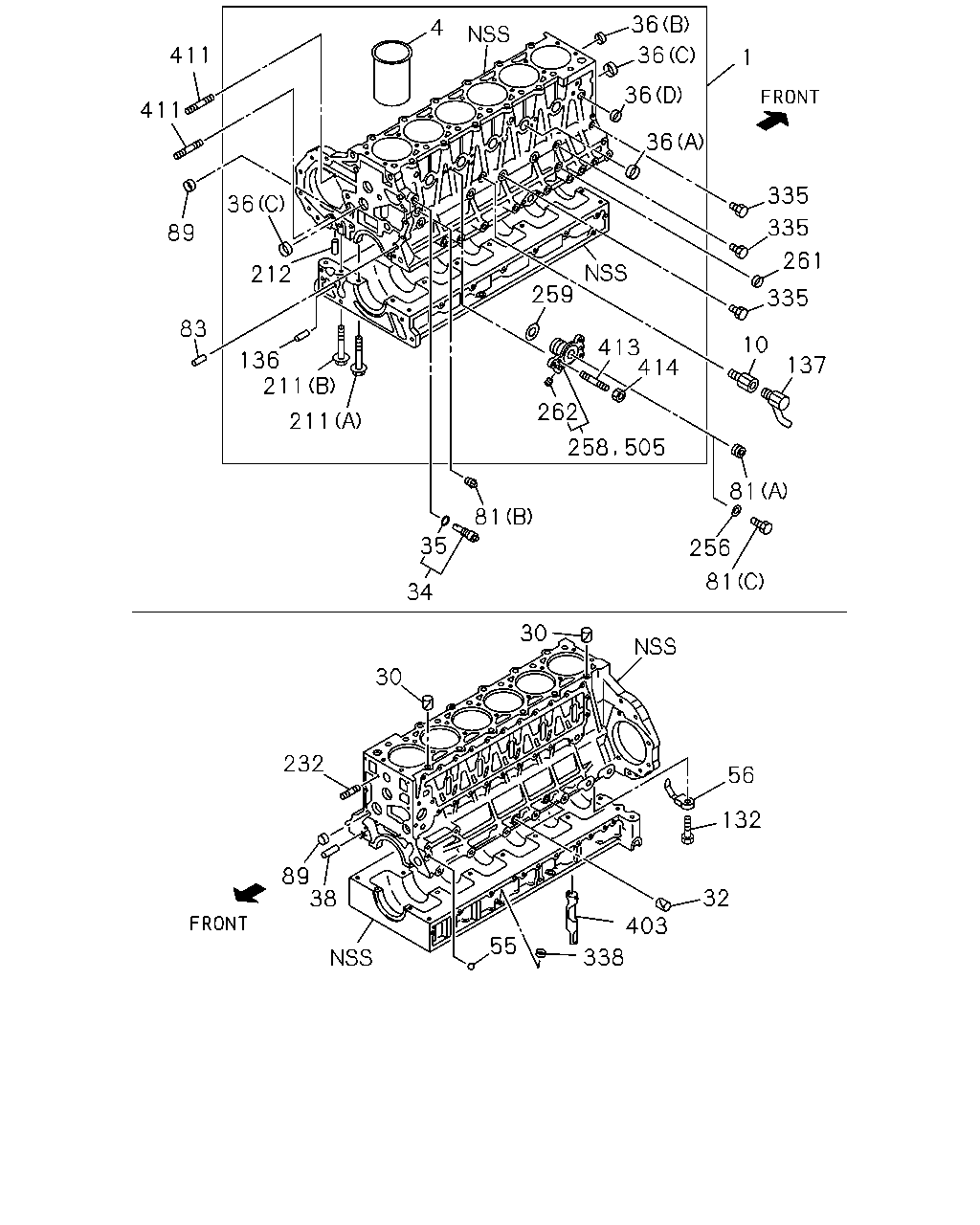

36 4 411 36 1 36 411 36 335 36 335 89 261 259 212 335 83 413 414 10 136 211 137 262 211 81 81 35 256 81 34 30 30 232 56 132 89 38 32 403 55 338 258 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-97602-025-2	01	1	0107-0504
1	BLOCK ASM; CYL	8-98005-409-3	01	1	0505-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0107-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0107-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0107-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0107-
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	0107-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0107-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0107-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0107-
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0107-
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0107-
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0107-0502
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0107-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0107-
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0107-0703
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-1007
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0107-0507
81	PLUG; WATER JACKET (C) M14X14	9-09862-156-0	01	1	0508-
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0107-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0107-0306
83	PIN; FLYWHEEL HSG OD=10 L=20	8-97135-423-0	02	1	0307-0307
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0308-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0107-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0107-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0107-0812
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0107-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0107-0905
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0107-
212	PIN; CRANKCASE L=22	8-94483-674-0	02	1	0107-0306
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0307-
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0107-0604
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-
258	ADAPTER; BLOCK HTR	8-97611-854-0	01	1	0901-
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0107-0507
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-0812
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0107-
261	PLUG; OIL PRESS UNIT OD=12.3	5-09600-013-0	01	1	0107-0307
262	PLUG; ADAPTER	1-13163-002-0	01	1	0107-
335	PLUG; C/BL,SIDE M14	8-94399-225-0	03	1	0107-0703
335	PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	03	1	0704-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0107-
403	GUIDE; GALLERY	8-94395-351-1	01	1	0107-
411	STUD; BRG CASE M10X36.5 L=48.5	8-94396-145-0	02	1	0107-0301
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0302-0512
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	04	1	0107-0604
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	04	1	0605-
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	04	1	0107-0602
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	04	1	0603-

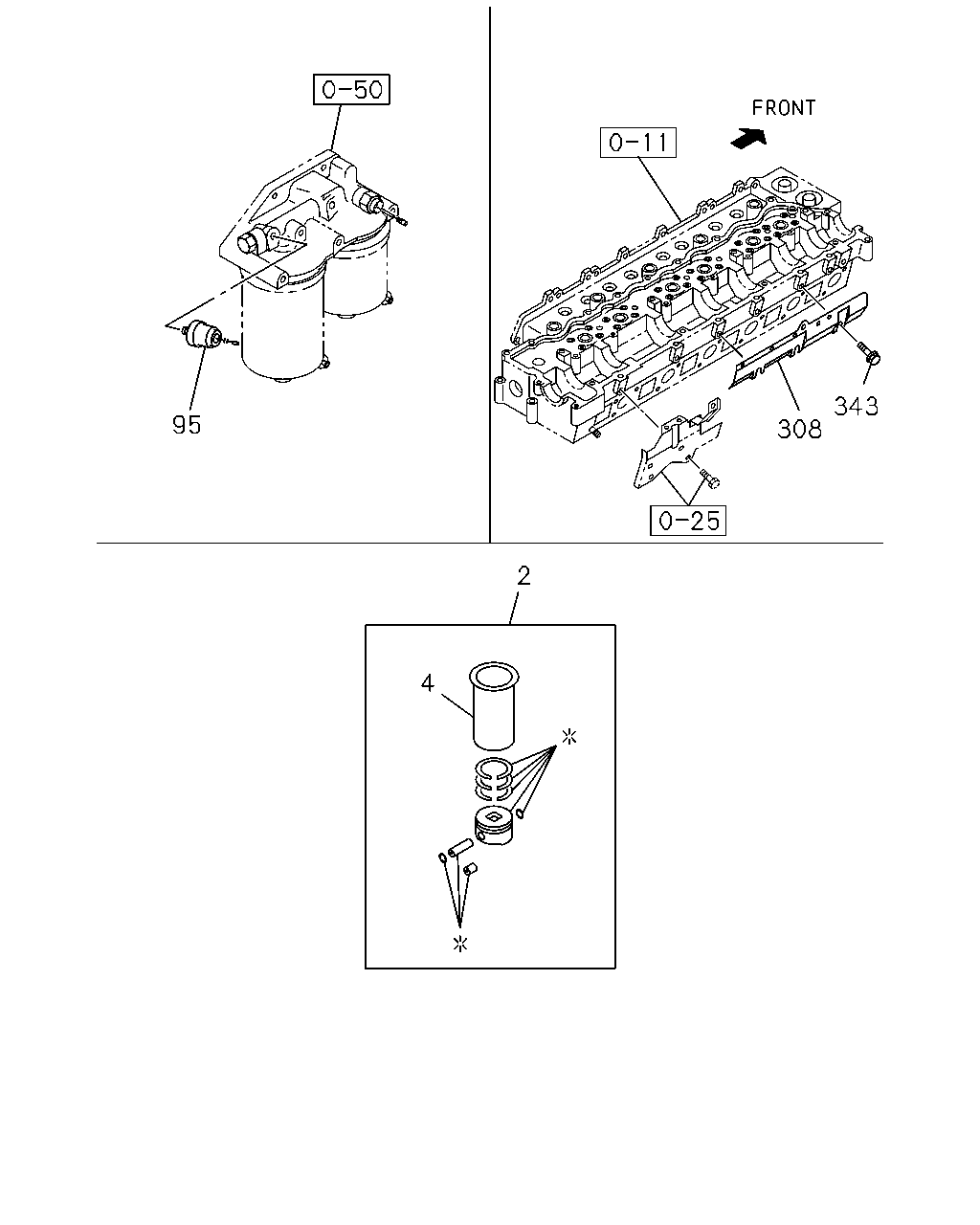

343 95 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-2	06	1	0107-0201
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-0	06	1	0202-0305
2	LINER SET; ENG CYL GRADE=1X	1-87812-165-3	06	1	0306-0706
2	LINER SET; ENG CYL GRADE=3X	1-87812-335-3	06	1	0707-
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-2	06	1	0107-0201
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-0	06	1	0202-0305
2	LINER SET; ENG CYL GRADE=3X	1-87812-166-3	06	1	0306-0706
2	LINER SET; ENG CYL GRADE=1X	1-87812-336-3	06	1	0707-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	06	1	0107-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	06	1	0107-
95	PRESSURE UNIT; OIL	1-83151-040-0	01	1	0107-
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	0107-
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	03	1	0107-0512
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28050-812-0	03	1	0601-
