◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#3021) — 115 parça
çizim 4663
6 3 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-055-1 01 1 9002- ● ● ● ●
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-083-0 01 1 9002-9306 ● ●
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-057-1 01 1 9002- ● ● ● ●
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-084-0 01 1 9002-9306 ● ●
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-101-0 01 1 9002- ● ● ● ●
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-132-0 01 1 9002-9306 ● ●

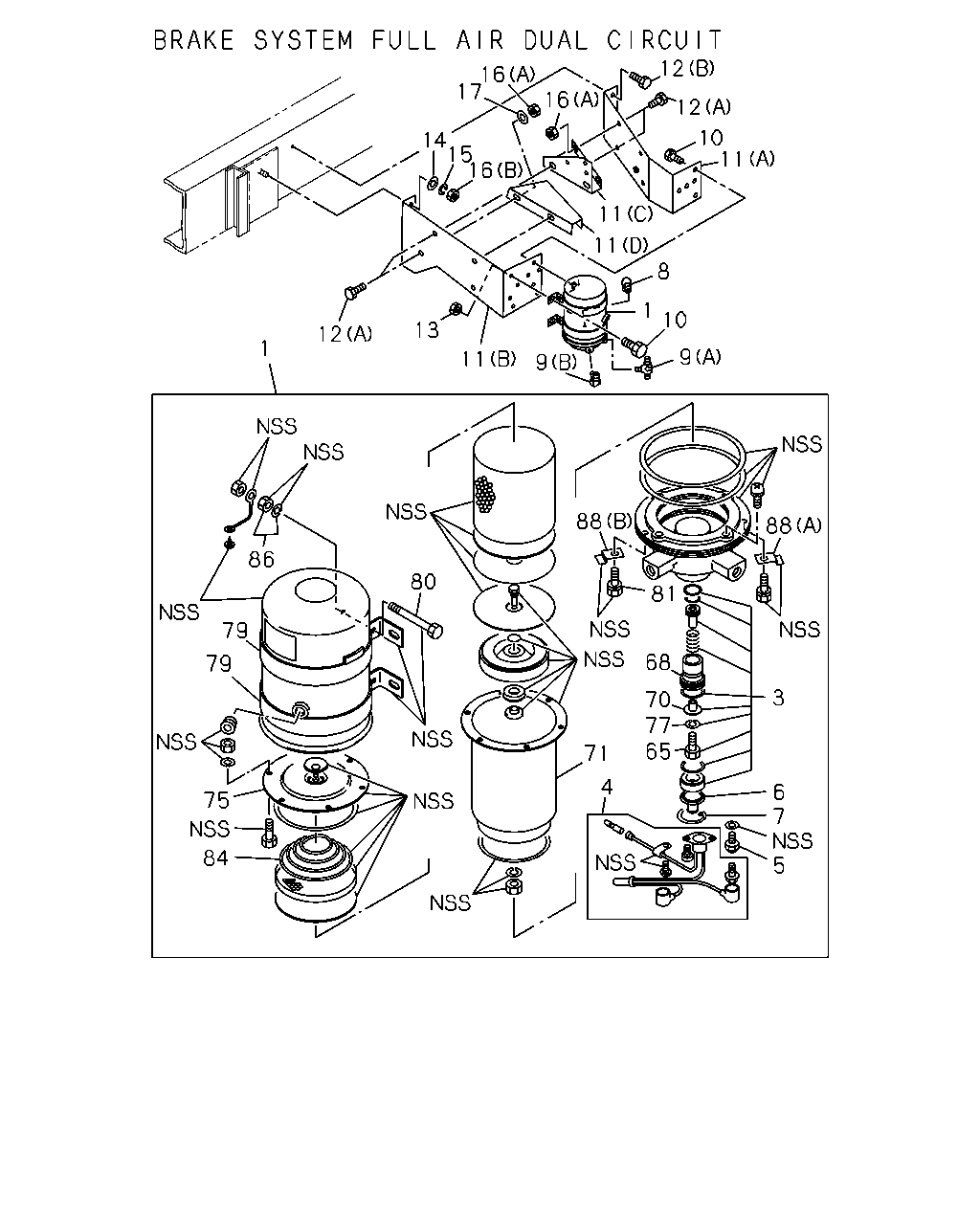

çizim 5093
5 7 6 4 71 65 77 70 3 68 81 88 88 80 84 75 79 79 86 1 12 13 11 9 9 10 1 8 11 11 11 10 12 12 16 16 17 14 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48190-054-1 01 1 9002-9306 ● ● ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-160-2 01 1 9307- ● ●
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48190-060-1 01 1 9002-9306 ● ●
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-057-1 01 1 9002- ● ● ● ●
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-084-0 01 1 9002-9306 ● ●
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-066-0 01 1 9002-9306 ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 9307- ● ●
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-085-0 01 1 9002-9306 ● ●
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-085-0 02 1 9002- ● ● ● ●
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-200-0 01 1 9002-9306 ● ●
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-101-0 01 1 9002- ● ● ● ●
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-132-0 01 1 9002-9306 ● ●
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-154-0 01 1 9002- ● ● ● ●
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-100-0 01 1 9002-9306 ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-178-1 01 1 9002-9302 ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 9303- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		9-09234-315-1 01 1 9002-9302 ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9303- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9002- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002-9306 ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) PT1/4 & M12 ELBOW 		1-09656-485-1 01 1 9002-9302 ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 9303-9306 ● ●
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 W/LK&PL WASHER 		9-01961-030-0 04 1 9002-9204 ● ● ● ●
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X30 W/LK&PL WASHER 		0-50141-030-0 04 1 9002-9204 ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 W/LK&PL WASHER 		0-50141-030-0 04 1 9205- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-53497-338-1 01 1 9002-9301 ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) 		1-53497-340-1 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) 		1-53497-341-1 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-53497-349-1 01 1 9302- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) 		1-53497-364-0 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B) 		1-53497-339-3 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48195-040-1 01 1 9002-9306 ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER 		9-01901-025-0 05 1 9002-9204 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER 		0-50041-025-0 05 1 9205- ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X35 		9-92051-435-0 02 1 9002-9003 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) M14X35 		9-92051-435-0 02 1 9002-9003 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40 		9-92051-440-0 02 1 9004-9005 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) M14X40 		9-92051-440-0 02 1 9004-9005 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40 		0-20801-440-0 02 1 9006- ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) M14X40 		0-20801-440-0 02 1 9006- ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9002-9306 ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 		9-09110-510-0 04 1 9002- ● ● ● ●
14 WASHER; PL,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=15 OD=26 		9-09164-514-0 02 1 9002-9003 ● ● ● ●
14 WASHER; PL,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=15 OD=26 		9-09164-514-0 04 1 9004- ● ● ● ●
15 WASHER; LK,BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=14.2 		9-09150-514-0 02 1 9002-9003 ● ● ● ●
15 WASHER; LK,BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> ID=14.2 		9-09150-514-0 02 1 9002-9003 ● ● ● ●
15 WASHER; LK,BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=14.2 		9-09150-514-0 04 1 9004- ● ● ● ●
16 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10 		9-09110-410-0 05 1 9002- ● ● ● ●
16 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B) M14 		9-99110-514-0 02 1 9002- ● ● ● ●
17 WASHER; PL,STAY,LWR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=10.5 OD=18 		9-09160-510-0 04 1 9002- ● ● ● ●
65 BOLT; PURGE VLV
AIR DRYER<PS7> 		1-48199-102-0 01 1 9308- ● ●
68 BODY; VALVE
AIR DRYER<PS7> 		1-48199-216-0 01 1 9308- ● ●
70 VALVE; AIR DRYER
AIR DRYER<PS7> 		1-48199-105-0 01 1 9308- ● ●
71 CASE; INNER,AIR DRYER
AIR DRYER<PS7> 		1-48199-156-1 01 1 9308- ● ●
75 COVER; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-167-0 01 1 9308- ● ●
77 WASHER; LK,VALVE
AIR DRYER<PS7> 		1-48199-103-0 01 1 9308- ● ●
79 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> 		1-53497-363-2 01 1 9307- ● ● ● ●
79 BRACKET; AIR DRYER
SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> 		1-53497-352-1 01 1 9307- ● ● ● ●
79 BRACKET; AIR DRYER
AIR DRYER<PS7> 		1-48199-189-0 02 1 9308- ● ●
80 BOLT; BRKT
AIR DRYER<PS7> 		1-48199-190-0 02 1 9308- ● ●
81 BOLT; CASE,AIR DRYER
AIR DRYER<PS7> 		1-48199-177-0 02 1 9308- ● ●
84 SPRING; AIR DRYER
AIR DRYER<PS7> 		1-48199-166-0 01 1 9308- ● ●
86 NUT; BRKT
AIR DRYER<PS7> 		1-48199-320-0 02 1 9308- ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 9308- ● ●
88 PLATE; STOPPER
AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 9308- ● ●

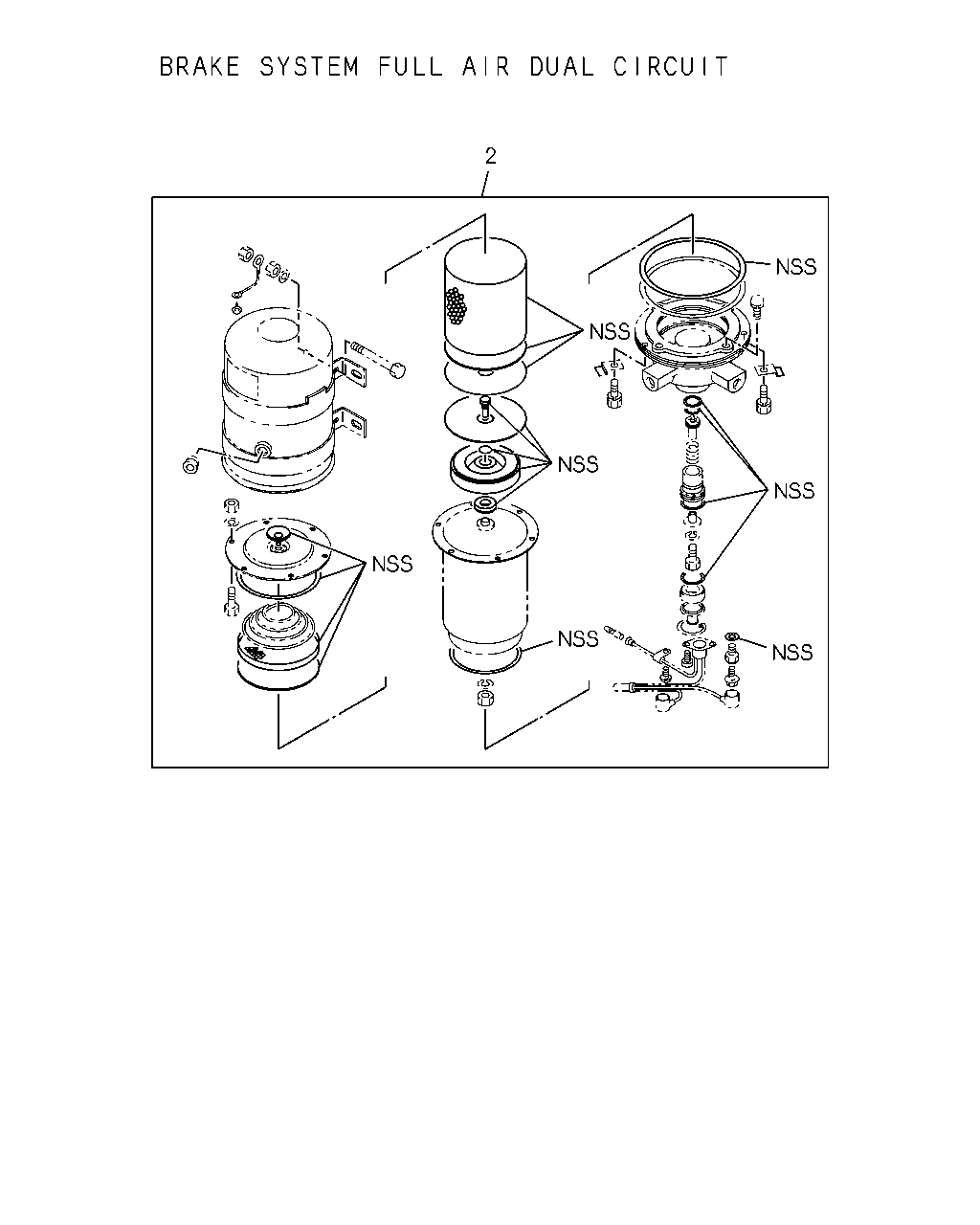

çizim 36541
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-055-1 01 1 9002- ● ● ● ●
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-083-0 01 1 9002-9306 ● ●

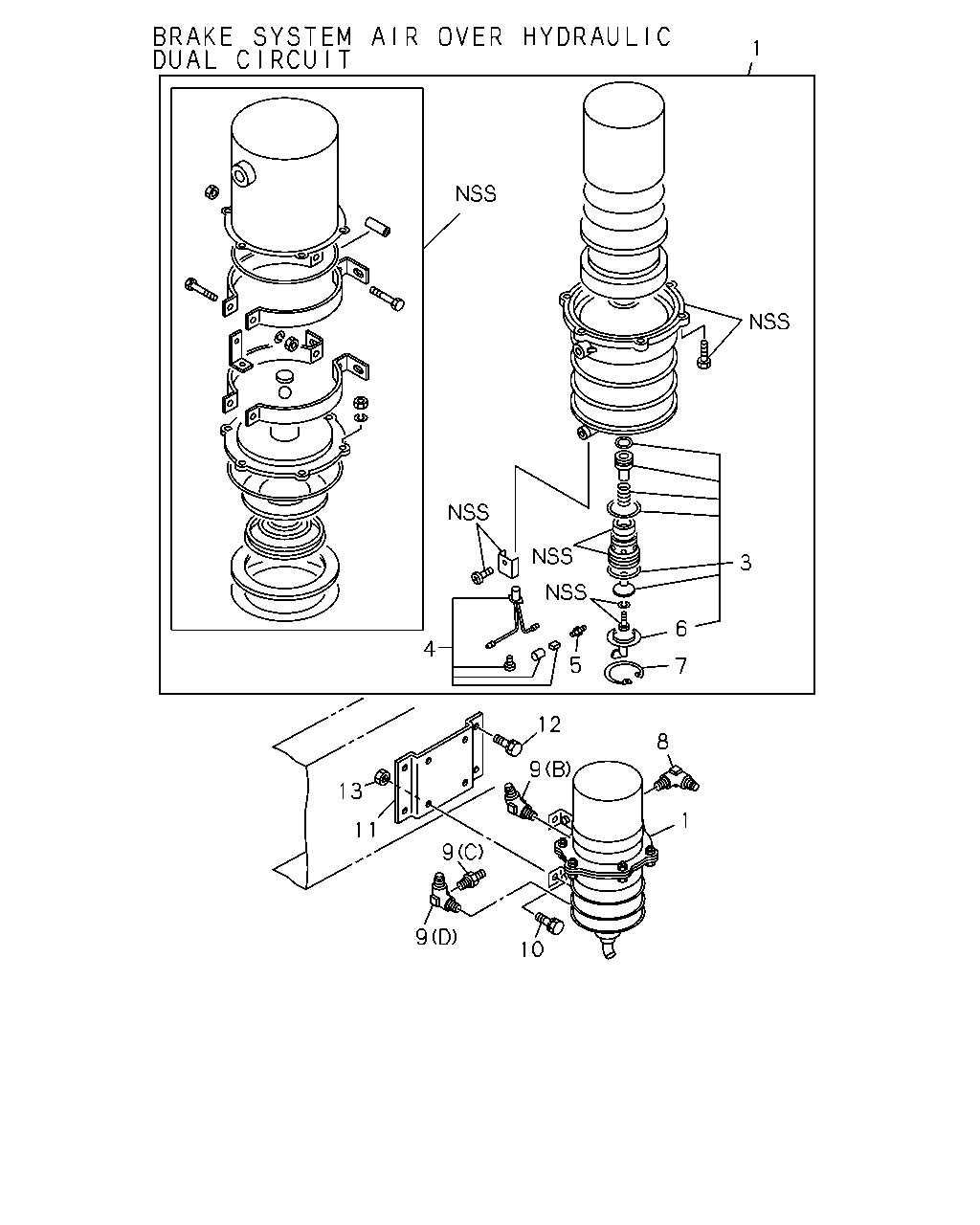

çizim 36769
10 9 9 11 13 9 12 8 1 7 6 5 4 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48190-054-1 01 1 9002-9306 ● ● ● ●
1 DRYER; AIR
AIR DRYER<PS7> 		1-48190-160-2 01 1 9307- ● ●
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48190-060-1 01 1 9002-9306 ● ●
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-057-1 01 1 9002- ● ● ● ●
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-084-0 01 1 9002-9306 ● ●
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-85576-066-0 01 1 9002-9306 ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7> 		1-85576-129-0 01 1 9307- ● ●
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-85576-085-0 01 1 9002-9306 ● ●
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-085-0 02 1 9002- ● ● ● ●
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-200-0 01 1 9002-9306 ● ●
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-101-0 01 1 9002- ● ● ● ●
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-132-0 01 1 9002-9306 ● ●
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-154-0 01 1 9002- ● ● ● ●
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48199-100-0 01 1 9002-9306 ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-178-1 01 1 9002-9302 ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
AIR DRYER<PS7> M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 9303- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		9-09234-315-1 01 1 9002-9302 ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (B) M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 9303- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 9002- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002-9306 ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) PT1/4 & M12 ELBOW 		1-09656-485-1 01 1 9002-9302 ● ●
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 9303-9306 ● ●
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 W/LK&PL WASHER 		9-01961-030-0 04 1 9002-9204 ● ● ● ●
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X30 W/LK&PL WASHER 		0-50141-030-0 04 1 9002-9204 ● ●
10 BOLT; AIR DRYER
AIR DRYER<PS7> M10X30 W/LK&PL WASHER 		0-50141-030-0 04 1 9205- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-53497-338-1 01 1 9002-9301 ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) 		1-53497-340-1 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (D) 		1-53497-341-1 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-53497-349-1 01 1 9302- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) 		1-53497-364-0 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> (B) 		1-53497-339-3 01 1 9002- ● ● ● ●
11 BRACKET; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		1-48195-040-1 01 1 9002-9306 ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER 		9-01901-025-0 05 1 9002-9204 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 W/LK WASHER 		0-50041-025-0 05 1 9205- ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X35 		9-92051-435-0 02 1 9002-9003 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) M14X35 		9-92051-435-0 02 1 9002-9003 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40 		9-92051-440-0 02 1 9004-9005 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) M14X40 		9-92051-440-0 02 1 9004-9005 ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M14X40 		0-20801-440-0 02 1 9006- ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIL PIPE SINGLE HORIZONTAL<NC2>,TAIL PIPE SINGLE HORIZONTAL TURN RIGHT<YH8> AIR DRYER<PS7> (B) M14X40 		0-20801-440-0 02 1 9006- ● ● ● ●
12 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9002-9306 ● ●
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 		9-09110-510-0 04 1 9002- ● ● ● ●
