◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#30205) — 44 parça

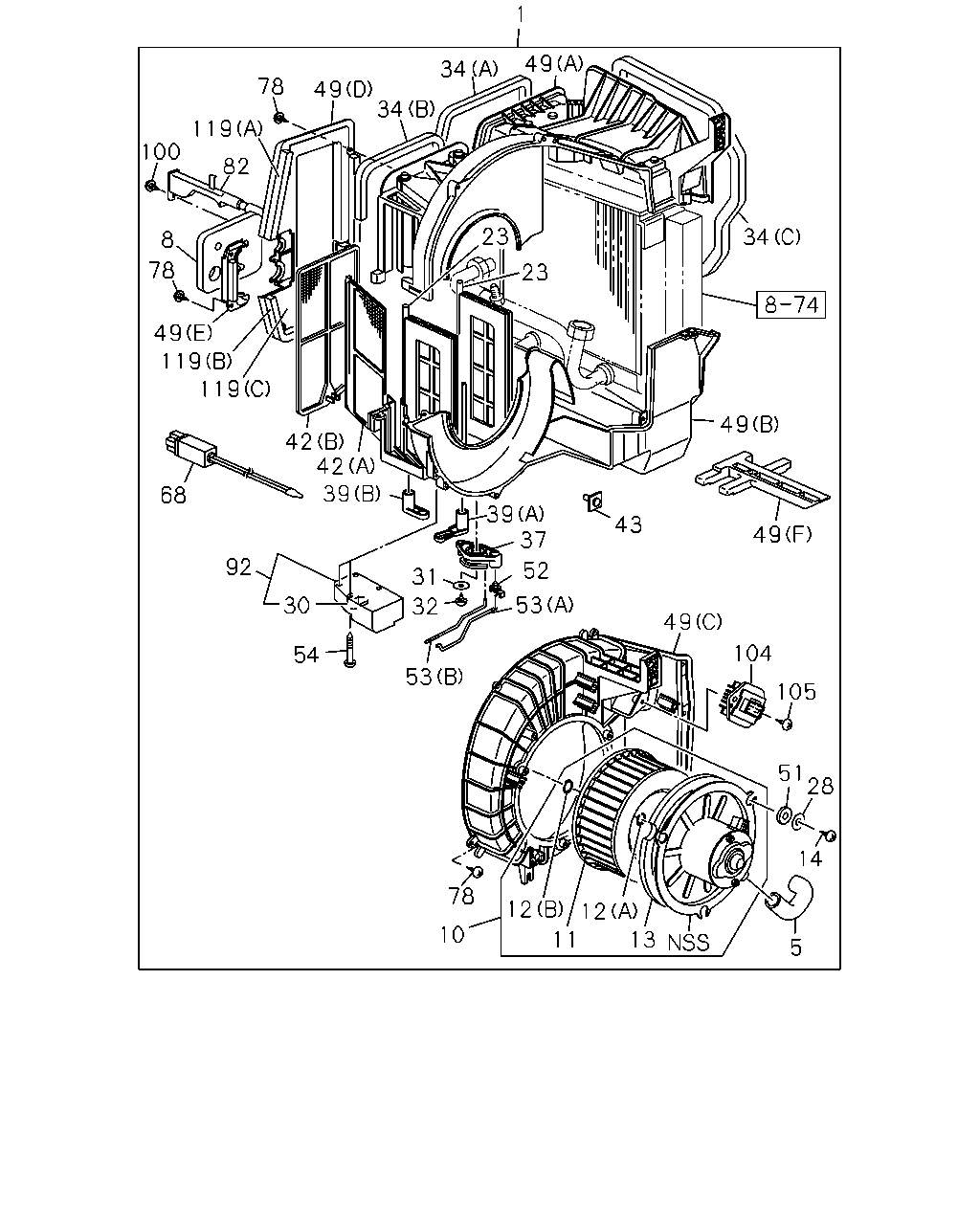

çizim 22589
1 49 34 78 49 34 119 100 82 23 34 8 78 23 49 119 119 49 42 42 39 68 39 37 43 49 92 52 31 53 30 32 49 104 54 53 105 51 28 14 78 12 12 10 13 11 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 1-83561-150-5 01 1 0107-
5 HOSE; AIR 1-83563-140-0 01 1 0107-
8 SEAL; BLOWER UNIT 1-83539-261-1 01 1 0107-
10 MOTOR ASM; FAN,BLOWER UNIT 1-83561-161-0 01 1 0107-
11 IMPELLER; FAN MOTOR 1-83579-635-0 01 1 0107-
12 RING; SNAP,FAN MOTOR
(A) 		5-83569-088-0 01 1 0107-
12 RING; SNAP,FAN MOTOR
(B) 		8-94243-962-0 01 1 0107-
13 LINING; BLOWER UNIT 1-83579-636-0 01 1 0107-
14 SCREW; COVER TO CASE 8-97130-601-0 04 1 0107-
23 SHUTTER; BLOWER UNIT 1-83579-637-0 02 1 0107-
28 WASHER; PL,FAN MOTOR 1-83579-170-0 03 1 0107-
30 LEVER; ACTUATOR 1-83564-345-1 01 1 0107-
31 WASHER; LEVER 1-83579-095-0 01 1 0107-
32 SCREW; LEVER 8-97130-601-0 01 1 0107-
34 LINING; BLOWER UNIT
(A) 		1-83579-633-2 01 1 0107-
34 LINING; BLOWER UNIT
(B) 		1-83579-634-2 01 1 0107-
34 LINING; BLOWER UNIT
(C) 		1-83579-644-0 01 1 0107-
37 LEVER; MODE LEVER 1-83564-344-0 01 1 0107-
39 LEVER; SHUTTER,BLOWER UNIT
(A) 		1-83564-342-0 01 1 0107-
39 LEVER; SHUTTER,BLOWER UNIT
(B) 		1-83564-343-0 01 1 0107-
42 FILTER; BLOWER UNIT
(B) 		1-83579-643-3 01 1 0107-
42 FILTER; BLOWER UNIT
(A) 		1-83579-993-0 02 1 0107-
43 BOLT; CASE 1-83579-657-2 04 1 0107-
49 CASE; BLOWER UNIT
(B) 		1-83564-336-6 01 1 0107-
49 CASE; BLOWER UNIT
(C) 		1-83564-337-4 01 1 0107-
49 CASE; BLOWER UNIT
(E) 		1-83564-339-1 01 1 0107-
49 CASE; BLOWER UNIT
(F) 		1-83564-340-1 01 1 0107-
49 CASE; BLOWER UNIT
(A) 		1-83564-351-1 01 1 0107-
49 CASE; BLOWER UNIT
(D) 		1-83564-353-1 01 1 0107-
51 ISOLATOR; BLOWER UNIT 1-83579-496-0 03 1 0107-
52 CLIP; LEVER TO CASE 8-94248-794-0 02 1 0107-
53 ROD; ACTUATOR,BLOWER UNIT
(A) 		1-83579-638-0 01 1 0107-
53 ROD; ACTUATOR,BLOWER UNIT
(B) 		1-83579-639-0 01 1 0107-
54 SCREW; ACTUATOR TO CASE 8-94348-809-0 02 1 0107-
68 THERMOSTAT; BLOWER UNIT 1-83544-026-1 01 1 0107-
78 SCREW; CASE TO CASE
M4X16 		8-94324-850-0 17 1 0107-
82 BRACKET; BLOWER UNIT 1-83571-871-1 01 1 0107-
92 ACTUATOR; BLOWER UNIT 1-83579-640-1 01 1 0107-
100 SCREW; BRKT
M4X16 		8-94324-850-0 01 1 0107-
104 RESISTOR; BLOWER UNIT 1-83519-092-0 01 1 0107-
105 SCREW; RESISTOR
M4X16 		8-94324-850-0 02 1 0107-
119 LINING; CASE
(A) 		1-83579-670-1 01 1 0107-
119 LINING; CASE
(B) 		1-83579-671-1 01 1 0107-
119 LINING; CASE
(C) 		1-83579-673-2 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
