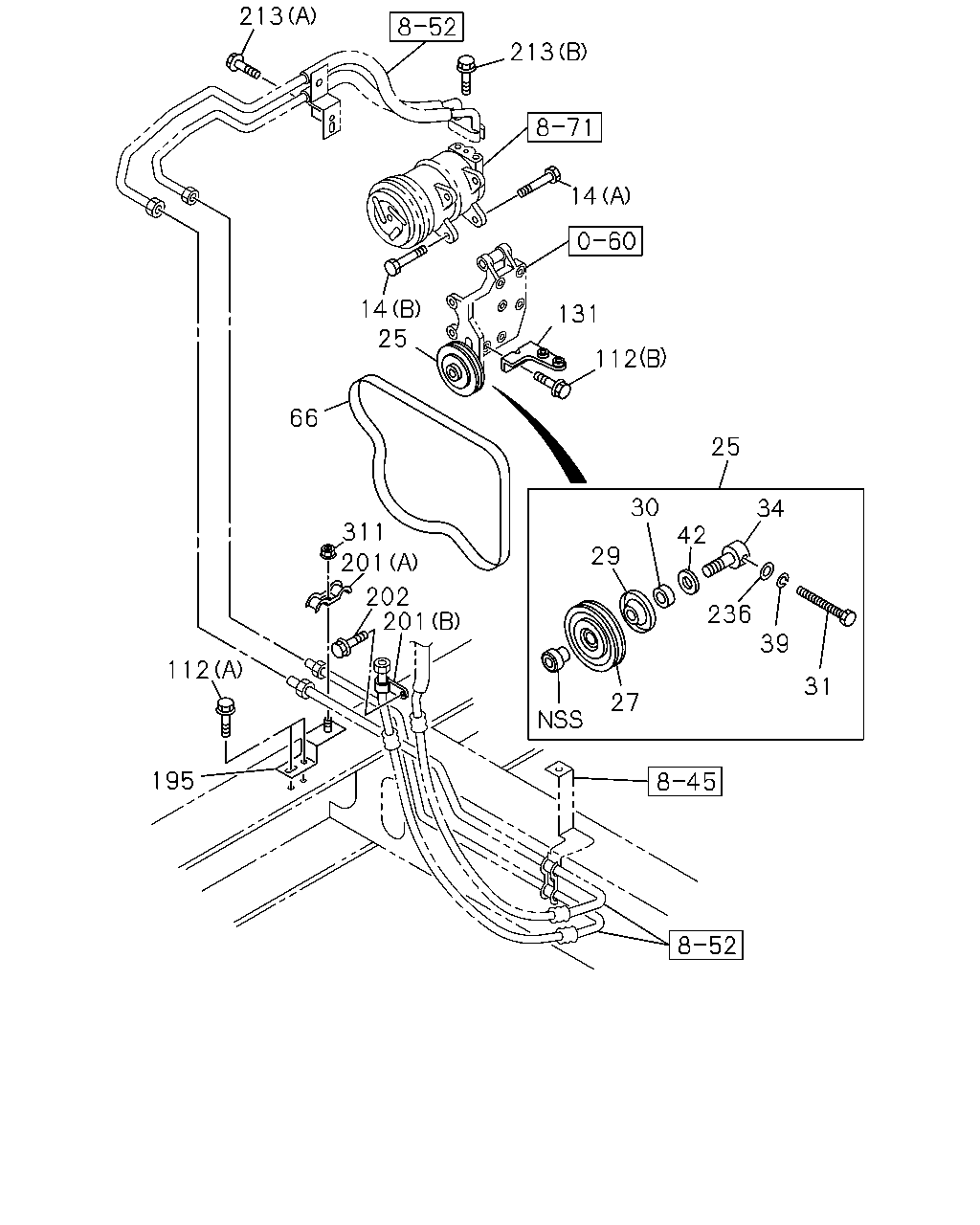

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#30201) — 32 parça
213
213
14
14
25
131
112
66
25
30
34
311
201
42
29
202
201
236
39
112
31
27
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
(A) M10X45 FLANGE
0-28081-045-0
02
1
0107-0512
14
BOLT; CMPR
(A) M10X45 FLANGE
0-28051-045-0
02
1
0601-
14
BOLT; CMPR
(B) M10X35 FLANGE
0-28681-035-0
02
1
0107-0512
14
BOLT; CMPR
(B) M10X35 FLANGE
0-28651-035-0
02
1
0601-
25
PULLEY ASM; IDLER,CMPR
8-94399-957-0
01
1
0107-
27
PULLEY; IDLE,A/C
1-83579-116-0
01
1
0107-
29
COVER; DUST,IDLE PULLEY
9-13369-603-0
01
1
0107-
30
COLLAR; IDLE PULLEY
1-83579-144-0
01
1
0107-
31
BOLT; ADJ,IDLE PULLEY
1-83579-143-0
01
1
0107-
34
SHAFT; IDLE PULLEY
1-83579-236-0
01
1
0107-
39
WASHER; LK,ADJ BOLT
ID=8.2
9-09150-608-0
01
1
0107-
42
WASHER; PULLEY
8-97014-636-0
01
1
0107-
66
BELT; A/C CMPR
L=1110
8-94395-172-0
01
1
0107-
112
BOLT; STAY
(B) M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
112
BOLT; STAY
(B) M8X16 FLANGE
0-28050-816-0
02
1
0601-
112
BOLT; STAY
(A) M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
112
BOLT; STAY
(A) M8X25 FLANGE
0-28650-825-0
02
1
0601-
131
STAY; CMPR BRKT
8-94393-451-0
01
1
0107-
195
STAY; CLIP
1-83573-088-0
01
1
0107-0301
195
STAY; CLIP
1-83573-172-0
01
1
0302-
201
CLIP; HOSE,CMPR TO EVAP
(A) ID=12.2 & 16.2
1-83574-190-0
01
1
0107-
201
CLIP; HOSE,CMPR TO EVAP
(B) ID=19 L=20
9-09525-836-0
01
1
0107-0606
201
CLIP; HOSE,CMPR TO EVAP
(B) ID=19 L=20
0-95235-836-0
01
1
0607-
202
BOLT; CLIP,FLEX HOSE
M8X25 FLANGE
0-28680-825-0
01
1
0107-0512
202
BOLT; CLIP,FLEX HOSE
M8X25 FLANGE
0-28650-825-0
01
1
0601-
213
BOLT; FLEX HOSE TO CMPR
(A) M8X25 FLANGE
0-28680-825-0
02
1
0107-0512
213
BOLT; FLEX HOSE TO CMPR
(A) M8X25 FLANGE
0-28650-825-0
02
1
0601-
213
BOLT; FLEX HOSE TO CMPR
(B) M10X45 FLANGE
0-28081-045-0
01
1
0107-0512
213
BOLT; FLEX HOSE TO CMPR
(B) M10X45 FLANGE
0-28051-045-0
01
1
0601-
236
WASHER; PL,ADJ BOLT
1-09503-216-0
01
1
0107-
311
NUT; HOSE CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
311
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
