◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#3020) — 120 parça
çizim 3902
1 2 10 34 35 37 36 40
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; SPRING 1-48250-400-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-400-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING 1-48250-399-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-399-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING 1-48250-368-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-368-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING 1-48250-562-0 01 1 9603- ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-562-0 01 1 9603- ●
1 CHAMBER ASM; SPRING 1-48250-367-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-367-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING 1-48250-563-0 01 1 9603- ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-563-0 01 1 9603- ●
2 CHAMBER; EMERGENCY 1-48259-254-0 02 1 9603- ●
2 CHAMBER; EMERGENCY
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-254-0 02 1 9603- ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-144-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-144-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-228-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-228-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-198-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-198-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-229-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-229-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-144-0 04 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-144-0 04 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-229-0 04 1 9201-9602 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-229-0 04 1 9201-9602 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-229-0 02 1 9603- ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-229-0 02 1 9603- ●
34 DIAPHRAGM
(A) 		1-48259-200-0 02 1 9002-9306 ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-200-0 02 1 9002-9306 ●
34 DIAPHRAGM
(B) 		1-48259-156-0 02 1 9002-9602 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-156-0 02 1 9002-9602 ● ●
34 DIAPHRAGM
(A) 		1-48259-148-0 02 1 9002- ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-148-0 02 1 9002- ●
35 PLATE; ROD END,SPR CHAMBER 1-48259-197-0 02 1 9002-9306 ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-197-0 02 1 9002-9306 ●
35 PLATE; ROD END,SPR CHAMBER 1-48259-143-0 02 1 9002- ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-143-0 02 1 9002- ●
36 RETAINER; SPR CHAMBER 1-48259-226-0 02 1 9002- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-226-0 02 1 9002- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48259-142-0 02 1 9002- ● ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-142-0 02 1 9002- ● ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-206-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-206-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-222-0 02 1 9201-9306 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-222-0 02 1 9201-9306 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-141-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-141-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-227-0 02 1 9201- ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-227-0 02 1 9201- ●

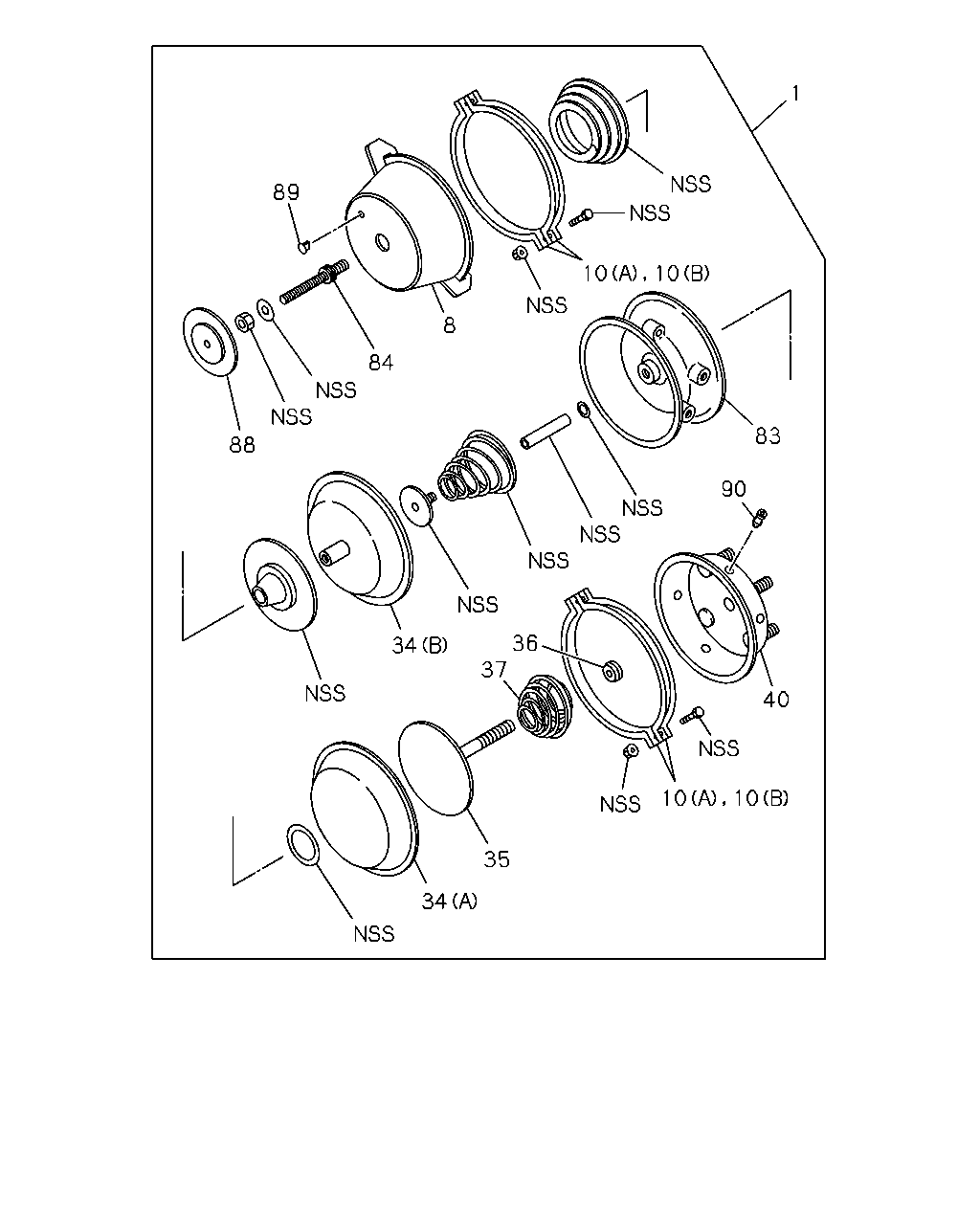

çizim 36088
1 10 10 8 84 88 89 83 90 40 10 10 35 34 37 36 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; SPRING 1-48250-400-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-400-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING 1-48250-399-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-399-1 01 1 9002-9306 ●
1 CHAMBER ASM; SPRING 1-48250-368-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-368-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING 1-48250-562-0 01 1 9603- ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-562-0 01 1 9603- ●
1 CHAMBER ASM; SPRING 1-48250-367-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-367-1 01 1 9002-9602 ●
1 CHAMBER ASM; SPRING 1-48250-563-0 01 1 9603- ●
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-563-0 01 1 9603- ●
8 SHELL; CYL,SPR CHAMBER 1-48259-157-0 02 1 9002-9112 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-157-0 02 1 9002-9112 ● ●
8 SHELL; CYL,SPR CHAMBER 1-48259-221-0 02 1 9201-9306 ● ●
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-221-0 02 1 9201-9306 ● ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-144-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-144-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
(B) 		1-48259-228-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-228-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-198-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-198-0 02 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-229-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-229-0 02 1 9201-9306 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-144-0 04 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-144-0 04 1 9002-9112 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-229-0 04 1 9201-9602 ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-229-0 04 1 9201-9602 ●
10 RING; CLAMP,SPR CHAMBER
(A) 		1-48259-229-0 02 1 9603- ●
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-229-0 02 1 9603- ●
34 DIAPHRAGM
(A) 		1-48259-200-0 02 1 9002-9306 ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-200-0 02 1 9002-9306 ●
34 DIAPHRAGM
(B) 		1-48259-156-0 02 1 9002-9602 ● ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		1-48259-156-0 02 1 9002-9602 ● ●
34 DIAPHRAGM
(A) 		1-48259-148-0 02 1 9002- ●
34 DIAPHRAGM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		1-48259-148-0 02 1 9002- ●
35 PLATE; ROD END,SPR CHAMBER 1-48259-197-0 02 1 9002-9306 ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-197-0 02 1 9002-9306 ●
35 PLATE; ROD END,SPR CHAMBER 1-48259-143-0 02 1 9002- ●
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-143-0 02 1 9002- ●
36 RETAINER; SPR CHAMBER 1-48259-226-0 02 1 9002- ● ●
36 RETAINER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-226-0 02 1 9002- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48259-142-0 02 1 9002- ● ●
37 SPRING; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-142-0 02 1 9002- ● ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-206-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-206-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-222-0 02 1 9201-9306 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-222-0 02 1 9201-9306 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-141-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-141-0 02 1 9002-9112 ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-227-0 02 1 9201- ●
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-227-0 02 1 9201- ●
83 ADAPTER; SPR CHAMBER 1-48259-201-0 02 1 9002-9112 ●
83 ADAPTER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-201-0 02 1 9002-9112 ●
83 ADAPTER; SPR CHAMBER 1-48259-223-0 02 1 9201-9306 ●
83 ADAPTER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-223-0 02 1 9201-9306 ●
83 ADAPTER; SPR CHAMBER 1-48259-149-0 02 1 9002-9112 ●
83 ADAPTER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-149-0 02 1 9002-9112 ●
83 ADAPTER; SPR CHAMBER 1-48259-230-0 02 1 9201-9602 ●
83 ADAPTER; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-230-0 02 1 9201-9602 ●
84 SCREW ASM; RELEASE 1-48259-161-0 02 1 9002-9602 ● ●
84 SCREW ASM; RELEASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-161-0 02 1 9002-9602 ● ●
88 PLUG; SPR CHAMBER 1-48259-165-0 02 1 9002-9112 ● ●
88 PLUG; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-165-0 02 1 9002-9112 ● ●
88 PLUG; SPR CHAMBER 1-48259-224-0 02 1 9201-9602 ● ●
88 PLUG; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-224-0 02 1 9201-9602 ● ●
89 RETAINER; PLUG 1-48259-225-0 02 1 9201-9602 ● ●
89 RETAINER; PLUG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-225-0 02 1 9201-9602 ● ●
90 GROMMET 1-48259-241-0 04 1 9505-9602 ●
90 GROMMET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-241-0 04 1 9505-9602 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
