8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#30196) — 22 parça

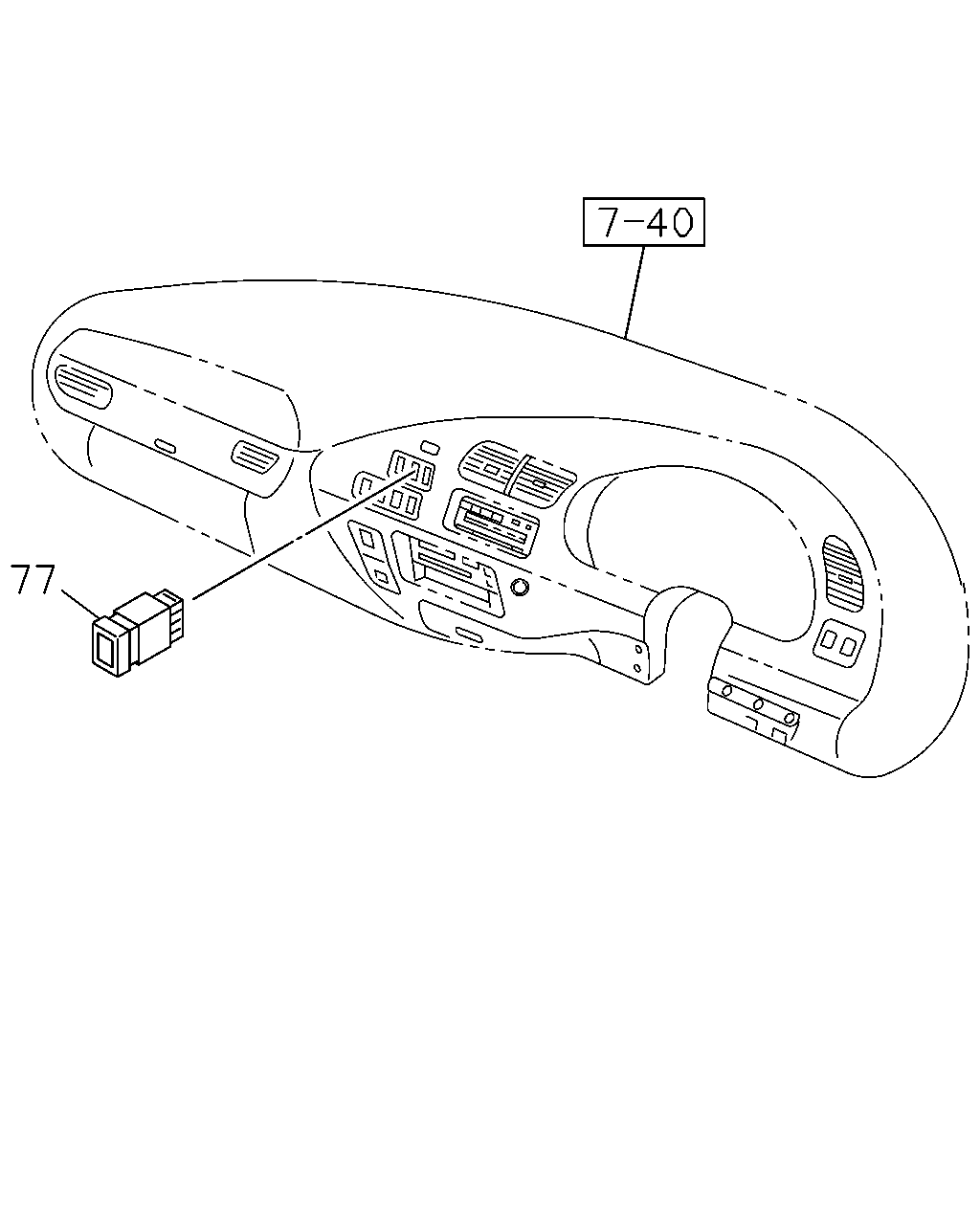

çizim 20307
77
BalonParca AdiParca NoAdetTipApplied Date
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0107-

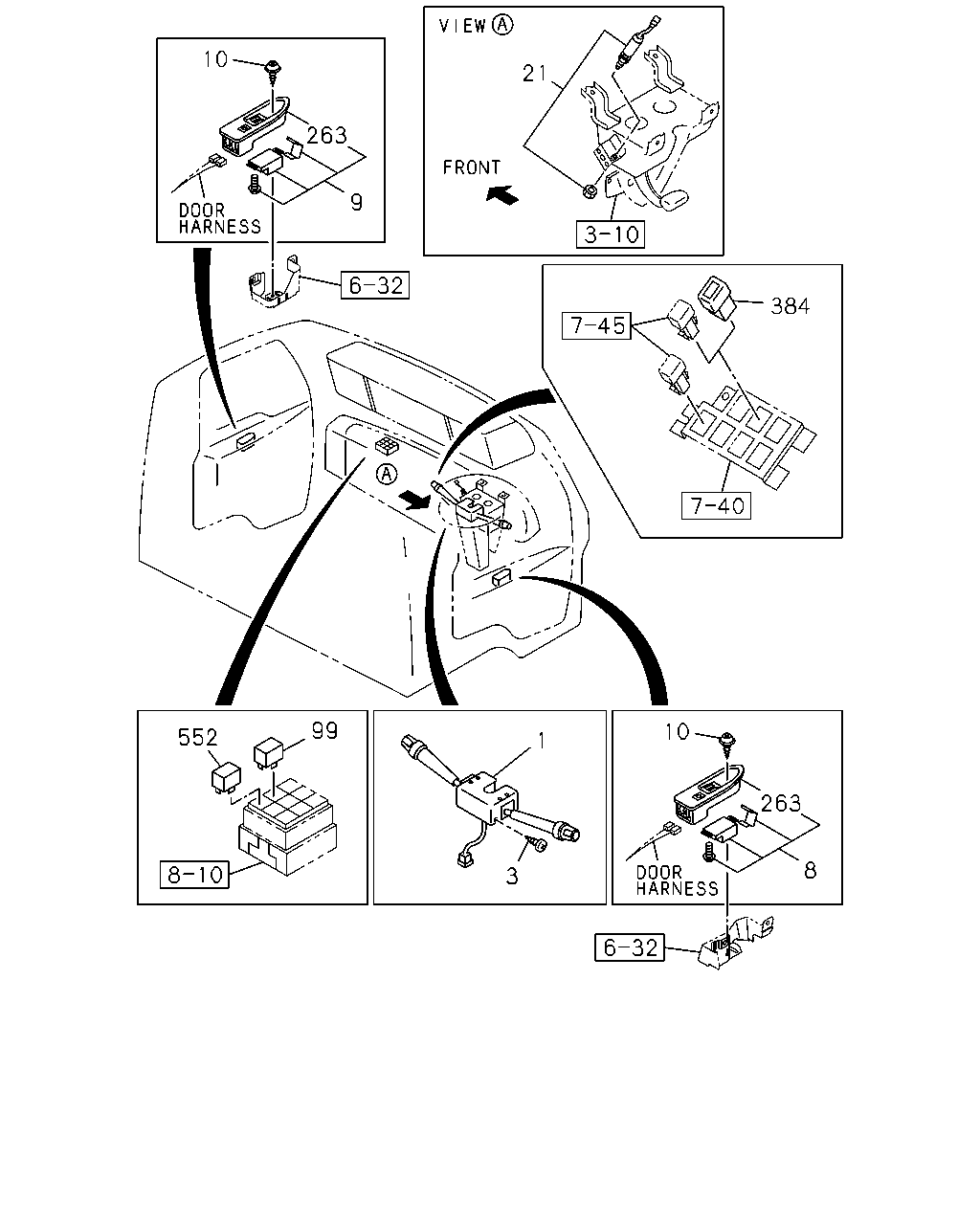

çizim 82327
10 21 263 9 384 99 10 552 1 263 8 3
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-619-0 01 1 0107-0312
1 SWITCH; COMB 1-82360-715-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0107-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
8 SWITCH; POWER WINDOW
DRIVER SIDE 		1-82380-155-4 01 1 0107-
9 SWITCH; POWER WINDOW
PASSENGER SIDE 		1-82380-154-3 01 1 0107-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0107-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
21 SWITCH; CLU 1-82440-116-1 01 1 0107-0608
21 SWITCH; CLU 1-82440-126-1 01 1 0609-
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0107-0111
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
263 COVER; SW
DRIVER SIDE 		1-82385-005-2 01 1 0107-
263 COVER; SW
PASSENGER SIDE 		1-82385-006-3 01 1 0107-
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0107-
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 0107-0111
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-

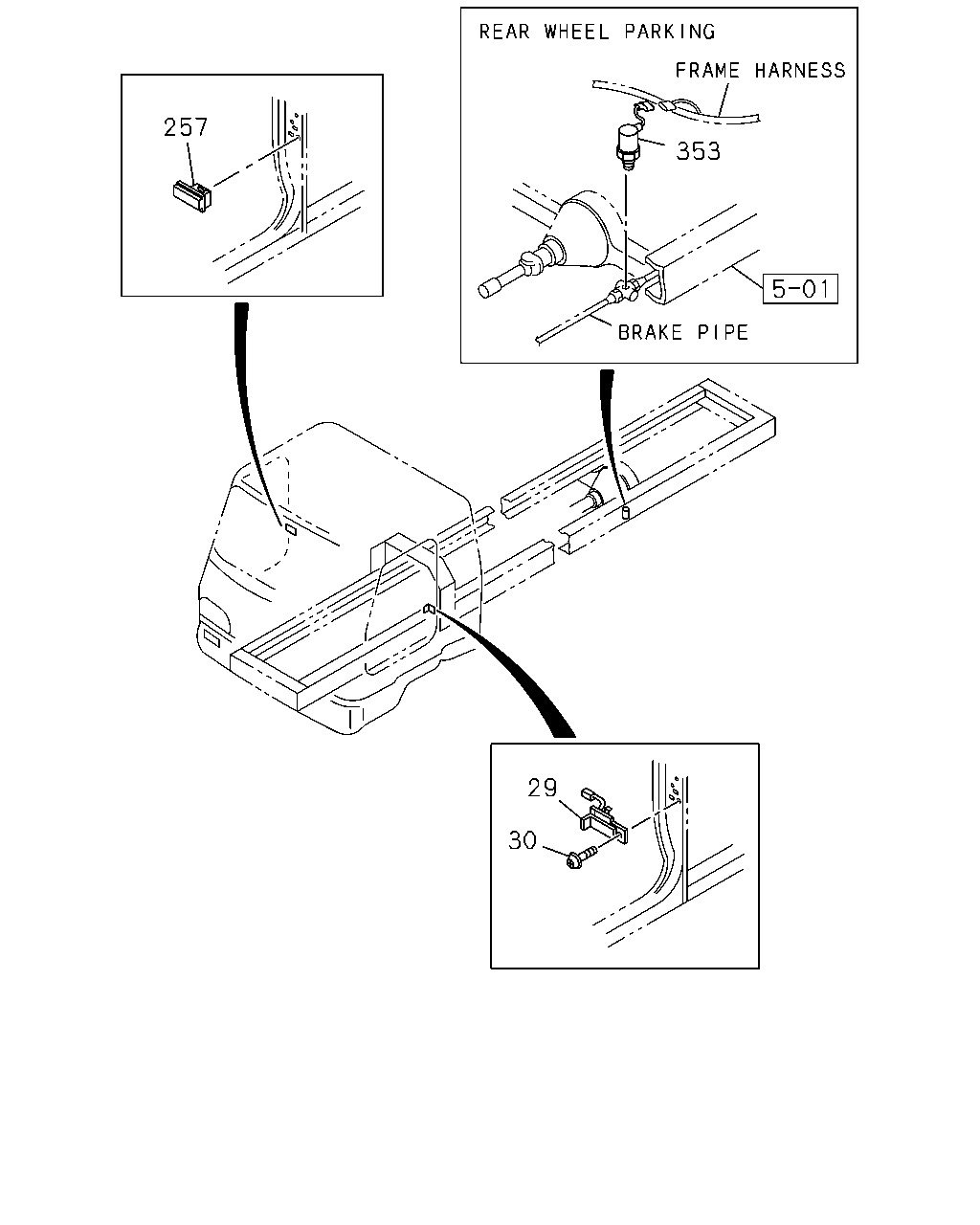

çizim 82582
257 353 29 30
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0107-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0107-
257 COVER; HOLE,SW 8-94229-914-1 01 1 0107-
353 SWITCH ASM; PARKING BRAKE 1-82410-163-1 01 1 0107-
