8-21 — METER ASM
(#30195) — 48 parça
◀

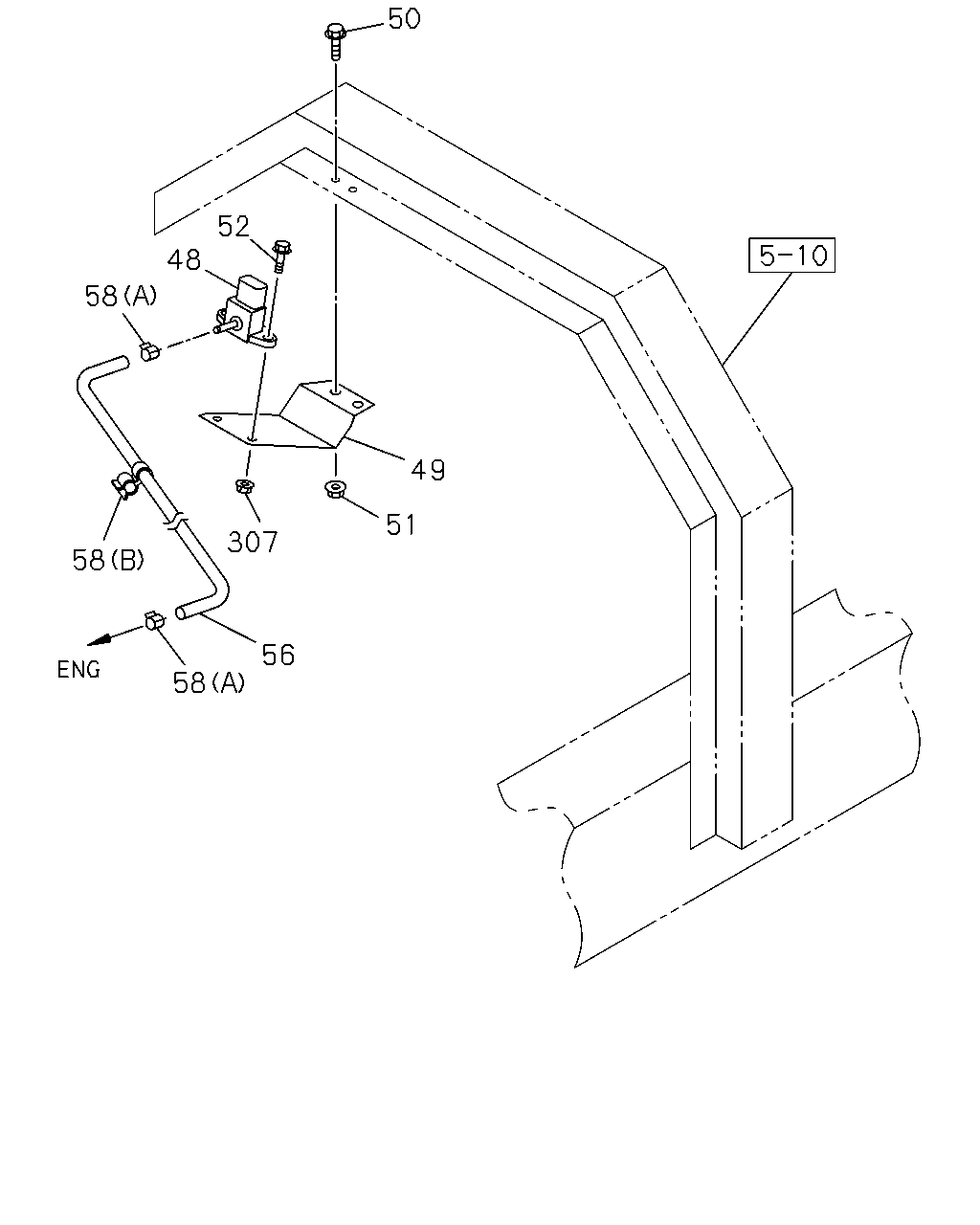

[821A] BOOST SENSOR (13 parça)
[821A] COMPONENT (24 parça)
[821A] METER AND CLUSTER ASM (11 parça)
▶
50
52
48
58
49
51
307
58
56
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
SENSOR; BOOST
1-81531-011-0
01
1
0107-
49
BRACKET; SENSOR
1-47479-242-1
01
1
0107-
50
BOLT; FIX
M8X20 FLANGE
0-28680-820-0
02
1
0107-0512
50
BOLT; FIX
M8X20 FLANGE
0-28650-820-0
02
1
0601-
51
NUT; FIX
M8 FLANGE
0-91150-108-0
02
1
0107-0602
51
NUT; FIX
M8 FLANGE
0-91180-108-0
02
1
0603-
52
BOLT; SENSOR
M6X16 FLANGE
0-28680-616-0
02
1
0107-0512
52
BOLT; SENSOR
M6X16 FLANGE
0-28650-616-0
02
1
0601-
56
HOSE; NIPPLE TO SENSOR
L=400 SERVICED BY L=3000
0-04740-300-0
01
1
0107-
58
CLIP; HOSE
(B) ID=8.3 & 12
8-94155-469-0
01
1
0107-
58
CLIP; HOSE
(A) ID=7.8
8-94246-958-0
02
1
0107-
307
NUT
M6 FLANGE
0-91150-106-0
02
1
0107-0602
307
NUT
M6 FLANGE
0-91180-106-0
02
1
0603-

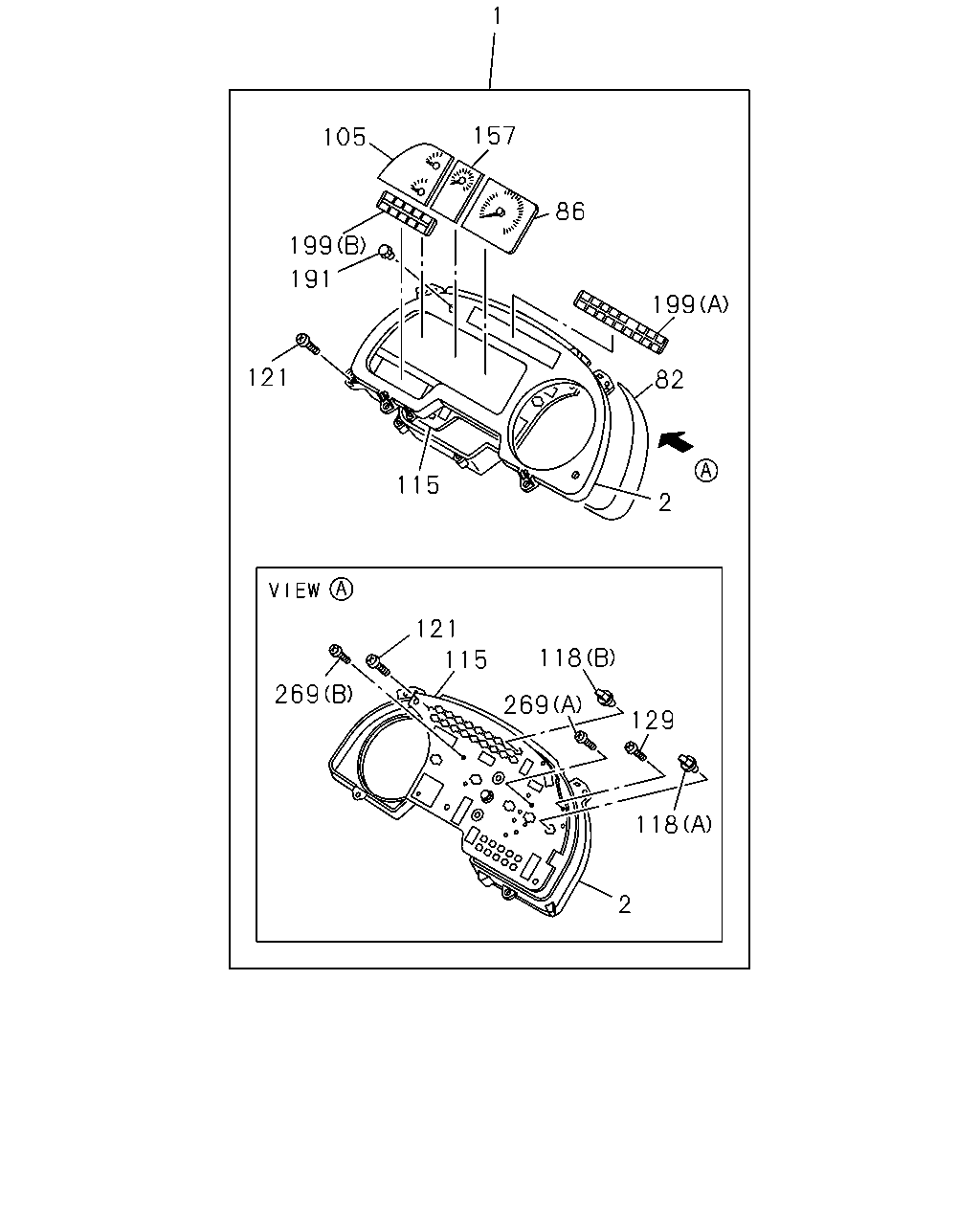

1
157
105
86
199
191
199
121
82
115
2
121
118
115
269
269
129
118
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
EXC. INDICATOR TAIL & STOP LAMP<YD6>
1-83116-122-0
01
1
0303-
1
METER COMPL; CLUSTER
1-83115-794-1
01
1
0107-0302
1
METER COMPL; CLUSTER
INDICATOR TAIL & STOP LAMP<YD6>
1-83115-794-1
01
1
0303-
2
PANEL; CLUSTER
1-83119-499-0
01
1
0107-
82
CASE ASM; CLUSTER METER
1-83119-432-0
01
1
0107-
86
TACHOMETER; CLUSTER METER
1-83120-922-0
01
1
0107-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-274-0
01
1
0107-
115
CIRCUIT; PRINTED,CLUSTER METER
EXC. INDICATOR TAIL & STOP LAMP<YD6>
1-83189-466-0
01
1
0303-
115
CIRCUIT; PRINTED,CLUSTER METER
1-83189-446-0
01
1
0107-0302
115
CIRCUIT; PRINTED,CLUSTER METER
INDICATOR TAIL & STOP LAMP<YD6>
1-83189-446-0
01
1
0303-
118
BULB; CLUSTER METER
EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET
1-82194-062-0
25
1
0303-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
0107-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
26
1
0107-0302
118
BULB; CLUSTER METER
INDICATOR TAIL & STOP LAMP<YD6> (B) 24V 1.8W BROWN SOCKET
1-82194-062-0
26
1
0303-
121
SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING
1-83119-442-0
08
1
0107-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
1-83119-052-0
10
1
0107-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-187-0
01
1
0107-
191
KNOB; BULB CHECK
1-83119-500-0
01
1
0107-
199
LENS; WARNING LAMP
(A)
1-83119-526-0
01
1
0107-
199
LENS; WARNING LAMP
(B)
1-83119-805-0
01
1
0107-
269
SCREW; METER CLUSTER
EXC. INDICATOR TAIL & STOP LAMP<YD6> (B) M3 TAPPING
1-83119-439-0
03
1
0303-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-439-0
04
1
0107-0302
269
SCREW; METER CLUSTER
INDICATOR TAIL & STOP LAMP<YD6> (B) M3 TAPPING
1-83119-439-0
04
1
0303-
269
SCREW; METER CLUSTER
(A) M3 TAPPING
1-83119-441-0
06
1
0107-

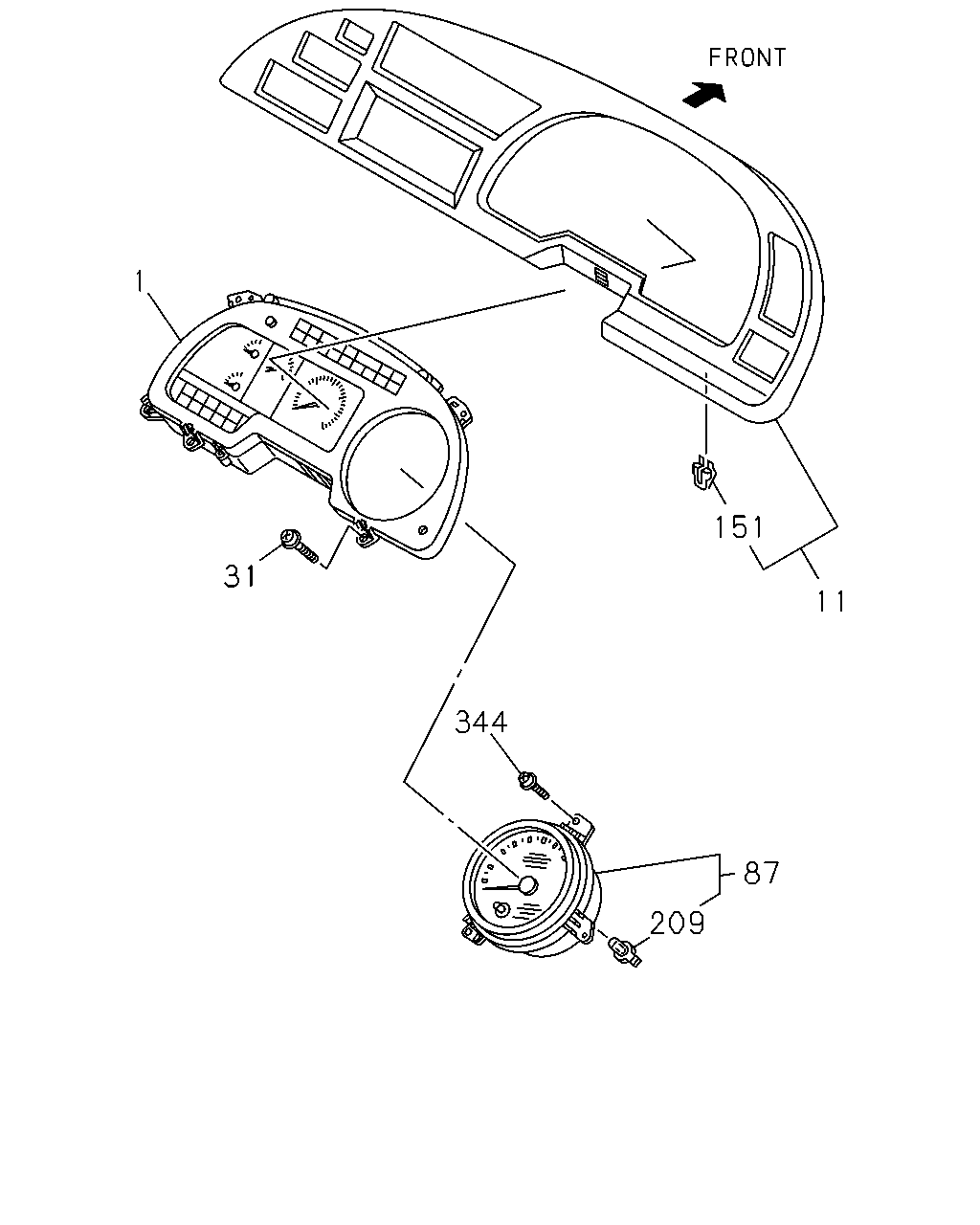

1
151
31
11
344
87
209
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
EXC. INDICATOR TAIL & STOP LAMP<YD6>
1-83116-122-0
01
1
0303-
1
METER COMPL; CLUSTER
1-83115-794-1
01
1
0107-0302
1
METER COMPL; CLUSTER
INDICATOR TAIL & STOP LAMP<YD6>
1-83115-794-1
01
1
0303-
11
CLUSTER ASM; METER
1-72418-012-9
01
1
0107-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0107-0604
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
87
SPEEDOMETER
1-83120-490-1
01
1
0107-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
0107-
209
BULB; SPEEDOMETER
24V 3W GREEN SOCKET
1-82194-061-0
02
1
0107-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0107-0604
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
