◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10891 - FTR34(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#30193) — 153 parça

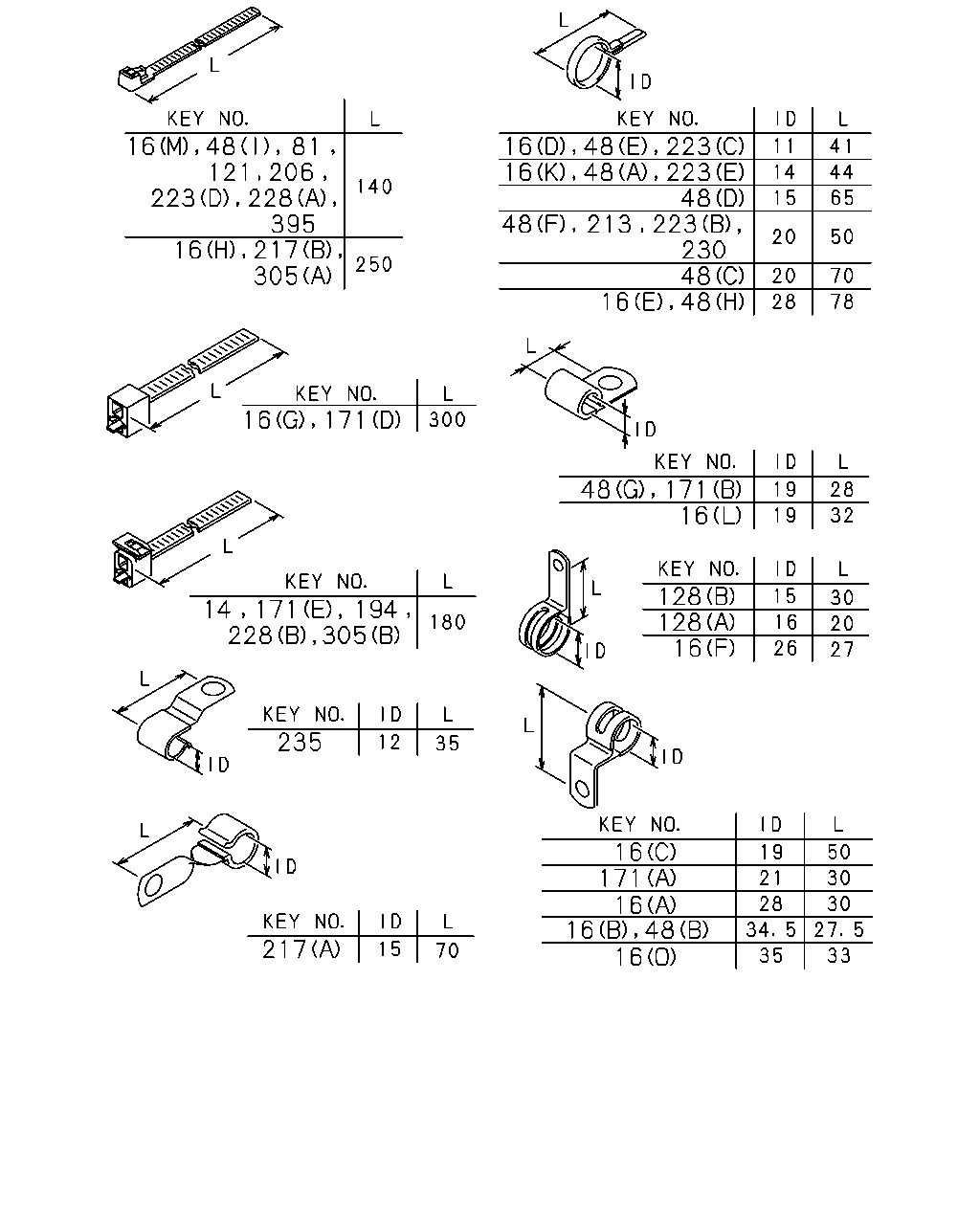

çizim 23880
16 48 81 206 121 223 228 16 217 305 16 171 14 171 194 305 228 235 217 16 48 16 16 171 16 16 128 128 16 171 48 48 16 48 230 223 213 48 48 223 48 16 16 48 223 395
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0107-0410
16 CLIP; HARNESS
(O) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411-
16 CLIP; HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 0107-
16 CLIP; HARNESS
(A) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-
16 CLIP; HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0107-
16 CLIP; HARNESS
(G) L=300 		1-09707-001-1 01 1 0107-
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
(M) L=140 		5-09707-031-1 01 1 0107-
16 CLIP; HARNESS
(N) ID=12 & 16.5 		8-94400-865-0 01 1 0107-
16 CLIP; HARNESS
(I) L=55 		8-94432-655-0 06 1 0107-
16 CLIP; HARNESS
(J) L=175 		8-97110-167-0 06 1 0107-
16 CLIP; HARNESS
(L) ID=19 L=32 		9-09525-866-0 01 1 0107-0606
16 CLIP; HARNESS
(L) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 0107-
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 14 1 0612-
48 CLIP; FRAME HARNESS
(E) ID=11 L=41 		1-09700-403-0 06 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 04 1 0107-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 04 1 0107-
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 04 1 0107-0107
48 CLIP; FRAME HARNESS
(I) L=140 		5-09707-031-1 03 1 0107-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 0107-0606
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 01 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0107-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=20 L=50 		9-09917-430-0 14 1 0107-0611
48 CLIP; FRAME HARNESS
(F) ID=20 L=50 		9-09917-430-0 14 1 0107-0611
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (F) ID=20 L=50 		9-09917-430-0 15 1 0612-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (F) ID=20 L=50 		9-09917-430-0 17 1 0107-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0107-
121 CLIP; FACIA HARNESS
L=140 		5-09707-031-1 01 1 0107-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0107-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0107-
171 CLIP; STARTER HARNESS
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0107-
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0107-
171 CLIP; STARTER HARNESS
(E) L=180 		1-09707-162-1 01 1 0107-
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0107-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0107-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 02 1 0107-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0107-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0107-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0107-0209
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0107-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0107-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0107-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0107-
223 CLIP; AIR TANK HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 0107-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0107-
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0107-0112
228 CLIP; COOLER HARNESS
(B) L=180 		1-09707-162-1 01 1 0201-0405
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0406-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0107-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0107-
305 CLIP; ENG HARNESS
(B) L=180 		1-09707-162-1 01 1 0107-
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 07 1 0107-
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0107-

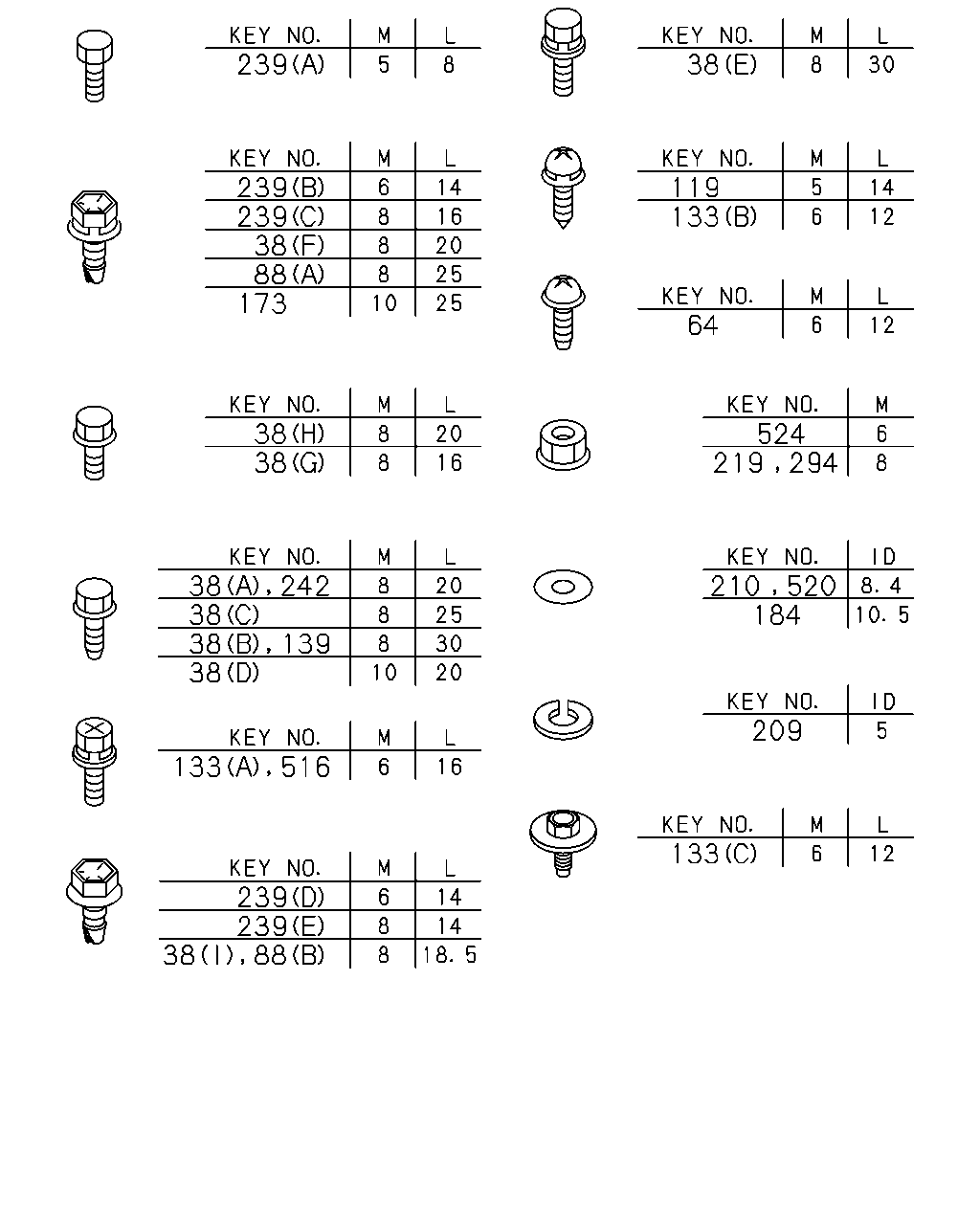

çizim 82358
239 38 239 239 38 88 173 119 133 64 38 38 524 38 38 38 184 139 209 133 239 239 210 520 219 294 133 516 38 242 88 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(G) M8X16 FLANGE 		0-28080-816-0 06 1 0107-0512
38 BOLT; CLIP,HARNESS
(G) M8X16 FLANGE 		0-28050-816-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28080-820-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0107-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0410
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0411-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M10X20 FLANGE 		0-28781-020-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(D) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0107-1201
38 BOLT; CLIP,HARNESS
(I) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0107-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0107-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0107-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0107-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0107-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0107-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0107-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0107-
219 NUT
M8 FLANGE 		0-91150-108-0 07 1 0107-0410
219 NUT
M8 FLANGE 		0-91150-108-0 08 1 0411-0602
219 NUT
M8 FLANGE 		0-91180-108-0 08 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0107-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0107-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0107-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0107-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0107-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 82359
224 178 178 178 530 513 510 335 342 59
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0107-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0107-
178 GROMMET; HARNESS
(C) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0107-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0107-
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 05 1 0107-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0107-
342 BRACKET; HARNESS CAB MTG
L=40 		1-47478-410-0 01 1 0107-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0107-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0107-0906
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0107-
çizim 82778
16 16 16 116 421 171 231 223 470 148 168 148 514
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0107-0410
16 CLIP; HARNESS
(O) ID=35 H=45 L=33 		1-09701-047-0 01 1 0411-
16 CLIP; HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 0107-
16 CLIP; HARNESS
(A) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-
16 CLIP; HARNESS
(F) ID=26 L=27 		1-09701-006-0 01 1 0107-
16 CLIP; HARNESS
(G) L=300 		1-09707-001-1 01 1 0107-
16 CLIP; HARNESS
(H) L=250 		5-09707-030-1 01 1 0107-
16 CLIP; HARNESS
(M) L=140 		5-09707-031-1 01 1 0107-
16 CLIP; HARNESS
(N) ID=12 & 16.5 		8-94400-865-0 01 1 0107-
16 CLIP; HARNESS
(I) L=55 		8-94432-655-0 06 1 0107-
16 CLIP; HARNESS
(J) L=175 		8-97110-167-0 06 1 0107-
16 CLIP; HARNESS
(L) ID=19 L=32 		9-09525-866-0 01 1 0107-0606
16 CLIP; HARNESS
(L) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(K) ID=14 L=44 		9-09917-427-0 03 1 0107-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0107-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 01 1 0107-
148 CLIP; BAND,HEADLAMP HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 01 1 0107-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0107-
171 CLIP; STARTER HARNESS
(A) ID=21 L=30 H=40 		1-09700-991-1 01 1 0107-
171 CLIP; STARTER HARNESS
(D) L=300 		1-09707-001-1 01 1 0107-
171 CLIP; STARTER HARNESS
(E) L=180 		1-09707-162-1 01 1 0107-
171 CLIP; STARTER HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0107-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 0107-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0107-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0107-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0107-
223 CLIP; AIR TANK HARNESS
(E) ID=14 L=44 		9-09917-427-0 02 1 0107-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 0107-
231 CLIP; BAND,OIL PRESS
OD=9 H=6 		1-09709-178-0 01 1 0107-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0107-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0107-
514 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0907-
