Isuzu WW
▶
TRUCKS
▶
FTR
▶
10891 - FTR34(RHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

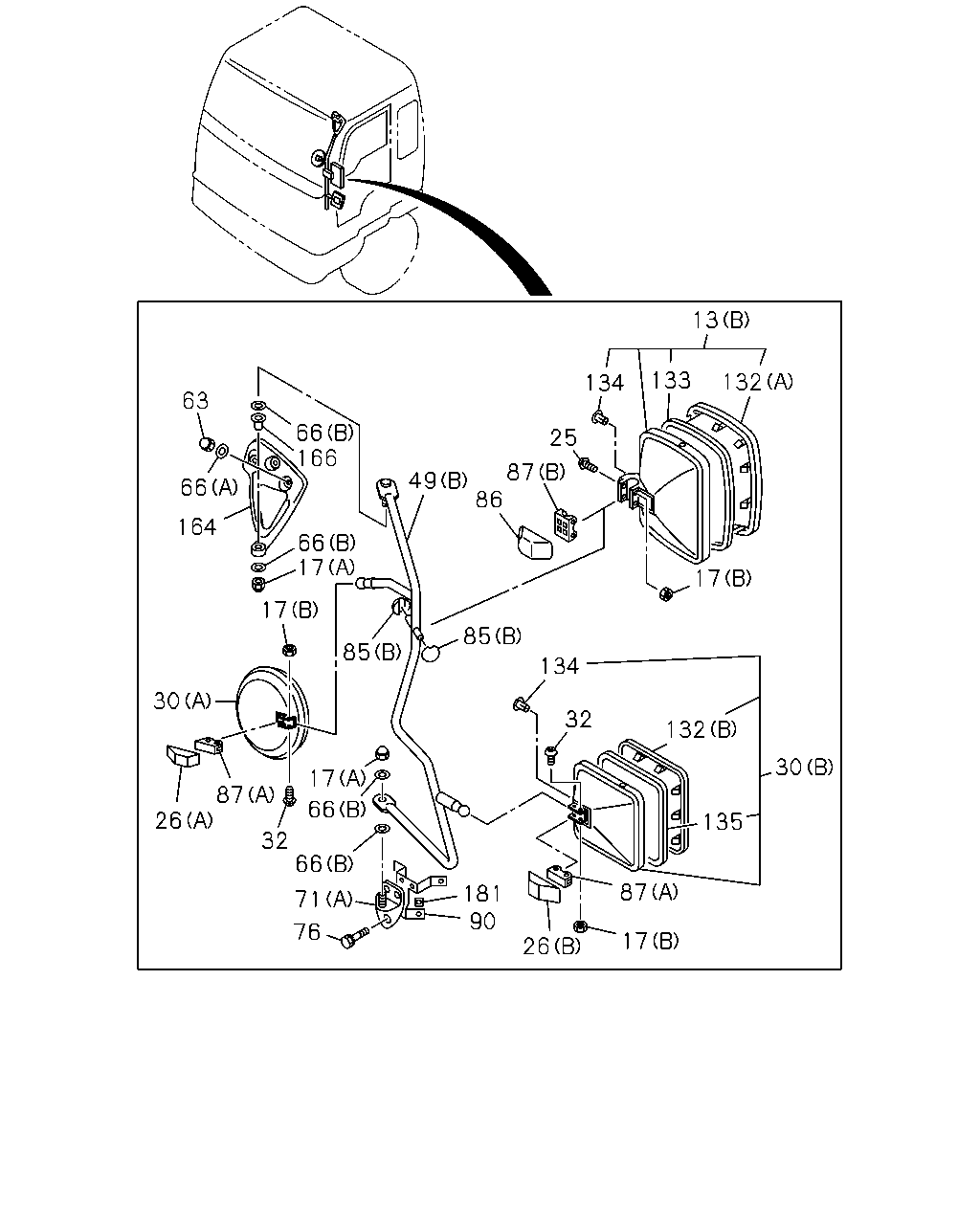

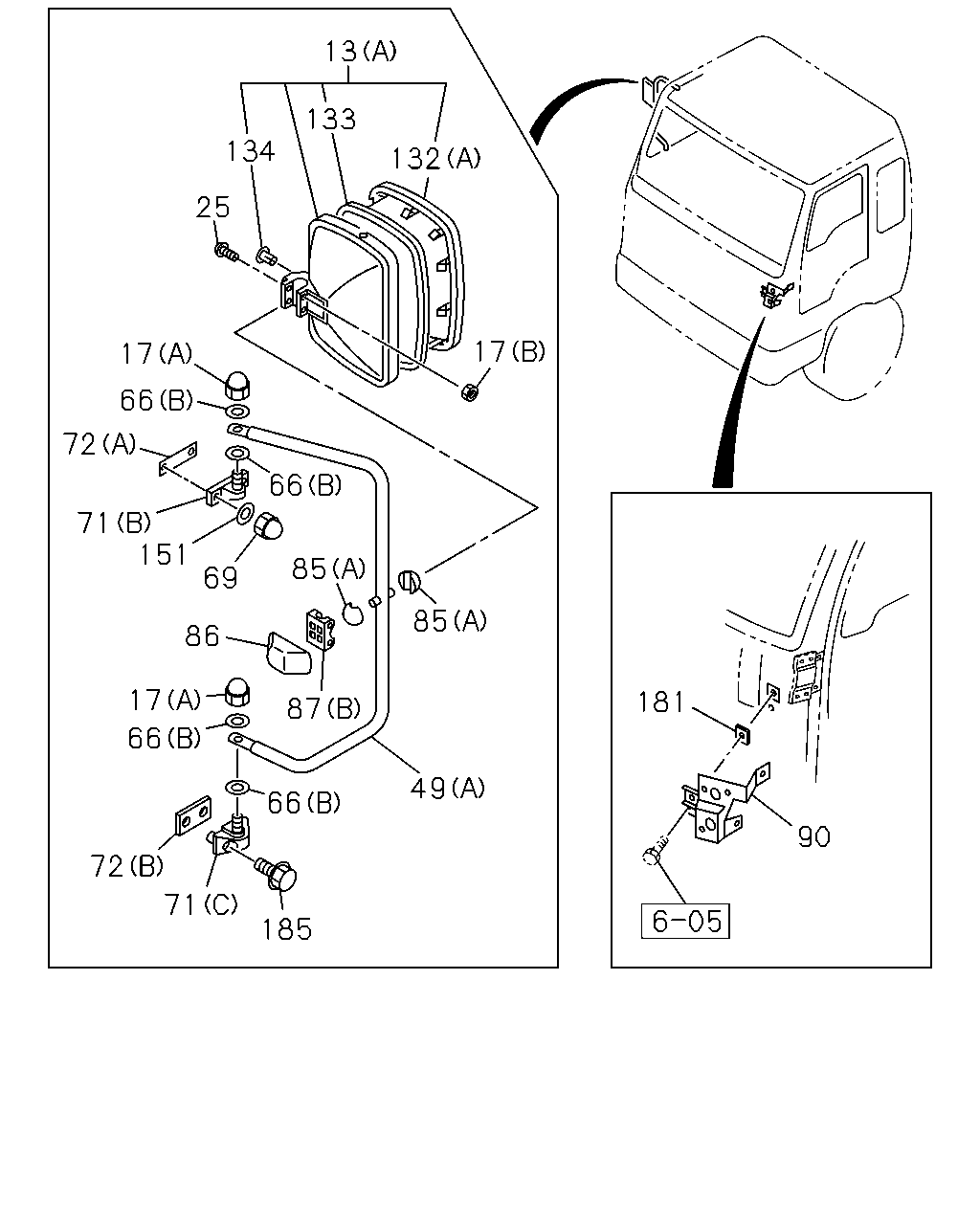

7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#30181) — 78 parça
◀
[720A] LH (39 parça)
[720A] ROOM MIRROR (2 parça)
[720A] RH (37 parça)
▶
13
133
132
134
63
66
166
25
87
49
86
66
164
66
17
17
17
85
85
134
30
32
132
30
17
87
66
26
135
32
66
87
181
90
71
26
76
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71737-917-3
01
1
0107-
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71737-918-3
01
1
0107-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
08
1
0107-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
04
1
0107-0208
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
04
1
0209-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
04
1
0107-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0405-
26
COVER; OUTSIDE MIRROR
(A) BLACK
1-71737-649-1
01
1
0107-
26
COVER; OUTSIDE MIRROR
(B) BLACK
1-71737-652-1
01
1
0107-
30
MIRROR; UNDER
(A)
1-71798-591-1
01
1
0107-
30
MIRROR; UNDER
(B)
1-71798-592-1
01
1
0107-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
04
1
0107-
49
STAY; MIRROR SIDE
(B)
1-71798-517-4
01
1
0107-
49
STAY; MIRROR SIDE
(A)
1-71798-490-3
01
1
0107-
63
NUT; STAY
M8
1-09984-187-0
03
1
0107-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0107-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0107-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
0107-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
0107-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
0107-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER
8-94279-183-1
03
1
0107-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
0107-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
0107-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
02
1
0107-
87
SPACER
(B)
1-71737-704-0
02
1
0107-
87
SPACER
(A)
1-71737-646-2
02
1
0107-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0107-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0107-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
(A)
1-71737-933-0
01
1
0107-
132
RING; MIRROR
(B)
1-71737-935-0
01
1
0107-
132
RING; MIRROR
(A)
1-71737-934-0
01
1
0107-
133
LENS; MIRROR,OUTSIDE
1-71737-926-0
01
1
0107-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
01
1
0107-
134
CLIP; MIRROR LENS
1-71737-936-0
03
1
0107-
135
LENS; MIRROR,SIDE UNDER
1-71737-929-0
01
1
0107-
164
STAY; ROOF
1-71798-299-4
01
1
0107-
166
BUSHING; STAY
1-09983-175-1
01
1
0107-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0107-
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73117-033-1
01
1
0107-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0107-
13
133
134
132
25
17
17
66
72
66
71
151
85
69
85
86
17
181
87
66
49
66
90
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71737-917-3
01
1
0107-
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71737-918-3
01
1
0107-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
08
1
0107-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
04
1
0107-0208
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
04
1
0209-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
04
1
0107-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0405-
49
STAY; MIRROR SIDE
(B)
1-71798-517-4
01
1
0107-
49
STAY; MIRROR SIDE
(A)
1-71798-490-3
01
1
0107-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0107-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0107-
69
NUT; CAP
M8
1-09984-187-0
02
1
0107-0809
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
02
1
0810-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
0107-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
0107-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
0107-
72
SHEET
(A)
1-71798-487-3
01
1
0107-
72
SHEET
(B)
1-71798-488-1
01
1
0107-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
0107-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
0107-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
02
1
0107-
87
SPACER
(B)
1-71737-704-0
02
1
0107-
87
SPACER
(A)
1-71737-646-2
02
1
0107-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0107-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0107-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
(A)
1-71737-933-0
01
1
0107-
132
RING; MIRROR
(B)
1-71737-935-0
01
1
0107-
132
RING; MIRROR
(A)
1-71737-934-0
01
1
0107-
133
LENS; MIRROR,OUTSIDE
1-71737-926-0
01
1
0107-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
01
1
0107-
134
CLIP; MIRROR LENS
1-71737-936-0
03
1
0107-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
0107-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0107-
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
02
1
0107-0512
185
BOLT; BRKT
M8X35 FLANGE
0-28660-835-0
02
1
0601-0605
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
02
1
0606-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
