Sayfa 3-34 - Isuzu EPC

3-34 — BRAKE VALVE; AIR (#3018) — 437 parça

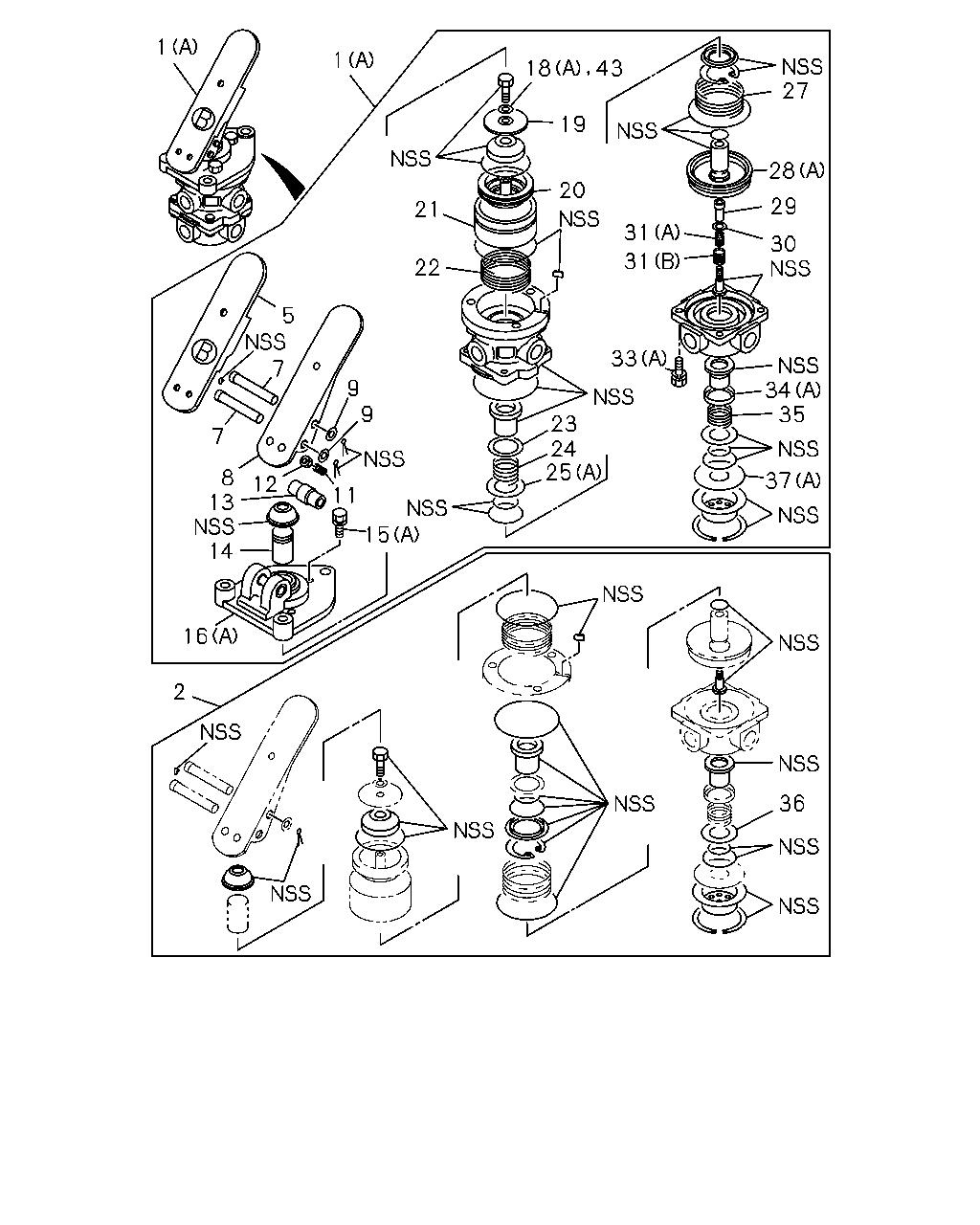

2 14 16 15 21 23 24 25 37 35 34 33 31 31 30 29 28 27 19 18 20 22 1 1 60 6 7 7 9 9 10 10 11 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; BRK (A) JKK	1-48100-653-1	01	1	9002-	●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-664-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (C) JKK	1-48100-683-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-576-3	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48100-576-3	01	1	9307-				●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) (C) JKK	1-48100-675-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-604-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48100-604-1	01	1	9307-				●
2	REPAIR KIT; BRK VLV JKK	1-85576-054-0	01	1	9002-9306	●	●
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-85576-054-0	01	1	9002-9306			●	●
2	REPAIR KIT; BRK VLV JKK	1-85576-054-0	01	1	9307-		●
6	PIN; PEDAL,SIDE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-083-0	02	1	9002-9306			●	●
6	PIN; PEDAL,SIDE,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-083-0	02	1	9002-9306			●	●
6	PIN; PEDAL,SIDE,BRK VLV (B) NABCO	1-48119-083-0	02	1	9307-				●
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-103-0	01	1	9003-9306			●	●
7	PIN; PEDAL,BRK VLV JKK	1-48119-244-0	02	1	9002-9306	●	●
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-244-0	02	1	9002-9306			●	●
7	PIN; PEDAL,BRK VLV JKK	1-48119-244-0	02	1	9307-		●
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-082-0	02	1	9002-9306			●	●
7	PIN; PEDAL,BRK VLV NABCO	1-48119-082-0	02	1	9307-				●
9	WASHER; PIN,BRK VLV JKK	1-48119-106-0	02	1	9002-9306	●	●
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-106-0	02	1	9002-9306			●	●
9	WASHER; PIN,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	1-48119-106-0	02	1	9002-9306			●	●
9	WASHER; PIN,BRK VLV JKK	1-48119-106-0	02	1	9307-		●
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) JKK OD=2.8 L=18	9-08113-018-0	02	1	9002-9306			●	●
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-087-0	02	1	9002-9306			●	●
10	PIN; SPLIT,BRK VLV NABCO	1-48119-087-0	02	1	9307-				●
11	SCREW; SET,BRK VLV JKK	1-48119-245-0	01	1	9002-9306	●	●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-245-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	1-48119-245-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV JKK	1-48119-245-0	01	1	9307-		●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-088-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV NABCO	1-48119-088-0	01	1	9307-				●
12	NUT; SCREW,PEDAL,BRK VLV JKK	9-88510-123-0	01	1	9002-9306	●	●
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	9-88510-123-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	9-88510-123-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV JKK	9-88510-123-0	01	1	9307-		●
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-089-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV NABCO	1-48119-089-0	01	1	9307-				●
13	ROLLER; PEDAL,BRK VLV JKK	1-48119-243-0	01	1	9002-9306	●	●
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-243-0	01	1	9002-9306			●	●
13	ROLLER; PEDAL,BRK VLV JKK	1-48119-243-0	01	1	9307-		●
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-257-0	01	1	9002-9306			●	●
13	ROLLER; PEDAL,BRK VLV NABCO	1-48119-257-0	01	1	9307-				●
14	PLUNGER; BRK VLV JKK	1-48119-306-0	01	1	9002-9306	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-306-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV JKK	1-48119-306-0	01	1	9307-		●
14	PLUNGER; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) NABCO	1-48119-315-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-220-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV NABCO	1-48119-220-0	01	1	9307-				●
15	BOLT; PLATE,BRK VLV (A) JKK	1-48219-039-0	03	1	9002-9306	●	●
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48219-039-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV (A) JKK	1-48219-039-0	03	1	9307-		●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-232-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-232-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV (B) NABCO	1-48119-232-0	03	1	9307-				●
16	PLATE; MTG,BRKT VLV (A) JKK	1-48119-268-0	01	1	9002-9306	●	●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-268-0	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV (A) JKK	1-48119-268-0	01	1	9307-		●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-261-2	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-261-2	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV (B) NABCO	1-48119-261-2	01	1	9307-				●
18	WASHER; LK,SEAT,BRK VLV (A) JKK	1-48419-002-0	01	1	9002-9306	●	●
18	WASHER; LK,SEAT,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48419-002-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-170-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-155-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (C) NABCO	1-48129-156-0	01	1	9002-			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) NABCO	1-48129-156-0	01	1	9002-			●	●
19	SEAT; SPRING,BRK VLV JKK	1-48123-058-0	01	1	9002-9306	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48123-058-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV JKK	1-48123-058-0	01	1	9307-		●
19	SEAT; SPRING,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) NABCO	1-48129-173-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48129-172-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV NABCO	1-48129-172-0	01	1	9307-				●
20	PISTON; UPR,BRK VLV JKK	1-48119-295-0	01	1	9002-9306	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-295-0	01	1	9002-9306			●	●
20	PISTON; UPR,BRK VLV JKK	1-48119-295-0	01	1	9307-		●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NABCO	1-48119-263-0	01	1	9002-			●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-251-0	01	1	9002-9306			●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NABCO	1-48119-251-0	01	1	9307-				●
21	BUSHING; UPR BODY JKK	1-48119-293-0	01	1	9002-9306	●	●
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5) JKK	1-48119-293-0	01	1	9002-9306			●	●
21	BUSHING; UPR BODY JKK	1-48119-293-0	01	1	9307-		●
22	SPRING; PISTON,LWR,BRK VLV	1-48143-009-0	01	1	9002-9306	●	●
22	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48143-009-0	01	1	9002-9306			●	●
22	SPRING; PISTON,LWR,BRK VLV	1-48143-009-0	01	1	9307-		●
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	9002-9306	●	●
23	WASHER; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-145-0	01	1	9002-9306			●	●
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	9307-		●
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	9002-9306	●	●
24	SPRING; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-018-0	01	1	9002-9306			●	●
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	9307-		●
25	WASHER; PISTON,BRK VLV (A) JKK	1-48129-287-0	01	1	9002-9306	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-287-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV (A) JKK	1-48129-138-0	01	1	9307-	●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-149-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-149-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV (B) NABCO	1-48129-149-0	01	1	9307-				●
27	SPRING; PISTON,LWR,BRK VLV	1-48123-020-0	01	1	9002-9306	●	●
27	SPRING; PISTON,LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5)	1-48123-020-0	01	1	9002-9306			●	●
27	SPRING; PISTON,LWR,BRK VLV	1-48123-020-0	01	1	9307-		●
27	SPRING; PISTON,LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5)	1-48123-021-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV (A) JKK	1-48129-140-0	01	1	9002-9306	●	●
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-140-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV (A) JKK	1-48129-140-0	01	1	9307-		●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48123-050-0	01	1	9002-			●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-249-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48119-249-0	01	1	9307-				●
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	9002-9306	●	●
29	SLEEVE; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-083-1	01	1	9002-9306			●	●
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	9307-		●
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	9002-9306	●	●
30	WASHER; SLEEVE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-082-0	01	1	9002-9306			●	●
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	9307-		●
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	9002-9306	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48123-032-0	01	1	9002-9306			●	●
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	9002-9306	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48123-033-0	01	1	9002-9306			●	●
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	9307-		●
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	9307-		●
33	BOLT; BODY,BRK VLV (A) JKK	1-48119-213-0	04	1	9002-9306	●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-213-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV (A) JKK	1-48119-213-0	04	1	9307-		●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-212-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-068-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-068-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV (B) NABCO	1-48129-068-0	04	1	9307-				●
34	RETAINER; VLV,BRK VLV (A) JKK	1-48129-144-0	01	1	9002-9306	●	●
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-144-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV (A) JKK	1-48129-144-0	01	1	9307-		●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48122-010-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48122-010-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV (B) NABCO	1-48122-010-0	01	1	9307-				●
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	9002-9306	●	●
35	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-019-0	01	1	9002-9306			●	●
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	9307-		●
37	WASHER; VLV LWR,BRK VLV (A) JKK	1-48129-080-0	01	1	9002-9306	●	●
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-080-0	01	1	9002-9306			●	●
37	WASHER; VLV LWR,BRK VLV (A) JKK	1-48129-080-0	01	1	9307-		●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-166-0	01	1	9002-			●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-163-0	01	1	9002-9306			●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48129-163-0	01	1	9307-				●
60	ROLLER & PIN SET; BRK VLV TAIWAN EQUIPMENT(WW5)	1-85576-122-1	01	1	9002-9306			●	●

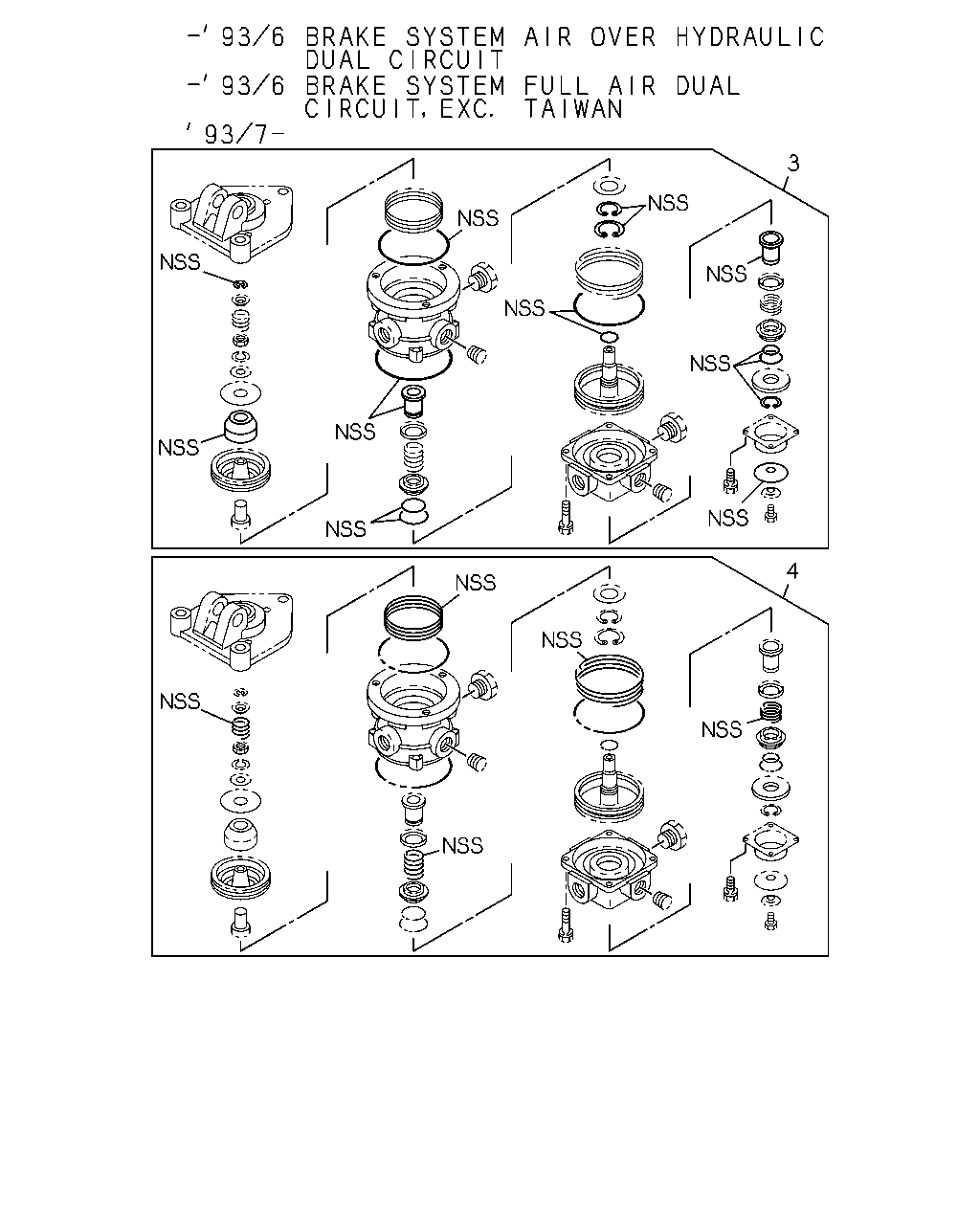

4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
3	REPAIR KIT; RUBBER,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-87830-373-0	01	1	9002-9306	●	●
3	REPAIR KIT; RUBBER,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NABCO	1-87830-373-0	01	1	9002-9306	●	●
3	REPAIR KIT; RUBBER,BRK VLV NABCO	1-87830-373-0	01	1	9307-		●
4	REPAIR KIT; SPRING,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NABCO	1-87830-375-0	01	1	9002-	●	●
4	REPAIR KIT; SPRING,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-87830-374-0	01	1	9002-9306	●	●
4	REPAIR KIT; SPRING,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NABCO	1-87830-374-0	01	1	9307-		●

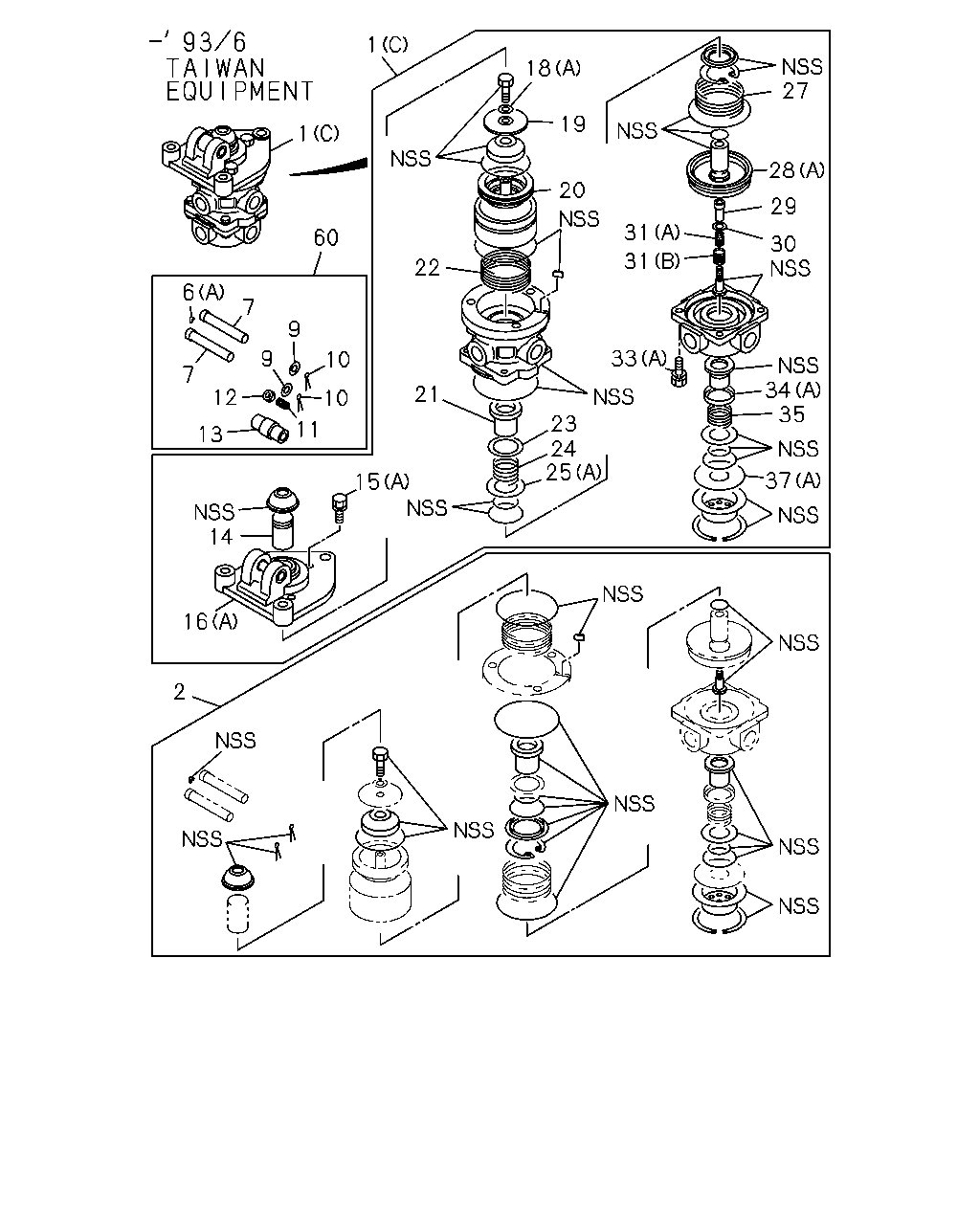

36 2 16 14 13 8 12 7 7 5 9 9 11 15 25 24 23 37 35 34 30 29 28 27 43 18 19 20 31 31 33 22 21 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; BRK (A) JKK	1-48100-653-1	01	1	9002-	●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-664-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (C) JKK	1-48100-683-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-576-3	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48100-576-3	01	1	9307-				●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) (C) JKK	1-48100-675-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-604-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48100-604-1	01	1	9307-				●
2	REPAIR KIT; BRK VLV JKK	1-85576-054-0	01	1	9002-9306	●	●
2	REPAIR KIT; BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-85576-054-0	01	1	9002-9306			●	●
2	REPAIR KIT; BRK VLV JKK	1-85576-054-0	01	1	9307-		●
5	COVER; PEDAL,BRK VLV	1-48119-246-0	01	1	9002-9408	●	●
5	COVER; PEDAL,BRK VLV	1-48119-333-0	01	1	9409-	●	●
7	PIN; PEDAL,BRK VLV JKK	1-48119-244-0	02	1	9002-9306	●	●
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-244-0	02	1	9002-9306			●	●
7	PIN; PEDAL,BRK VLV JKK	1-48119-244-0	02	1	9307-		●
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-082-0	02	1	9002-9306			●	●
7	PIN; PEDAL,BRK VLV NABCO	1-48119-082-0	02	1	9307-				●
8	PEDAL; BRK VLV	1-48119-296-0	01	1	9002-9408	●	●
8	PEDAL; BRK VLV	1-48119-332-0	01	1	9409-	●	●
9	WASHER; PIN,BRK VLV JKK	1-48119-106-0	02	1	9002-9306	●	●
9	WASHER; PIN,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-106-0	02	1	9002-9306			●	●
9	WASHER; PIN,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	1-48119-106-0	02	1	9002-9306			●	●
9	WASHER; PIN,BRK VLV JKK	1-48119-106-0	02	1	9307-		●
11	SCREW; SET,BRK VLV JKK	1-48119-245-0	01	1	9002-9306	●	●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-245-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	1-48119-245-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV JKK	1-48119-245-0	01	1	9307-		●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-088-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV NABCO	1-48119-088-0	01	1	9307-				●
12	NUT; SCREW,PEDAL,BRK VLV JKK	9-88510-123-0	01	1	9002-9306	●	●
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	9-88510-123-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	9-88510-123-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV JKK	9-88510-123-0	01	1	9307-		●
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-089-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV NABCO	1-48119-089-0	01	1	9307-				●
13	ROLLER; PEDAL,BRK VLV JKK	1-48119-243-0	01	1	9002-9306	●	●
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-243-0	01	1	9002-9306			●	●
13	ROLLER; PEDAL,BRK VLV JKK	1-48119-243-0	01	1	9307-		●
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-257-0	01	1	9002-9306			●	●
13	ROLLER; PEDAL,BRK VLV NABCO	1-48119-257-0	01	1	9307-				●
14	PLUNGER; BRK VLV JKK	1-48119-306-0	01	1	9002-9306	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-306-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV JKK	1-48119-306-0	01	1	9307-		●
14	PLUNGER; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) NABCO	1-48119-315-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-220-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV NABCO	1-48119-220-0	01	1	9307-				●
15	BOLT; PLATE,BRK VLV (A) JKK	1-48219-039-0	03	1	9002-9306	●	●
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48219-039-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV (A) JKK	1-48219-039-0	03	1	9307-		●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-232-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-232-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV (B) NABCO	1-48119-232-0	03	1	9307-				●
16	PLATE; MTG,BRKT VLV (A) JKK	1-48119-268-0	01	1	9002-9306	●	●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-268-0	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV (A) JKK	1-48119-268-0	01	1	9307-		●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-261-2	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-261-2	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV (B) NABCO	1-48119-261-2	01	1	9307-				●
18	WASHER; LK,SEAT,BRK VLV (A) JKK	1-48419-002-0	01	1	9002-9306	●	●
18	WASHER; LK,SEAT,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48419-002-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-170-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-155-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (C) NABCO	1-48129-156-0	01	1	9002-			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) NABCO	1-48129-156-0	01	1	9002-			●	●
19	SEAT; SPRING,BRK VLV JKK	1-48123-058-0	01	1	9002-9306	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48123-058-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV JKK	1-48123-058-0	01	1	9307-		●
19	SEAT; SPRING,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) NABCO	1-48129-173-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48129-172-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV NABCO	1-48129-172-0	01	1	9307-				●
20	PISTON; UPR,BRK VLV JKK	1-48119-295-0	01	1	9002-9306	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-295-0	01	1	9002-9306			●	●
20	PISTON; UPR,BRK VLV JKK	1-48119-295-0	01	1	9307-		●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NABCO	1-48119-263-0	01	1	9002-			●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-251-0	01	1	9002-9306			●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NABCO	1-48119-251-0	01	1	9307-				●
21	BUSHING; UPR BODY JKK	1-48119-293-0	01	1	9002-9306	●	●
21	BUSHING; UPR BODY TAIWAN EQUIPMENT(WW5) JKK	1-48119-293-0	01	1	9002-9306			●	●
21	BUSHING; UPR BODY JKK	1-48119-293-0	01	1	9307-		●
22	SPRING; PISTON,LWR,BRK VLV	1-48143-009-0	01	1	9002-9306	●	●
22	SPRING; PISTON,LWR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48143-009-0	01	1	9002-9306			●	●
22	SPRING; PISTON,LWR,BRK VLV	1-48143-009-0	01	1	9307-		●
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	9002-9306	●	●
23	WASHER; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-145-0	01	1	9002-9306			●	●
23	WASHER; UPR,BRK VLV	1-48129-145-0	01	1	9307-		●
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	9002-9306	●	●
24	SPRING; UPR,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-018-0	01	1	9002-9306			●	●
24	SPRING; UPR,BRK VLV	1-48123-018-0	01	1	9307-		●
25	WASHER; PISTON,BRK VLV (A) JKK	1-48129-287-0	01	1	9002-9306	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-287-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV (A) JKK	1-48129-138-0	01	1	9307-	●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-149-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-149-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV (B) NABCO	1-48129-149-0	01	1	9307-				●
27	SPRING; PISTON,LWR,BRK VLV	1-48123-020-0	01	1	9002-9306	●	●
27	SPRING; PISTON,LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5)	1-48123-020-0	01	1	9002-9306			●	●
27	SPRING; PISTON,LWR,BRK VLV	1-48123-020-0	01	1	9307-		●
27	SPRING; PISTON,LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5)	1-48123-021-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV (A) JKK	1-48129-140-0	01	1	9002-9306	●	●
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-140-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV (A) JKK	1-48129-140-0	01	1	9307-		●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48123-050-0	01	1	9002-			●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-249-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48119-249-0	01	1	9307-				●
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	9002-9306	●	●
29	SLEEVE; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-083-1	01	1	9002-9306			●	●
29	SLEEVE; VLV,BRK VLV	1-48129-083-1	01	1	9307-		●
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	9002-9306	●	●
30	WASHER; SLEEVE,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48129-082-0	01	1	9002-9306			●	●
30	WASHER; SLEEVE,BRK VLV	1-48129-082-0	01	1	9307-		●
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	9002-9306	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A)	1-48123-032-0	01	1	9002-9306			●	●
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	9002-9306	●	●
31	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (B)	1-48123-033-0	01	1	9002-9306			●	●
31	SPRING; VLV,BRK VLV (A)	1-48123-032-0	01	1	9307-		●
31	SPRING; VLV,BRK VLV (B)	1-48123-033-0	01	1	9307-		●
33	BOLT; BODY,BRK VLV (A) JKK	1-48119-213-0	04	1	9002-9306	●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-213-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV (A) JKK	1-48119-213-0	04	1	9307-		●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-212-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-068-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-068-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV (B) NABCO	1-48129-068-0	04	1	9307-				●
34	RETAINER; VLV,BRK VLV (A) JKK	1-48129-144-0	01	1	9002-9306	●	●
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-144-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV (A) JKK	1-48129-144-0	01	1	9307-		●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48122-010-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48122-010-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV (B) NABCO	1-48122-010-0	01	1	9307-				●
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	9002-9306	●	●
35	SPRING; VLV,BRK VLV TAIWAN EQUIPMENT(WW5)	1-48123-019-0	01	1	9002-9306			●	●
35	SPRING; VLV,BRK VLV	1-48123-019-0	01	1	9307-		●
36	RETAINER; GASKET,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-169-0	01	1	9002-			●	●
36	RETAINER; GASKET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-161-0	01	1	9002-9306			●	●
36	RETAINER; GASKET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-161-0	01	1	9307-				●
37	WASHER; VLV LWR,BRK VLV (A) JKK	1-48129-080-0	01	1	9002-9306	●	●
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-080-0	01	1	9002-9306			●	●
37	WASHER; VLV LWR,BRK VLV (A) JKK	1-48129-080-0	01	1	9307-		●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-166-0	01	1	9002-			●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-163-0	01	1	9002-9306			●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48129-163-0	01	1	9307-				●
43	WASHER; SPR SEAT,BRK VLV	1-48419-002-0	01	1	9307-		●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9307-				●

51 50 38 48 37 36 34 33 26 47 25 41 40 16 14 39 15 13 12 7 6 6 7 10 10 11 32 44 20 19 28 18 43 18 42 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; BRK (A) JKK	1-48100-653-1	01	1	9002-	●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-664-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (C) JKK	1-48100-683-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-576-3	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48100-576-3	01	1	9307-				●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) (C) JKK	1-48100-675-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48100-604-1	01	1	9002-9306			●	●
1	VALVE; BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48100-604-1	01	1	9307-				●
6	PIN; PEDAL,SIDE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-083-0	02	1	9002-9306			●	●
6	PIN; PEDAL,SIDE,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-083-0	02	1	9002-9306			●	●
6	PIN; PEDAL,SIDE,BRK VLV (B) NABCO	1-48119-083-0	02	1	9307-				●
6	PIN; PEDAL,SIDE,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-103-0	01	1	9003-9306			●	●
7	PIN; PEDAL,BRK VLV JKK	1-48119-244-0	02	1	9002-9306	●	●
7	PIN; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-244-0	02	1	9002-9306			●	●
7	PIN; PEDAL,BRK VLV JKK	1-48119-244-0	02	1	9307-		●
7	PIN; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-082-0	02	1	9002-9306			●	●
7	PIN; PEDAL,BRK VLV NABCO	1-48119-082-0	02	1	9307-				●
10	PIN; SPLIT,BRK VLV TAIWAN EQUIPMENT(WW5) JKK OD=2.8 L=18	9-08113-018-0	02	1	9002-9306			●	●
10	PIN; SPLIT,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-087-0	02	1	9002-9306			●	●
10	PIN; SPLIT,BRK VLV NABCO	1-48119-087-0	02	1	9307-				●
11	SCREW; SET,BRK VLV JKK	1-48119-245-0	01	1	9002-9306	●	●
11	SCREW; SET,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-245-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	1-48119-245-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV JKK	1-48119-245-0	01	1	9307-		●
11	SCREW; SET,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-088-0	01	1	9002-9306			●	●
11	SCREW; SET,BRK VLV NABCO	1-48119-088-0	01	1	9307-				●
12	NUT; SCREW,PEDAL,BRK VLV JKK	9-88510-123-0	01	1	9002-9306	●	●
12	NUT; SCREW,PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	9-88510-123-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) JKK	9-88510-123-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV JKK	9-88510-123-0	01	1	9307-		●
12	NUT; SCREW,PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-089-0	01	1	9002-9306			●	●
12	NUT; SCREW,PEDAL,BRK VLV NABCO	1-48119-089-0	01	1	9307-				●
13	ROLLER; PEDAL,BRK VLV JKK	1-48119-243-0	01	1	9002-9306	●	●
13	ROLLER; PEDAL,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-243-0	01	1	9002-9306			●	●
13	ROLLER; PEDAL,BRK VLV JKK	1-48119-243-0	01	1	9307-		●
13	ROLLER; PEDAL,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-257-0	01	1	9002-9306			●	●
13	ROLLER; PEDAL,BRK VLV NABCO	1-48119-257-0	01	1	9307-				●
14	PLUNGER; BRK VLV JKK	1-48119-306-0	01	1	9002-9306	●	●
14	PLUNGER; BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-306-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV JKK	1-48119-306-0	01	1	9307-		●
14	PLUNGER; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) NABCO	1-48119-315-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-220-0	01	1	9002-9306			●	●
14	PLUNGER; BRK VLV NABCO	1-48119-220-0	01	1	9307-				●
15	BOLT; PLATE,BRK VLV (A) JKK	1-48219-039-0	03	1	9002-9306	●	●
15	BOLT; PLATE,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48219-039-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV (A) JKK	1-48219-039-0	03	1	9307-		●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-232-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-232-0	03	1	9002-9306			●	●
15	BOLT; PLATE,BRK VLV (B) NABCO	1-48119-232-0	03	1	9307-				●
16	PLATE; MTG,BRKT VLV (A) JKK	1-48119-268-0	01	1	9002-9306	●	●
16	PLATE; MTG,BRKT VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-268-0	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV (A) JKK	1-48119-268-0	01	1	9307-		●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-261-2	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48119-261-2	01	1	9002-9306			●	●
16	PLATE; MTG,BRKT VLV (B) NABCO	1-48119-261-2	01	1	9307-				●
18	WASHER; LK,SEAT,BRK VLV (A) JKK	1-48419-002-0	01	1	9002-9306	●	●
18	WASHER; LK,SEAT,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48419-002-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-170-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-155-0	01	1	9002-9306			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (C) NABCO	1-48129-156-0	01	1	9002-			●	●
18	WASHER; LK,SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) NABCO	1-48129-156-0	01	1	9002-			●	●
19	SEAT; SPRING,BRK VLV JKK	1-48123-058-0	01	1	9002-9306	●	●
19	SEAT; SPRING,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48123-058-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV JKK	1-48123-058-0	01	1	9307-		●
19	SEAT; SPRING,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) NABCO	1-48129-173-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48129-172-0	01	1	9002-9306			●	●
19	SEAT; SPRING,BRK VLV NABCO	1-48129-172-0	01	1	9307-				●
20	PISTON; UPR,BRK VLV JKK	1-48119-295-0	01	1	9002-9306	●	●
20	PISTON; UPR,BRK VLV TAIWAN EQUIPMENT(WW5) JKK	1-48119-295-0	01	1	9002-9306			●	●
20	PISTON; UPR,BRK VLV JKK	1-48119-295-0	01	1	9307-		●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) NABCO	1-48119-263-0	01	1	9002-			●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) NABCO	1-48119-251-0	01	1	9002-9306			●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NABCO	1-48119-251-0	01	1	9307-				●
25	WASHER; PISTON,BRK VLV (A) JKK	1-48129-287-0	01	1	9002-9306	●	●
25	WASHER; PISTON,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-287-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV (A) JKK	1-48129-138-0	01	1	9307-	●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-149-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-149-0	01	1	9002-9306			●	●
25	WASHER; PISTON,BRK VLV (B) NABCO	1-48129-149-0	01	1	9307-				●
26	RETAINER; VLV,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48122-003-0	01	1	9002-9306			●	●
26	RETAINER; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48122-003-0	01	1	9002-9306			●	●
26	RETAINER; VLV,BRK VLV	1-48122-003-0	01	1	9307-				●
28	PISTON; LWR,BRK VLV (A) JKK	1-48129-140-0	01	1	9002-9306	●	●
28	PISTON; LWR,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-140-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV (A) JKK	1-48129-140-0	01	1	9307-		●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48123-050-0	01	1	9002-			●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48119-249-0	01	1	9002-9306			●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48119-249-0	01	1	9307-				●
32	SCREW; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48121-039-0	01	1	9002-			●	●
32	SCREW; BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48121-034-0	01	1	9002-9306			●	●
32	SCREW; BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48121-034-0	01	1	9307-				●
33	BOLT; BODY,BRK VLV (A) JKK	1-48119-213-0	04	1	9002-9306	●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-213-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV (A) JKK	1-48119-213-0	04	1	9307-		●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TAIWAN EQUIPMENT(WW5) (A) JKK	1-48119-212-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-068-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-068-0	04	1	9002-9306			●	●
33	BOLT; BODY,BRK VLV (B) NABCO	1-48129-068-0	04	1	9307-				●
34	RETAINER; VLV,BRK VLV (A) JKK	1-48129-144-0	01	1	9002-9306	●	●
34	RETAINER; VLV,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-144-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV (A) JKK	1-48129-144-0	01	1	9307-		●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48122-010-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48122-010-0	01	1	9002-9306			●	●
34	RETAINER; VLV,BRK VLV (B) NABCO	1-48122-010-0	01	1	9307-				●
36	RETAINER; GASKET,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-169-0	01	1	9002-			●	●
36	RETAINER; GASKET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-161-0	01	1	9002-9306			●	●
36	RETAINER; GASKET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-161-0	01	1	9307-				●
37	WASHER; VLV LWR,BRK VLV (A) JKK	1-48129-080-0	01	1	9002-9306	●	●
37	WASHER; VLV LWR,BRK VLV TAIWAN EQUIPMENT(WW5) (A) JKK	1-48129-080-0	01	1	9002-9306			●	●
37	WASHER; VLV LWR,BRK VLV (A) JKK	1-48129-080-0	01	1	9307-		●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) NABCO	1-48129-166-0	01	1	9002-			●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) (B) NABCO	1-48129-163-0	01	1	9002-9306			●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) NABCO	1-48129-163-0	01	1	9307-				●
38	COVER; EXH,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48119-217-0	01	1	9002-9306			●	●
38	COVER; EXH,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-217-0	01	1	9002-9306			●	●
38	COVER; EXH,BRK VLV	1-48119-217-0	01	1	9307-				●
39	BOOT; PLUNGER,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48119-079-0	01	1	9002-9306			●	●
39	BOOT; PLUNGER,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-079-0	01	1	9002-9306			●	●
39	BOOT; PLUNGER,BRK VLV	1-48119-079-0	01	1	9307-				●
40	PIPE; PLATE,BRK VLV EXC. TAIWAN EQUIPMENT(WW5)	1-48119-086-0	01	1	9002-9306			●	●
40	PIPE; PLATE,BRK VLV	1-48119-086-0	01	1	9307-				●
41	PLATE; STEM,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-167-0	01	1	9002-			●	●
41	PLATE; STEM,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-159-0	01	1	9002-9306			●	●
41	PLATE; STEM,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-159-0	01	1	9307-				●
42	NUT; SPR SEAT,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-157-0	01	1	9002-9306			●	●
42	NUT; SPR SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-157-0	01	1	9002-9306			●	●
42	NUT; SPR SEAT,BRK VLV	1-48129-157-0	01	1	9307-				●
43	WASHER; SPR SEAT,BRK VLV	1-48419-002-0	01	1	9307-		●
43	WASHER; SPR SEAT,BRK VLV	1-48129-170-0	01	1	9307-				●
44	SLEEVE; PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-171-0	01	1	9002-			●	●
44	SLEEVE; PISTON,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-154-0	01	1	9002-9306			●	●
44	SLEEVE; PISTON,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-154-0	01	1	9307-				●
47	RETAINER; GASKET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-147-0	01	1	9002-9306			●	●
47	RETAINER; GASKET,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-147-0	01	1	9002-9306			●	●
47	RETAINER; GASKET,BRK VLV	1-48129-147-0	01	1	9307-				●
48	BOLT; COVER,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48119-216-0	04	1	9002-9306			●	●
48	BOLT; COVER,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-216-0	04	1	9002-9306			●	●
48	BOLT; COVER,BRK VLV	1-48119-216-0	04	1	9307-				●
50	WASHER; RET,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-112-0	01	1	9002-9306			●	●
50	WASHER; RET,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-112-0	01	1	9002-9306			●	●
50	WASHER; RET,BRK VLV	1-48129-112-0	01	1	9307-				●
51	SCREW; FORMING,BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5)	1-48129-111-0	01	1	9002-9306			●	●
51	SCREW; FORMING,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-111-0	01	1	9002-9306			●	●
51	SCREW; FORMING,BRK VLV	1-48129-111-0	01	1	9307-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
