Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

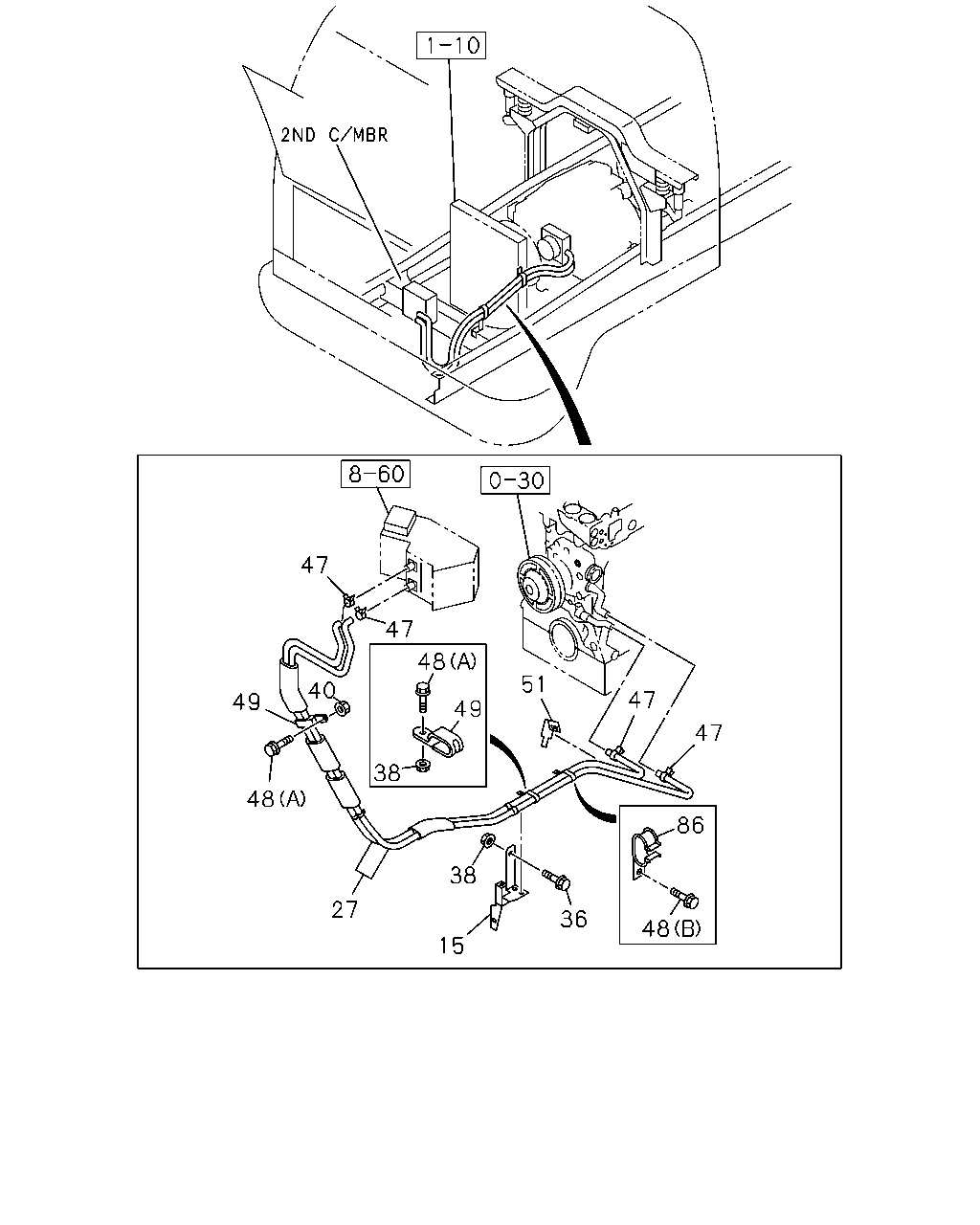

8-45 — HEATER PIPING
(#30173) — 18 parça
47
47
51
48
47
40
49
49
38
47
48
86
38
27
36
48
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
1-83573-196-1
01
1
0107-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-765-0
01
1
0107-0208
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-798-0
01
1
0209-
36
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0107-0512
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
38
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
40
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0107-0602
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
47
CLAMP; WATER HOSE,HTR
ID=22
8-94382-401-0
04
1
0107-0611
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28680-820-0
04
1
0107-0512
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
04
1
0601-
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0107-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
04
1
0107-
51
CLIP; WATER HOSE,HTR
L=170
1-83574-139-0
02
1
0107-1205
51
CLIP; WATER HOSE,HTR
L=170
8-98166-021-0
02
1
1206-
86
CLIP; HTR HOSE
1-83571-049-1
01
1
0107-
