Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#30165) — 56 parça
◀

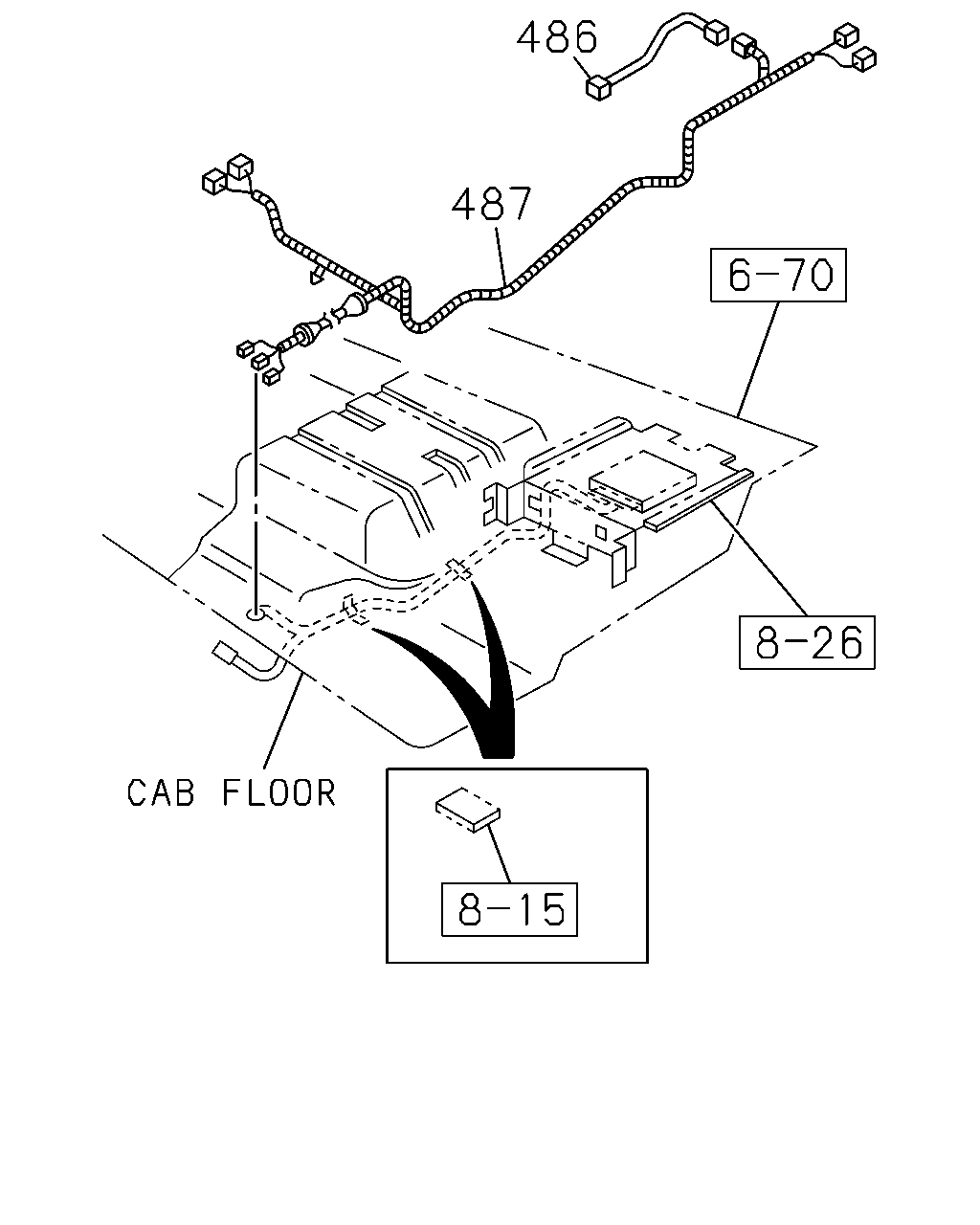

[810A] GOV HARNESS (3 parça)

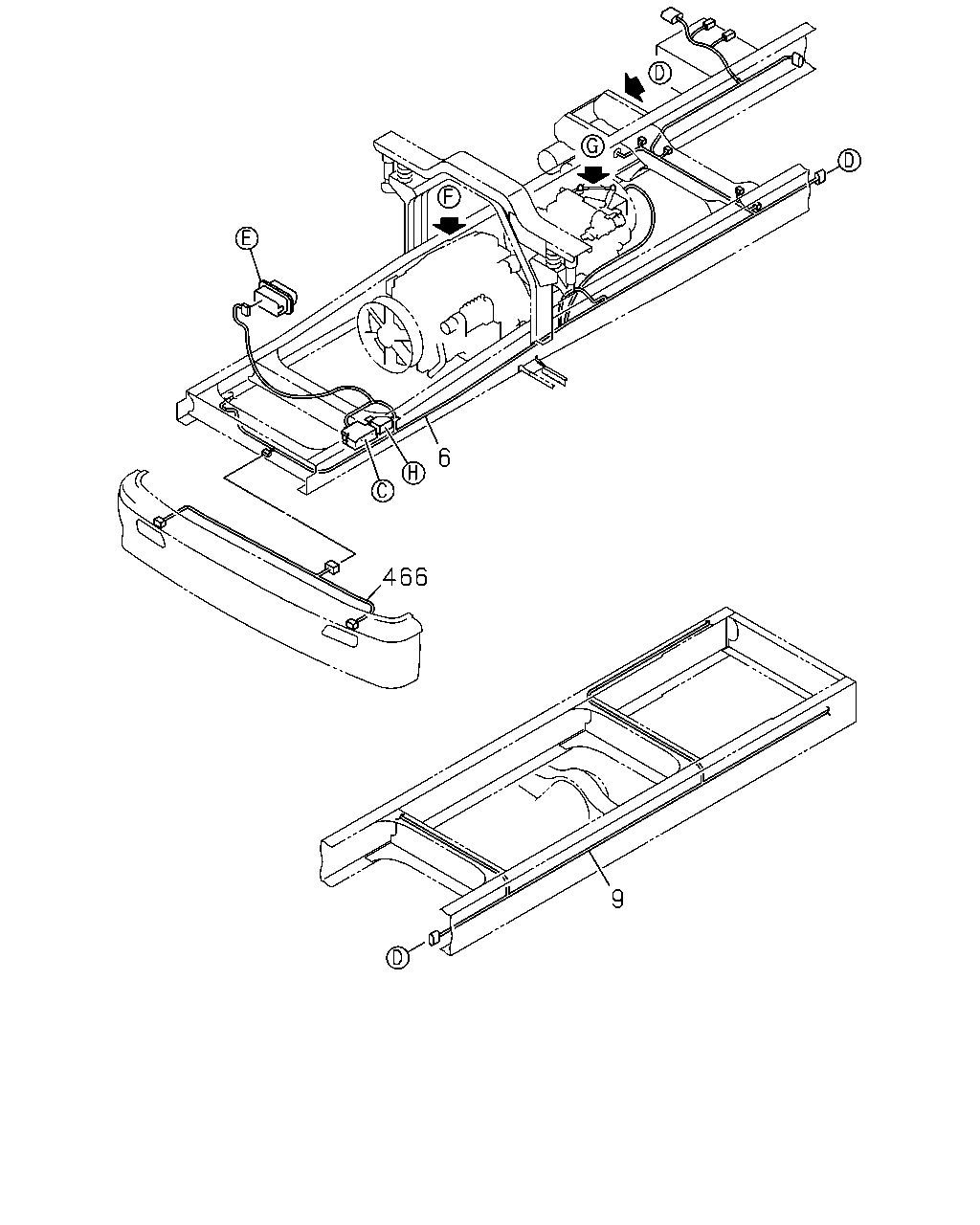

[810A] FRAME SIDE (5 parça)

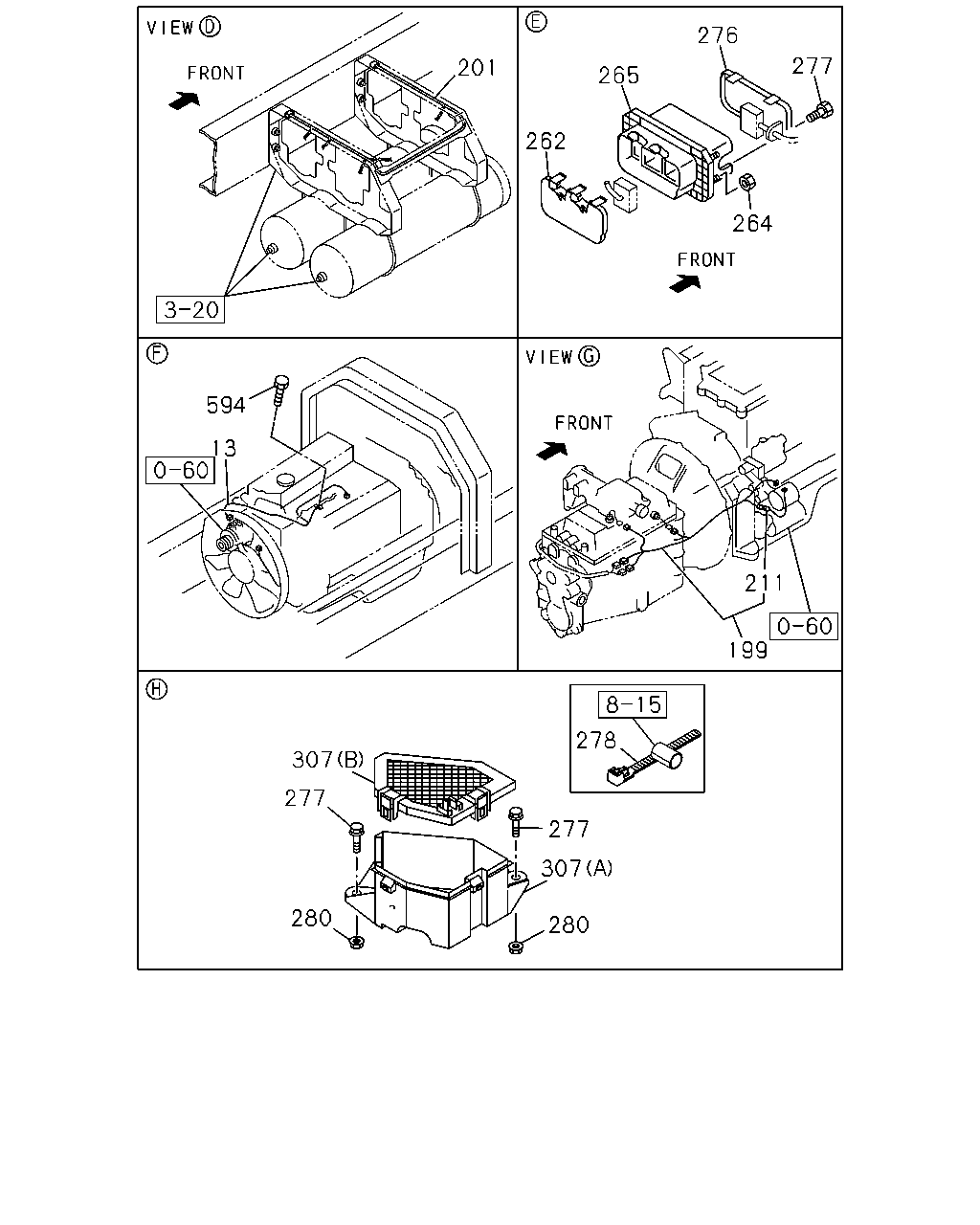

[810A] CONN BOX AND ENG,MISSION,A/TANK SIDE (19 parça)

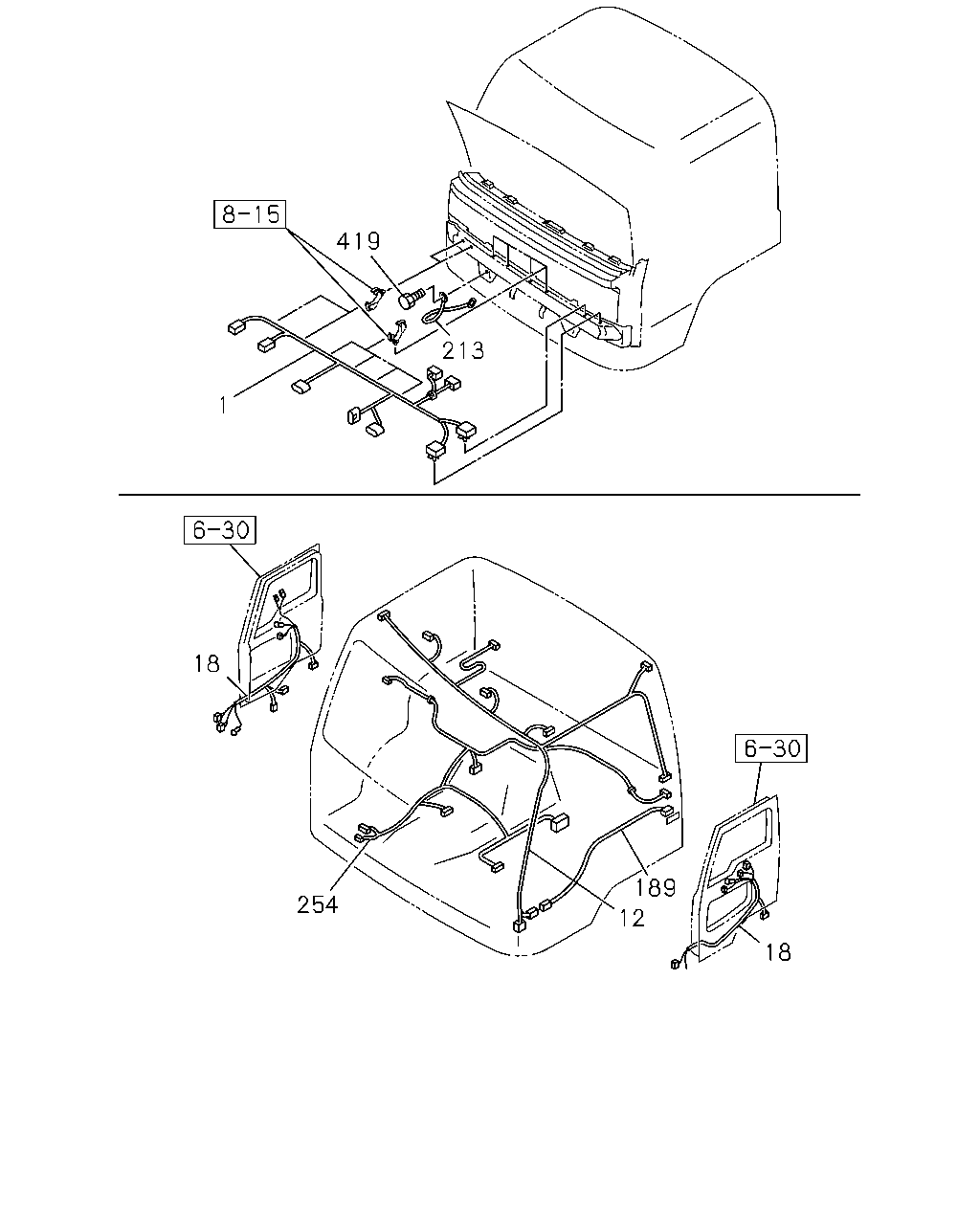

[810A] CAB SIDE (9 parça)

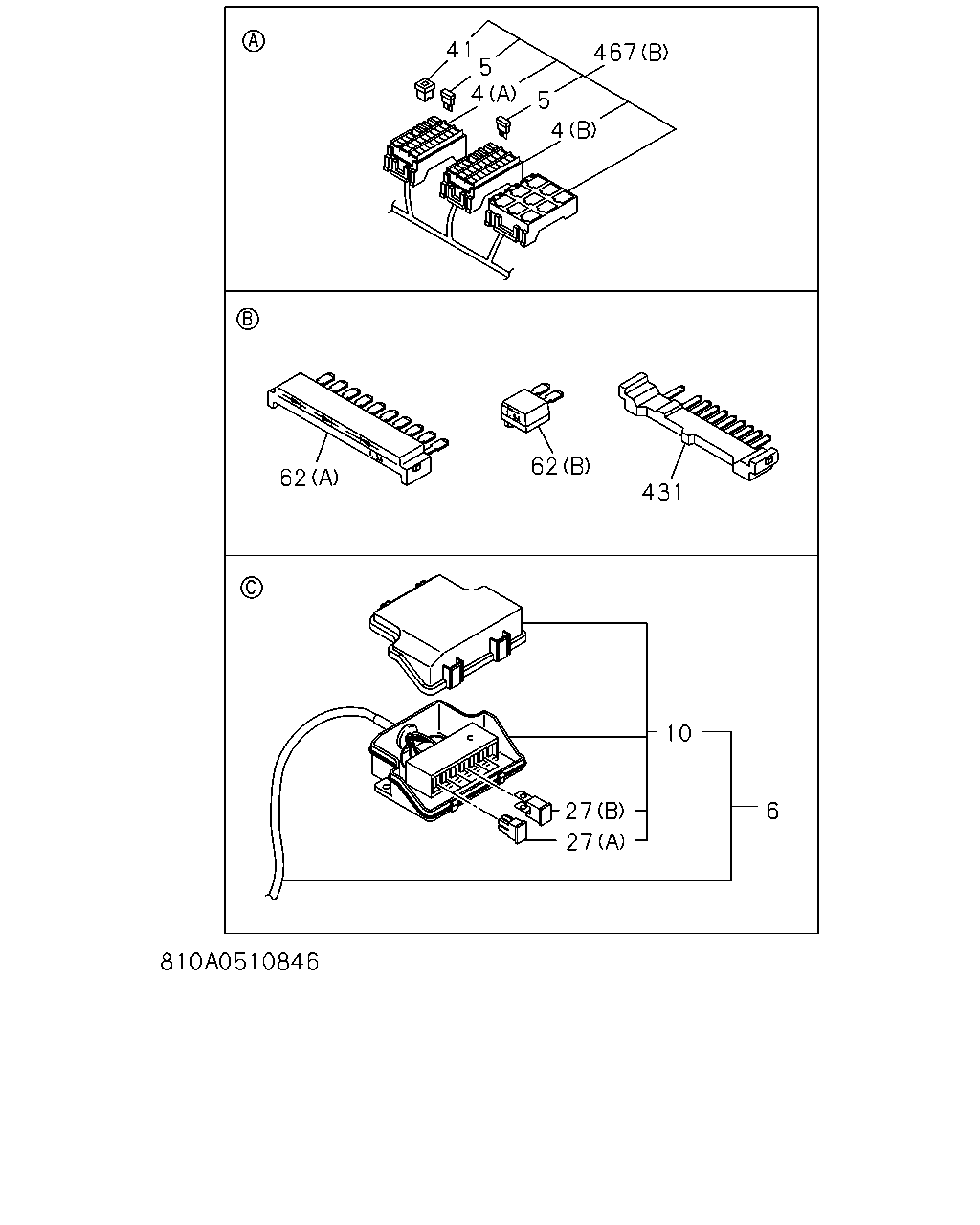

[810A] FUSE AND FUSE BOX (15 parça)

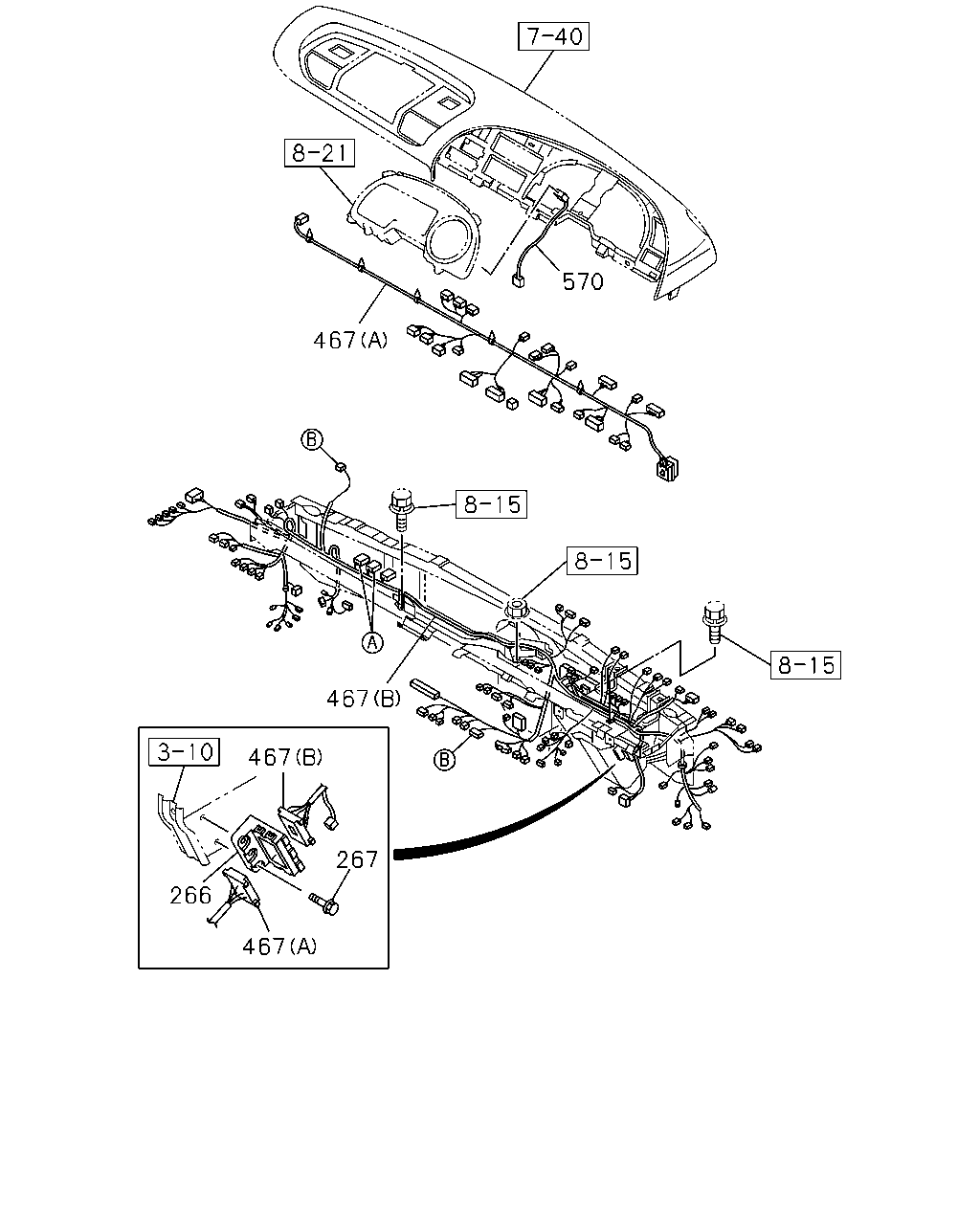

[810A] INST PANEL SIDE (5 parça)
▶
486
487
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
486
HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82672-231-0
01
1
0107-0112
486
HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82675-897-0
01
1
0201-
487
HARNESS; GOV
1-82660-023-3
01
1
0107-
6
466
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82674-210-3
01
1
0107-0401
6
HARNESS; FRAME
1-82677-455-2
01
1
0402-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W)
1-82670-491-0
01
1
0107-
9
HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W)
1-82670-492-0
01
1
0107-
466
HARNESS; BUMPER
1-82638-758-1
01
1
0107-
276
277
201
265
262
264
594
13
211
199
278
307
277
277
307
280
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
1-82641-138-0
01
1
0107-
199
HARNESS; STARTER
1-82641-200-2
01
1
0107-
201
HARNESS; AIR TANK
1-82670-504-2
01
1
0107-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-1
01
1
0107-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0107-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0107-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0107-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0107-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
0107-0512
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
277
BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER
1-09980-479-0
02
1
0107-0801
277
BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER
1-09980-548-0
02
1
0802-
278
CLIP; BOX
L=140
5-09707-031-1
01
1
0107-
280
NUT; BOX ASM FIX
M8
9-09110-408-0
02
1
0107-0512
280
NUT; BOX ASM FIX
M8
0-91110-508-0
02
1
0601-
307
BOX; ENG HARNESS
(A)
1-82698-070-1
01
1
0107-
307
BOX; ENG HARNESS
(B)
1-82698-138-0
01
1
0107-
594
BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER
9-03920-410-0
01
1
0107-0604
594
BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER
0-36230-410-0
01
1
0605-
419
213
1
18
189
254
12
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
1-82629-662-1
01
1
0107-
12
HARNESS; ROOF
1-82660-024-2
01
1
0107-
18
HARNESS; DOOR
PASSENGER SIDE
1-82628-583-0
01
1
0107-
18
HARNESS; DOOR
DRIVER SIDE
1-82628-585-0
01
1
0107-
189
HARNESS; EXT
1-82625-673-2
02
1
0107-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0107-
254
HARNESS; CAB FLOOR
1-82629-307-3
01
1
0107-
419
BOLT; CAB EARTH
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0107-1201
419
BOLT; CAB EARTH
M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1202-
41
5
4
467
5
4
62
62
431
10
6
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(B) 15AX16
1-82510-397-0
01
1
0107-
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX18
1-82510-422-0
01
1
0107-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
16
1
0107-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
18
1
0107-
6
HARNESS; FRAME
1-82674-210-3
01
1
0107-0401
6
HARNESS; FRAME
1-82677-455-2
01
1
0402-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0107-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
0107-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
0107-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
0107-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
02
1
0107-
62
DIODE; HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
10
1
0107-
431
CONNECTOR; JOINT
10P BROWN
1-82699-601-0
03
1
0107-
467
HARNESS; FACIA
(A) UPPER
1-82629-663-2
01
1
0107-
467
HARNESS; FACIA
(B) LOWER
1-82629-689-6
01
1
0107-
570
467
467
467
267
266
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0107-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0107-
467
HARNESS; FACIA
(A) UPPER
1-82629-663-2
01
1
0107-
467
HARNESS; FACIA
(B) LOWER
1-82629-689-6
01
1
0107-
570
HARNESS; SPEED SENSOR
1-82670-012-0
01
1
0107-0401
