3-26 — TRAILER CONTROL (#3016) — 64 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	3	REPAIR KIT; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-096-0	01	1	9002-	●	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	91	PLUG; TRACTOR VLV HONG KONG EQUIPMENT(PQ1) PT1/2	9-09204-521-0	01	1	9201-	●	●

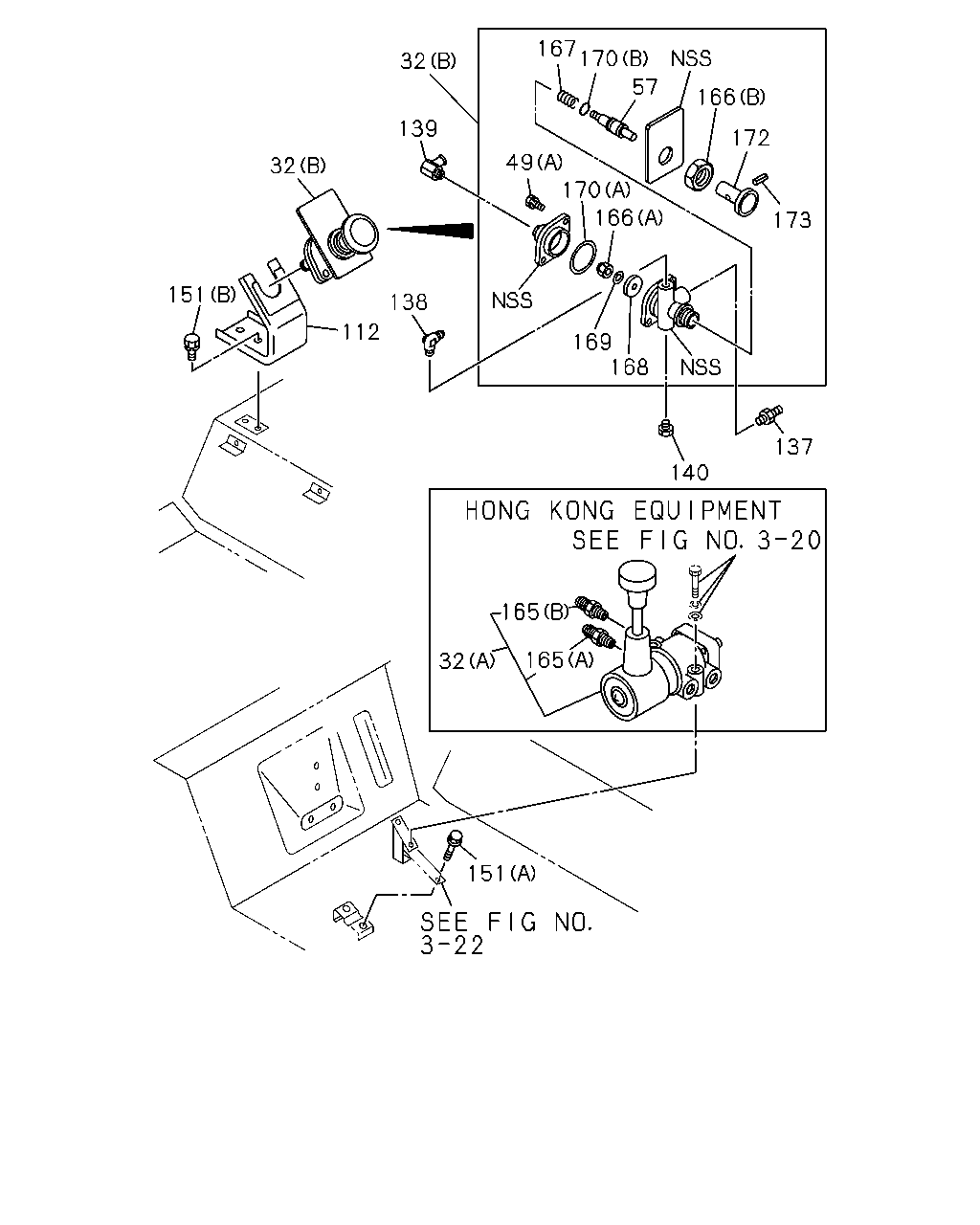

151 32 165 165 151 112 138 32 139 32 167 170 57 166 172 173 166 170 49 169 168 140 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (A)	1-48460-168-0	01	1	9002-9011	●	●
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (A)	1-48460-275-1	01	1	9012-	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48460-198-0	01	1	9002-	●	●	●	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (B)	1-48469-092-0	04	1	9002-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	01	1	9002-	●	●	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-097-0	01	1	9002-	●	●	●	●
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48>	1-47475-260-2	01	1	9002-	●	●	●	●
137	CONNECTOR; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9002-	●	●	●	●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302	●	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9002-9302			●	●
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4 ELBOW	8-94232-303-2	01	1	9002-	●	●	●	●
140	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9002-	●	●	●	●
151	BOLT; VLV BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X20	1-09980-529-0	02	1	9309-	●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X20	9-01910-620-0	02	1	9002-9005	●	●
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M6X20	9-01910-620-0	02	1	9002-9005			●	●
151	BOLT; VLV BRKT EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302	●	●
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M6X20 W/LK WASHER	0-50040-620-0	02	1	9006-9302			●	●
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (B) M6X20 FLANGE	0-28080-620-0	02	1	9303-	●	●	●	●
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09650-341-1	01	1	9002-	●	●
165	CONNECTOR; HAND BRK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09650-342-1	01	1	9002-	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9002-	●	●	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9002-	●	●	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9002-	●	●	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9002-	●	●	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9002-	●	●	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9002-	●	●	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9002-	●	●	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9002-	●	●	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9002-	●	●	●	●

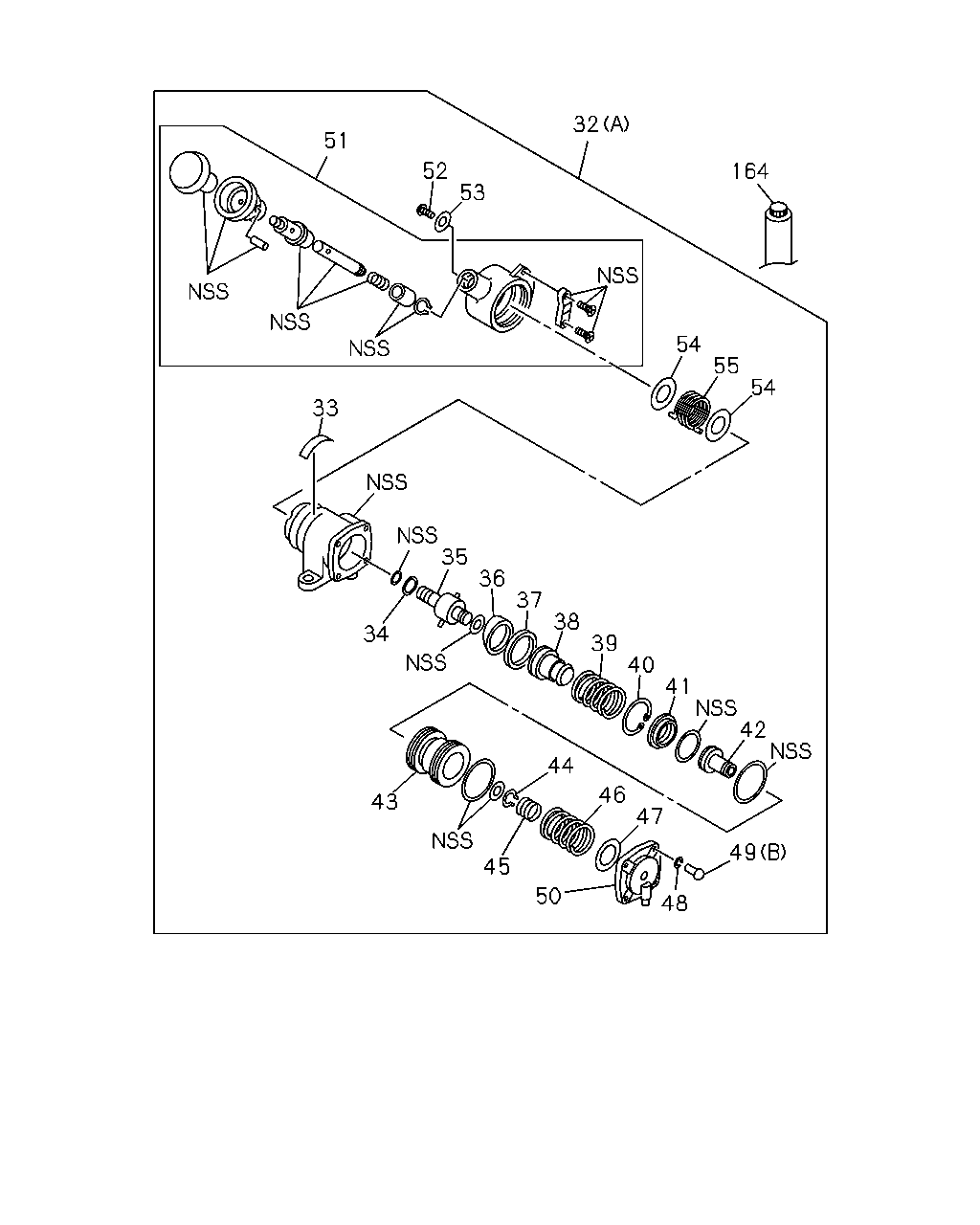

49 48 50 45 43 44 46 47 42 41 40 39 38 37 36 35 34 33 54 55 54 164 32 53 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (A)	1-48460-168-0	01	1	9002-9011	●	●
32	VALVE; BRK,HAND CONT HONG KONG EQUIPMENT(PQ1) (A)	1-48460-275-1	01	1	9012-	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48460-198-0	01	1	9002-	●	●	●	●
33	PLATE; CAUTION HONG KONG EQUIPMENT(PQ1)	1-48469-093-0	01	1	9002-	●	●
34	SHIM; CAM HOLDER HONG KONG EQUIPMENT(PQ1)	1-48469-055-0	AR	1	9002-	●	●
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-085-0	01	1	9002-9011	●	●
35	HOLDER; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-054-0	01	1	9012-	●	●
36	RING; CAM HONG KONG EQUIPMENT(PQ1)	1-48469-056-0	01	1	9002-	●	●
37	GUIDE; CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-058-0	01	1	9002-	●	●
38	SEAT; EXH VLV HONG KONG EQUIPMENT(PQ1)	1-48469-057-0	01	1	9002-	●	●
39	SPRING; RETURN,CAM RING HONG KONG EQUIPMENT(PQ1)	1-48469-063-0	01	1	9002-	●	●
40	RING; SNAP HONG KONG EQUIPMENT(PQ1)	1-48469-067-0	01	1	9002-	●	●
41	SEAT; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-066-0	01	1	9002-	●	●
42	VALVE; FEED HONG KONG EQUIPMENT(PQ1)	1-48469-065-0	01	1	9002-	●	●
43	PISTON; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-064-0	01	1	9002-	●	●
44	RING; SNAP,FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-068-0	01	1	9002-	●	●
45	SPRING; FEED VLV HONG KONG EQUIPMENT(PQ1)	1-48469-070-0	01	1	9002-	●	●
46	SPRING; MAIN,PISTON HONG KONG EQUIPMENT(PQ1)	1-48469-089-0	01	1	9002-	●	●
47	SHIM; MAIN SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-072-0	AR	1	9002-	●	●
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	1-48469-091-0	04	1	9002-9011	●	●
48	WASHER; COVER HONG KONG EQUIPMENT(PQ1)	9-09150-506-0	04	1	9012-	●	●
49	SCREW; COVER HONG KONG EQUIPMENT(PQ1) (B)	1-48469-092-0	04	1	9002-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2), PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	01	1	9002-	●	●	●	●
50	COVER; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-090-0	01	1	9002-	●	●
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-088-0	01	1	9002-9011	●	●
51	HANDLE ASM; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-117-0	01	1	9012-	●	●
52	SCREW; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-062-0	01	1	9002-	●	●
53	WASHER; HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-061-0	01	1	9002-	●	●
54	SEAT; SPRING HONG KONG EQUIPMENT(PQ1)	1-48469-082-0	02	1	9002-	●	●
55	SPRING; RETURN,HANDLE HONG KONG EQUIPMENT(PQ1)	1-48469-059-0	01	1	9002-	●	●
164	GREASE; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9002-9011	●	●
164	GREASE; HAND BRK VLV HONG KONG EQUIPMENT(PQ1)	1-48469-084-0	01	1	9307-	●	●
