◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10890 - FSR34(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#30156) — 102 parça

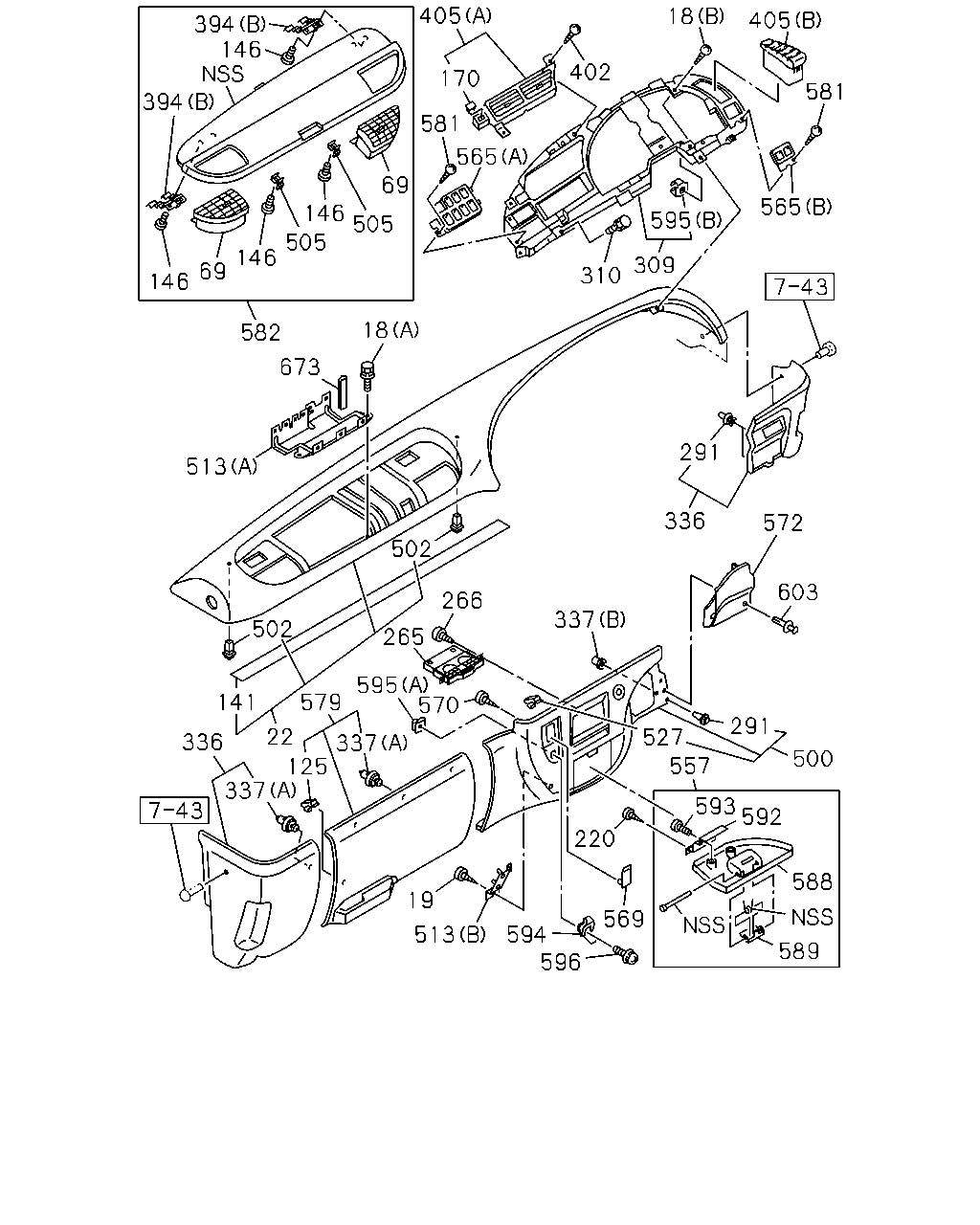

çizim 21728
405 18 405 394 146 394 402 170 581 581 565 69 565 146 505 595 505 146 309 69 310 146 18 582 673 291 513 336 572 502 603 266 337 502 265 595 570 579 141 291 22 527 336 337 125 500 557 337 593 592 220 588 19 569 594 596 513 589
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0107-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0107-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0107-
22 PAD; INST 1-72318-433-4 01 1 0107-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0107-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0107-
125 CLIP; INST PANEL 8-97217-066-0 09 1 0107-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0107-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0107-
170 COVER; HOLE 1-76367-068-0 01 1 0107-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0107-
265 HOLDER; CUP 8-97853-172-8 01 1 0107-
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0107-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0107-
309 PANEL; SW,INST 1-72418-009-6 01 1 0107-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0107-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0107-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0107-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0107-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0107-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0107-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0107-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0107-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0107-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0107-
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0107-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0107-
505 LOCK; LID 1-72558-024-2 02 1 0107-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0107-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0107-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0107-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0107-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0107-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0107-
569 HOLDER; CARD 1-72498-015-2 01 1 0107-
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0107-
572 COVER; INSPECTION 1-72438-183-0 01 1 0107-
579 COVER; INST PNL 1-72438-184-1 01 1 0107-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0107-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0107-
588 LID; BOX 1-72548-135-3 01 1 0107-
589 KNOB; LID 1-72548-143-0 01 1 0107-
592 HINGE; LID 1-72548-133-3 01 1 0107-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0107-
594 HOOK; COAT 1-72498-013-0 01 1 0107-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0107-
595 NUT; HOOK
(A) WO/NUT 		8-97810-118-0 01 1 0107-0110
595 NUT; HOOK
(A) W/NUT M5 		1-09984-162-0 01 1 0111-
596 SCREW; HOOK
M5X14 		8-94279-325-0 01 1 0107-0110
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0111-
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0107-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0107-

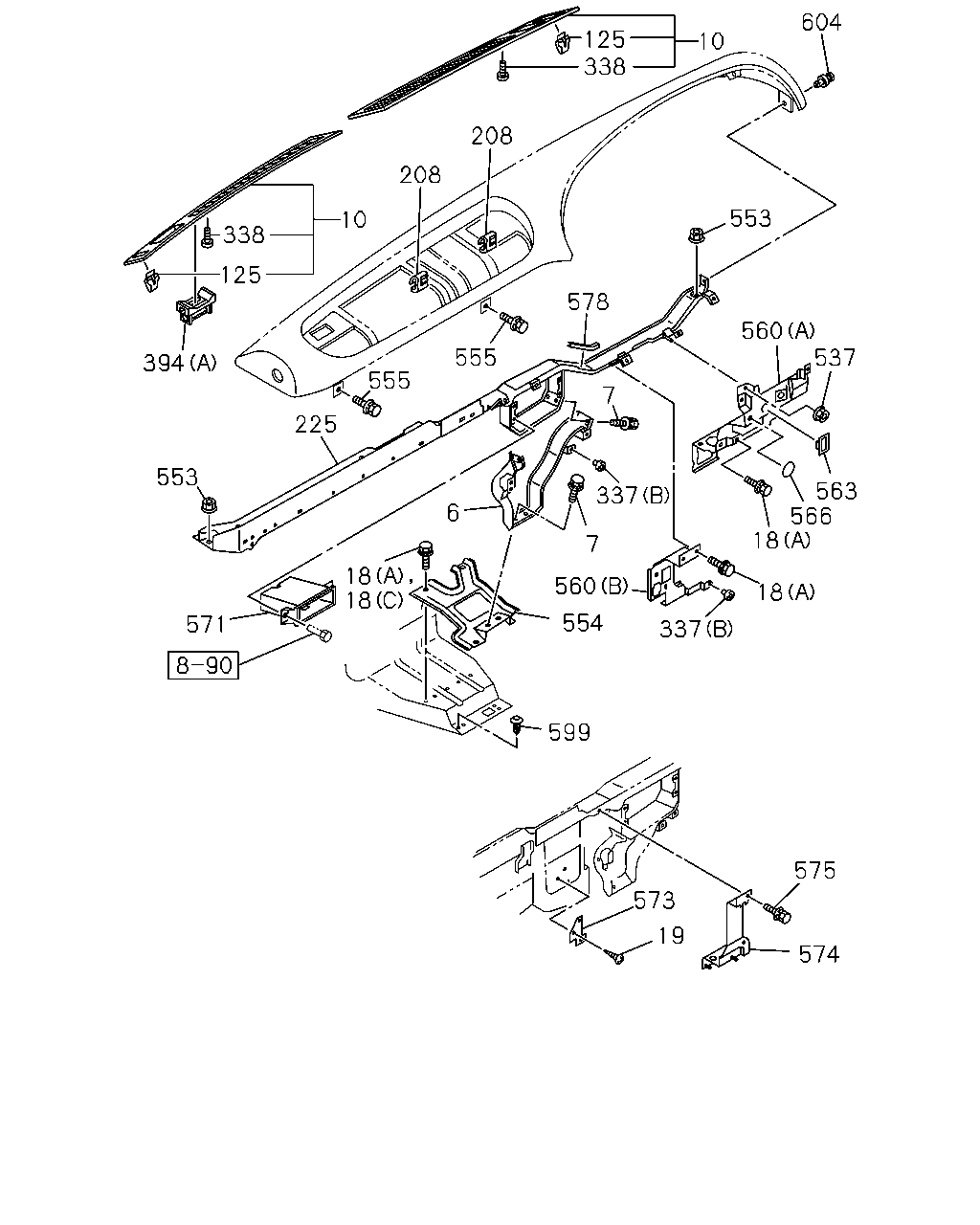

çizim 22562
604 125 338 10 208 208 553 10 338 125 578 560 537 555 394 555 7 225 553 563 566 18 337 6 7 18 18 560 18 554 571 337 599 575 573 19 574
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0107-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0107-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0107-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0107-
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0107-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0107-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0107-
125 CLIP; INST PANEL 8-97217-066-0 09 1 0107-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0107-
225 FRAME; FACIA 1-65681-096-2 01 1 0107-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0107-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0107-
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 0107-0208
338 SCREW; COVER
M5X14 		8-94148-576-1 10 1 0209-0309
338 SCREW; COVER
M5X14 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
M5X14 		8-94279-325-0 15 1 0802-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0107-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0107-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0107-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0107-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0107-
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0107-0512
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
560 BRACKET
(B) 		1-65680-976-3 01 1 0107-
560 BRACKET
(A) 		1-65671-760-4 01 1 0107-
563 BEZEL; BRKT 1-72448-410-3 01 1 0107-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0107-
571 BEZEL; POCKET 1-72438-151-3 02 1 0107-
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0107-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0107-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0107-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0107-
604 CLIP; INST PAD 1-09983-123-0 01 1 0107-
çizim 22564
597
BalonParca AdiParca NoAdetTipApplied Date
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0107-
