Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#3015) — 137 parça

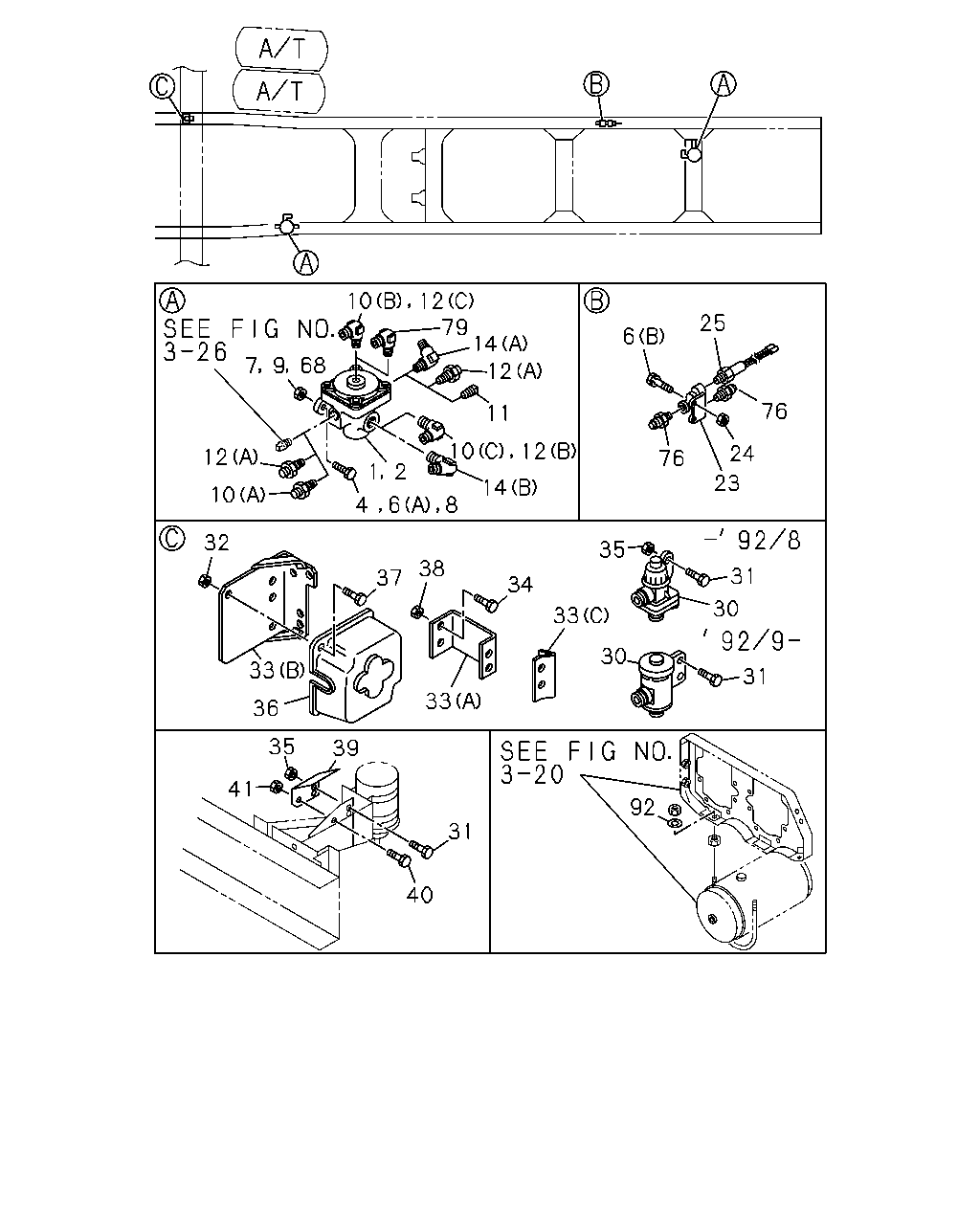

92 31 40 41 35 39 36 33 33 37 38 34 33 30 31 30 31 35 32 10 12 1 2 4 6 8 14 10 12 11 76 23 24 76 25 6 12 14 79 12 10 68 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9002-9112	●	●	●	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9201-	●	●	●	●
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1)	1-48210-278-0	01	1	9201-	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9002-9112	●	●	●	●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-278-0	01	1	9002-9112	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9201-	●	●	●	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9002-	●	●	●	●
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) (A) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●	●
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204	●	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M8X35 W/LK WASHER	9-01900-835-0	02	1	9002-9204			●	●
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302	●	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M8X35 W/LK WASHER	0-50040-835-0	02	1	9205-9302			●	●
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X35 FLANGE	0-28080-835-0	02	1	9303-	●	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) M8X35 FLANGE	0-28080-835-0	02	1	9303-			●	●
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9002-	●	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 W/LK WASHER	0-50041-035-0	02	1	9002-	●	●	●	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9002-	●	●	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	9002-	●	●	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●	●	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●	●	●
11	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	9002-	●	●	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9002-9302	●	●	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16	1-09650-245-1	02	1	9002-	●	●	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●	●	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●	●	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14	1-09650-041-1	01	1	9002-9302	●	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT1/2 ELBOW	1-09650-441-0	01	1	9303-	●	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9002-9302	●	●
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) (B) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
23	VALVE; PRESSURE CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48460-067-1	01	1	9002-	●	●	●	●
24	NUT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-	●	●
24	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) M8	9-09110-408-0	02	1	9002-			●	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48340-036-0	01	1	9002-9306	●	●	●	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48340-044-0	01	1	9307-9411		●		●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48340-057-0	01	1	9412-		●		●
30	GOVERNOR; AIR CONT	1-48350-037-0	01	1	9002-9208	●	●	●	●
30	GOVERNOR; AIR CONT	1-48350-050-1	01	1	9209-9409	●	●	●	●
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	9410-		●		●
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	9-01960-830-0	02	1	9002-9204	●	●	●	●
31	BOLT; GOV TO FRAME M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9205-	●	●	●	●
32	NUT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-9306			●	●
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7> (A)	1-48359-035-0	01	1	9002-9308	●	●	●	●
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (A)	1-48359-035-0	01	1	9309-		●		●
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-47476-310-1	01	1	9002-9306			●	●
33	BRACKET; GOV,AIR CONT CONCRETE PUMP<RA5> (C)	1-48359-073-0	01	1	9309-				●
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●	●
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306	●	●	●	●
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9307-		●		●
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204			●	●
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306			●	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9002-	●	●	●	●
36	COVER; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48359-027-1	01	1	9002-9306			●	●
37	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X22 W/LK&PL WASHER	1-09030-041-0	02	1	9002-9306			●	●
38	NUT; BRKT,GOV EXC. AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-	●	●	●	●
39	PROTECTOR; HEAT,GOV SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7>	1-48359-067-0	01	1	9002-	●	●	●	●
40	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●	●
40	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-	●	●	●	●
41	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> AIR DRYER<PS7> M8	9-09110-408-0	01	1	9002-	●	●	●	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-510-0	02	1	9002-	●	●	●	●
76	CONNECTOR; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M14	1-09650-031-0	02	1	9002-9103	●	●	●	●
76	CONNECTOR; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	9104-	●	●	●	●
79	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) M14	1-09650-092-1	01	1	9002-9302	●	●
79	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●	●
92	WASHER; PL,BRKT A FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=8.4 OD=18	9-09160-608-0	02	1	9002-			●	●

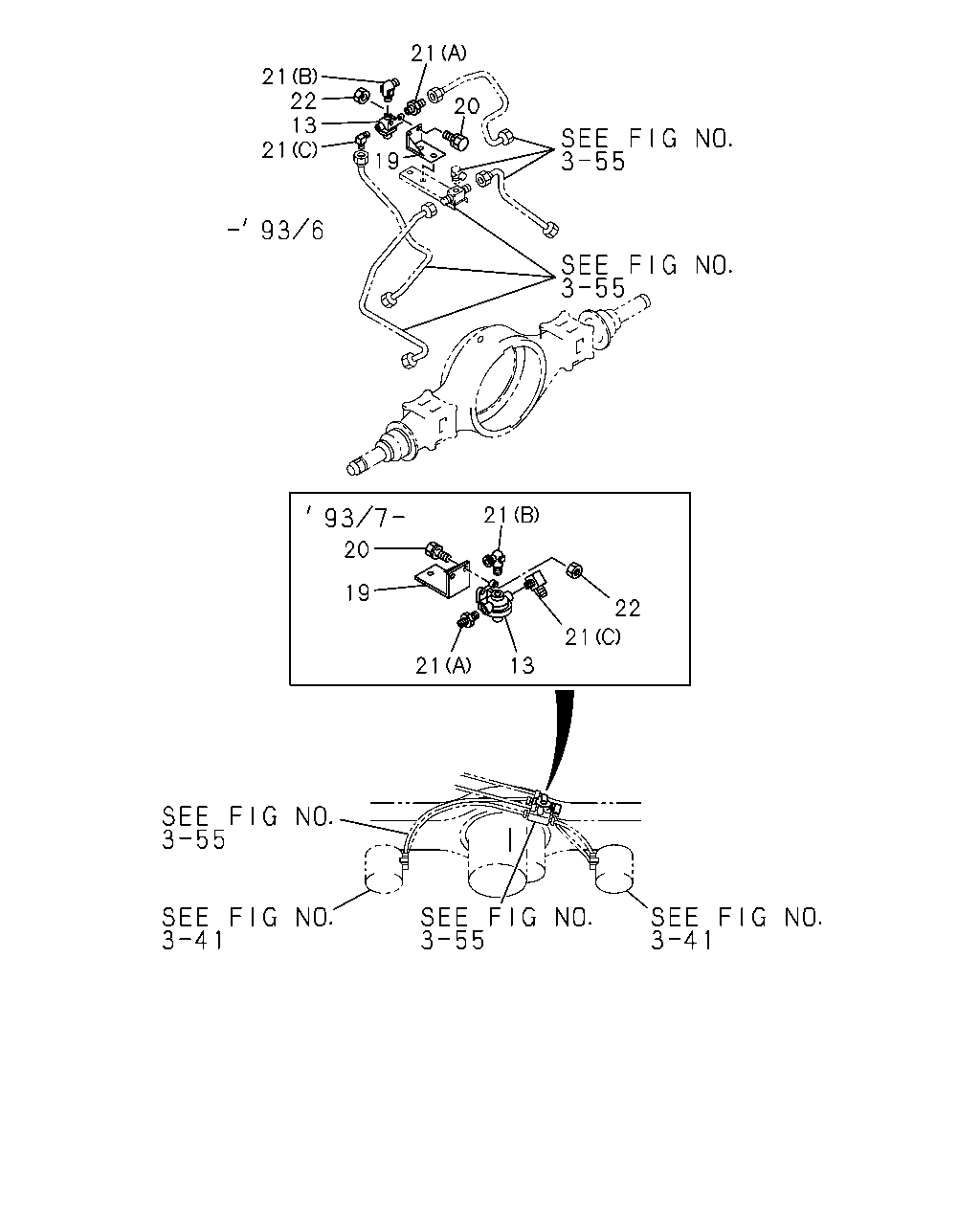

21 13 21 22 21 20 19 21 13 19 20 21 21 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-052-1	01	1	9002-9307	●	●
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1)	1-48410-320-0	01	1	9308-		●
19	BRACKET; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1)	1-47465-885-1	01	1	9002-	●	●
20	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005	●	●
20	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-	●	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09650-179-1	01	1	9002-9306	●	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09650-180-1	01	1	9002-9302	●	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09650-438-0	01	1	9303-9306	●	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09660-136-1	01	1	9002-	●	●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (A)	1-09660-569-0	01	1	9307-		●
21	CONNECTOR; QUICK RELEASE VLV HONG KONG EQUIPMENT(PQ1) (C)	1-09660-570-0	01	1	9307-		●
22	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9002-	●	●

129 171 172 177 174 173 176 176 23 175 176 172 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	VALVE; PRESSURE CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48460-067-1	01	1	9002-	●	●	●	●
129	BRACKET; PARKING BRK VLV BRKT HONG KONG EQUIPMENT(PQ1)	1-62172-587-2	01	1	9309-		●
171	FILTER; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	9-88510-330-0	01	1	9002-	●	●	●	●
172	RING; RETAINING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A)	1-31829-081-0	01	1	9002-	●	●	●	●
172	RING; RETAINING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B)	9-88510-331-0	01	1	9002-	●	●	●	●
173	PISTON; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48469-103-0	01	1	9002-	●	●	●	●
174	VALVE; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48469-104-1	01	1	9002-	●	●	●	●
175	SPRING; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48469-105-0	01	1	9002-	●	●	●	●
176	GASKET; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (A)	1-47849-010-0	01	1	9002-	●	●	●	●
176	GASKET; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (B)	1-48212-004-0	01	1	9002-	●	●	●	●
176	GASKET; PRESS CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1) (C)	1-48469-107-0	01	1	9002-	●	●	●	●
177	RETAINER; PRESS CONT VLVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),HONG KONG EQUIPMENT(PQ1)	1-48469-106-0	01	1	9002-	●	●	●	●

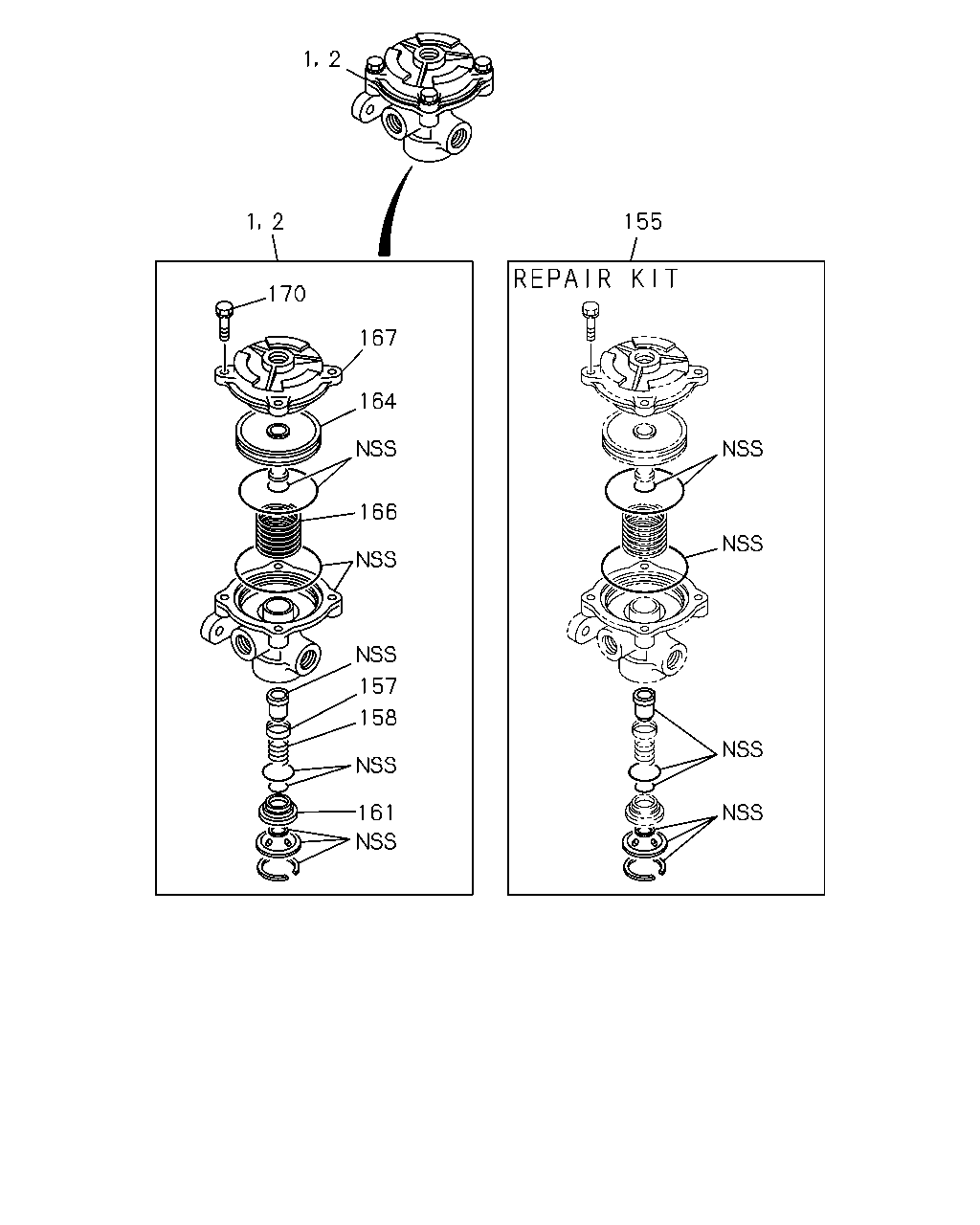

161 158 157 166 164 167 170 1 2 1 2 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9002-9112	●	●	●	●
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9201-	●	●	●	●
1	VALVE; RELAY RWD RR HONG KONG EQUIPMENT(PQ1)	1-48210-278-0	01	1	9201-	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9002-9112	●	●	●	●
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1)	1-48210-278-0	01	1	9002-9112	●	●
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-278-0	01	1	9201-	●	●	●	●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1)	1-85576-033-0	01	1	9002-9306	●	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	02	1	9002-9306	●	●	●	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9307-		●		●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	9307-		●		●
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1)	1-85576-033-0	01	1	9307-		●
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	01	1	9002-9306	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	02	1	9002-9306	●	●	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9307-		●		●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	9307-		●		●
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	01	1	9307-		●
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1)	1-47819-089-0	01	1	9002-9306	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	02	1	9002-9306	●	●	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9307-		●		●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	9307-		●		●
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1)	1-47819-089-0	01	1	9307-		●
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1)	1-48129-014-0	01	1	9002-9306	●	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	9002-9306	●	●	●	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9307-		●		●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	9307-		●		●
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1)	1-48129-014-0	01	1	9307-		●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-071-0	01	1	9002-9306	●	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	02	1	9002-9306	●	●	●	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9307-		●		●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	9307-		●		●
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-071-0	01	1	9307-		●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1)	1-47819-090-0	01	1	9002-9306	●	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	02	1	9002-9306	●	●	●	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9307-		●		●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	9307-		●		●
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1)	1-47819-090-0	01	1	9307-		●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-070-0	01	1	9002-9306	●	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	02	1	9002-9306	●	●	●	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9307-		●		●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	9307-		●		●
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48219-070-0	01	1	9307-		●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1)	1-48219-039-0	04	1	9002-9306	●	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	08	1	9002-9306	●	●	●	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9307-		●		●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	9307-		●		●
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1)	1-48219-039-0	04	1	9307-		●
