Isuzu WW
▶
TRUCKS
▶
FSR
▶
10890 - FSR34(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

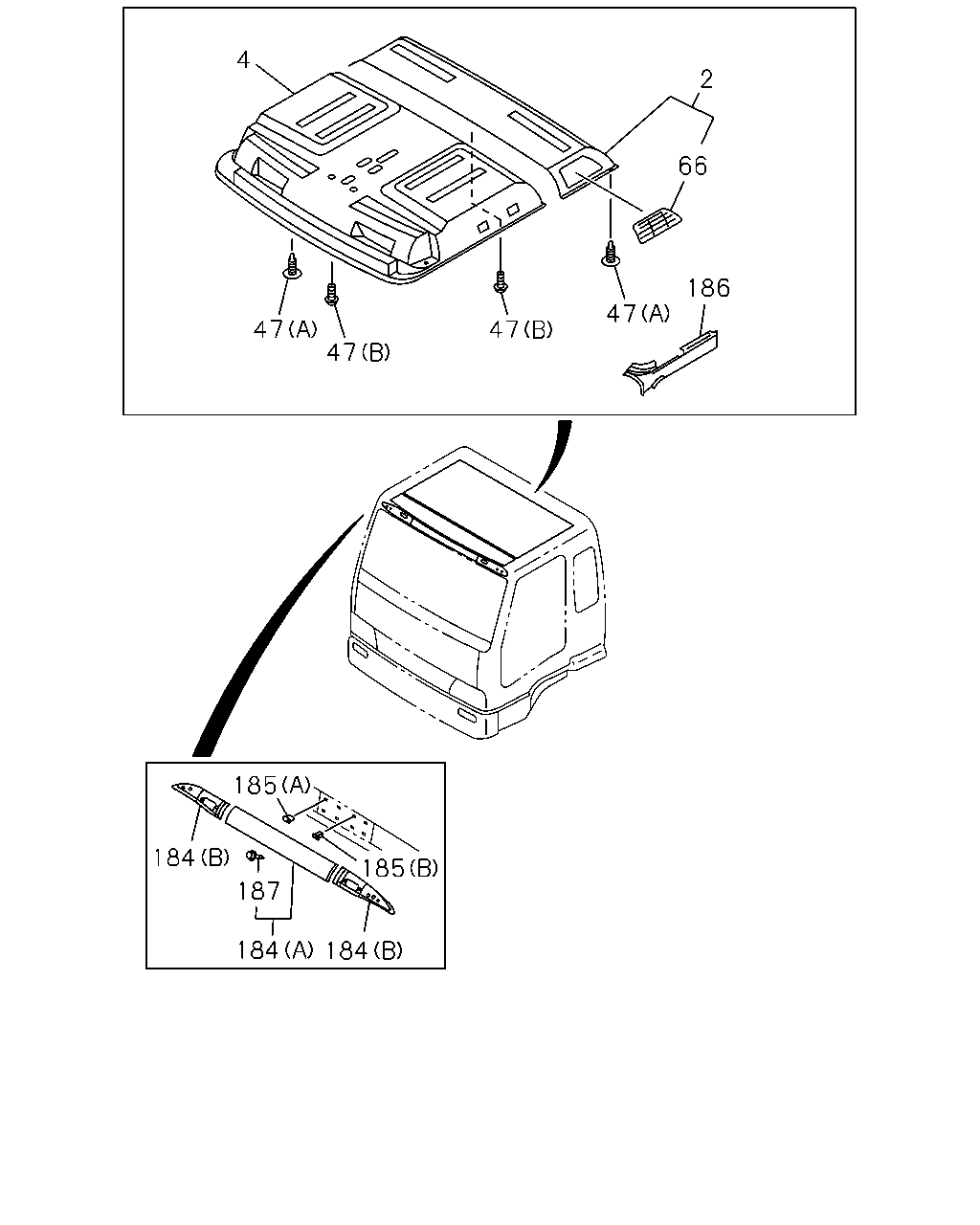

6-66 — HEAD LINING AND TRIM
(#30143) — 22 parça
4
2
66
186
47
47
47
47
185
184
185
187
184
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINING; HD,ROOF RR
PROVISIONAL PACKAGE<NLY>
1-73318-708-2
01
1
0301-
2
LINING; HD,ROOF RR
1-73318-598-3
01
1
0107-0212
2
LINING; HD,ROOF RR
EXC. PROVISIONAL PACKAGE<NLY>
1-73318-598-5
01
1
0301-
4
LINING; ROOF,FRT
PROVISIONAL PACKAGE<NLY>
8-97893-788-3
01
1
0301-
4
LINING; ROOF,FRT
8-97865-577-1
01
1
0107-0212
4
LINING; ROOF,FRT
EXC. PROVISIONAL PACKAGE<NLY>
8-97865-577-4
01
1
0301-
47
CLIP; HEADLINING
(A) D6X23 LIGHT GRAY
1-73318-629-0
12
1
0107-
47
CLIP; HEADLINING
(B) OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0107-
66
GRILLE; AIR OUTLET
1-73317-367-1
01
1
0107-
66
GRILLE; AIR OUTLET
1-73317-366-1
01
1
0107-
184
ORNAMENT; ROOF
(A)
1-73318-587-0
01
1
0107-
184
ORNAMENT; ROOF
(B)
1-73318-581-0
01
1
0107-
184
ORNAMENT; ROOF
(B)
1-73318-580-0
01
1
0107-
185
GROMMET; ORNAMENT
(A)
1-79198-012-0
06
1
0107-
185
GROMMET; ORNAMENT
(B)
1-79198-013-0
02
1
0107-
186
TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY>
1-73348-962-1
01
1
0301-
186
TRIM; ROOM,CANT RAIL SIDE
PROVISIONAL PACKAGE<NLY>
1-73348-963-1
01
1
0301-
186
TRIM; ROOM,CANT RAIL SIDE
1-73348-919-0
01
1
0107-0212
186
TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>
1-73348-919-2
01
1
0301-
186
TRIM; ROOM,CANT RAIL SIDE
1-73348-918-0
01
1
0107-0212
186
TRIM; ROOM,CANT RAIL SIDE
EXC. PROVISIONAL PACKAGE<NLY>
1-73348-918-2
01
1
0301-
187
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
0107-
