Sayfa 3-20 - Isuzu EPC

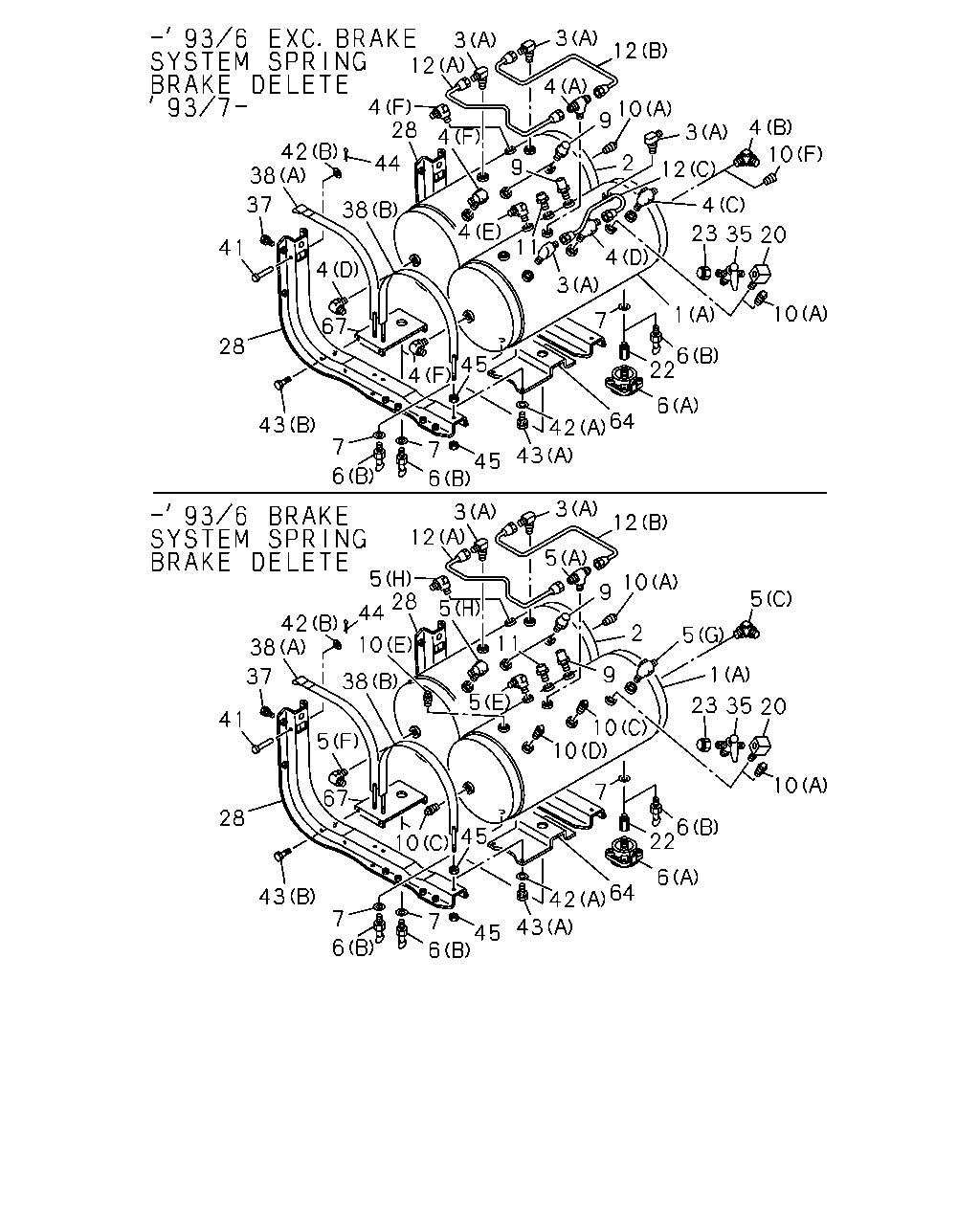

3-20 — AIR TANK (#3014) — 573 parça

10 6 22 6 64 42 43 45 6 7 7 6 43 28 41 5 67 10 45 10 10 23 35 20 1 5 5 2 9 9 10 12 3 5 3 12 5 28 5 10 44 38 5 11 37 38 42 7 6 7 45 43 42 64 6 22 6 1 10 20 35 23 4 12 3 4 10 10 9 2 4 3 7 11 4 4 12 3 3 12 4 28 4 44 42 38 37 38 41 4 67 28 43 7 6 4 45 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48330-674-1	01	1	9002-9407	●	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48370-211-0	01	1	9408-		●		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48330-479-0	01	1	9002-	●	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48330-736-0	01	1	9002-9306			●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B)	1-48330-737-0	01	1	9002-			●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D)	1-48330-070-1	01	1	9002-			●	●
1	TANK ASM; AIR CONCRETE PUMP<RA5> (C)	1-48310-852-1	01	1	9002-				●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48330-228-0	01	1	9002-	●	●	●	●
2	TANK; AIR CONCRETE PUMP<RA5>	1-48310-545-1	01	1	9002-				●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48410-133-2	04	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9307-		●		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9307-		●		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9002-9407			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48410-182-3	02	1	9002-			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9002-			●	●
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-133-2	02	1	9002-				●
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (C)	1-48410-138-1	01	1	9002-				●
4	CONNECTOR; FLARE (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302			●	●
4	CONNECTOR; FLARE (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-			●	●
4	CONNECTOR; FLARE (D) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M20 & PT1/2 ELBOW	1-09650-178-1	02	1	9002-9302			●	●
4	CONNECTOR; FLARE (D) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) M20 & PT1/2 ELBOW	1-09650-443-0	02	1	9303-			●	●
4	CONNECTOR; FLARE (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-			●	●
4	CONNECTOR; FLARE (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
4	CONNECTOR; FLARE (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-			●	●
4	CONNECTOR; FLARE (F) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M22 & PT1/2 ELBOW	9-09234-315-1	03	1	9002-9302			●	●
4	CONNECTOR; FLARE (F) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-	●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M22 & PT1/2 ELBOW	1-09650-444-0	03	1	9303-			●	●
4	CONNECTOR; FLARE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7> (B) M22	1-09650-277-0	01	1	9002-	●	●	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-09660-091-3	01	1	9002-			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (H) M22 & PT1/2 ELBOW	9-09234-315-1	02	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (H) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (C) M22	1-09650-277-0	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (C) M22	1-09650-277-0	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (C) M22	1-09650-277-0	01	1	9307-				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (J) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9002-9302				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (J) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (D)	1-09650-275-1	01	1	9002-				●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) W/COVER	1-48312-004-1	04	1	9002-9407			●	●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	04	1	9002-9407				●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	03	1	9408-9509		●		●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	03	1	9510-		●		●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	01	1	9002-9509			●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9510-		●		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48312-015-0	01	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	04	1	9408-9509		●		●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	04	1	9408-9509				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-48312-015-0	04	1	9510-		●		●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B)	1-48312-015-0	04	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	02	1	9002-9509			●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48312-015-0	02	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) W/COVER	1-48312-004-1	03	1	9002-9306			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512			●	●
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512				●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-				●
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-				●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-9407		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-9407				●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9408-9512		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9408-9512				●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602				●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	02	1	9002-9512			●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-				●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	03	1	9002-9411	●	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9412-		●		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9002-9411			●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-				●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (F)	9-09205-513-0	01	1	9002-9008	●	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (F) PT3/8	9-99205-517-0	01	1	9009-	●	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	01	1	9002-	●	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4	9-99204-513-0	01	1	9002-			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (E) M14X9	9-99202-314-0	01	1	9307-		●		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B) PT3/8	9-09204-517-0	01	1	9002-			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) PT1/2	9-09204-521-0	02	1	9002-9306			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) PT3/4	9-09204-526-0	01	1	9002-9306			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M14X9	9-99202-314-0	01	1	9002-9306			●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-	●	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (C)	1-47485-583-0	01	1	9002-9306	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C)	1-47485-583-0	01	1	9002-9306			●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47485-581-0	01	1	9002-9306	●	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47485-582-0	01	1	9002-9306	●	●	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47496-038-0	01	1	9307-		●		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47496-039-0	01	1	9307-		●		●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47496-040-0	01	1	9307-		●		●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> PT1/4	9-09903-738-0	01	1	9002-9306	●	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	9307-		●		●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9002-			●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302			●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-			●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-	●	●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-	●	●	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-240-4	02	1	9002-	●	●	●	●
28	BRACKET; AIR TANK CONCRETE PUMP<RA5>	1-48317-259-1	02	1	9002-				●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-	●	●	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X45	1-09030-052-1	08	1	9002-9601	●	●	●	●
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28681-240-0	08	1	9602-		●		●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9002-	●	●	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9002-	●	●	●	●
38	BAND; AIR TANK CONCRETE PUMP<RA5>	1-48317-108-2	04	1	9002-				●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-08221-060-0	02	1	9002-9407	●	●	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9408-		●		●
41	PIN; BAND FIX CONCRETE PUMP<RA5>	9-08221-060-0	04	1	9002-				●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9002-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10.5	9-09164-510-0	02	1	9002-			●	●
42	WASHER; PL CONCRETE PUMP<RA5> (B) ID=10.5	9-09164-510-0	02	1	9002-				●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=8.4 OD=22	9-09160-708-0	04	1	9002-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9002-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (A) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204				●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (A) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-				●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (B) M6X20 W/LK&PL WASHER	9-01960-620-0	08	1	9002-9204				●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (B) M6X20 W/LK&PL WASHER	0-50140-620-0	08	1	9205-				●
44	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●	●	●
44	PIN; SPLIT CONCRETE PUMP<RA5> OD=2.8 L=18	9-08113-018-0	04	1	9002-				●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9002-	●	●	●	●
45	NUT; AIR TANK,MAIN CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-				●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-220-1	01	1	9002-	●	●	●	●
64	STAY; AIR TANK,MAIN CONCRETE PUMP<RA5> (A)	1-48317-265-0	01	1	9002-				●
64	STAY; AIR TANK,MAIN CONCRETE PUMP<RA5> (B)	1-48317-444-0	01	1	9002-				●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9002-	●	●	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-48317-321-2	01	1	9002-			●	●
67	STAY; SUB TANK CONCRETE PUMP<RA5>	1-48317-444-0	01	1	9002-				●

6 7 1 39 209 24 8 136 3 3 5 208 207 24 1 7 6 22 6 7 7 39 6 5 5 5 10 9 11 20 35 23 20 67 5 217 216 216 218 215 216 53 50 51 71 79 75 82 82 82 82 75 79 79 130 82 55 80 80 81 54 129 128 73 71 327 81 74 82 78 77 75 82 46 46 82 55 80 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48330-674-1	01	1	9002-9407	●	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48370-211-0	01	1	9408-		●		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48330-479-0	01	1	9002-	●	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48330-736-0	01	1	9002-9306			●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B)	1-48330-737-0	01	1	9002-			●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D)	1-48330-070-1	01	1	9002-			●	●
1	TANK ASM; AIR CONCRETE PUMP<RA5> (C)	1-48310-852-1	01	1	9002-				●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48410-133-2	04	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9307-		●		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9307-		●		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9002-9407			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48410-182-3	02	1	9002-			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9002-			●	●
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-133-2	02	1	9002-				●
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (C)	1-48410-138-1	01	1	9002-				●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-09660-091-3	01	1	9002-			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (H) M22 & PT1/2 ELBOW	9-09234-315-1	02	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (H) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (C) M22	1-09650-277-0	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (C) M22	1-09650-277-0	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (C) M22	1-09650-277-0	01	1	9307-				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (J) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9002-9302				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (J) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (D)	1-09650-275-1	01	1	9002-				●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) W/COVER	1-48312-004-1	04	1	9002-9407			●	●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	04	1	9002-9407				●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	03	1	9408-9509		●		●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	03	1	9510-		●		●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	01	1	9002-9509			●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9510-		●		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48312-015-0	01	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	04	1	9408-9509		●		●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	04	1	9408-9509				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-48312-015-0	04	1	9510-		●		●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B)	1-48312-015-0	04	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	02	1	9002-9509			●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48312-015-0	02	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) W/COVER	1-48312-004-1	03	1	9002-9306			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512			●	●
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512				●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-				●
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-				●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-9407		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-9407				●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9408-9512		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9408-9512				●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602				●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	02	1	9002-9512			●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-				●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M20 & M22 & PT1/2 3WAY	1-09656-296-1	01	1	9002-			●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	03	1	9002-9411	●	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9412-		●		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9002-9411			●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-				●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (F)	9-09205-513-0	01	1	9002-9008	●	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (F) PT3/8	9-99205-517-0	01	1	9009-	●	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<W47> (A) PT1/4	9-99204-513-0	01	1	9002-	●	●	●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4	9-99204-513-0	01	1	9002-			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (E) M14X9	9-99202-314-0	01	1	9307-		●		●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B) PT3/8	9-09204-517-0	01	1	9002-			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (C) PT1/2	9-09204-521-0	02	1	9002-9306			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (D) PT3/4	9-09204-526-0	01	1	9002-9306			●	●
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M14X9	9-99202-314-0	01	1	9002-9306			●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-	●	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> PT1/4	9-09903-738-0	01	1	9002-9306	●	●	●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<W47> R1/4 & RC1/4 ELBOW	1-09660-501-0	01	1	9307-		●		●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<W47> (A) M12 & PT1/4 3WAY	1-09656-586-1	01	1	9002-			●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302			●	●
20	NIPPLE; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<W47> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-			●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9002-	●	●	●	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9002-	●	●	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=987 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306			●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=987	1-47496-254-0	01	1	9307-				●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) L=1110	1-47449-415-4	01	1	9002-9306			●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) L=1110	1-47496-255-0	01	1	9307-				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (A) L=2226	1-47482-231-0	01	1	9002-9212				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (A) L=2226	1-47498-125-0	01	1	9301-9306				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (A) L=2082	1-47499-293-0	01	1	9307-				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (B) L=2082	1-47482-232-0	01	1	9002-9212				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (B) L=2082	1-47498-127-0	01	1	9301-9306				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (B) L=2226	1-47499-294-0	01	1	9307-				●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9002-	●	●	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A)	1-48317-301-0	01	1	9002-			●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48317-302-0	02	1	9002-			●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	12	1	9002-			●	●
46	NUT; U-BOLT CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-				●
50	STAY; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-48317-477-0	01	1	9002-			●	●
51	BOLT; STAY TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X25 W/LK WASHER	0-50041-025-0	02	1	9002-			●	●
53	BOLT; STAY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-			●	●
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-			●	●
55	WASHER; PL,U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=8.4 OD=18	9-09160-608-0	04	1	9002-			●	●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9002-	●	●	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-48317-321-2	01	1	9002-			●	●
67	STAY; SUB TANK CONCRETE PUMP<RA5>	1-48317-444-0	01	1	9002-				●
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53318-276-1	02	1	9002-			●	●
71	BRACKET; AIR MASTER,TANDEM CONCRETE PUMP<RA5>	1-53318-242-0	02	1	9002-				●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M12X45	1-09030-052-1	06	1	9002-9601			●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M12X40 FLANGE	0-28681-240-0	06	1	9602-			●	●
73	BOLT; BRKT TO FRAME,AIR MASTER CONCRETE PUMP<RA5> M10X32 W/LK WASHER	0-50041-032-0	04	1	9002-				●
74	NUT; STAY AIR MASTER CONCRETE PUMP<RA5> M10	9-09110-510-0	06	1	9002-				●
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9002-			●	●
75	WASHER; LK,STAY,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	10	1	9002-			●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53318-224-2	01	1	9002-9207			●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53318-293-1	01	1	9208-			●	●
77	STAY; AIR MASTER UPR CONCRETE PUMP<RA5> (B)	1-53318-209-0	01	1	9002-				●
77	STAY; AIR MASTER UPR CONCRETE PUMP<RA5> (A)	1-53318-210-0	01	1	9002-				●
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9002-			●	●
78	BOLT; STAY AIR MASTER CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	06	1	9002-				●
78	BOLT; STAY AIR MASTER CONCRETE PUMP<RA5> M10X22 W/LK&PL WASHER	0-50141-022-0	06	1	9002-				●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) WXH=202X203.2	1-53318-217-0	02	1	9002-9306			●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) WXH=202X203.2	1-53318-217-0	01	1	9307-				●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) WXH=101X203.2	1-53318-299-0	01	1	9307-				●
79	STAY; AIR MASTER TO BRKT CONCRETE PUMP<RA5> WXH=202X71.7	1-53318-178-1	02	1	9002-				●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	04	1	9002-9306			●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-9306			●	●
80	BOLT; BRKT CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9307-				●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	05	1	9307-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> PRIMARY	1-47800-454-2	01	1	9002-			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> SECONDARY	1-47800-456-1	01	1	9002-9306			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-429-2	01	1	9002-			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-432-1	01	1	9002-9306			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> SECONDARY	1-47800-514-0	01	1	9307-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-444-1	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-445-1	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-453-2	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-455-2	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-488-1	01	1	9307-				●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	14	1	9002-9306			●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-9306			●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	15	1	9307-				●
82	NUT; STAY,AIR MASTER BRKT CONCRETE PUMP<RA5> M10	9-09110-510-0	14	1	9307-				●
128	PROTECTOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53319-018-0	01	1	9002-				●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204			●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-9306			●	●
129	BOLT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X30 FLANGE	0-28080-830-0	02	1	9307-				●
130	NUT; PROTECTOR FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-			●	●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-47475-299-2	02	1	9002-			●	●
136	BRACKET; CLIP CONCRETE PUMP<RA5> (B)	1-47475-299-2	01	1	9002-				●
136	BRACKET; CLIP CONCRETE PUMP<RA5> (A)	1-47475-828-0	02	1	9002-				●
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=13 & 13 L=16 & 16	1-09700-666-0	02	1	9002-			●	●
207	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	03	1	9002-				●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204			●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-			●	●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204				●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-				●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204				●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-				●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-			●	●
209	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-				●
215	PIPE; VINYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=500 SERVICED BY L=3000	0-03266-300-0	01	1	9002-9306			●	●
216	CLIP; PIPE,VINYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	9002-9306			●	●
216	CLIP; PIPE,VINYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) ID=25 L=55	9-09917-573-0	02	1	9002-9306			●	●
217	BRACKET; RUBBER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48317-463-0	01	1	9002-9306			●	●
218	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204			●	●
218	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-9306			●	●
327	NIPPLR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9307-				●

78 76 78 137 136 137 78 77 75 136 82 74 85 74 71 81 74 82 71 79 80 75 82 79 78 85 81 77 74 43 67 46 30 46 7 6 43 30 65 41 44 173 31 165 6 7 2 3 3 27 38 73 28 78 43 6 7 64 45 64 28 45 43 5 1 41 42 44 31 209 136 24 24 207 208 207 208 5 9 5 38 5 203 180 11 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48330-674-1	01	1	9002-9407	●	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48370-211-0	01	1	9408-		●		●
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48330-479-0	01	1	9002-	●	●	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48330-736-0	01	1	9002-9306			●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (B)	1-48330-737-0	01	1	9002-			●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (D)	1-48330-070-1	01	1	9002-			●	●
1	TANK ASM; AIR CONCRETE PUMP<RA5> (C)	1-48310-852-1	01	1	9002-				●
2	TANK; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48330-228-0	01	1	9002-	●	●	●	●
2	TANK; AIR CONCRETE PUMP<RA5>	1-48310-545-1	01	1	9002-				●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A)	1-48410-133-2	04	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2),AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9002-9306			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48410-133-2	04	1	9307-		●		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	03	1	9307-		●		●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48410-182-2	01	1	9002-9407			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48410-182-3	02	1	9002-			●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (A)	1-48410-133-2	02	1	9002-			●	●
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (A)	1-48410-133-2	02	1	9002-				●
3	VALVE; CHECK,AIR TANK CONCRETE PUMP<RA5> (C)	1-48410-138-1	01	1	9002-				●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-09660-091-3	01	1	9002-			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (F) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9307-				●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (H) M22 & PT1/2 ELBOW	9-09234-315-1	02	1	9002-9302			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (H) M22 & PT1/2 ELBOW	1-09650-444-0	02	1	9303-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) EXC. AIR DRYER<PS7> (C) M22	1-09650-277-0	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> (C) M22	1-09650-277-0	01	1	9002-9306			●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (C) M22	1-09650-277-0	01	1	9307-				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (J) PT1/4 & M12 ELBOW	1-09650-117-1	02	1	9002-9302				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (J) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9303-				●
5	UNION; AIR TANK CONCRETE PUMP<RA5> (D)	1-09650-275-1	01	1	9002-				●
6	COCK; DRAIN,AIR TANK (B) W/COVER	1-48312-004-1	04	1	9002-9407	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) W/COVER	1-48312-004-1	04	1	9002-9407			●	●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	04	1	9002-9407				●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	03	1	9408-9509		●		●
6	COCK; DRAIN,AIR TANK AIR DRYER<PS7> (B)	1-48312-015-0	03	1	9510-		●		●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (A)	9-09904-177-0	01	1	9002-	●	●	●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B) W/COVER	1-48312-004-1	01	1	9002-9509	●	●	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	01	1	9002-9509			●	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (B)	1-48312-015-0	01	1	9510-		●		●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48312-015-0	01	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) W/COVER	1-48312-004-1	04	1	9408-9509		●		●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	04	1	9408-9509				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B)	1-48312-015-0	04	1	9510-		●		●
6	COCK; DRAIN,AIR TANK CONCRETE PUMP<RA5> (B)	1-48312-015-0	04	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) W/COVER	1-48312-004-1	02	1	9002-9509			●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-48312-015-0	02	1	9510-				●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE SYSTEM SPRING BRAKE DELETE(JE2) (B) W/COVER	1-48312-004-1	03	1	9002-9306			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512			●	●
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	04	1	9002-9512				●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-		●
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-				●
7	GASKET; DRAIN COCK CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-				●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306	●	●	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9002-9306			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-9407		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9307-9407				●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9408-9512		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	01	1	9408-9512				●
7	GASKET; DRAIN COCK ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9602				●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>,CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-			●	●
7	GASKET; DRAIN COCK ID=14.2 OD=23.0	9-09572-014-0	01	1	9603-		●		●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=23.0	9-09572-014-0	02	1	9002-9512			●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-				●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48340-040-0	03	1	9002-9411	●	●	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 530KPA	1-48340-054-0	03	1	9412-		●		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-040-0	01	1	9002-9411			●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 530KPA	1-48340-054-0	01	1	9412-				●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9002-	●	●	●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=987 SERVICED BY L=1000	1-47434-485-0	01	1	9002-9306			●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) L=987	1-47496-254-0	01	1	9307-				●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) L=1110	1-47449-415-4	01	1	9002-9306			●	●
24	PIPE ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) L=1110	1-47496-255-0	01	1	9307-				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (A) L=2226	1-47482-231-0	01	1	9002-9212				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (A) L=2226	1-47498-125-0	01	1	9301-9306				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (A) L=2082	1-47499-293-0	01	1	9307-				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (B) L=2082	1-47482-232-0	01	1	9002-9212				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (B) L=2082	1-47498-127-0	01	1	9301-9306				●
24	PIPE ASM; AIR TANK CONCRETE PUMP<RA5> (B) L=2226	1-47499-294-0	01	1	9307-				●
27	UNION; ELBOW,AIR TANK CONCRETE PUMP<RA5> M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9002-9302				●
27	UNION; ELBOW,AIR TANK CONCRETE PUMP<RA5> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-				●
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-240-4	02	1	9002-	●	●	●	●
28	BRACKET; AIR TANK CONCRETE PUMP<RA5>	1-48317-259-1	02	1	9002-				●
30	BRACKET; AIR TANK,SUB CONCRETE PUMP<RA5>	1-48317-259-1	02	1	9002-				●
31	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X35	9-01911-235-0	16	1	9002-9005				●
31	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X35 W/LK WASHER	0-50041-235-0	16	1	9006-9105				●
31	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X45	1-09030-052-1	16	1	9106-9601				●
31	BOLT; BRKT TO FRAME CONCRETE PUMP<RA5> M12X40 FLANGE	0-28681-240-0	16	1	9602-				●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	9002-	●	●	●	●
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	9002-	●	●	●	●
38	BAND; AIR TANK CONCRETE PUMP<RA5>	1-48317-108-2	04	1	9002-				●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-08221-060-0	02	1	9002-9407	●	●	●	●
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	9-08224-060-0	02	1	9408-		●		●
41	PIN; BAND FIX CONCRETE PUMP<RA5>	9-08221-060-0	04	1	9002-				●
42	WASHER; PL (B) ID=10.5	9-09164-510-0	02	1	9002-	●	●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10.5	9-09164-510-0	02	1	9002-			●	●
42	WASHER; PL CONCRETE PUMP<RA5> (B) ID=10.5	9-09164-510-0	02	1	9002-				●
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=8.4 OD=22	9-09160-708-0	04	1	9002-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 W/LK WASHER	0-50040-825-0	04	1	9002-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9002-9204	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (A) M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204				●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (A) M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-				●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (B) M6X20 W/LK&PL WASHER	9-01960-620-0	08	1	9002-9204				●
43	BOLT; STAY,AIR TANK,MAIN CONCRETE PUMP<RA5> (B) M6X20 W/LK&PL WASHER	0-50140-620-0	08	1	9205-				●
44	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=2.8 L=18	9-08113-018-0	02	1	9002-	●	●	●	●
44	PIN; SPLIT CONCRETE PUMP<RA5> OD=2.8 L=18	9-08113-018-0	04	1	9002-				●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	12	1	9002-	●	●	●	●
45	NUT; AIR TANK,MAIN CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-				●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	12	1	9002-			●	●
46	NUT; U-BOLT CONCRETE PUMP<RA5> M8	9-09110-408-0	04	1	9002-				●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-220-1	01	1	9002-	●	●	●	●
64	STAY; AIR TANK,MAIN CONCRETE PUMP<RA5> (A)	1-48317-265-0	01	1	9002-				●
64	STAY; AIR TANK,MAIN CONCRETE PUMP<RA5> (B)	1-48317-444-0	01	1	9002-				●
65	STAY; AIR TANK,SUB CONCRETE PUMP<RA5>	1-48317-284-0	01	1	9002-				●
67	STAY; SUB TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-271-0	01	1	9002-	●	●	●	●
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-48317-321-2	01	1	9002-			●	●
67	STAY; SUB TANK CONCRETE PUMP<RA5>	1-48317-444-0	01	1	9002-				●
71	BRACKET; AIR MASTER,TANDEM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53318-276-1	02	1	9002-			●	●
71	BRACKET; AIR MASTER,TANDEM CONCRETE PUMP<RA5>	1-53318-242-0	02	1	9002-				●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M12X45	1-09030-052-1	06	1	9002-9601			●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M12X40 FLANGE	0-28681-240-0	06	1	9602-			●	●
73	BOLT; BRKT TO FRAME,AIR MASTER CONCRETE PUMP<RA5> M10X32 W/LK WASHER	0-50041-032-0	04	1	9002-				●
74	NUT; STAY AIR MASTER CONCRETE PUMP<RA5> M10	9-09110-510-0	06	1	9002-				●
74	NUT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	04	1	9002-			●	●
75	WASHER; LK,STAY,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	10	1	9002-			●	●
76	STAY; AIR MASTER LWR CONCRETE PUMP<RA5>	1-53318-208-2	01	1	9002-				●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53318-224-2	01	1	9002-9207			●	●
77	STAY; AIR MASTER UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-53318-293-1	01	1	9208-			●	●
77	STAY; AIR MASTER UPR CONCRETE PUMP<RA5> (B)	1-53318-209-0	01	1	9002-				●
77	STAY; AIR MASTER UPR CONCRETE PUMP<RA5> (A)	1-53318-210-0	01	1	9002-				●
78	BOLT; STAY AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9002-			●	●
78	BOLT; STAY AIR MASTER CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	06	1	9002-				●
78	BOLT; STAY AIR MASTER CONCRETE PUMP<RA5> M10X22 W/LK&PL WASHER	0-50141-022-0	06	1	9002-				●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) WXH=202X203.2	1-53318-217-0	02	1	9002-9306			●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A) WXH=202X203.2	1-53318-217-0	01	1	9307-				●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B) WXH=101X203.2	1-53318-299-0	01	1	9307-				●
79	STAY; AIR MASTER TO BRKT CONCRETE PUMP<RA5> WXH=202X71.7	1-53318-178-1	02	1	9002-				●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 W/LK WASHER	0-50041-020-0	04	1	9002-9306			●	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-9306			●	●
80	BOLT; BRKT CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9307-				●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	05	1	9307-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> PRIMARY	1-47800-454-2	01	1	9002-			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> SECONDARY	1-47800-456-1	01	1	9002-9306			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-429-2	01	1	9002-			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-432-1	01	1	9002-9306			●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> SECONDARY	1-47800-514-0	01	1	9307-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-444-1	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> EXC. CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-445-1	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-453-2	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CONCRETE PUMP<RA5> CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) PRIMARY	1-47800-455-2	01	1	9002-				●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>,CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2) SECONDARY	1-47800-488-1	01	1	9307-				●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	14	1	9002-9306			●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-9306			●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	15	1	9307-				●
82	NUT; STAY,AIR MASTER BRKT CONCRETE PUMP<RA5> M10	9-09110-510-0	14	1	9307-				●
85	NUT; BRKT TO FRAME,AIR MASTER CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-				●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (B)	1-47475-299-2	02	1	9002-			●	●
136	BRACKET; CLIP CONCRETE PUMP<RA5> (B)	1-47475-299-2	01	1	9002-				●
136	BRACKET; CLIP CONCRETE PUMP<RA5> (A)	1-47475-828-0	02	1	9002-				●
137	BOLT; BRKT CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-				●
165	UNION; AIR TANK,SUB CONCRETE PUMP<RA5>	1-09656-547-1	01	1	9002-				●
173	WASHER; PL,AIR TANK,SUB CONCRETE PUMP<RA5> ID=10.5	9-09164-510-0	02	1	9002-				●
180	WASHER; LK CONCRETE PUMP<RA5> ID=20.2	9-09150-520-0	01	1	9002-				●
203	NUT CONCRETE PUMP<RA5> M20	9-99111-420-0	01	1	9002-				●
207	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> ID=13 & 13 L=16 & 16	1-09700-666-0	02	1	9002-			●	●
207	CLIP; AIR PIPE CONCRETE PUMP<RA5> ID=13 & 13 L=21.5 & 21.5	1-09700-689-0	03	1	9002-				●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9204			●	●
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	02	1	9205-			●	●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204				●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-				●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204				●
208	BOLT; CLIP CONCRETE PUMP<RA5> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-				●
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M8	9-09110-408-0	02	1	9002-			●	●
209	NUT; CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-				●

243 242 241 96 98 96 121 222 96 139 141 153 151 151 152 140 141 139 140 152 151 151 153 145 145 125 86 240 239 238 237 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9002-			●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9002-	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (C) M14	1-09650-092-1	01	1	9002-9302	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (C) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9303-	●	●
96	CONNECTOR; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) (B)	1-09656-242-2	01	1	9002-	●	●
98	SWITCH; AIR PRESSURE HONG KONG EQUIPMENT(PQ1)	1-48340-036-0	01	1	9002-9308	●	●
121	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●
121	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●
121	BOLT; DOUBLE CHECK VLV HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=140	1-47469-051-1	01	1	9002-			●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> L=190	1-47469-052-2	01	1	9002-			●	●
125	HOSE; OIL TANK TO AIR MASTER CONCRETE PUMP<RA5> L=115 SERVICED BY L=1800	1-09360-320-0	02	1	9002-				●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-175-0	01	1	9002-9401			●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-170-1	01	1	9402-				●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> (A)	1-47537-114-3	01	1	9002-			●	●
139	BRACKET; OIL TANK CONCRETE PUMP<RA5> (B)	1-47537-081-2	01	1	9002-				●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	03	1	9002-			●	●
140	BOLT; OIL TANK TO BRKT CONCRETE PUMP<RA5> M10X20 W/LK WASHER	0-50041-020-0	02	1	9002-				●
141	NUT; OIL TANK TO BRKT CONCRETE PUMP<RA5> M10	9-09110-510-0	02	1	9002-				●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5> M10	9-09110-510-0	03	1	9002-			●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15	1-09704-018-1	04	1	9002-9306			●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	9307-				●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CONCRETE PUMP<RA5>	1-47537-113-0	02	1	9002-			●	●
151	BAND; OIL TANK,AIR MASTER CONCRETE PUMP<RA5>	1-47537-056-2	02	1	9002-				●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204			●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302			●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	02	1	9303-			●	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	5-09440-005-0	02	1	9002-			●	●
222	VALVE; DOUBLE CHECK HONG KONG EQUIPMENT(PQ1)	1-48410-050-0	01	1	9002-	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-026-1	01	1	9002-9401			●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-019-2	01	1	9402-				●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9002-			●	●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9002-			●	●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9002-			●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X65	9-01055-865-0	02	1	9002-9005	●	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X65	0-10805-865-0	02	1	9006-	●	●
242	WASHER; LK,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.2	9-09150-508-0	02	1	9002-	●	●
243	WASHER; PL,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> ID=8.4	9-09160-508-0	02	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
