3-11 — PARKING BRAKE CONTROL (#3013) — 105 parça

97 61 45 46 90 52 52 28 23 98 100 99 102 101 4 73 51 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5)	1-79997-252-3	01	1	9002-	●	●
23	SWITCH; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) CONNECTOR 6PIN	1-82440-028-0	01	1	9002-	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK&PL WASHER	9-01960-825-0	03	1	9002-9204	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9205-	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M6X16	1-09980-296-0	01	1	9002-	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) ID=19 H=70 L=25	1-09700-773-0	01	1	9002-	●	●
51	PIN; JOINT,RELAY LEVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) OD=3.7 L=28	9-08114-028-0	01	1	9002-	●	●
52	WASHER; CURVED RELAY LEVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) ID=19	8-94206-429-1	02	1	9002-	●	●
61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8) MIXER TRUCK<RA2> L=5360	1-46151-391-4	01	1	9002-9306	●
61	CABLE; PARKING BRK MAF5D M/T(X4G) PARKING BRAKE TRANSMISSION REAR(PJ8) EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=5310	1-46151-390-5	01	1	9002-	●	●
61	CABLE; PARKING BRK MAF6Q M/T(X3U) PARKING BRAKE TRANSMISSION REAR(PJ8) L=5410	1-46151-392-5	01	1	9002-		●
61	CABLE; PARKING BRK PARKING BRAKE TRANSFER REAR(WB5) L=7210	1-46151-394-6	01	1	9002-		●
61	CABLE; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8) FIRE TRUCK<RA9> L=5460	1-46151-393-5	01	1	9002-9306		●
73	WASHER; PL,CABLE PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) ID=17	9-09160-516-0	01	1	9002-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK&PL WASHER	9-01960-825-0	02	1	9002-9204	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9205-	●	●
95	CAP; CABLE,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5)	1-79997-140-2	01	1	9002-	●	●
97	GROMMET; PARKING BRK CABLE	1-09983-078-0	01	1	9002-			●	●
97	GROMMET; PARKING BRK CABLE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5)	1-09983-078-0	01	1	9002-	●	●
98	BOLT; RR COVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9002-9306	●	●
98	BOLT; RR COVER CONCRETE PUMP<RA5> M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	9002-		●
98	BOLT; RR COVER PARKING BRAKE TRANSMISSION REAR(PJ8) M10X30 W/LK&PL WASHER	0-50141-030-0	02	1	9307-		●
99	NUT; CONT CABLE PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M10	9-09110-510-0	02	1	9002-	●	●
100	BELLOWS; CONT WIRE PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5)	1-46159-004-0	01	1	9002-	●	●
101	NUT; CABLE TO LEVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8 FLANGE	9-46259-016-0	01	1	9002-	●	●
102	NUT; LK,CABLE TO LEVER PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8	9-09110-408-0	01	1	9002-	●	●

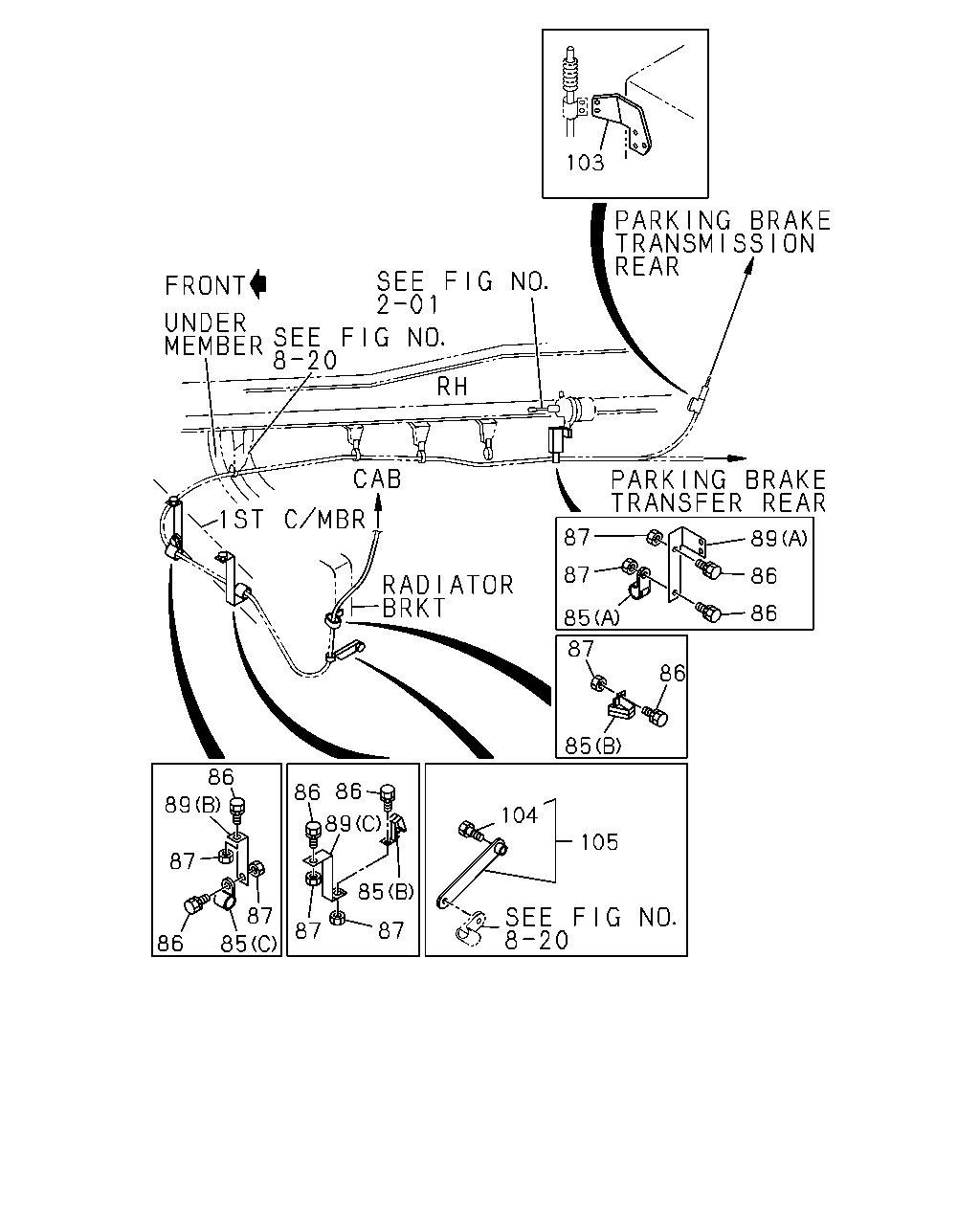

105 104 87 87 85 89 86 86 86 89 87 86 85 87 85 86 87 85 87 87 89 86 86 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
85	CLIP; BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-09700-094-2	01	1	9002-	●	●
85	CLIP; BRKT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (C)	1-09700-057-1	01	1	9002-	●	●
85	CLIP; BRKT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (B)	1-09700-772-2	02	1	9002-	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9003	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK WASHER	9-01900-820-0	01	1	9004-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9003	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK WASHER	9-01900-825-0	04	1	9004-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 FLANGE	0-28080-825-0	04	1	9303-9306	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9306	●	●
86	BOLT CONCRETE PUMP<RA5> M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9002-9204		●
86	BOLT CONCRETE PUMP<RA5> M8X20 W/LK&PL WASHER	0-50140-820-0	06	1	9205-9306		●
86	BOLT CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	06	1	9307-		●
86	BOLT CONCRETE PUMP<RA5> M8X25 W/LK&PL WASHER	9-01960-825-0	04	1	9002-9204		●
86	BOLT CONCRETE PUMP<RA5> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9205-9306		●
86	BOLT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9307-		●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 FLANGE	0-28080-820-0	05	1	9307-		●
87	NUT M12	1-09468-012-1	01	1	9002-9101	●	●	●	●
87	NUT M12	1-09468-012-1	01	1	9102-9306			●	●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8) M8	9-09110-408-0	02	1	9002-9306	●	●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8	9-09110-408-0	06	1	9002-9306	●	●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8) M8	9-09110-408-0	01	1	9307-		●
87	NUT CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-		●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8	9-09110-408-0	05	1	9307-		●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-82699-172-1	01	1	9002-9306	●	●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-82699-510-2	01	1	9307-		●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (B) L=145	1-47475-655-0	01	1	9002-	●	●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (C)	1-47475-757-2	01	1	9002-	●	●
89	BRACKET; CLIP CONCRETE PUMP<RA5> (A)	1-46147-101-0	02	1	9002-		●
89	BRACKET; CLIP CONCRETE PUMP<RA5> (B)	1-82699-085-0	01	1	9002-		●
89	BRACKET; CLIP CONCRETE PUMP<RA5> (C)	1-83129-033-1	01	1	9002-		●
103	BRACKET; PARKING BRK CONT MAF5D M/T(X4G) PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46147-088-0	01	1	9002-9306	●	●
103	BRACKET; PARKING BRK CONT MAF6Q M/T(X3U) PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46147-025-0	01	1	9002-9306	●	●
104	SHAFT; CABLE FIX	1-33619-188-0	01	1	9002-	●	●	●	●
105	LEVER; W/BUSHING	1-33651-326-2	01	1	9002-			●	●
105	LEVER; W/BUSHING	1-33651-348-2	01	1	9002-	●	●

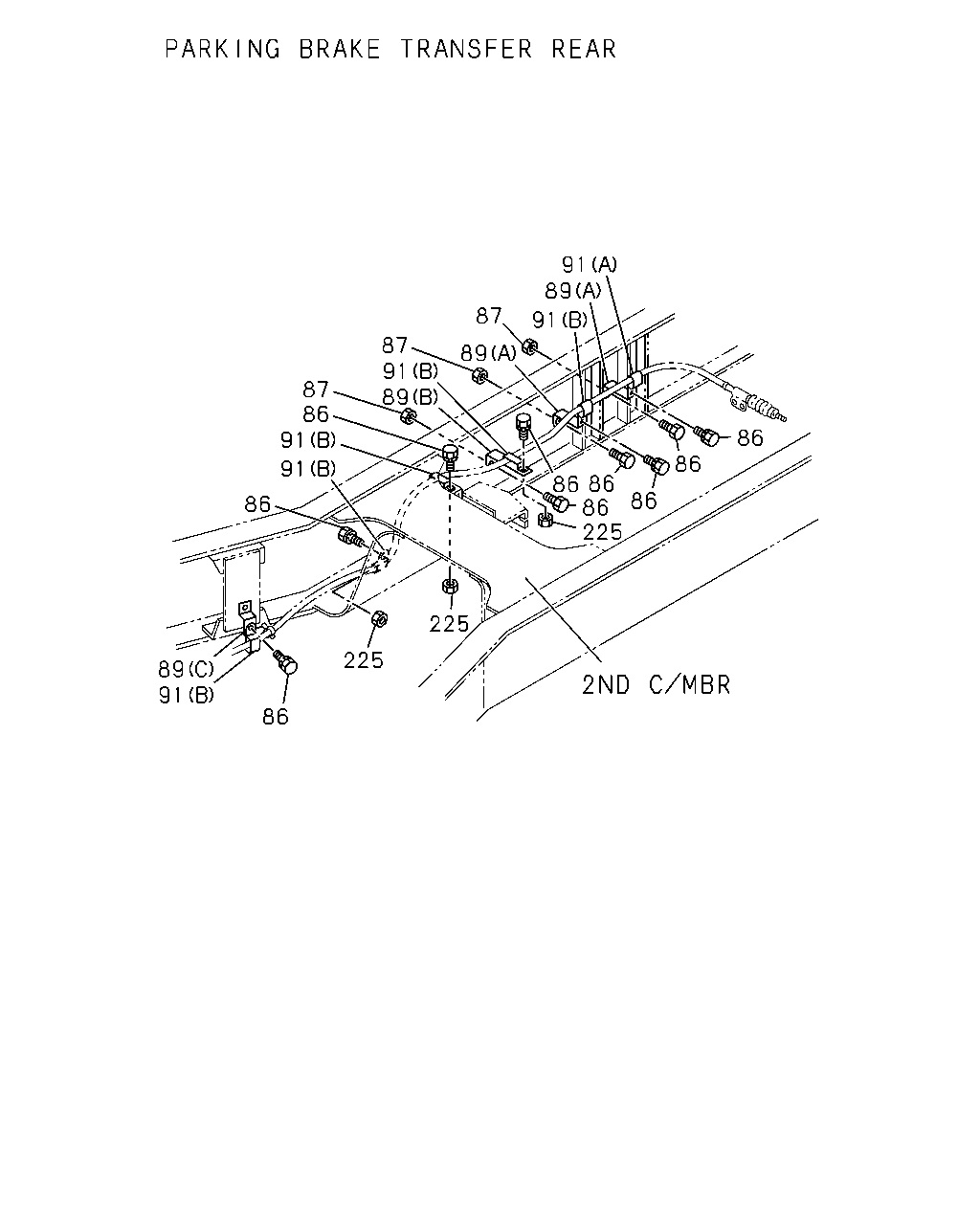

86 89 91 225 225 86 91 91 86 87 87 91 89 89 87 91 89 91 86 86 86 86 86 86 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9003	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK WASHER	9-01900-820-0	01	1	9004-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9003	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK WASHER	9-01900-825-0	04	1	9004-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X25 FLANGE	0-28080-825-0	04	1	9303-9306	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9002-9204	●	●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-9306	●	●
86	BOLT CONCRETE PUMP<RA5> M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9002-9204		●
86	BOLT CONCRETE PUMP<RA5> M8X20 W/LK&PL WASHER	0-50140-820-0	06	1	9205-9306		●
86	BOLT CONCRETE PUMP<RA5> M8X20 FLANGE	0-28080-820-0	06	1	9307-		●
86	BOLT CONCRETE PUMP<RA5> M8X25 W/LK&PL WASHER	9-01960-825-0	04	1	9002-9204		●
86	BOLT CONCRETE PUMP<RA5> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9205-9306		●
86	BOLT CONCRETE PUMP<RA5> M8X25 FLANGE	0-28080-825-0	04	1	9307-		●
86	BOLT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8X20 FLANGE	0-28080-820-0	05	1	9307-		●
87	NUT M12	1-09468-012-1	01	1	9002-9101	●	●	●	●
87	NUT M12	1-09468-012-1	01	1	9102-9306			●	●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8) M8	9-09110-408-0	02	1	9002-9306	●	●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8	9-09110-408-0	06	1	9002-9306	●	●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8) M8	9-09110-408-0	01	1	9307-		●
87	NUT CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-		●
87	NUT PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) M8	9-09110-408-0	05	1	9307-		●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-82699-172-1	01	1	9002-9306	●	●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-82699-510-2	01	1	9307-		●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (B) L=145	1-47475-655-0	01	1	9002-	●	●
89	BRACKET; CLIP PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (C)	1-47475-757-2	01	1	9002-	●	●
89	BRACKET; CLIP CONCRETE PUMP<RA5> (A)	1-46147-101-0	02	1	9002-		●
89	BRACKET; CLIP CONCRETE PUMP<RA5> (B)	1-82699-085-0	01	1	9002-		●
89	BRACKET; CLIP CONCRETE PUMP<RA5> (C)	1-83129-033-1	01	1	9002-		●
91	CLIP; PARKING BRK CABLE CONCRETE PUMP<RA5> (A) ID=10.5 & 14.5 L=21	1-09701-084-0	01	1	9002-		●
91	CLIP; PARKING BRK CABLE CONCRETE PUMP<RA5> (B) ID=10.5 & 14.5 L=20	1-09701-085-0	05	1	9002-		●
225	NUT; CABLE CLIP CONCRETE PUMP<RA5> M8	9-09110-408-0	03	1	9002-		●
