◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10890 - FSR34(RHD) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#30124) — 48 parça

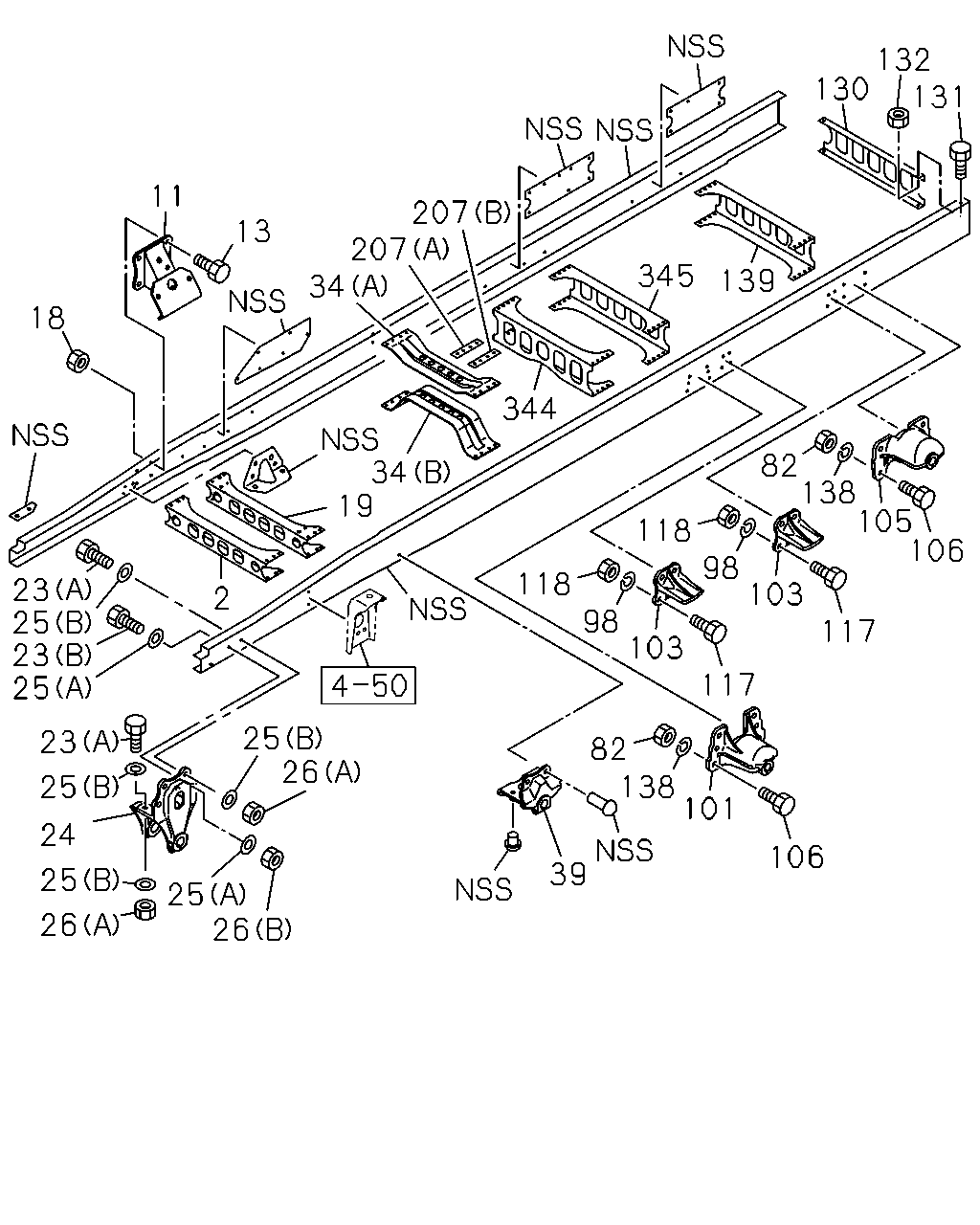

çizim 22333
132 130 131 11 207 207 34 13 345 139 18 344 34 19 82 138 105 106 118 98 103 118 98 103 23 25 23 25 2 117 117 25 26 23 25 82 138 101 24 39 106 25 25 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-460-9 01 1 0107-0107 ● ●
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0108- ● ●
11 BRACKET; ENG MTG 1-53211-197-0 02 1 0107- ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28691-240-0 08 1 0107-0512 ● ●
13 BOLT; BRKT,ENG MTG
M12X40 FLANGE 		0-28661-240-0 08 1 0601- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0107-0602 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
19 MEMBER; CROSS,2ND 1-53181-661-9 01 1 0107-0511 ● ●
19 MEMBER; CROSS,2ND 8-97611-712-0 01 1 0512- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-91066-450-0 08 1 0107-0512 ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-10956-450-0 08 1 0601- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		9-91066-660-0 04 1 0107-0512 ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-10956-660-0 04 1 0601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-115-6 02 1 0107- ● ●
25 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-223-0 08 1 0107- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 16 1 0107-1201 ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 16 1 1202- ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 08 1 0107-0512 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0601- ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0107-0512 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601- ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 0107- ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-359-1 01 1 0107- ● ●
39 BRACKET; FRT SPR,RR 1-53352-052-1 02 1 0107- ● ●
82 NUT; BRKT
M14 		9-99110-414-0 22 1 0107-0512 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0601- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 0107-0603 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0604- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0107- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0107- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0107- ● ●
106 BOLT; BRKT
M14X40 		0-20801-440-0 22 1 0107-0512 ● ●
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0601- ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0107- ● ●
118 NUT; STOPPER
M14 		9-99110-414-0 16 1 0107-0512 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601- ● ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 0107- ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28681-030-0 04 1 0107-0512 ● ●
131 BOLT; END C/MBR
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91150-110-0 04 1 0107-0602 ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
138 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 22 1 0107-0603 ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0604- ● ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0107- ● ●
207 SPACER; 4TH C/MBR
(A) T=7.0 		1-53168-321-0 02 1 0107- ● ●
207 SPACER; 4TH C/MBR
(B) T=4.5 		1-53168-357-0 02 1 0107- ● ●
344 MEMBER; CROSS,4TH 1-53181-604-3 01 1 0107- ● ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
