7-43 — SUN VISOR AND ASSIST GRIP (#30110) — 136 parça

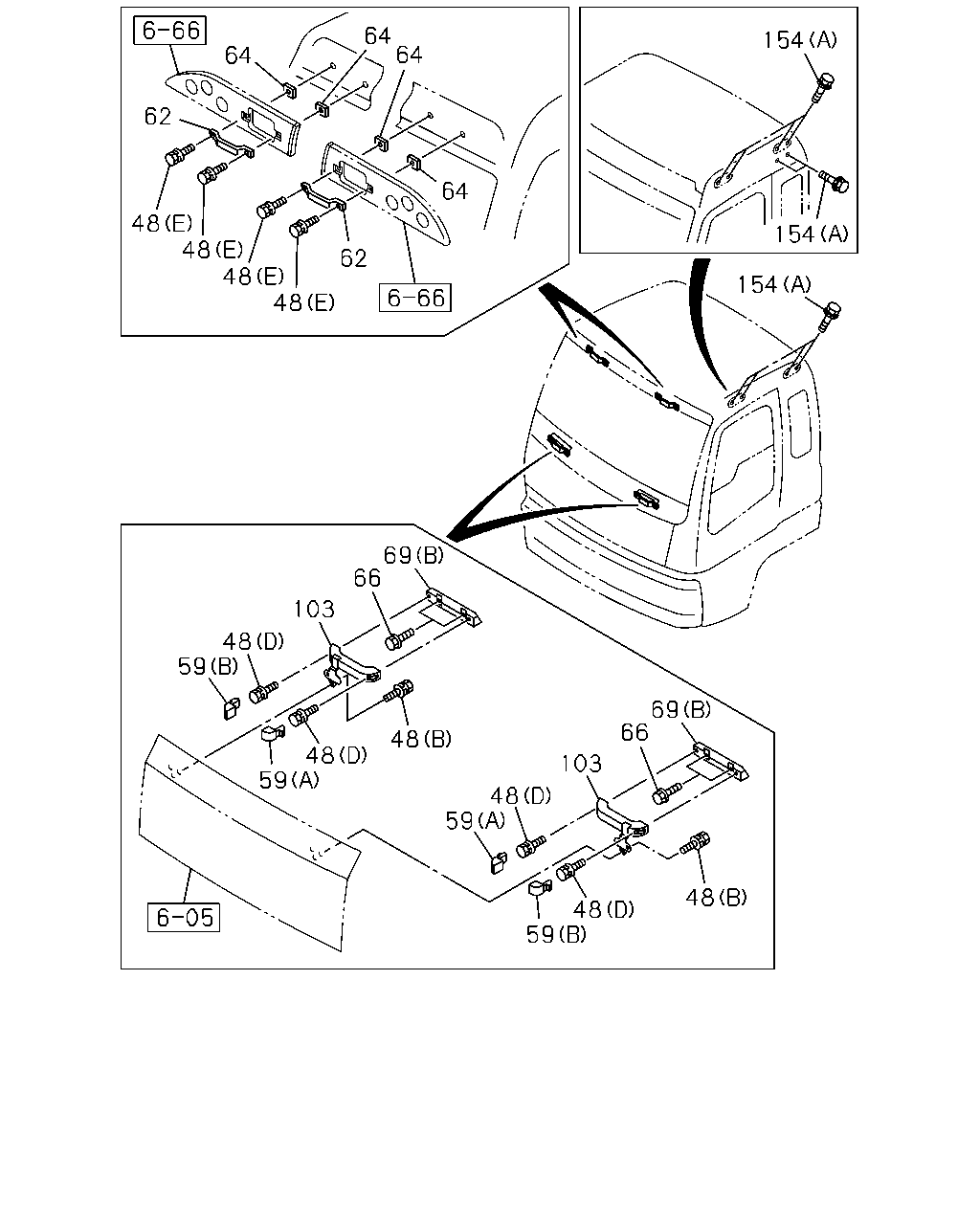

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0407-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0407-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0407-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-0511
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0407-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0407-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0407-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0407-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0407-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0407-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0407-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0407-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0407-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0512-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0407-0511
154	BOLT; SUPPORT HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0407-

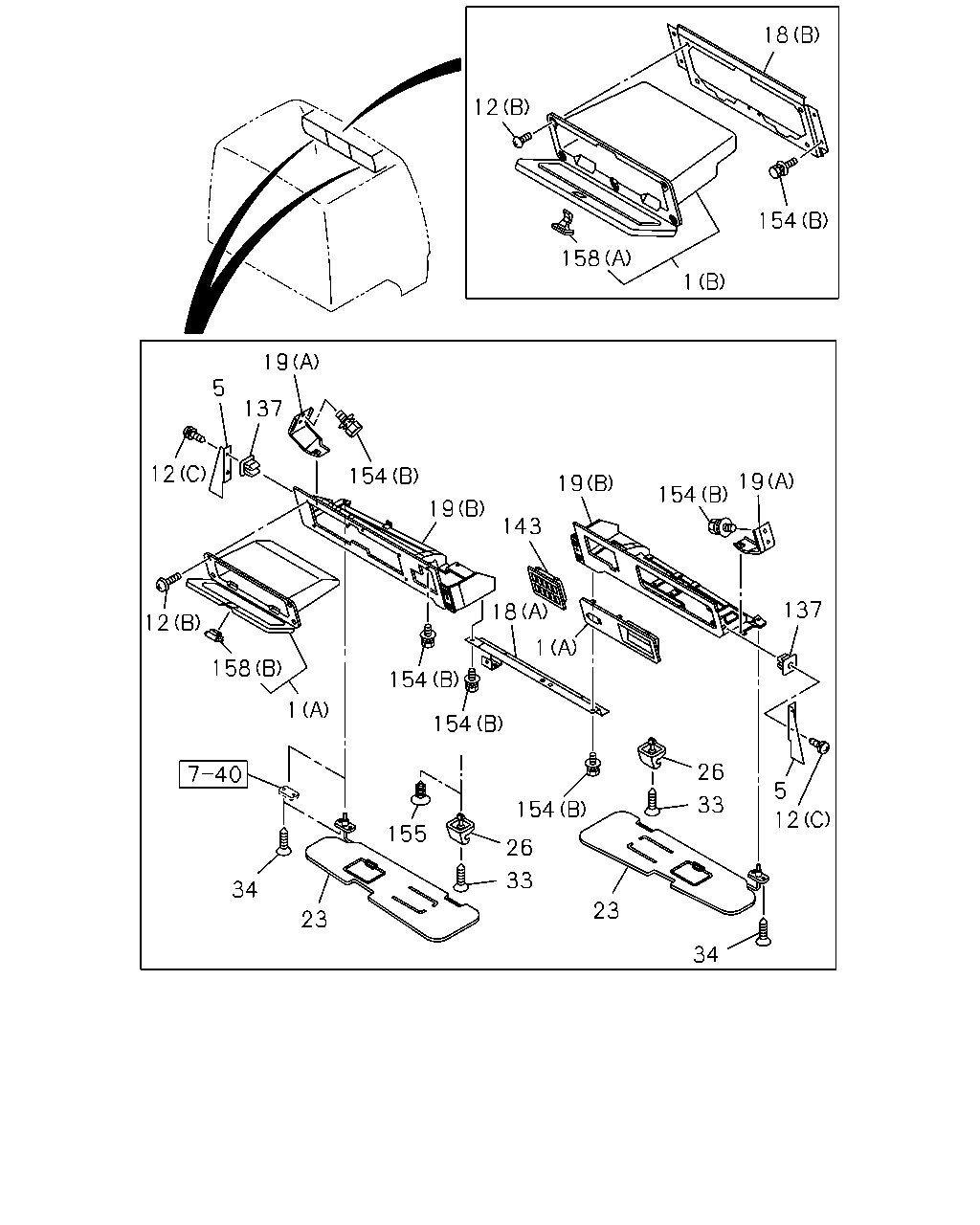

18 12 154 158 1 19 5 137 12 154 19 19 154 19 143 18 137 12 1 158 154 1 154 26 5 33 154 12 155 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0407-
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0407-0511
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0512-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0407-
1	BOARD; HEADER SHELF (C)	1-72447-886-6	01	1	0407-0511
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0512-
5	BRACKET; HEADER SHELF FRAME	1-72447-932-0	01	1	0407-0511
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0512-
5	BRACKET; HEADER SHELF FRAME	1-72447-933-0	01	1	0407-0511
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0512-
12	SCREW; HEADER SHELF (C) M5X20	5-09981-059-0	04	1	0407-0511
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0512-
12	SCREW; HEADER SHELF (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0407-0511
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0512-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0407-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0407-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0407-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0407-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0407-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0407-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0407-
23	SUN VISOR EXC. CUSTOM CAB(SR5)	1-73138-156-1	01	1	0512-
23	SUN VISOR	1-73138-157-1	01	1	0407-0511
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0512-
23	SUN VISOR	1-73137-178-1	01	1	0407-0511
23	SUN VISOR CUSTOM CAB(SR5)	1-73137-178-1	01	1	0512-
26	HOLDER; SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0512-
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0407-0511
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	02	1	0512-
33	SCREW; HOLDER,SUN VISOR EXC. SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0512-0603
33	SCREW; HOLDER,SUN VISOR EXC. SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0407-0511
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0512-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0407-
137	GROMMET; SCREW,HEADER SHELF D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0407-0511
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0512-
143	BEZEL	1-72447-768-2	01	1	0407-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0512-
154	BOLT; SUPPORT (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0407-0511
154	BOLT; SUPPORT HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0512-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0407-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0512-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0407-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0407-0511
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0512-

135 83 132 135 12 1 157 156 71 76 71 56 48 87 54 87 76 71 59 71 142 142 69 71 106 72 75 59 55 49 142 54 48 54 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0407-
1	BOARD; HEADER SHELF (B)	1-72447-758-3	01	1	0407-0511
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0512-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0407-
1	BOARD; HEADER SHELF (C)	1-72447-886-6	01	1	0407-0511
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0512-
12	SCREW; HEADER SHELF (C) M5X20	5-09981-059-0	04	1	0407-0511
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0512-
12	SCREW; HEADER SHELF (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0407-0511
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0512-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0407-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0512-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0407-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0407-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0407-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-0511
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	0407-0602
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0603-
49	NUT; ASSIST GRIP M8 FLANGE	1-09984-126-0	01	1	0407-0511
49	NUT; ASSIST GRIP GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0512-0808
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0407-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0407-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0407-
55	GRIP; ASSIST,CAB SIDE UPR	1-73618-169-1	02	1	0407-0511
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0512-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0407-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0407-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0407-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0407-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0407-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0407-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0407-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0407-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0407-
72	GRIP; ASSIST,CAB ENTRY,BACK	1-71907-544-0	01	1	0407-0511
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0512-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY	1-71997-548-0	01	1	0407-0511
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0512-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (A)	1-73618-180-0	02	1	0512-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5	8-94230-464-1	02	1	0512-
83	PLUG D6X23 LIGHT GRAY	1-73318-629-0	03	1	0407-0511
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0512-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0407-
106	SCREW; ASSIST GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0407-0511
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0512-
132	FASTENER; BOARD,HEADER SHELF D8X13.5	1-09987-276-0	08	1	0407-0511
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0512-
135	CLIP; HEADER SHELF (A) D8X13.5	1-09987-248-1	01	1	0407-0511
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0512-
135	CLIP; HEADER SHELF (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0407-0511
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0512-
142	SEAL; ASSIST GRIP (B)	1-71997-691-1	02	1	0407-0511
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0512-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	04	1	0407-0511
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0512-
156	PIPE; HEADER SHELF	1-72447-864-2	01	1	0407-0511
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0512-
157	FINISHER; PIPE	1-72447-885-4	01	1	0407-0511
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	0512-
