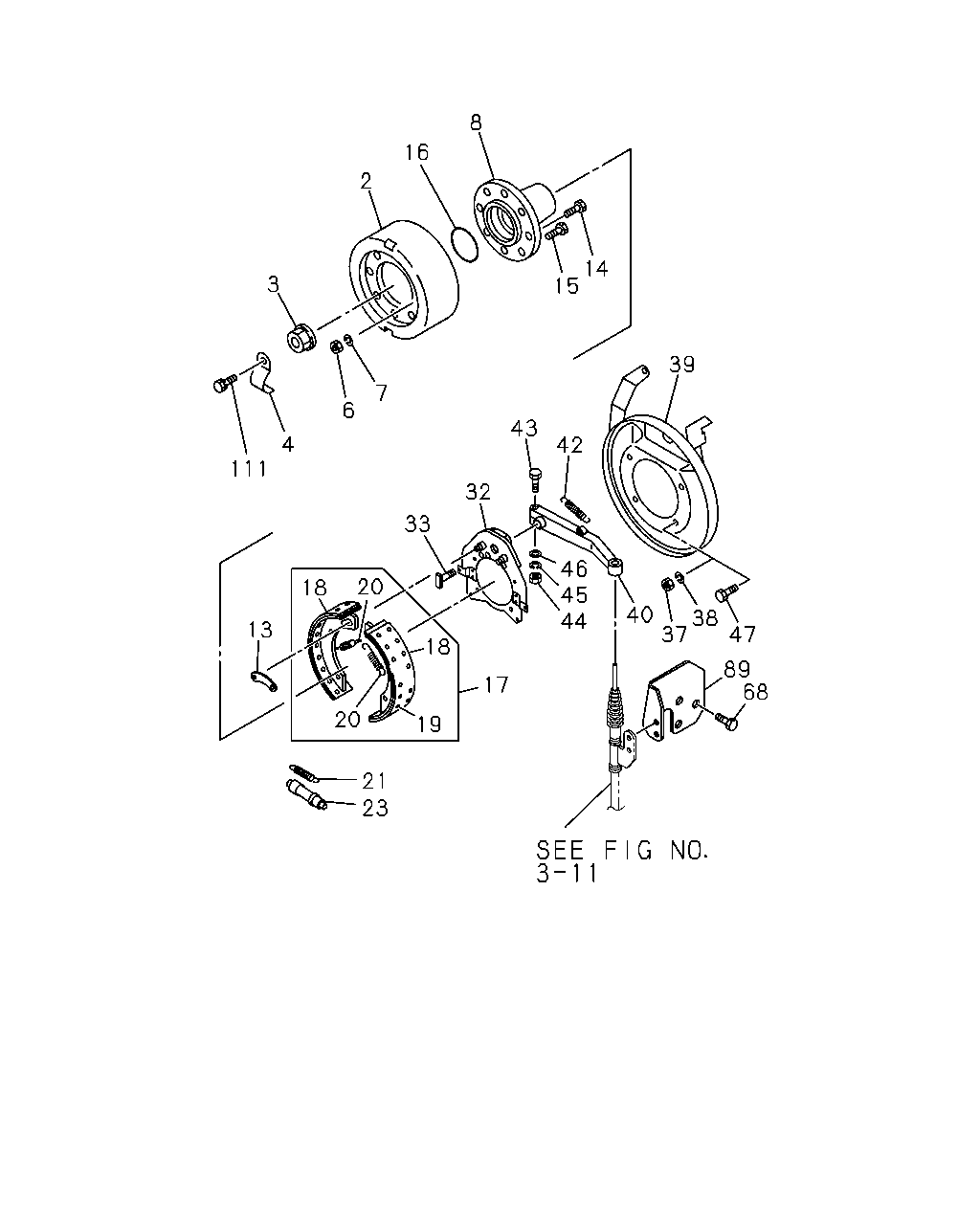

3-08A — PARKING BRAKE (#3011) — 39 parça

68 89 47 38 37 40 44 45 46 17 18 19 21 23 20 13 18 20 33 32 43 42 39 15 14 8 16 2 3 7 6 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46211-026-1	01	1	9002-	●	●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR(PJ8) M42	1-09449-061-0	01	1	9002-	●	●
4	COVER; ADJ HOLE PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46219-019-0	02	1	9002-	●	●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR(PJ8) M16	9-99110-516-0	02	1	9002-	●	●
7	WASHER; LK,FLANGE PARKING BRAKE TRANSMISSION REAR(PJ8) ID=16.2	9-09150-516-0	02	1	9002-	●	●
8	FLANGE; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-37243-121-3	01	1	9002-	●	●
13	BRACE; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	9-46239-002-0	01	1	9002-	●	●
14	BOLT; DRUM TO FLANGE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) M16X51 W/MARK	1-46219-048-1	04	1	9002-9306			●	●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR(PJ8) M16X38	1-46219-010-0	02	1	9002-	●	●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR(PJ8) M16X55	1-46219-039-0	04	1	9002-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09920-607-0	01	1	9002-	●	●
17	SHOE; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46220-009-0	02	1	9002-9410	●	●
17	SHOE; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46220-022-0	02	1	9411-	●	●
18	LINING; BRK,PARKING PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46225-006-0	02	1	9002-9410	●	●
18	LINING; BRK,PARKING PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46225-023-0	02	1	9411-	●	●
19	RIVET; LINING,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09732-012-0	32	1	9002-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09942-434-0	02	1	9002-	●	●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09942-516-0	01	1	9002-	●	●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46240-003-0	01	1	9002-	●	●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46213-033-0	01	1	9002-	●	●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	9-46251-069-0	01	1	9002-	●	●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR(PJ8) M16	9-99110-516-0	01	1	9002-		●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR(PJ8) M16	9-99110-516-0	04	1	9002-	●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR(PJ8) ID=16.2	9-09150-516-0	04	1	9002-	●	●
39	COVER; DUST,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46213-066-1	01	1	9002-	●	●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46252-014-0	01	1	9002-	●	●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09583-128-0	01	1	9002-	●	●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR(PJ8)	9-01041-045-0	01	1	9002-9204	●	●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR(PJ8)	0-10811-045-0	01	1	9205-	●	●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR(PJ8) M10	9-09111-410-0	01	1	9002-	●	●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR(PJ8) ID=10.2	9-09150-510-0	01	1	9002-	●	●
46	WASHER; LEVER PARKING BRAKE TRANSMISSION REAR(PJ8)	9-09855-362-0	01	1	9002-	●	●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR(PJ8) M16X40	9-09804-155-0	03	1	9002-		●
68	BOLT; BRKT,PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR(PJ8) M10X25 W/LK WASHER	0-50051-025-0	03	1	9002-9205	●	●
68	BOLT; BRKT,PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR(PJ8) M10X22 FLANGE	0-28181-022-0	03	1	9206-	●	●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46147-197-0	01	1	9307-		●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR(PJ8)	1-46147-025-0	01	1	9307-	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-	●	●
