7-40 — INSTRUMENT PANEL AND BOX (#30109) — 143 parça

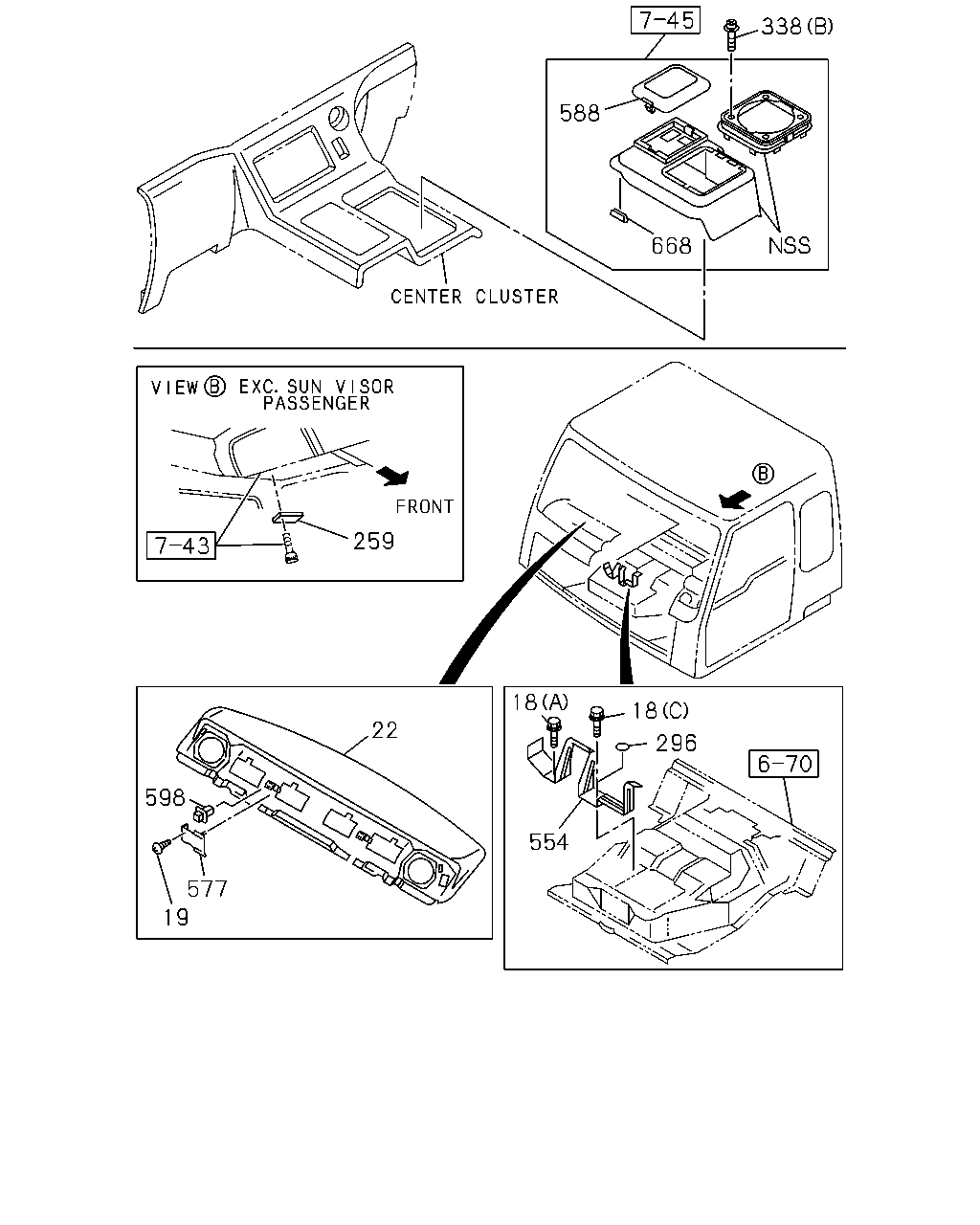

çizim 87507
338 588 668 259 18 18 22 296 598 554 577 19
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0407-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407-0509
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0407-
22 PAD; INST 1-72317-347-2 01 1 0407-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0512-
296 SEAL; INST CENTER BEZEL
OD=25 BLACK 		1-76798-019-0 03 1 0510-0607
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0407-
338 SCREW; COVER
(B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0604
338 SCREW; COVER
(B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0605-
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0407-0509
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0510-0607
554 BRACKET; CENTER BEZEL 1-65671-758-1 01 1 0608-
577 BRACKET; SENSOR 1-72318-413-0 01 1 0407-
588 LID; BOX 1-72447-974-1 01 1 0407-
598 GROMMET; SCREW
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 01 1 0407-
668 FINISHER; COVER
L=167 		1-71996-271-0 01 1 0407-

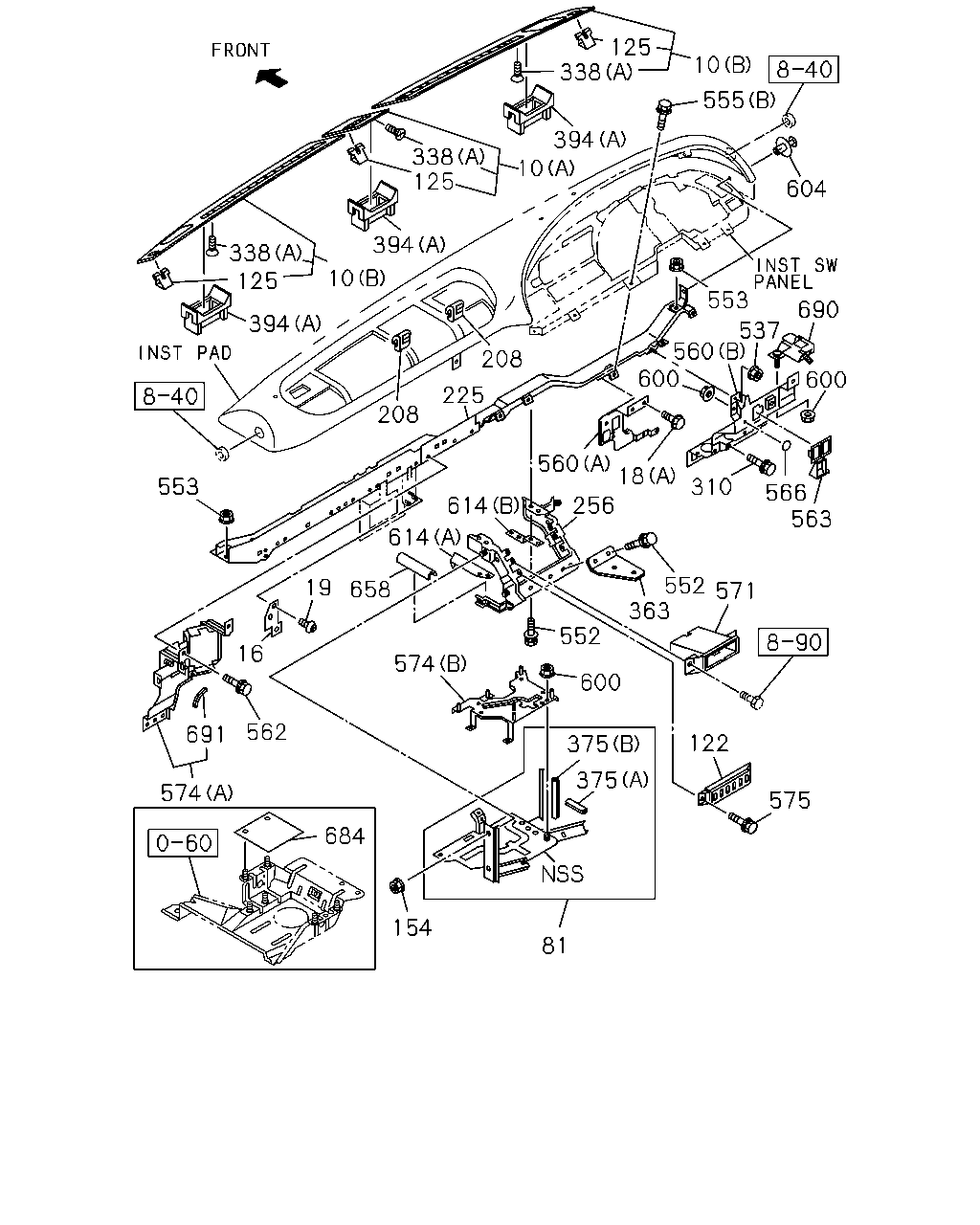

çizim 104483
125 338 10 555 394 338 125 10 604 394 338 125 553 10 690 394 537 560 600 208 600 225 208 560 614 18 553 310 566 563 256 614 19 552 363 658 571 552 16 574 600 562 691 122 375 375 574 575 684 154 81
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0407-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0407-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-602-7 01 1 0407-
16 BRACKET; INST PNL 1-73908-023-2 01 1 0407-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0407-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407-0509
19 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0407-
81 BRACKET; ELEC CONT UNIT
6WG1 TC-S(97L) 		1-73907-726-0 01 1 0512-0702
81 BRACKET; ELEC CONT UNIT
6WG1 TC-S(97L) 		1-73907-739-0 01 1 0703-
81 BRACKET; ELEC CONT UNIT 1-73907-689-4 01 1 0407-0511
81 BRACKET; ELEC CONT UNIT
6WF1 TC-C(1B8) 		1-73907-689-4 01 1 0512-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0407-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0407-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0407-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0407-
225 FRAME; FACIA 1-65671-725-8 01 1 0407-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0407-0710
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0812
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0901-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0407-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 12 1 0407-
338 SCREW; COVER
(B) M4X8 W/PL WASHER 		9-03900-408-0 04 1 0407-0604
338 SCREW; COVER
(B) M4X8 W/PL WASHER 		0-36210-408-0 04 1 0605-
363 SUPPORT ASM; COMPT PANEL CTR 1-73907-722-1 01 1 0407-0804
363 SUPPORT ASM; COMPT PANEL CTR 1-73907-776-0 01 1 0805-
375 FINISHER; BRKT,CONT UNIT
(A) L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0407-0511
375 FINISHER; BRKT,CONT UNIT
(A) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0512-
375 FINISHER; BRKT,CONT UNIT
(B) L=80 		5-71997-133-0 01 1 0407-0511
375 FINISHER; BRKT,CONT UNIT
(B) L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0512-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0407-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0407-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0407-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0407-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0407-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0407-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-
560 BRACKET
6WG1 TC-S(97L) (B) 		1-65671-793-1 01 1 0512-
560 BRACKET
(B) 		1-65671-760-4 01 1 0407-0511
560 BRACKET
6WF1 TC-C(1B8) (B) 		1-65671-760-4 01 1 0512-
560 BRACKET
(A) 		1-65680-976-3 01 1 0407-0511
560 BRACKET
(A) 		1-65681-197-2 01 1 0512-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-
563 BEZEL; BRKT
6WG1 TC-S(97L) 		1-72448-410-3 02 1 0512-
563 BEZEL; BRKT 1-72448-410-3 01 1 0407-0511
563 BEZEL; BRKT
6WF1 TC-C(1B8) 		1-72448-410-3 01 1 0512-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0407-
571 BEZEL; POCKET 1-72438-151-3 02 1 0407-
574 PANEL; RELAY BOX
(B) 		1-73907-690-2 01 1 0407-
574 PANEL; RELAY BOX
(A) 		1-73907-705-4 01 1 0407-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0512-0602
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 02 1 0603-0705
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0407-0511
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 02 1 0512-0602
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0407-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0407-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0407-
658 FINISHER; BEZEL
L=80 		5-71997-133-0 01 1 0407-0511
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0512-
684 RUBBER; HARNESS 1-82698-417-1 01 1 0407-
690 PANEL; RELAY,HEADLAMP 1-65681-196-1 01 1 0512-0705
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006-

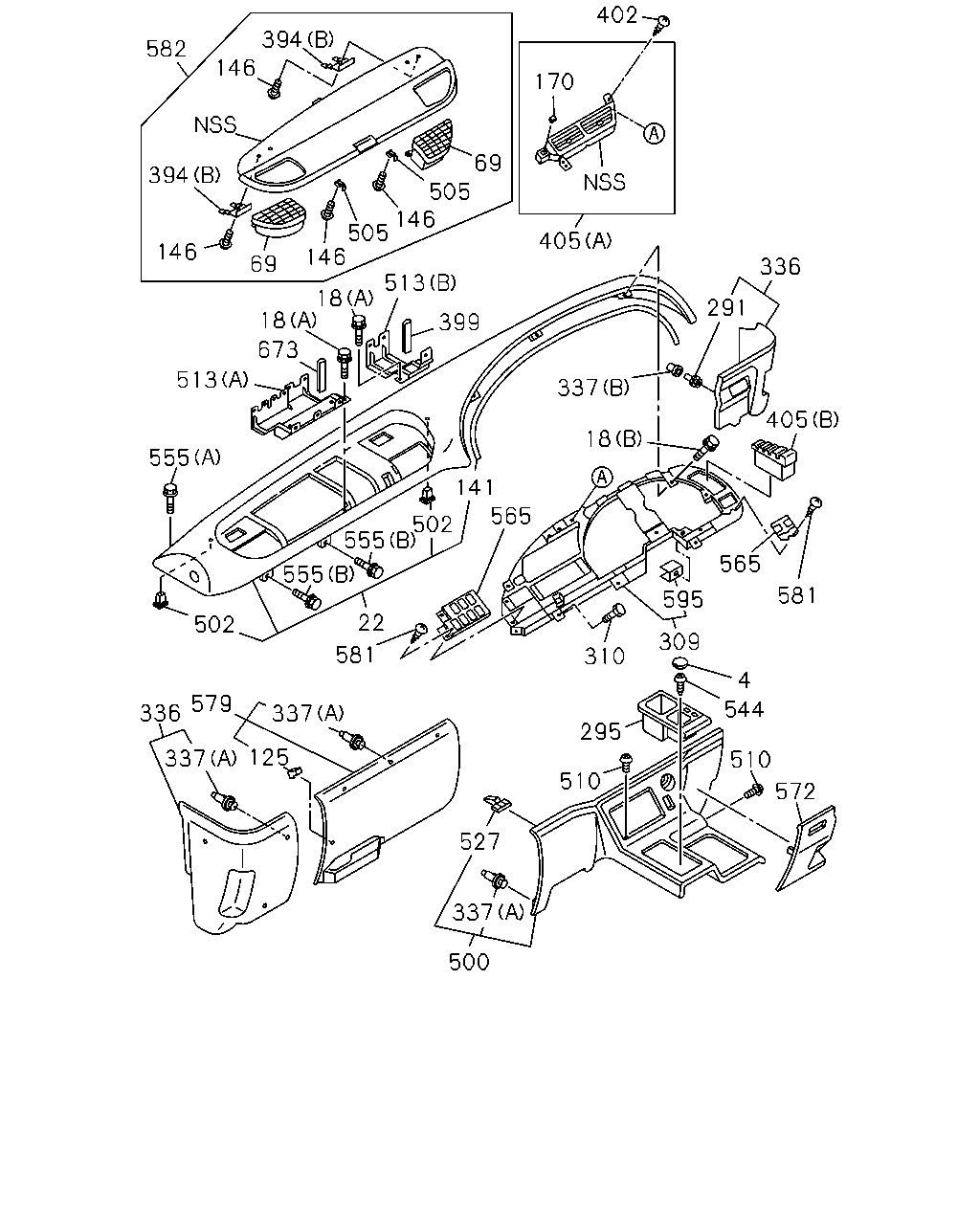

çizim 104602
402 394 582 146 170 69 394 505 146 505 146 405 146 69 336 513 18 291 18 399 673 513 337 405 18 555 141 565 502 555 565 555 581 595 22 502 309 581 310 4 579 544 336 337 295 125 337 510 510 572 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0407-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0608-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0407-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0407-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0407-0509
22 PAD; INST 1-72317-347-2 01 1 0407-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0407-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0407-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0407-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0407-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0407-
170 COVER; HOLE 1-76367-068-0 01 1 0407-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0512-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0407-0511
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0407-
309 PANEL; SW,INST 1-72418-009-6 01 1 0407-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0407-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0407-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0407-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0407-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0407-0511
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0512-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0407-0511
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0512-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0407-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0407-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0407-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0407-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0407-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0407-
500 CLUSTER; INST CENTER 1-72437-628-0 01 1 0407-0705
500 CLUSTER; INST CENTER 1-72437-655-0 01 1 0706-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0407-
505 LOCK; LID 1-72558-024-2 02 1 0407-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0407-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0407-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0407-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0407-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0407-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0407-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0407-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0407-
572 COVER; INSPECTION 1-72437-634-0 01 1 0407-
579 COVER; INST PNL 1-72437-626-0 01 1 0407-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0407-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0407-
595 NUT; HOOK 1-72418-013-0 11 1 0407-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0407-
