◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#30106) — 45 parça

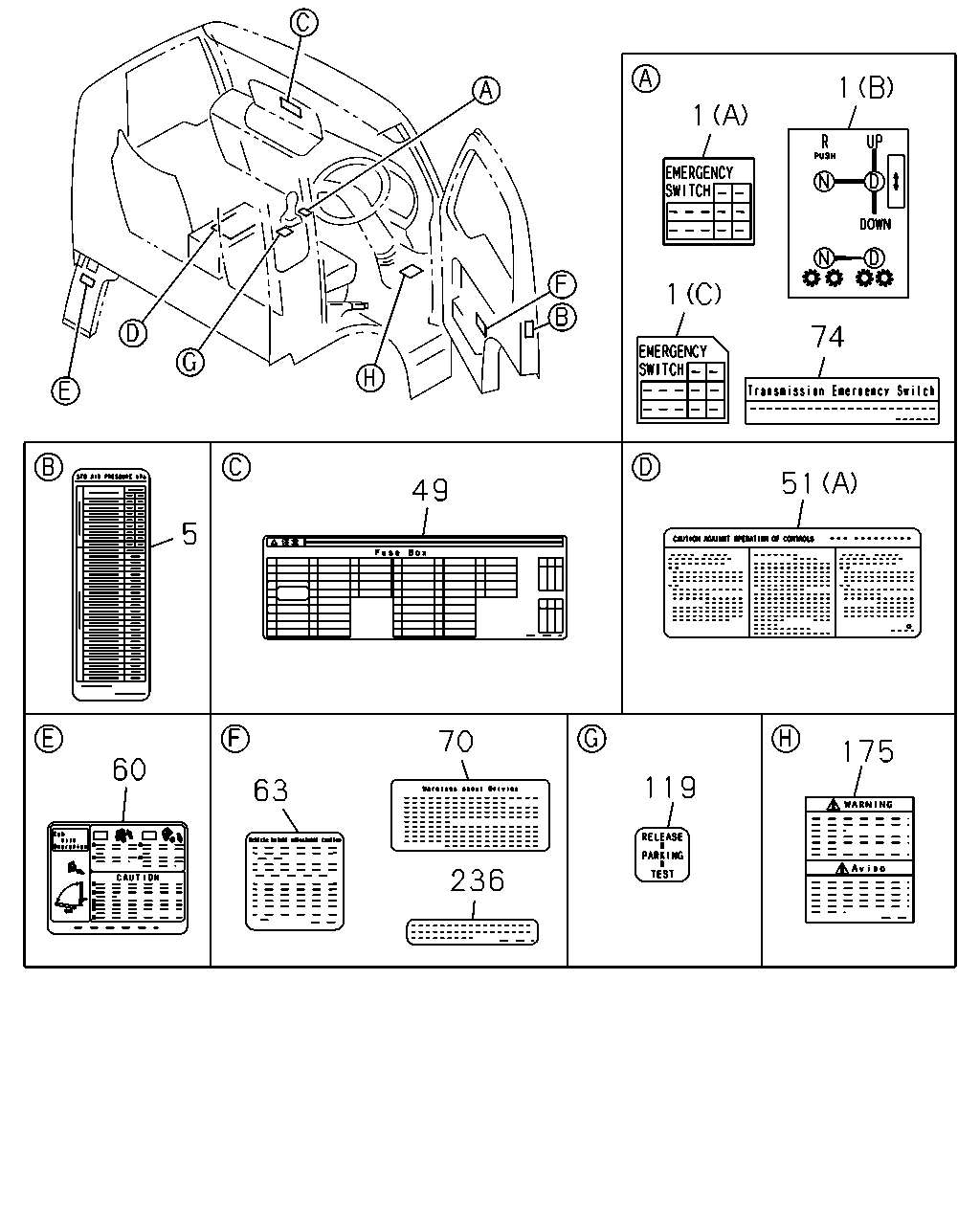

çizim 87541
1 1 1 74 51 49 5 70 175 60 119 63 236
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
6WG1 TC-S(97L) (C) 		1-85881-879-1 01 1 0512-
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-798-0 01 1 0407-
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-859-0 01 1 0407-0511
1 PLATE; CAUTION,SHIFT PATTERN
6WF1 TC-C(1B8) (A) 		1-85881-859-0 01 1 0512-
5 LABEL; TIRE AIR PRESSURE 1-85880-780-0 01 1 0407-0410
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0411-
49 PLATE; CAUTION,FUSE BOX
6WG1 TC-S(97L) 		1-85878-549-0 01 1 0512-
49 PLATE; CAUTION,FUSE BOX 1-85878-487-0 01 1 0407-0407
49 PLATE; CAUTION,FUSE BOX 1-85878-499-0 01 1 0408-0505
49 PLATE; CAUTION,FUSE BOX 1-85878-550-0 01 1 0506-0511
49 PLATE; CAUTION,FUSE BOX
6WF1 TC-C(1B8) 		1-85878-550-0 01 1 0512-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0512-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0407-
60 PLATE; CAUTION,CAB TILT
6WG1 TC-S(97L) 		1-85883-234-0 01 1 0512-
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0407-0511
60 PLATE; CAUTION,CAB TILT
6WF1 TC-C(1B8) 		1-85883-174-0 01 1 0512-
63 PLATE; CAUTION,SEAT AIR 1-85881-861-0 01 1 0407-
70 PLATE; CAUTION,ACT 1-85878-484-0 01 1 0407-
74 PLATE; CAUTION,CHANGE LEV 1-85881-869-0 01 1 0407-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0407-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0407-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 0407-
çizim 88229
181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0512-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0512-

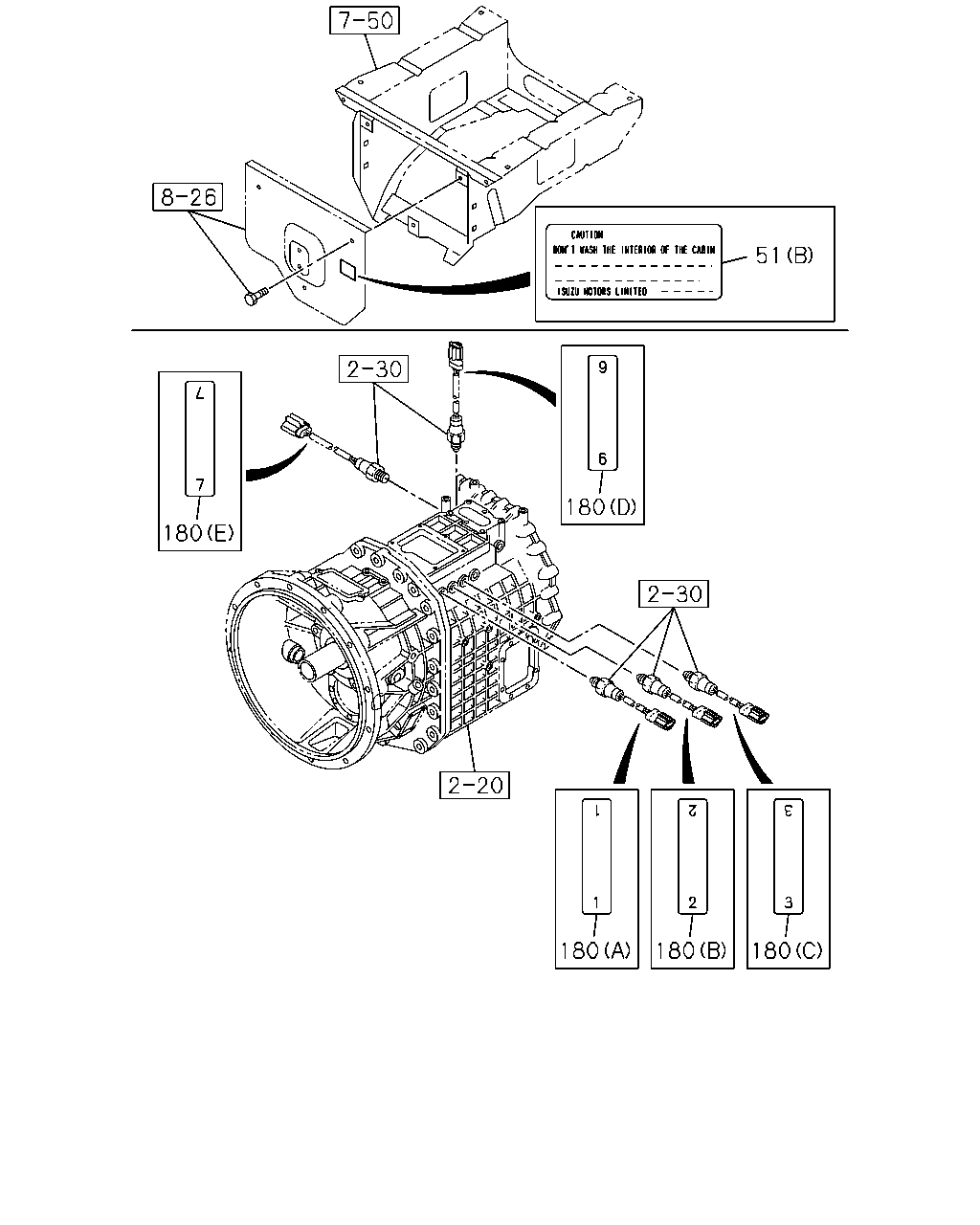

çizim 88355
51 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0512-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0407-
180 PLATE; CAUTION,SWITCH
6WG1 TC-S(97L) (A) 		1-85881-871-0 01 1 0512-
180 PLATE; CAUTION,SWITCH
6WG1 TC-S(97L) (B) 		1-85881-872-0 01 1 0512-
180 PLATE; CAUTION,SWITCH
6WG1 TC-S(97L) (C) 		1-85881-873-0 01 1 0512-
180 PLATE; CAUTION,SWITCH
6WG1 TC-S(97L) (D) 		1-85881-880-0 01 1 0512-
180 PLATE; CAUTION,SWITCH
6WG1 TC-S(97L) (E) 		1-85881-881-0 01 1 0512-

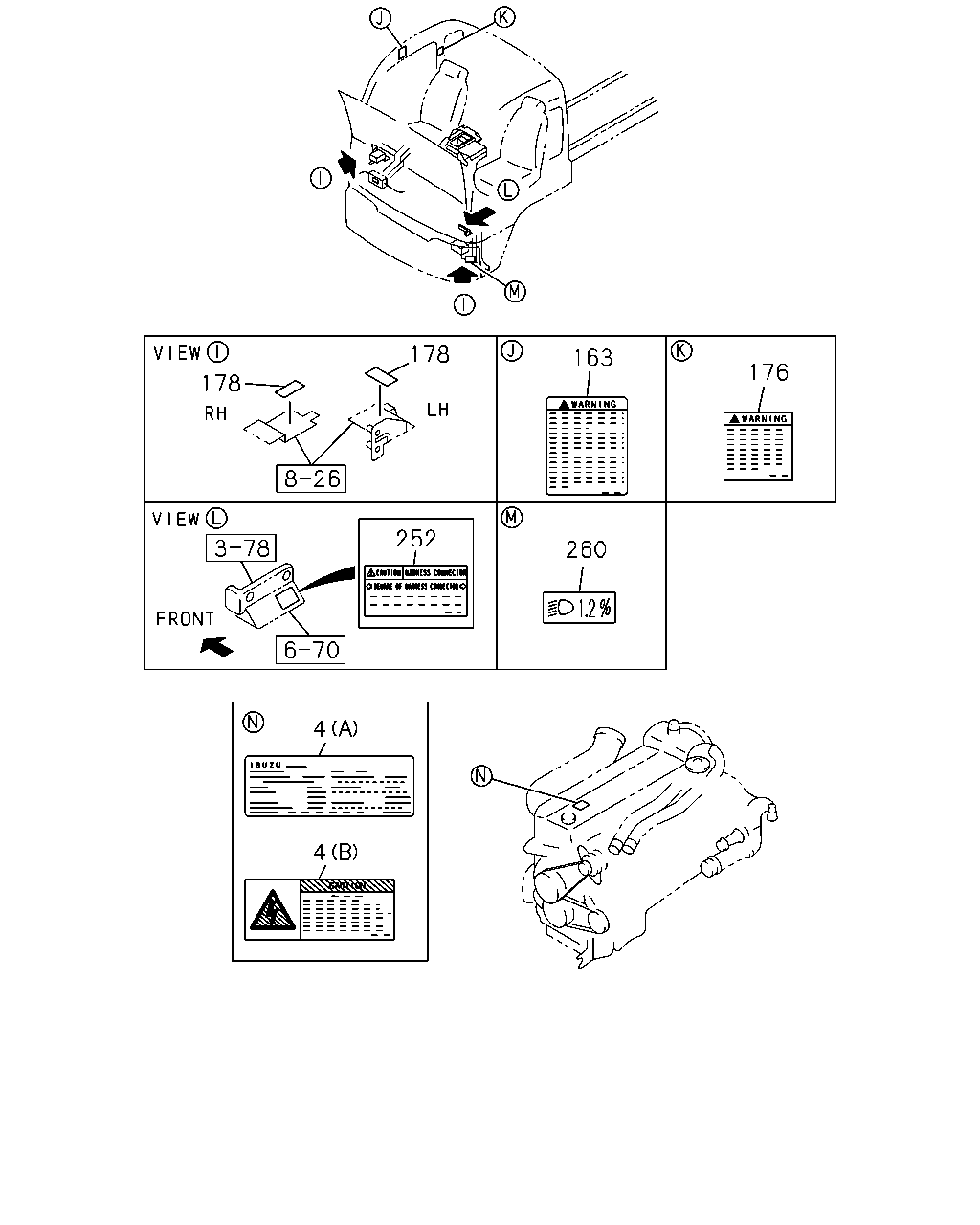

çizim 104476
178 163 176 178 252 260 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
6WG1 TC-S(97L) (B) 		8-94391-524-0 01 1 0705-0902
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-0 01 1 0512-0704
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-0 02 1 0705-0902
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-1 01 1 0903-
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-0 01 1 0407-0511
4 LABEL; ENG MAINTENANCE
6WG1 TC-S(97L) (A) 		1-85875-350-2 01 1 0512-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0407-0704
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (B) 		8-94391-524-0 02 1 0705-0902
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0903-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0407-
176 LABEL; SEAT BELT 1-85878-486-0 01 1 0407-
178 LABEL; SAFETY,DISCHARGE HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-85878-497-0 02 1 0407-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0407-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0602-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
