◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#30105) — 14 parça

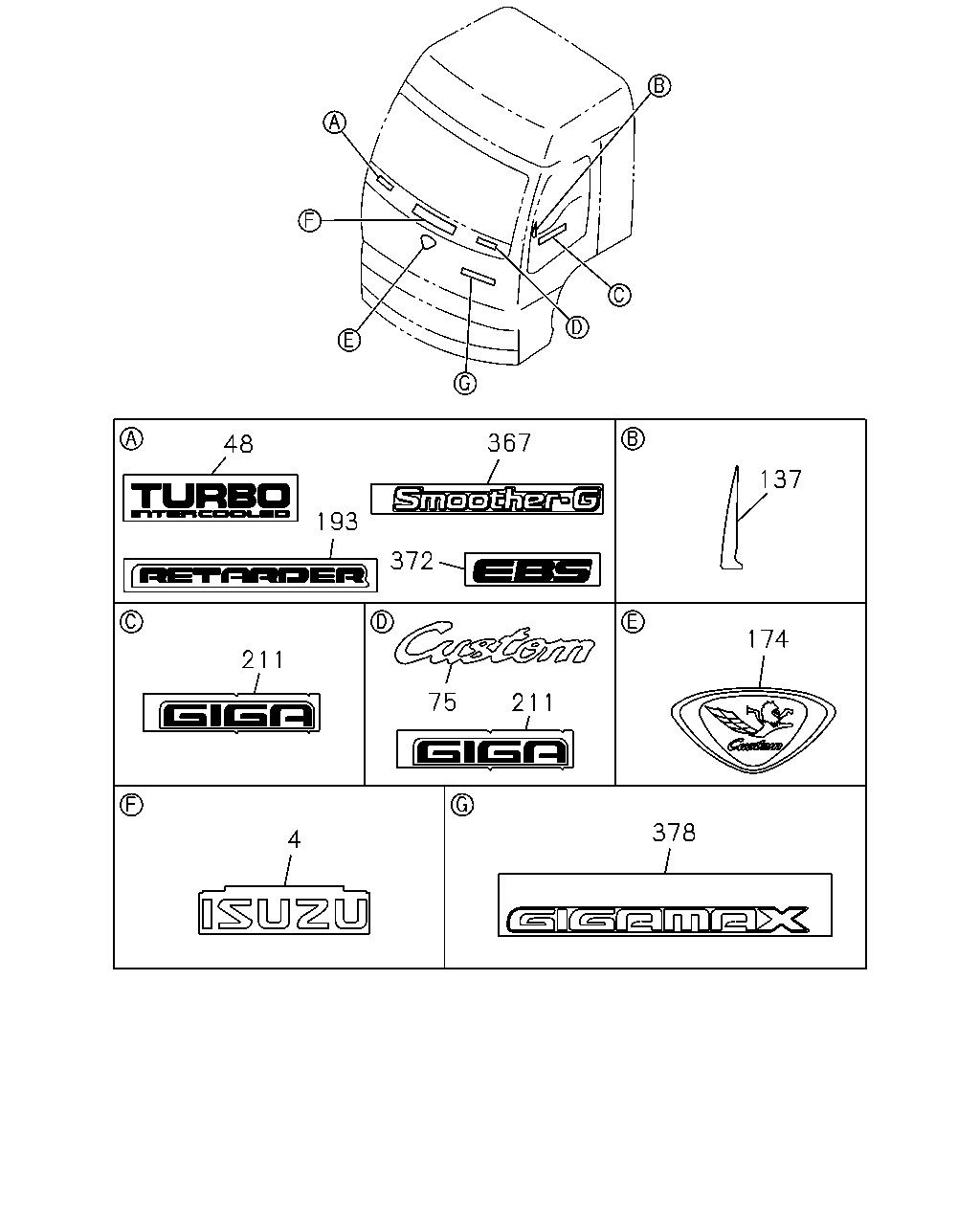

çizim 87537
367 48 137 193 372 174 211 75 211 378 4
BalonParca AdiParca NoAdetTipApplied Date
4 EMBLEM; RAD GRILLE 1-76210-668-3 01 1 0407-0511
4 EMBLEM; RAD GRILLE 1-76210-669-3 01 1 0512-
48 DECAL; TURBOCHARGER
6WF1 TC-C(1B8) 		1-76218-114-0 01 1 0512-
75 DECAL; FRT CORNER
CUSTOM CAB(SR5) 		1-76210-640-3 01 1 0407-
137 DECAL; DOOR
BLACK 		1-74998-048-3 01 1 0407-
137 DECAL; DOOR
BLACK 		1-74998-049-3 01 1 0407-
174 EMBLEM; FRT PANEL
CUSTOM CAB(SR5) 		1-76210-641-2 01 1 0407-
193 DECAL; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-76230-379-0 01 1 0512-
211 DECAL; "GIGA" 1-76230-424-0 02 1 0407-
367 DECAL; "SMOOTHER-G" 1-76230-444-0 01 1 0407-0511
372 DECAL; "EBS"
ELECTRONIC BRAKE SYSTEM EBS(NLH) 		1-76230-445-0 01 1 0407-
378 DECAL; "GIGAMAX" 1-76230-446-0 01 1 0407-
çizim 104481
202 202
BalonParca AdiParca NoAdetTipApplied Date
202 DECAL; METER CLUSTER
CUSTOM CAB(SR5) 		1-72418-016-1 01 1 0407-0511
202 DECAL; METER CLUSTER 1-72418-016-1 01 1 0512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
