Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#3010) — 214 parça

30 27 25 100 62 61 60 58 57 56 51 47 55 54 53 52 51 111 98 96 97 99 95 94 59 112 111 112 112 111 9 8 11 8 149 1 9 15 5 7 1 5 4 2 3 5 6 7 6 5 5 6 5 6

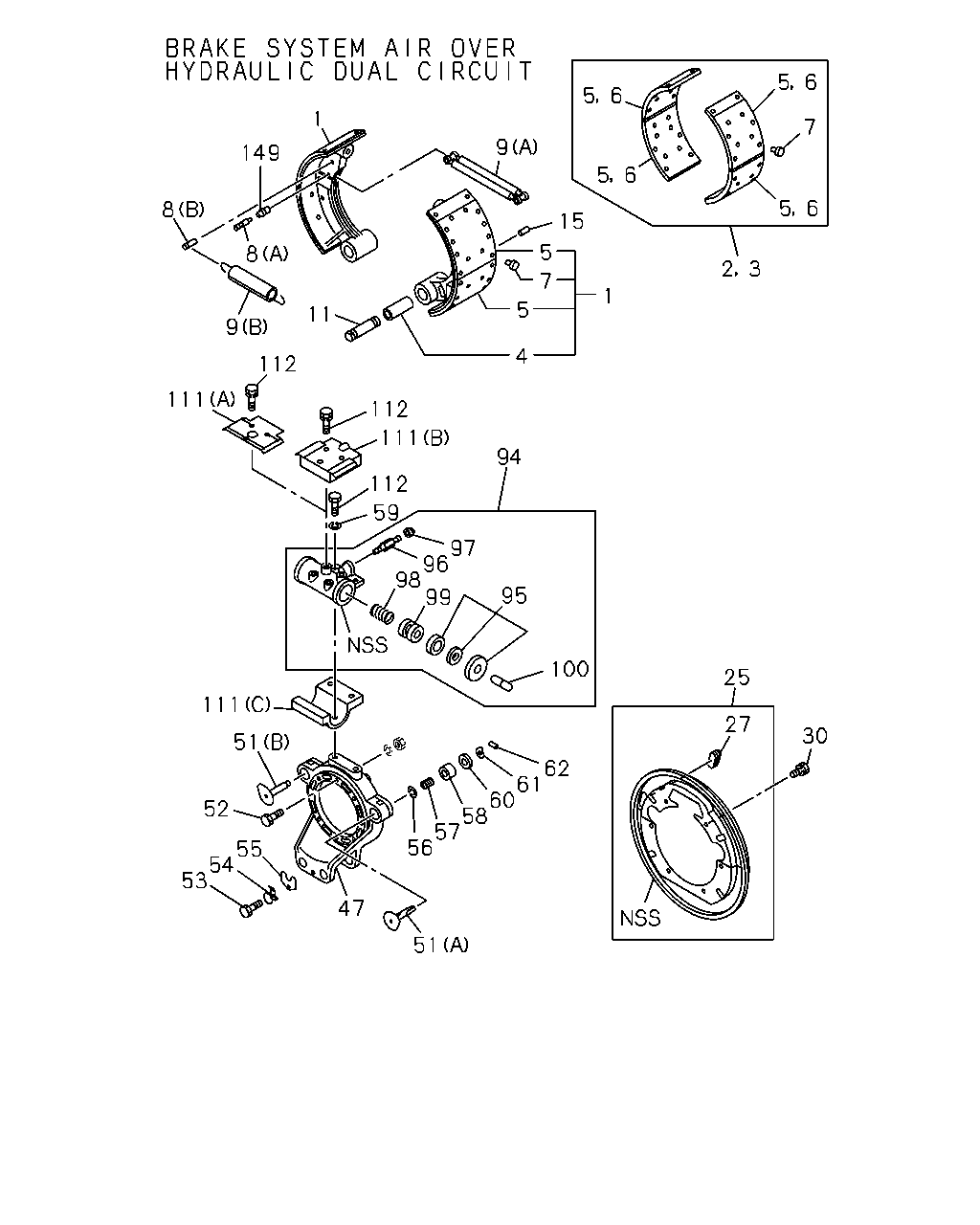

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,RR LEADING	1-47110-969-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	01	1	9002-			●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	01	1	9002-			●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	01	1	9002-			●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	01	1	9002-			●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-893-0	04	1	9002-			●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9002-			●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9002-			●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-925-0	02	1	9002-			●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9002-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-926-0	01	1	9002-			●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9002-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9002-			●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-926-0	02	1	9002-			●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9002-	●	●	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	04	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	04	1	9002-			●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	04	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	04	1	9002-			●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-773-0	08	1	9002-			●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	04	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	04	1	9002-			●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	04	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	04	1	9002-			●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-774-0	08	1	9002-			●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●	●	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	9002-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	04	1	9002-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) INNER	1-09744-051-0	04	1	9002-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OUTER	1-47119-025-0	04	1	9002-			●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	02	1	9002-			●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9002-	●	●	●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	04	1	9002-			●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9002-	●	●	●	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47116-002-0	04	1	9002-			●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9002-	●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	9002-			●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-0	02	1	9002-9306			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	02	1	9002-				●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-		●		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204	●	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-	●	●	●	●
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47137-151-0	02	1	9002-			●	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47165-058-1	02	1	9002-			●	●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47165-059-1	02	1	9002-			●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-	●	●	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9002-9204	●	●	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-	●	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	02	1	9002-9109	●	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9110-	●	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9002-	●	●	●	●
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-033-0	04	1	9002-			●	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09941-293-0	04	1	9002-9506			●	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-046-0	04	1	9507-			●	●
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-034-0	04	1	9002-			●	●
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14.2	9-09150-514-0	04	1	9002-			●	●
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-031-0	04	1	9002-			●	●
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-032-1	04	1	9002-			●	●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47169-030-0	04	1	9002-			●	●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-684-0	02	1	9002-9306			●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47600-682-0	02	1	9002-				●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-527-0	02	1	9002-9306			●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-528-0	02	1	9002-9306				●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-528-0	04	1	9307-				●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	9002-			●	●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	9002-			●	●
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-019-0	02	1	9002-			●	●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-043-0	04	1	9002-9306			●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-044-0	04	1	9002-				●
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-009-0	04	1	9002-			●	●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47159-081-0	02	1	9002-9306			●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) UPPER	1-47159-089-0	02	1	9002-				●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) LOWER	1-47159-118-0	02	1	9002-				●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	9-01900-816-0	06	1	9002-9204			●	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50040-816-0	06	1	9205-			●	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X35	9-92051-435-0	04	1	9002-9005			●	●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M14X35	0-20801-435-0	04	1	9006-			●	●
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-024-0	04	1	9002-			●	●

7 6 5 5 6 6 5 6 5 3 2 3 2 6 5 6 5 7 6 5 5 6 1 4 11 10 9 8 7 5 13 12 14 10 9 8 52 55 54 53 52 1 50 46 48 49 45 238 204 204 204 204 238 70 69 71 72 68 67 34 25 27 30 76 77 73 65 195 65 64 198 66 63 74 75

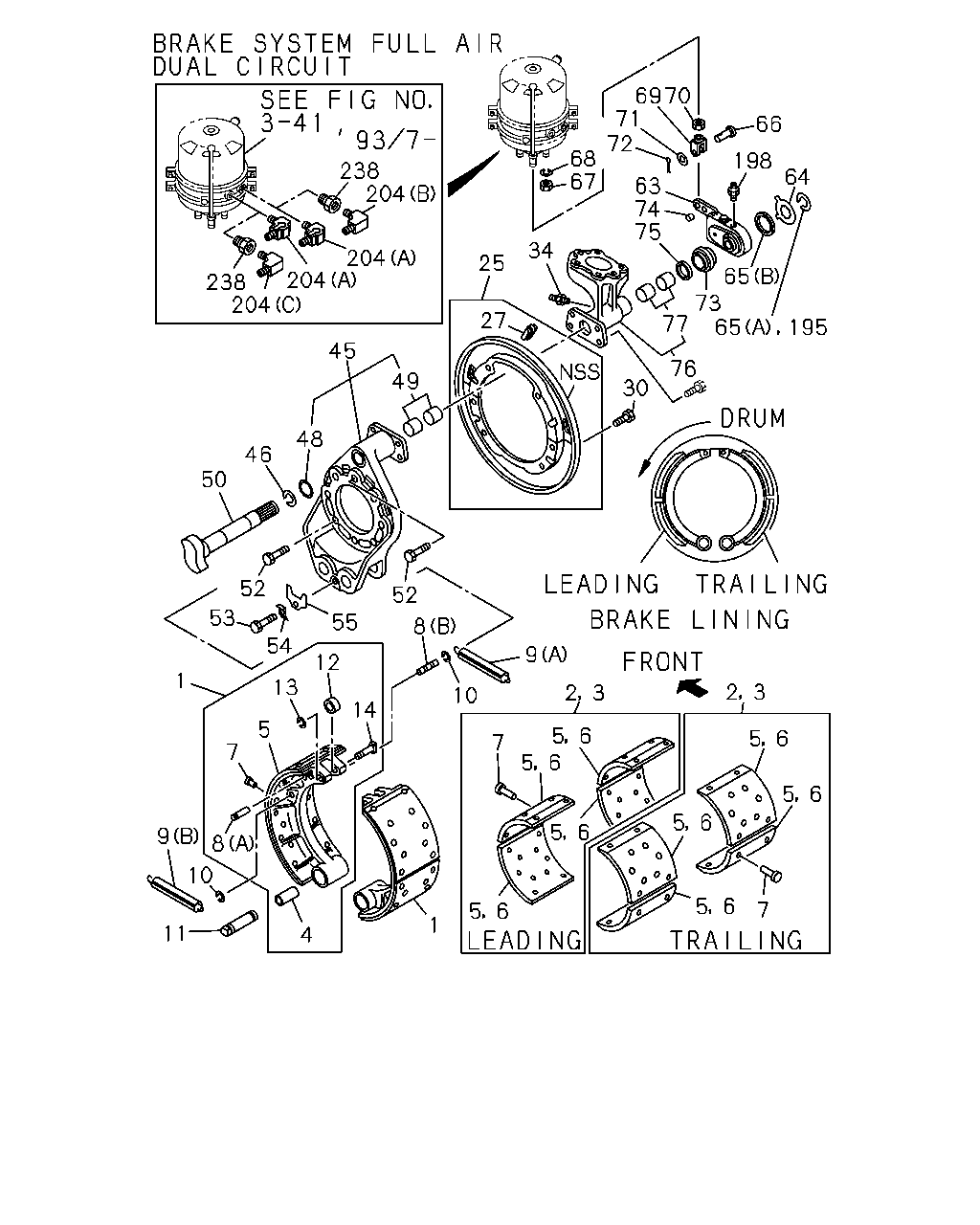

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,RR LEADING	1-47110-969-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-969-0	01	1	9002-			●	●
1	SHOE; BRK,RR TRAILING	1-47110-970-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-970-0	01	1	9002-			●	●
1	SHOE; BRK,RR LEADING	1-47110-967-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-967-0	01	1	9002-			●	●
1	SHOE; BRK,RR TRAILING	1-47110-968-0	01	1	9002-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-968-0	01	1	9002-			●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47110-893-0	04	1	9002-			●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	01	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-925-0	01	1	9002-			●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	01	1	9002-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-933-0	01	1	9002-			●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-925-0	02	1	9002-			●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	01	1	9002-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-926-0	01	1	9002-			●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	01	1	9002-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-934-0	01	1	9002-			●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-88302-926-0	02	1	9002-			●	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9002-	●	●	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	04	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-773-0	04	1	9002-			●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	04	1	9002-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-817-0	04	1	9002-			●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-773-0	08	1	9002-			●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	04	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-774-0	04	1	9002-			●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	04	1	9002-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-818-0	04	1	9002-			●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47115-774-0	08	1	9002-			●	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9002-	●	●	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47119-021-0	04	1	9002-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9002-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-029-0	04	1	9002-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) INNER	1-09744-051-0	04	1	9002-			●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OUTER	1-47119-025-0	04	1	9002-			●	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9002-	●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-196-0	02	1	9002-			●	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9002-	●	●	●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-09583-210-0	04	1	9002-			●	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9002-	●	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	9-09185-410-0	08	1	9002-			●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9002-	●	●	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9002-	●	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-005-0	04	1	9002-			●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9002-	●	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9002-			●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9002-	●	●
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-061-0	04	1	9002-			●	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9002-	●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-462-1	02	1	9002-			●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-0	02	1	9002-9306			●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-526-1	02	1	9002-				●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	04	1	9002-9501	●	●	●	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9502-		●		●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9002-9204	●	●	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9205-	●	●	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-			●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	9002-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-120-2	02	1	9002-			●	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9002-	●	●
46	RING; SPACER,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-005-0	02	1	9002-			●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9002-	●	●
48	SEAL; OIL,CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09625-228-0	02	1	9002-			●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9002-	●	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9002-			●	●
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-053-0	01	1	9002-			●	●
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	9002-	●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-054-0	01	1	9002-			●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9002-	●	●	●	●
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	02	1	9002-9204	●	●	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9205-	●	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	02	1	9002-9109	●	●	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9110-	●	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9002-	●	●	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-045-0	01	1	9002-			●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9002-	●	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-046-0	01	1	9002-			●	●
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9002-	●	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-022-0	02	1	9002-			●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47143-004-0	02	1	9002-			●	●
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	9002-	●	●
65	SPACER; SLACK ADJ,BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	9-09180-038-0	01	1	9002-			●	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	9002-	●	●
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9002-			●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9002-	●	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	08	1	9002-			●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9002-	●	●
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	08	1	9002-			●	●
69	JOINT; JAW	1-09768-060-0	02	1	9002-	●	●
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09768-060-0	02	1	9002-			●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9002-	●	●
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9002-			●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9002-9401	●	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17	9-09160-516-0	02	1	9002-9401			●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-		●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17 OD=32	9-09160-616-0	02	1	9402-				●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9002-	●	●
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9002-			●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	02	1	9002-	●	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-003-0	02	1	9002-			●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9002-	●	●
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09330-041-0	02	1	9002-			●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9002-	●	●
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-009-0	02	1	9002-			●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	9002-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-083-0	01	1	9002-			●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	9002-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48258-084-0	01	1	9002-			●	●
77	BUSHING	1-47146-003-1	02	1	9002-	●	●
77	BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-003-1	02	1	9002-			●	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9002-	●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09180-038-0	01	1	9002-			●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9002-	●	●
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9002-			●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09650-325-1	02	1	9002-9306	●	●	●	●
204	CONNECTOR; SPR CHAMBER (C)	1-09660-570-0	01	1	9307-		●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09660-570-0	01	1	9307-				●
204	CONNECTOR; SPR CHAMBER (B)	1-09660-574-0	01	1	9307-		●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-574-0	01	1	9307-				●
238	ADAPTER; SPR CHAMBER PT3/8	1-09664-210-0	04	1	9307-		●
238	ADAPTER; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/8	1-09664-210-0	04	1	9307-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
