6-75 — MAT AND CARPET (#30097) — 21 parça

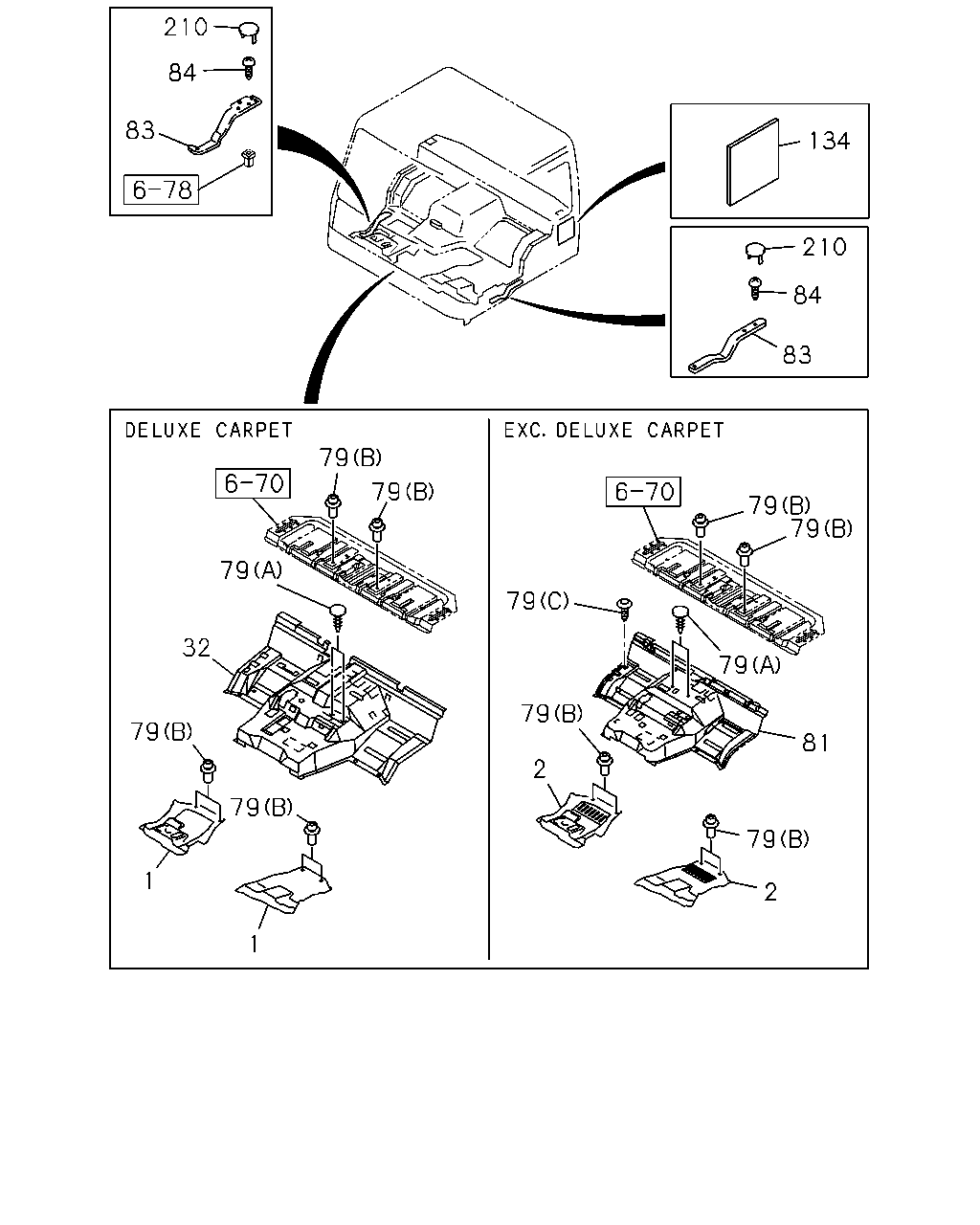

çizim 87732
210 84 83 134 210 84 83 79 79 79 79 79 79 32 79 79 79 81 2 79 79 1 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 0407-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 0407-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0407-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0407-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-883-3 01 1 0512-
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-878-1 01 1 0407-0407
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-903-0 01 1 0408-0408
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-909-1 01 1 0409-0511
32 CARPET; FLOOR
DELUXE CARPET<BF2> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-881-3 01 1 0512-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0407-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0407-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0407-0511
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-73237-890-2 01 1 0512-
81 MAT; FLOOR,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) EXC. DELUXE CARPET<BF2> 		1-73237-898-0 01 1 0407-0407
81 MAT; FLOOR,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) EXC. DELUXE CARPET<BF2> 		1-73237-776-4 01 1 0408-0511
81 MAT; FLOOR,CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) EXC. DELUXE CARPET<BF2> 		1-73237-888-2 01 1 0512-
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0407-
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0407-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0407-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-2 01 1 0407-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0407-
