6-66 — HEAD LINING AND TRIM (#30095) — 88 parça

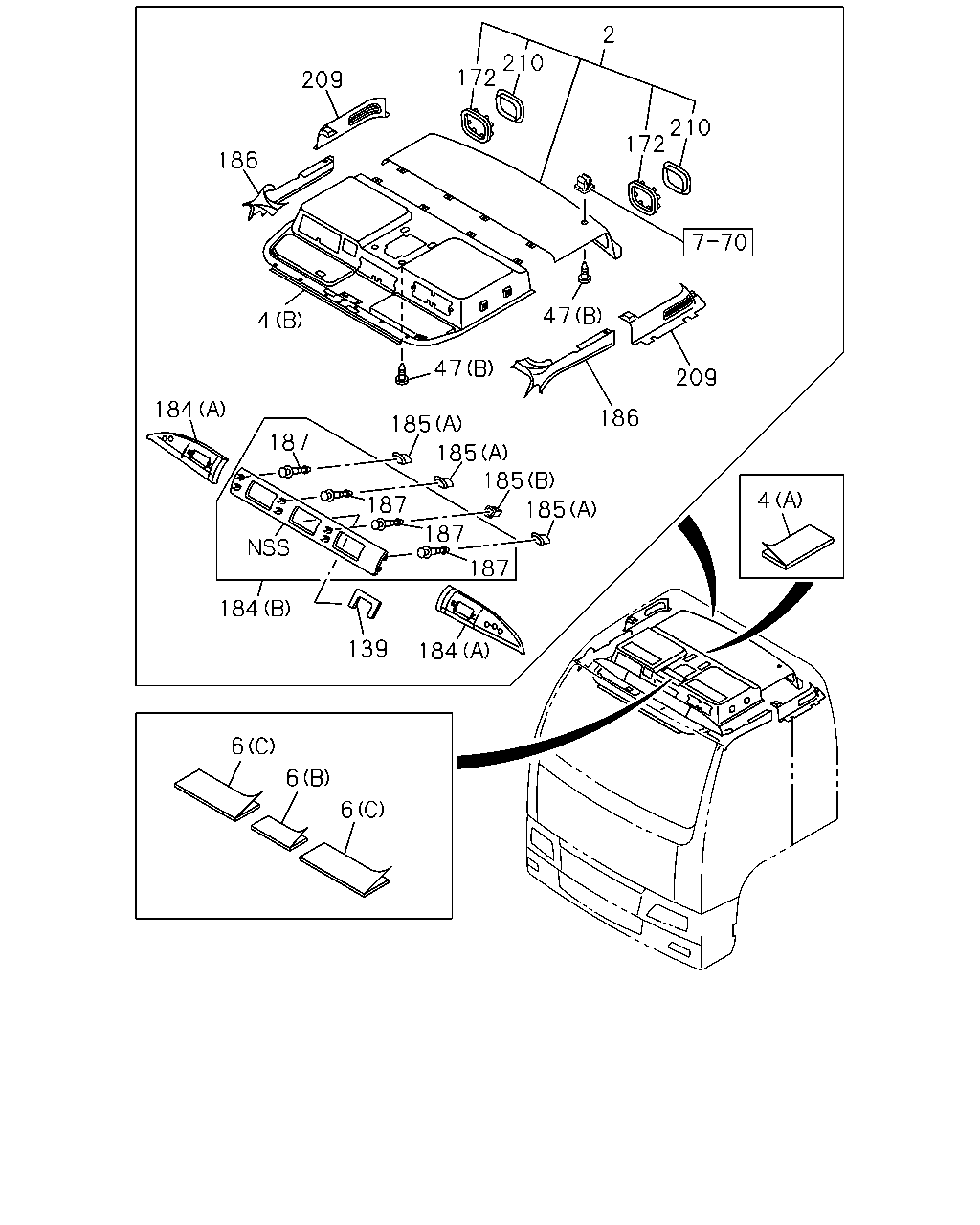

2 210 172 209 210 172 186 47 4 47 209 184 186 185 187 185 185 187 4 185 187 187 184 139 184 6 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING; HD,ROOF RR EXC. HIGH ROOF<S2F>	1-73317-503-2	01	1	0512-
4	LINING; ROOF,FRT (A)	1-73317-436-0	02	1	0512-
4	LINING; ROOF,FRT EXC. HIGH ROOF<S2F> (B)	1-73317-482-2	01	1	0512-
6	SPACER; HD LINING HIGH ROOF<S2F> (A)	1-73317-434-2	02	1	0512-
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C) 140X800	1-73317-429-2	02	1	0512-
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (B) 130X300	1-73317-435-2	01	1	0512-
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	11	1	0512-
47	CLIP; HEADLINING (B) D4.6X14.7 BLACK	1-09983-104-0	05	1	0407-0410
47	CLIP; HEADLINING (B) D5X14.7	1-09983-183-0	05	1	0411-
47	CLIP; HEADLINING (C) D8X13.5	1-09987-276-0	02	1	0407-0511
47	CLIP; HEADLINING HIGH ROOF<S2F> (C) D8X13.5	1-09987-276-0	02	1	0512-
47	CLIP; HEADLINING (B) D6X23 LIGHT GRAY	1-73318-629-0	36	1	0407-0511
47	CLIP; HEADLINING HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	36	1	0512-
47	CLIP; HEADLINING (A)	8-94313-458-0	08	1	0407-0511
47	CLIP; HEADLINING HIGH ROOF<S2F> (A)	8-94313-458-0	08	1	0512-
139	SEAL; ROOF EXC. HIGH ROOF<S2F>	1-73318-562-0	03	1	0512-
172	RETAINER; HEAD LINING EXC. HIGH ROOF<S2F>	1-73317-448-0	01	1	0512-
172	RETAINER; HEAD LINING EXC. HIGH ROOF<S2F>	1-73317-449-0	01	1	0512-
172	RETAINER; HEAD LINING	1-73317-450-0	02	1	0407-0511
172	RETAINER; HEAD LINING HIGH ROOF<S2F>	1-73317-450-0	02	1	0512-
184	ORNAMENT; ROOF MIR STAY O/S W/REMOTE<TBA> EXC. HIGH ROOF<S2F> (A)	1-73317-452-1	01	1	0512-
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-409-2	01	1	0512-
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,MIR STAY O/S W/REMOTE<TBA> (A)	1-73317-408-2	01	1	0512-
184	ORNAMENT; ROOF LOW ROOF<6XQ> (B)	1-73317-405-1	01	1	0408-0511
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (B)	1-73317-405-1	01	1	0512-
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (A)	1-79198-012-0	06	1	0512-
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (B)	1-79198-013-0	02	1	0512-
186	TRIM; ROOM,CANT RAIL SIDE	1-73346-012-2	01	1	0407-
186	TRIM; ROOM,CANT RAIL SIDE	1-73346-013-2	01	1	0407-
187	PIN; ORNAMENT LOW ROOF<6XQ> D4.2X13	1-09983-161-0	08	1	0408-0511
187	PIN; ORNAMENT EXC. HIGH ROOF<S2F> D4.2X13	1-09983-161-0	08	1	0512-
209	COVER; GRILLE EXC. HIGH ROOF<S2F>	1-73347-865-3	01	1	0512-
209	COVER; GRILLE EXC. HIGH ROOF<S2F>	1-73347-866-3	01	1	0512-
210	GRILLE; SPEAKER EXC. HIGH ROOF<S2F>	1-73347-885-1	01	1	0512-
210	GRILLE; SPEAKER EXC. HIGH ROOF<S2F>	1-73347-886-1	01	1	0512-
210	GRILLE; SPEAKER	1-73996-208-1	02	1	0407-0511
210	GRILLE; SPEAKER HIGH ROOF<S2F>	1-73996-208-1	02	1	0512-

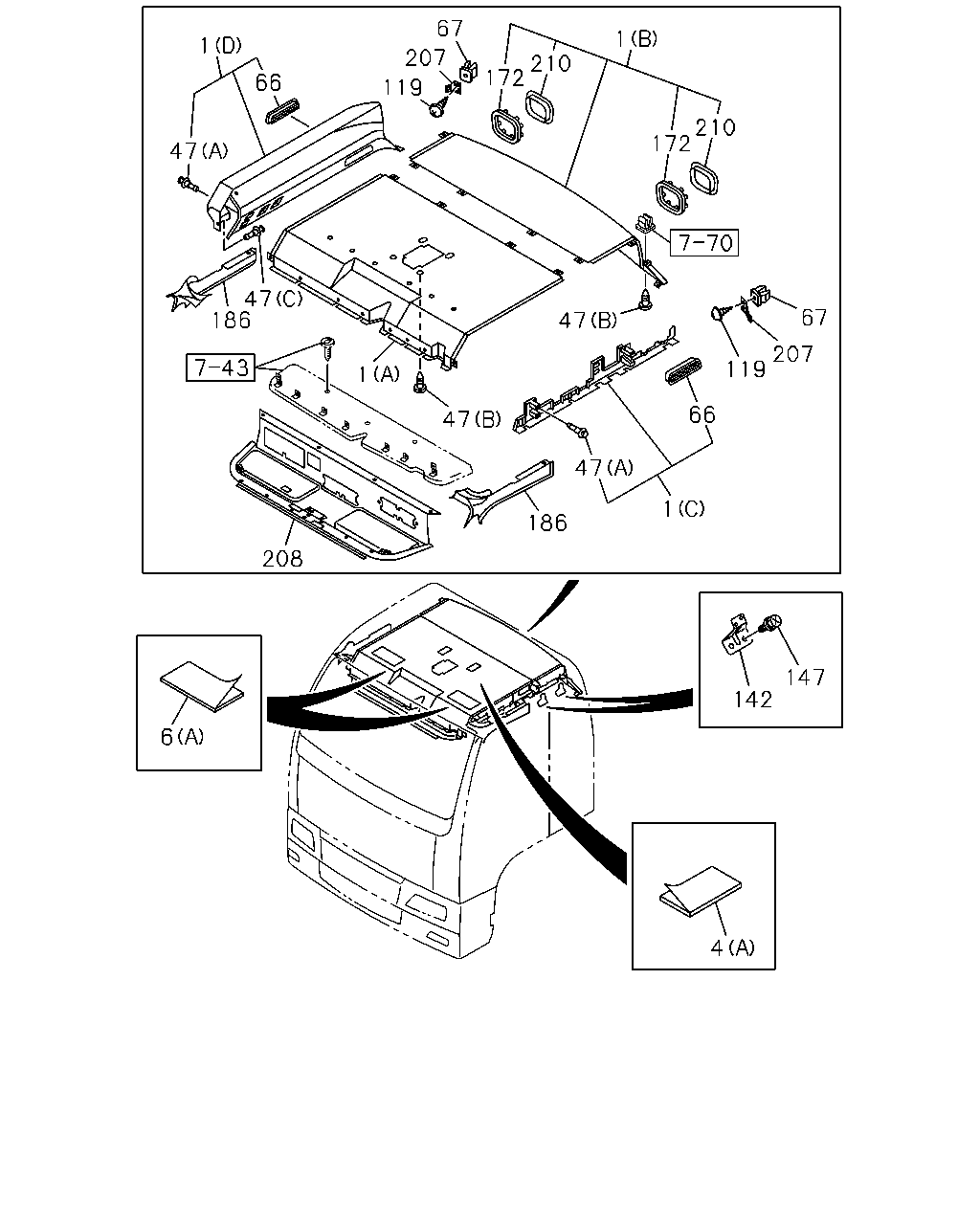

67 1 1 207 210 172 66 119 210 172 47 47 186 67 47 207 119 1 66 47 47 1 186 208 147 142 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINING; HD (A)	1-73317-500-2	01	1	0407-0511
1	LINING; HD HIGH ROOF<S2F> (A)	1-73317-500-2	01	1	0512-
1	LINING; HD (B)	1-73317-505-2	01	1	0407-0511
1	LINING; HD HIGH ROOF<S2F> (B)	1-73317-505-2	01	1	0512-0907
1	LINING; HD HIGH ROOF<S2F> (B)	1-73317-560-0	01	1	0908-
1	LINING; HD (C)	1-73317-508-1	01	1	0407-0511
1	LINING; HD HIGH ROOF<S2F> (C)	1-73317-508-1	01	1	0512-
1	LINING; HD (D)	1-73317-509-1	01	1	0407-0511
1	LINING; HD HIGH ROOF<S2F> (D)	1-73317-509-1	01	1	0512-
4	LINING; ROOF,FRT (A)	1-73317-436-0	02	1	0512-
4	LINING; ROOF,FRT EXC. HIGH ROOF<S2F> (B)	1-73317-482-2	01	1	0512-
6	SPACER; HD LINING HIGH ROOF<S2F> (A)	1-73317-434-2	02	1	0512-
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (C) 140X800	1-73317-429-2	02	1	0512-
6	SPACER; HD LINING EXC. HIGH ROOF<S2F> (B) 130X300	1-73317-435-2	01	1	0512-
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	11	1	0512-
47	CLIP; HEADLINING (B) D4.6X14.7 BLACK	1-09983-104-0	05	1	0407-0410
47	CLIP; HEADLINING (B) D5X14.7	1-09983-183-0	05	1	0411-
47	CLIP; HEADLINING (C) D8X13.5	1-09987-276-0	02	1	0407-0511
47	CLIP; HEADLINING HIGH ROOF<S2F> (C) D8X13.5	1-09987-276-0	02	1	0512-
47	CLIP; HEADLINING (B) D6X23 LIGHT GRAY	1-73318-629-0	36	1	0407-0511
47	CLIP; HEADLINING HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	36	1	0512-
47	CLIP; HEADLINING (A)	8-94313-458-0	08	1	0407-0511
47	CLIP; HEADLINING HIGH ROOF<S2F> (A)	8-94313-458-0	08	1	0512-
66	GRILLE; AIR OUTLET	1-73317-366-1	01	1	0407-0511
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-366-1	01	1	0512-
66	GRILLE; AIR OUTLET	1-73317-367-1	01	1	0407-0511
66	GRILLE; AIR OUTLET HIGH ROOF<S2F>	1-73317-367-1	01	1	0512-
67	GROMMET; SCREW D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0407-0511
67	GROMMET; SCREW HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0512-
119	SCREW; BRKT M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0407-0511
119	SCREW; BRKT HIGH ROOF<S2F> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0512-
142	BRACKET ASM; ROOF COVER	1-61170-747-3	04	1	0407-0511
142	BRACKET ASM; ROOF COVER HIGH ROOF<S2F>	1-61170-747-3	04	1	0512-
147	BOLT; SUPPORT BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	16	1	0407-0511
147	BOLT; SUPPORT BRKT HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER	8-94279-207-0	16	1	0512-
172	RETAINER; HEAD LINING EXC. HIGH ROOF<S2F>	1-73317-448-0	01	1	0512-
172	RETAINER; HEAD LINING EXC. HIGH ROOF<S2F>	1-73317-449-0	01	1	0512-
172	RETAINER; HEAD LINING	1-73317-450-0	02	1	0407-0511
172	RETAINER; HEAD LINING HIGH ROOF<S2F>	1-73317-450-0	02	1	0512-
186	TRIM; ROOM,CANT RAIL SIDE	1-73346-012-2	01	1	0407-
186	TRIM; ROOM,CANT RAIL SIDE	1-73346-013-2	01	1	0407-
207	BRACKET; HEADLINING	1-61170-834-0	01	1	0407-0511
207	BRACKET; HEADLINING HIGH ROOF<S2F>	1-61170-834-0	01	1	0512-
207	BRACKET; HEADLINING	1-61170-835-0	01	1	0407-0511
207	BRACKET; HEADLINING HIGH ROOF<S2F>	1-61170-835-0	01	1	0512-
208	COVER; HEADER SHELF	1-73317-511-2	01	1	0407-0511
208	COVER; HEADER SHELF HIGH ROOF<S2F>	1-73317-511-2	01	1	0512-
210	GRILLE; SPEAKER EXC. HIGH ROOF<S2F>	1-73347-885-1	01	1	0512-
210	GRILLE; SPEAKER EXC. HIGH ROOF<S2F>	1-73347-886-1	01	1	0512-
210	GRILLE; SPEAKER	1-73996-208-1	02	1	0407-0511
210	GRILLE; SPEAKER HIGH ROOF<S2F>	1-73996-208-1	02	1	0512-
