◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#30093) — 387 parça
çizim 87475
130 185 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0601
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602-
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 0407-0511
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0512-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0602-
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 20 1 0407-0511
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0512-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0407-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0407-0601
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-170-1 01 1 0407-0511
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0512-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-171-2 01 1 0407-0511
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0512-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (B) 		1-71907-455-0 01 1 0407-0511
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0512-0601
281 INSULATOR; NOISE
(C) 		1-71907-632-0 01 1 0407-0501
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0502-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(D) 		1-73237-611-0 01 1 0407-0408
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0409-

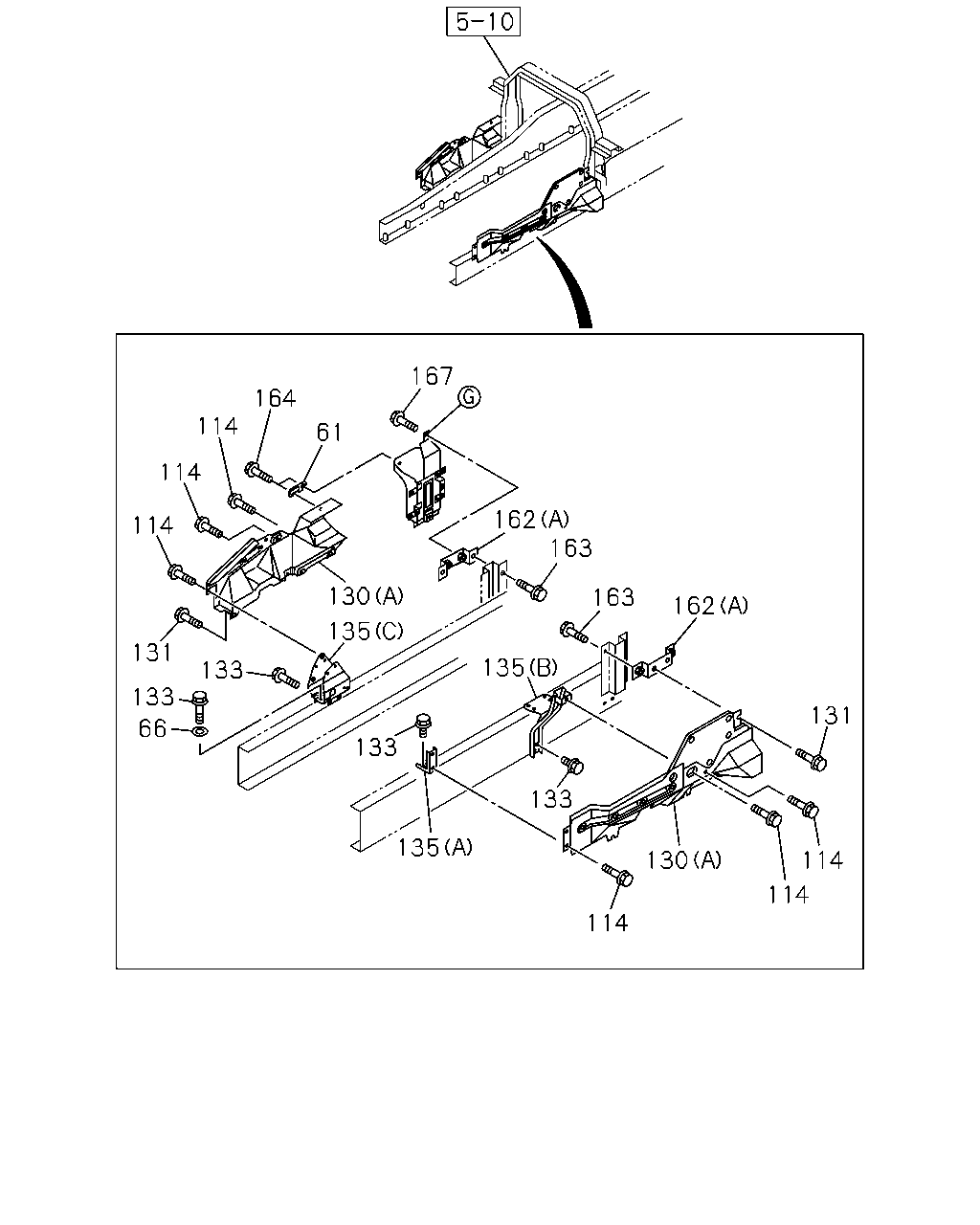

çizim 87476
167 164 114 61 114 162 163 114 130 163 162 135 131 135 133 133 131 66 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0407-0803
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
66 WASHER; LK
ID=14.2 		9-09150-614-0 02 1 0407-0603
66 WASHER; LK
ID=14.2 		0-91510-614-0 02 1 0604-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 0407-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0601
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602-
131 BOLT; PANEL
6WG1 TC-S(97L) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0407-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0512-
133 BOLT; FRAME
M14X45 		0-20801-445-0 02 1 0407-0511
133 BOLT; FRAME
M8X25 FLANGE 		0-28680-825-0 04 1 0407-0512
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
133 BOLT; FRAME
M10X35 FLANGE 		0-28681-035-0 02 1 0407-0512
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
135 BRACKET; SIDE PANEL
6WG1 TC-S(97L) (C) 		1-53441-508-1 01 1 0512-
135 BRACKET; SIDE PANEL
(C) 		1-33657-583-1 01 1 0407-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0407-
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0407-0511
135 BRACKET; SIDE PANEL
6WF1 TC-C(1B8) (B) 		1-53441-598-1 01 1 0512-
162 BRACKET
(A) 		1-53441-520-0 02 1 0407-
162 BRACKET
(B) 		1-53441-521-2 01 1 0407-
162 BRACKET
(C) 		1-53441-522-0 01 1 0407-
162 BRACKET
(E) 		1-71907-501-0 01 1 0407-0501
162 BRACKET
(E) 		1-71907-696-0 01 1 0502-0511
162 BRACKET
(D) 		1-71907-521-0 01 1 0407-0701
162 BRACKET
(E) 		1-71907-815-0 01 1 0702-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0407-0512
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0601-

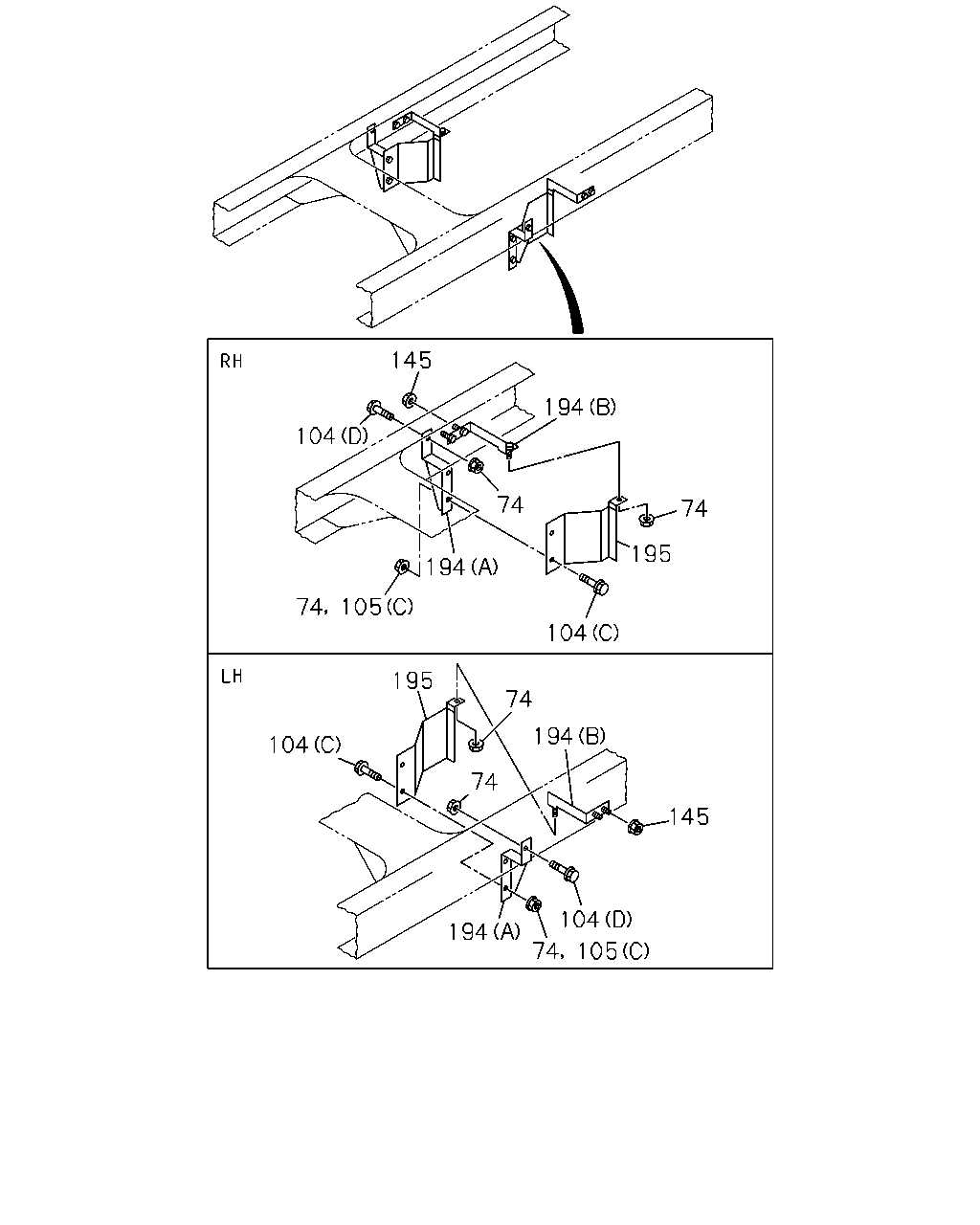

çizim 87479
145 194 104 74 74 195 194 74 105 104 195 74 194 104 74 145 104 194 105 74
BalonParca AdiParca NoAdetTipApplied Date
74 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0410
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0411-0511
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0512-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0512-0602
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511
74 NUT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0702-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
104 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0407-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601-
104 BOLT; BRKT
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 0407-0511
105 NUT; BRKT
6WG1 TC-S(97L) (A) M10 FLANGE 		0-91150-210-0 07 1 0512-0602
105 NUT; BRKT
6WG1 TC-S(97L) (A) M10 FLANGE 		0-91180-210-0 07 1 0603-
105 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 04 1 0407-0410
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 0407-0511
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-210-0 08 1 0512-0602
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91180-210-0 08 1 0603-
105 NUT; BRKT
(B) M6 CAP NUT FLANGE 		1-65471-734-0 01 1 0407-0701
145 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0407-0511
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 04 1 0512-0602
145 NUT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 04 1 0603-
194 BRACKET; HEAT PROTECTOR
(A) 		1-22159-373-0 02 1 0407-0511
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-22159-373-0 02 1 0512-
194 BRACKET; HEAT PROTECTOR
(B) 		1-22159-374-0 01 1 0407-0511
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-374-0 01 1 0512-
194 BRACKET; HEAT PROTECTOR
(B) 		1-22159-375-0 01 1 0407-0511
194 BRACKET; HEAT PROTECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-22159-375-0 01 1 0512-
195 PROTECTOR; HEAT 1-22119-543-1 01 1 0407-0511
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-543-1 01 1 0512-
195 PROTECTOR; HEAT 1-22119-545-0 01 1 0407-0511
195 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-22119-545-0 01 1 0512-
çizim 87480
130 251 74 130 73 251 251 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
CAB UP +110MM<TGG> (B) M8X16 FLANGE 		0-28280-816-0 05 1 0407-0511
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0512-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806-
74 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0410
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0411-0511
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0512-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0512-0602
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511
74 NUT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-
122 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0512
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
122 BOLT
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0407-0512
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0601
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602-
160 COVER ASM; EXH
(A) 		1-79931-408-4 01 1 0407-1207
160 COVER ASM; EXH
(A) 		1-79931-411-2 01 1 1208-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0407-
162 BRACKET
(A) 		1-53441-520-0 02 1 0407-
162 BRACKET
(B) 		1-53441-521-2 01 1 0407-
162 BRACKET
(C) 		1-53441-522-0 01 1 0407-
162 BRACKET
(E) 		1-71907-501-0 01 1 0407-0501
162 BRACKET
(E) 		1-71907-696-0 01 1 0502-0511
162 BRACKET
(D) 		1-71907-521-0 01 1 0407-0701
162 BRACKET
(E) 		1-71907-815-0 01 1 0702-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28680-820-0 05 1 0407-0512
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
168 NUT; EXH COVER
M8 FLANGE 		0-91150-108-0 01 1 0407-0602
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0603-
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (A) 		8-94165-394-0 09 1 0407-0511
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (B) 		8-94279-048-0 05 1 0407-0511
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 03 1 0407-0501
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0502-

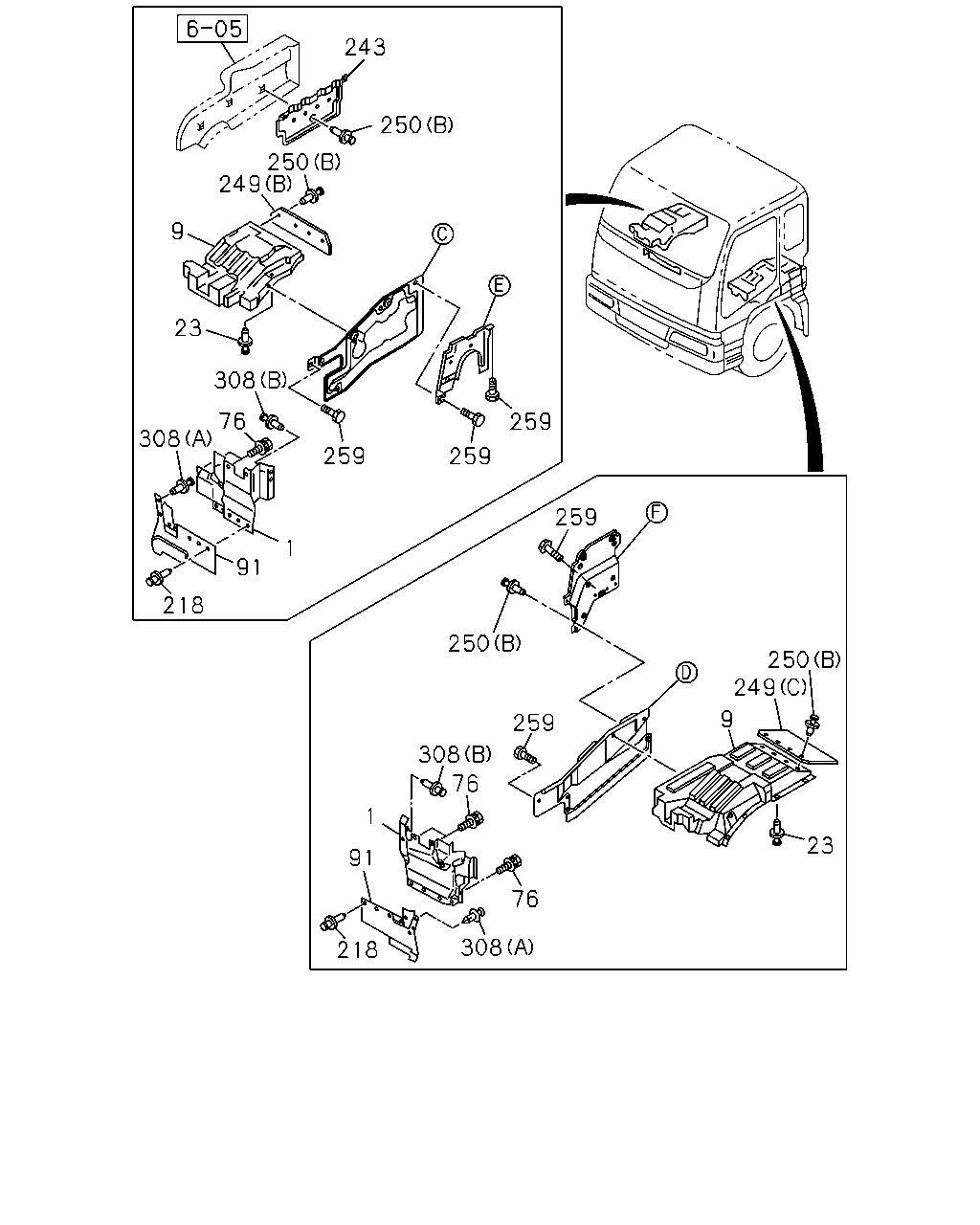

çizim 87733
243 250 250 249 9 23 308 76 259 308 259 259 259 1 91 218 250 250 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0407-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0407-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0407-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0407-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0407-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0407-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0407-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0407-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0407-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0407-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0407-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0407-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-
250 FASTENER; SHUTTER
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 04 1 0407-0511
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0512-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0407-0511
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0512-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0407-0511
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0512-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0407-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0407-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0407-
çizim 104371
130 281 185 249 130 281 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-376-0 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (A) 		1-53194-380-1 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-959-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (B) 		1-79937-960-4 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 0512-
130 PANEL; SHUTTER NOISE
CAB UP +110MM<TGG> (C) 		1-79937-969-2 01 1 0407-0511
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-2 01 1 0512-0601
130 PANEL; SHUTTER NOISE
(C) 		1-79947-034-1 01 1 0602-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-2 01 1 0407-0601
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0602-
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 0407-0511
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0512-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0602-
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 20 1 0407-0511
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0512-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0407-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0407-0601
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-170-1 01 1 0407-0511
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0512-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-171-2 01 1 0407-0511
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0512-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (B) 		1-71907-455-0 01 1 0407-0511
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0512-0601
281 INSULATOR; NOISE
(C) 		1-71907-632-0 01 1 0407-0501
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0502-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(D) 		1-73237-611-0 01 1 0407-0408
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0409-

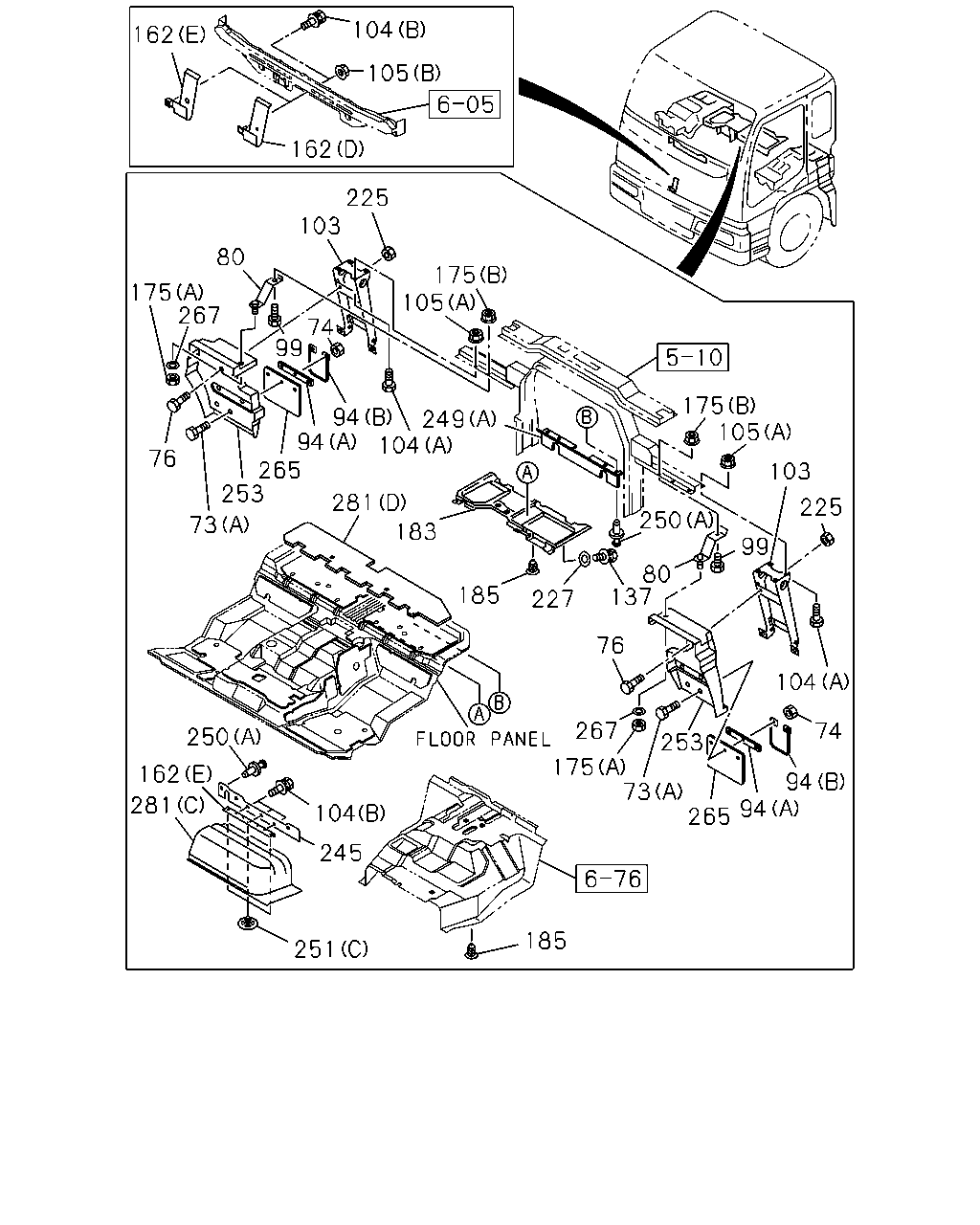

çizim 104374
104 162 105 162 225 103 80 175 105 175 267 74 99 175 105 94 249 94 104 265 253 76 103 281 183 225 250 73 99 80 137 185 227 76 104 267 74 250 253 175 73 162 94 94 265 281 104 245 185 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
CAB UP +110MM<TGG> (B) M8X16 FLANGE 		0-28280-816-0 05 1 0407-0511
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 0512-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 0407-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 0806-
74 NUT
M8 FLANGE 		0-91150-108-0 02 1 0407-0410
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0411-0511
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0512-0602
74 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
74 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 0407-0511
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 06 1 0512-0602
74 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 0407-0511
74 NUT
M8 FLANGE 		0-91150-108-0 05 1 0512-0602
74 NUT
M8 FLANGE 		0-91180-108-0 05 1 0603-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0407-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0407-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0407-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0407-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0407-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 0407-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0407-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0407-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 0407-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0407-0511
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 0512-
103 BRACKET ASM; RR MUD FLAP 1-79931-308-1 01 1 0407-0511
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 0512-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0702-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
104 BOLT; BRKT
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
104 BOLT; BRKT
(C) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512
104 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28681-025-0 08 1 0407-0512
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0601-
104 BOLT; BRKT
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 03 1 0407-0511
105 NUT; BRKT
6WG1 TC-S(97L) (A) M10 FLANGE 		0-91150-210-0 07 1 0512-0602
105 NUT; BRKT
6WG1 TC-S(97L) (A) M10 FLANGE 		0-91180-210-0 07 1 0603-
105 NUT; BRKT
(C) M8 FLANGE 		0-91150-108-0 04 1 0407-0410
105 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 08 1 0407-0511
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91150-210-0 08 1 0512-0602
105 NUT; BRKT
6WF1 TC-C(1B8) (A) M10 FLANGE 		0-91180-210-0 08 1 0603-
105 NUT; BRKT
(B) M6 CAP NUT FLANGE 		1-65471-734-0 01 1 0407-0701
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0407-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0407-
162 BRACKET
(B) 		1-53441-521-2 01 1 0407-
162 BRACKET
(C) 		1-53441-522-0 01 1 0407-
162 BRACKET
(E) 		1-71907-501-0 01 1 0407-0501
162 BRACKET
(E) 		1-71907-696-0 01 1 0502-0511
162 BRACKET
(D) 		1-71907-521-0 01 1 0407-0701
162 BRACKET
(E) 		1-71907-815-0 01 1 0702-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0407-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0407-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0407-
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 09 1 0407-0511
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0512-0601
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0602-
185 CLIP; HEAT INSULATOR
CAB UP +110MM<TGG> ID=6.2 L=11.4 		8-97808-623-0 20 1 0407-0511
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 20 1 0512-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0407-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0407-0601
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0407-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0407-
245 RUBBER; SHUTTER,RAD
6WG1 TC-S(97L) 		1-79947-014-1 01 1 0407-0511
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-965-1 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (D) 		1-79937-966-2 01 1 0407-0511
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (E) 		1-79937-967-1 01 1 0407-0511
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0512-0601
249 RUBBER; SHUTTER
(E) 		1-79947-053-1 01 1 0602-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (B) 		1-79937-979-0 01 1 0407-0511
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0512-
249 RUBBER; SHUTTER
CAB UP +110MM<TGG> (C) 		1-79937-981-0 01 1 0407-0511
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0512-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0407-
250 FASTENER; SHUTTER
CAB UP +110MM<TGG> (B) D8X13.5 		1-09987-248-1 04 1 0407-0511
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0512-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0407-0511
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0512-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0407-0511
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0512-
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (A) 		8-94165-394-0 09 1 0407-0511
251 CLIP; NOISE INSULATOR
CAB UP +110MM<TGG> (B) 		8-94279-048-0 05 1 0407-0511
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 03 1 0407-0501
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0502-
253 GUARD; MUD 1-79931-064-7 01 1 0407-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
253 GUARD; MUD 1-79931-066-7 01 1 0407-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0407-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 0407-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0407-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-170-1 01 1 0407-0511
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0512-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (A) 		1-71907-171-2 01 1 0407-0511
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0512-
281 INSULATOR; NOISE
CAB UP +110MM<TGG> (B) 		1-71907-455-0 01 1 0407-0511
281 INSULATOR; NOISE
(B) 		1-71907-455-0 01 1 0512-0601
281 INSULATOR; NOISE
(C) 		1-71907-632-0 01 1 0407-0501
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0502-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(D) 		1-73237-611-0 01 1 0407-0408
281 INSULATOR; NOISE
(D) 		1-73237-894-3 01 1 0409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
