6-32 — FRONT DOOR LOCK AND HANDLE (#30089) — 50 parça

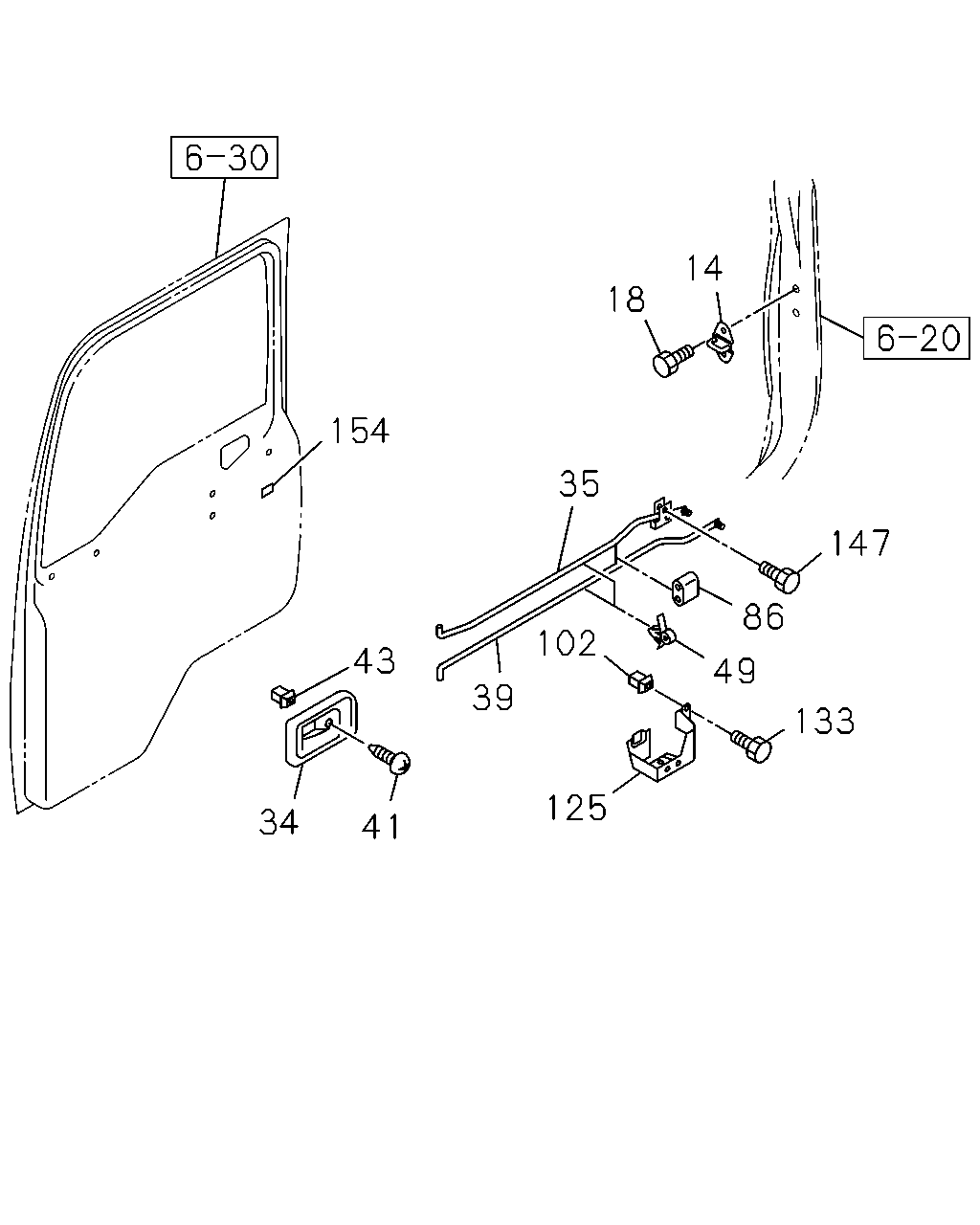

14 18 154 35 147 86 102 43 49 39 133 125 34 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	STRIKER; FRT DOOR	8-97221-702-1	02	1	0407-
18	SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	0407-
34	HANDLE; INSIDE,FRT DOOR	1-74718-022-4	01	1	0407-
34	HANDLE; INSIDE,FRT DOOR	1-74718-023-4	01	1	0407-
35	LINK; DOOR LOCK,INSIDE AUTO DOOR LOCK<AU4>	1-74518-129-2	01	1	0512-
35	LINK; DOOR LOCK,INSIDE EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-094-3	01	1	0512-
35	LINK; DOOR LOCK,INSIDE	1-74518-093-3	01	1	0407-0511
35	LINK; DOOR LOCK,INSIDE REMOTE CONT DOOR LOCK<SLG>	1-74518-093-3	01	1	0512-
35	LINK; DOOR LOCK,INSIDE	1-74518-130-2	01	1	0407-0511
35	LINK; DOOR LOCK,INSIDE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-130-2	01	1	0512-
39	LINK; INSIDE HANDLE,FRT DOOR AUTO DOOR LOCK<AU4>	1-74758-033-1	01	1	0512-
39	LINK; INSIDE HANDLE,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74758-022-2	01	1	0512-
39	LINK; INSIDE HANDLE,FRT DOOR	1-74758-021-2	01	1	0407-0511
39	LINK; INSIDE HANDLE,FRT DOOR REMOTE CONT DOOR LOCK<SLG>	1-74758-021-2	01	1	0512-
39	LINK; INSIDE HANDLE,FRT DOOR	1-74758-034-1	01	1	0407-0511
39	LINK; INSIDE HANDLE,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74758-034-1	01	1	0512-
41	SCREW; INSIDE HANDLE M5X14	8-94152-495-0	02	1	0407-
43	GROMMET; SCREW,INSIDE LEVER,DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0407-
49	CLAMP; DOOR LOCK LINK ROD ID=3.8 WHITE	8-94217-699-0	04	1	0407-
86	SEAL; DOOR LOCK LINK	1-76778-044-1	02	1	0407-
102	GROMMET; SCREW,ESCUTCHEON,DOOR PULL D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0407-
125	BRACKET; DOOR PULL	1-74718-010-4	01	1	0407-
125	BRACKET; DOOR PULL	1-74718-011-4	01	1	0407-
133	SCREW; DOOR PULL STAY M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0407-
147	BOLT; ROD M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
154	SEAL; DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 30X30	1-74998-128-1	02	1	0512-
154	SEAL; DOOR 30X30	1-74998-128-0	01	1	0407-0511
154	SEAL; DOOR DOOR WITH UNDER VIEW WINDOW<YD8> 30X30	1-74998-128-1	01	1	0512-

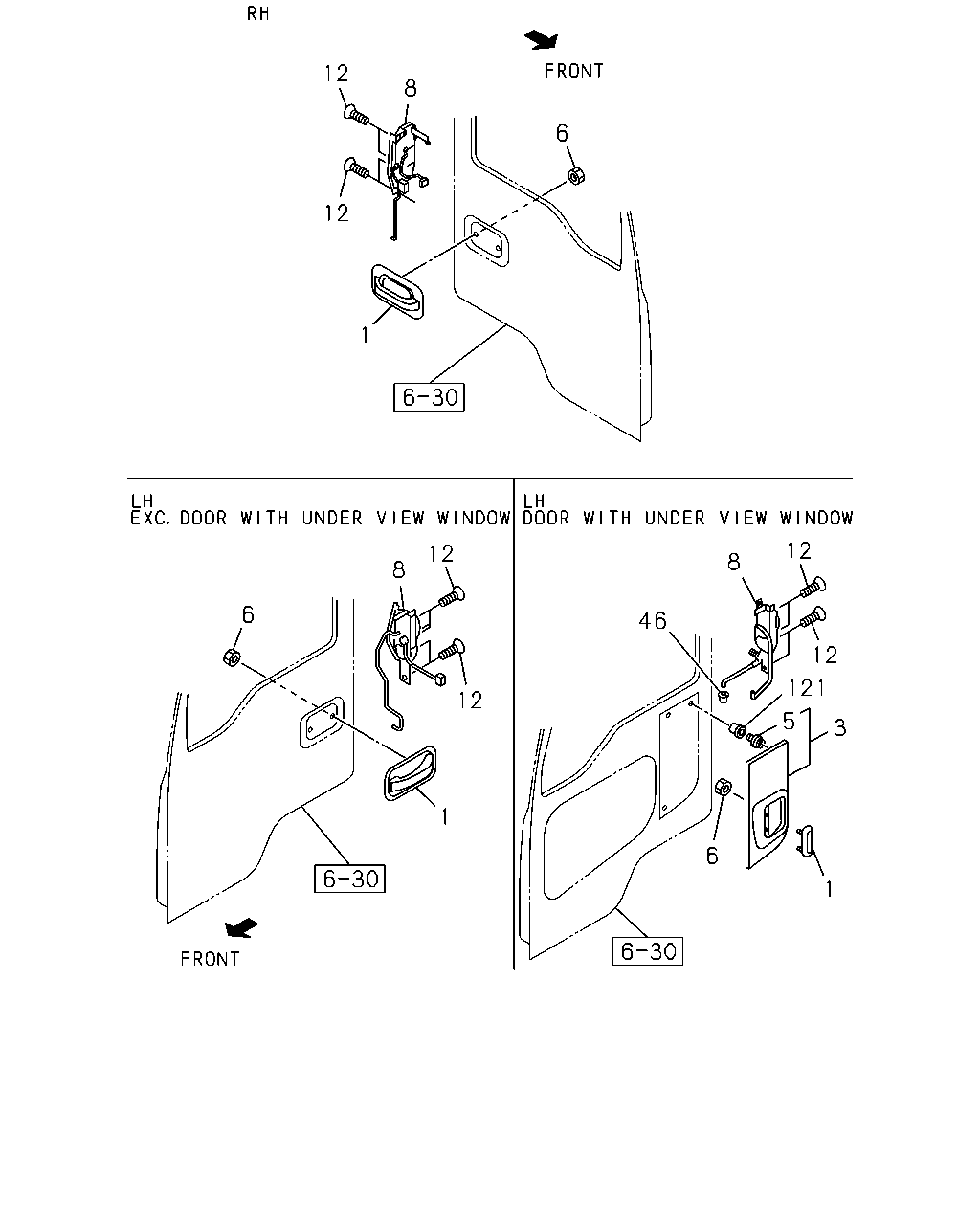

12 8 6 12 1 12 12 8 8 6 46 12 121 12 5 3 1 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; OUTSIDE,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-024-4	01	1	0512-
1	HANDLE; OUTSIDE,FRT DOOR	1-74618-032-0	01	1	0407-0511
1	HANDLE; OUTSIDE,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-032-0	01	1	0512-
1	HANDLE; OUTSIDE,FRT DOOR	1-74618-040-0	01	1	0407-
3	BASE; HANDLE,DOOR OUTSIDE	1-74618-039-1	01	1	0407-0511
3	BASE; HANDLE,DOOR OUTSIDE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74618-039-1	01	1	0512-
5	CLIP; BASE D5.4X8	1-09983-174-0	03	1	0407-0511
5	CLIP; BASE DOOR WITH UNDER VIEW WINDOW<YD8> D5.4X8	1-09983-174-0	03	1	0512-
6	NUT; OUTSIDE HANDLE M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0407-
8	LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4>	1-74518-125-3	01	1	0512-
8	LOCK; DOOR,FRT DOOR EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-115-3	01	1	0512-
8	LOCK; DOOR,FRT DOOR	1-74518-107-6	01	1	0407-0511
8	LOCK; DOOR,FRT DOOR REMOTE CONT DOOR LOCK<SLG>	1-74518-107-6	01	1	0512-
8	LOCK; DOOR,FRT DOOR	1-74518-126-1	01	1	0407-0511
8	LOCK; DOOR,FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-74518-126-1	01	1	0512-
12	SCREW; DOOR LK M6X16	1-09981-447-1	06	1	0407-0805
12	SCREW; DOOR LK M6X16	8-97581-217-0	06	1	0806-
12	SCREW; DOOR LK M6X14	1-09981-512-1	04	1	0407-
46	BUSHING; DOOR LOCK TO OUTSIDE HANDLE	5-74617-009-0	01	1	0407-0511
46	BUSHING; DOOR LOCK TO OUTSIDE HANDLE DOOR WITH UNDER VIEW WINDOW<YD8>	5-74617-009-0	01	1	0512-
121	FASTENER; COVER ID=5.4 OD=6.8	1-09989-019-0	03	1	0407-0511
121	FASTENER; COVER DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.4 OD=6.8	1-09989-019-0	03	1	0512-
