Isuzu WW
▶
TRUCKS
▶
EXY
▶
10956 - EXY NEW ZEALAND
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#30079) — 323 parça
◀

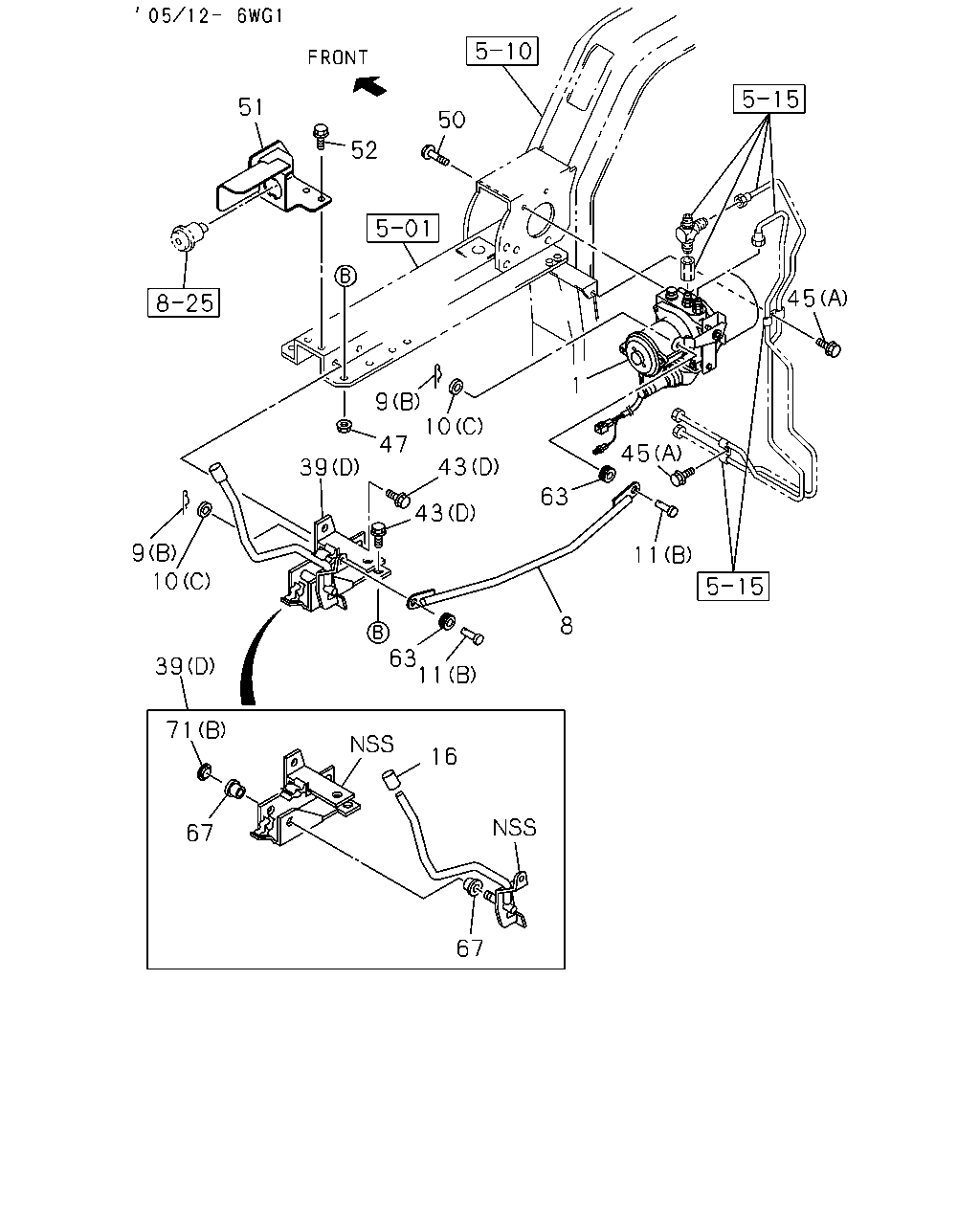

[516A] LEVER AND FIXING PARTS NO.1 (57 parça)

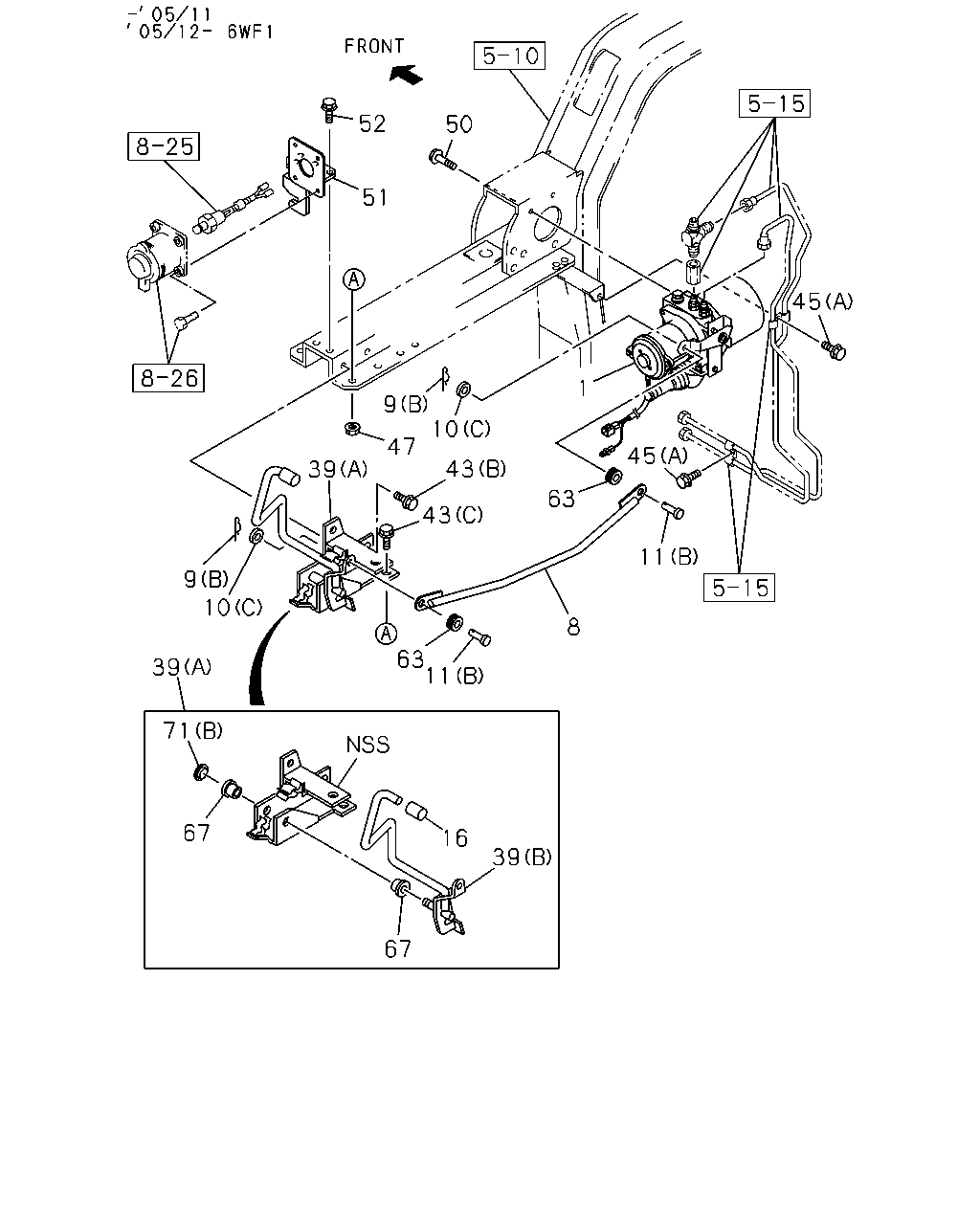

[516A] LEVER AND FIXING PARTS NO.2 (57 parça)

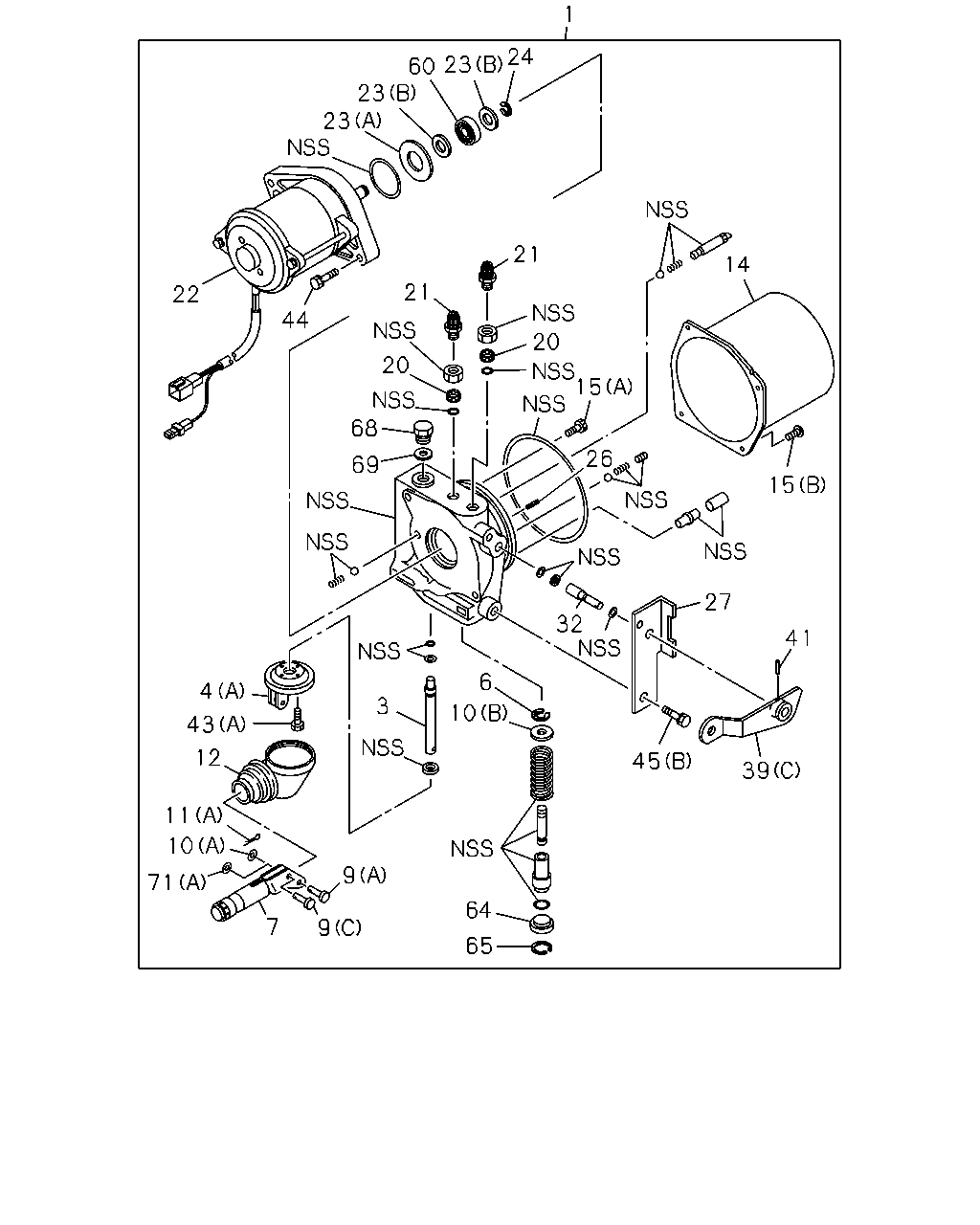

[516A] -'09/11 COMPONENT;OIL PUMP (68 parça)

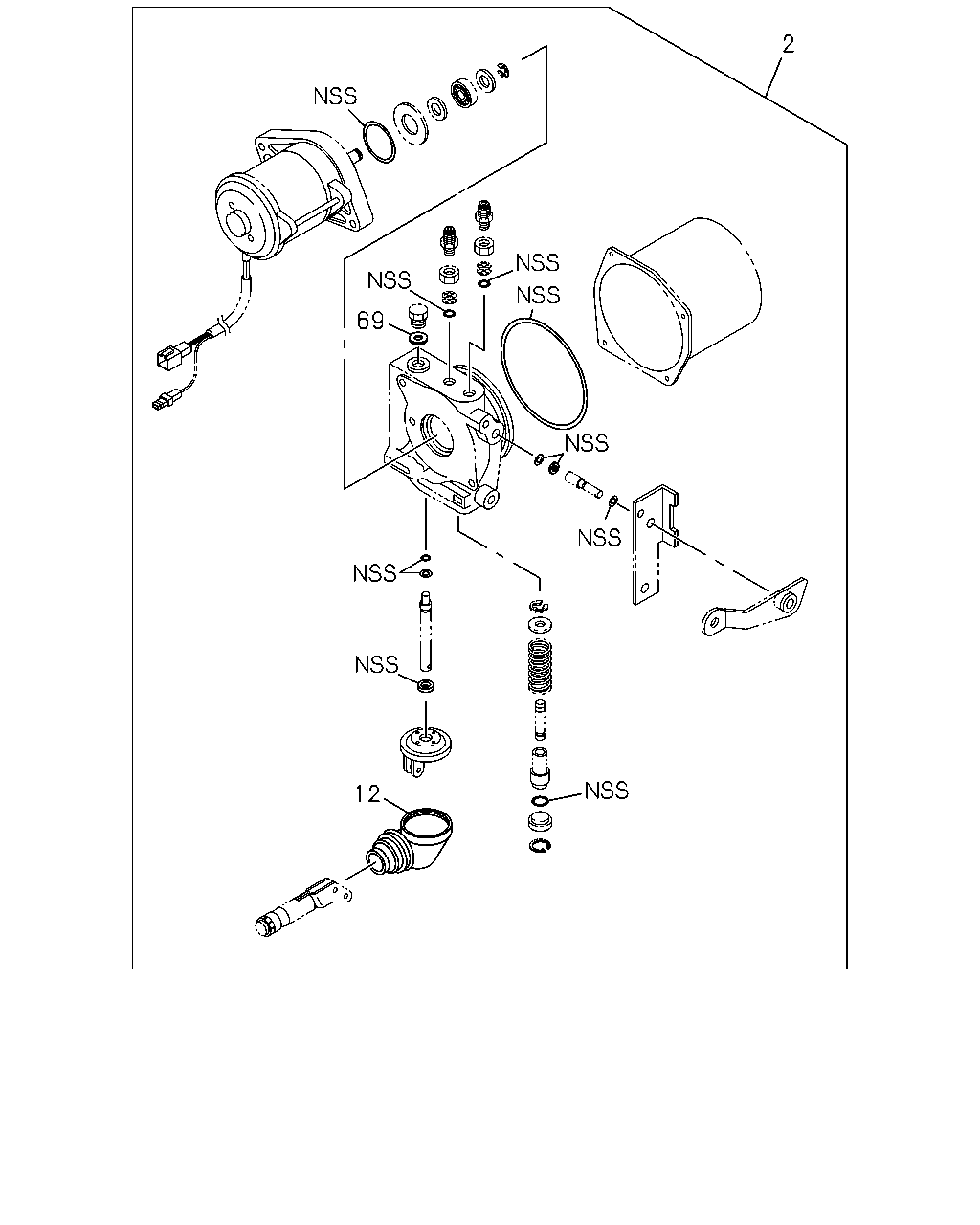

[516A] -'09/11 REPAIR KIT;OIL PUMP (4 parça)

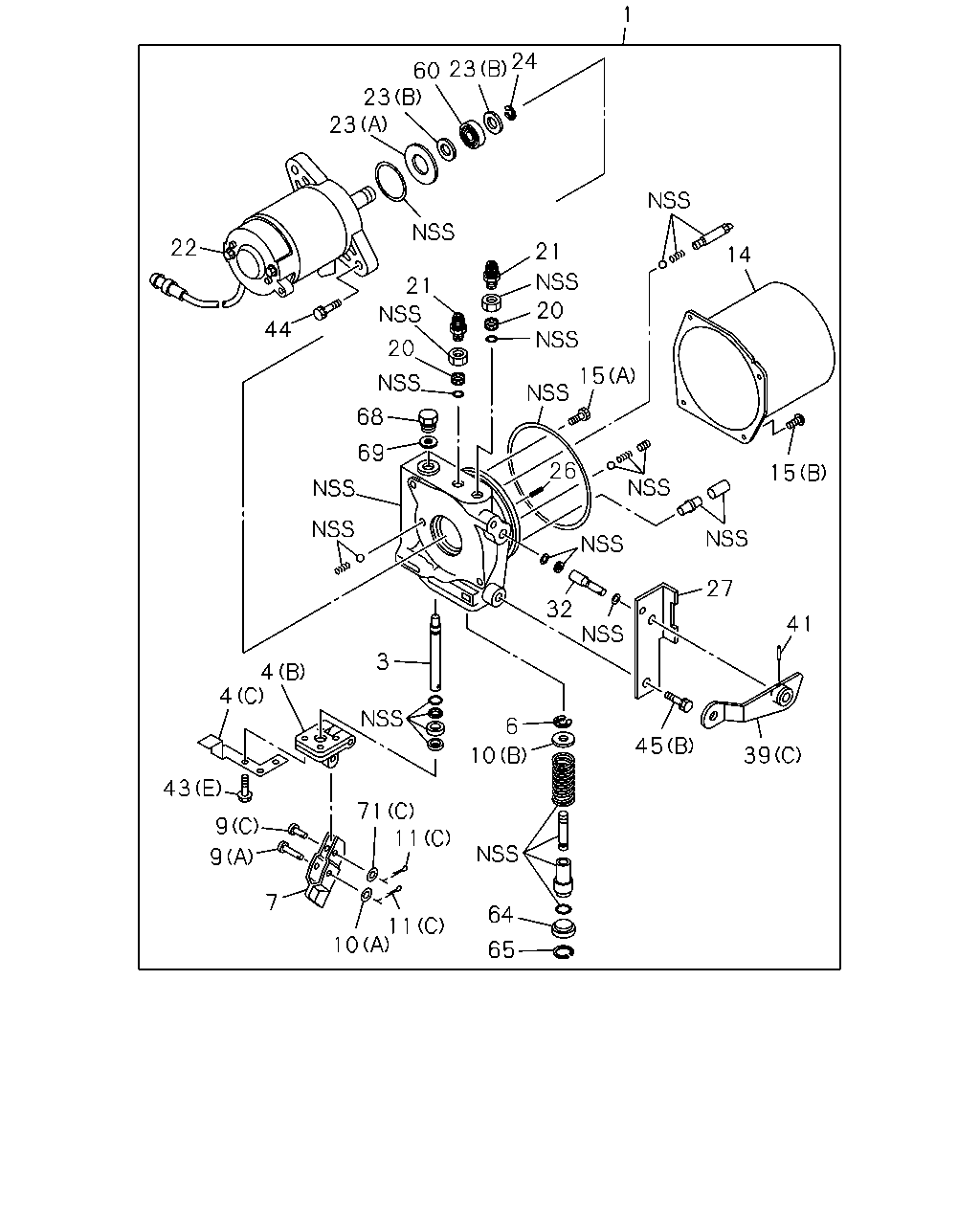

[516A] '14/9- COMPONENT;OIL PUMP (67 parça)

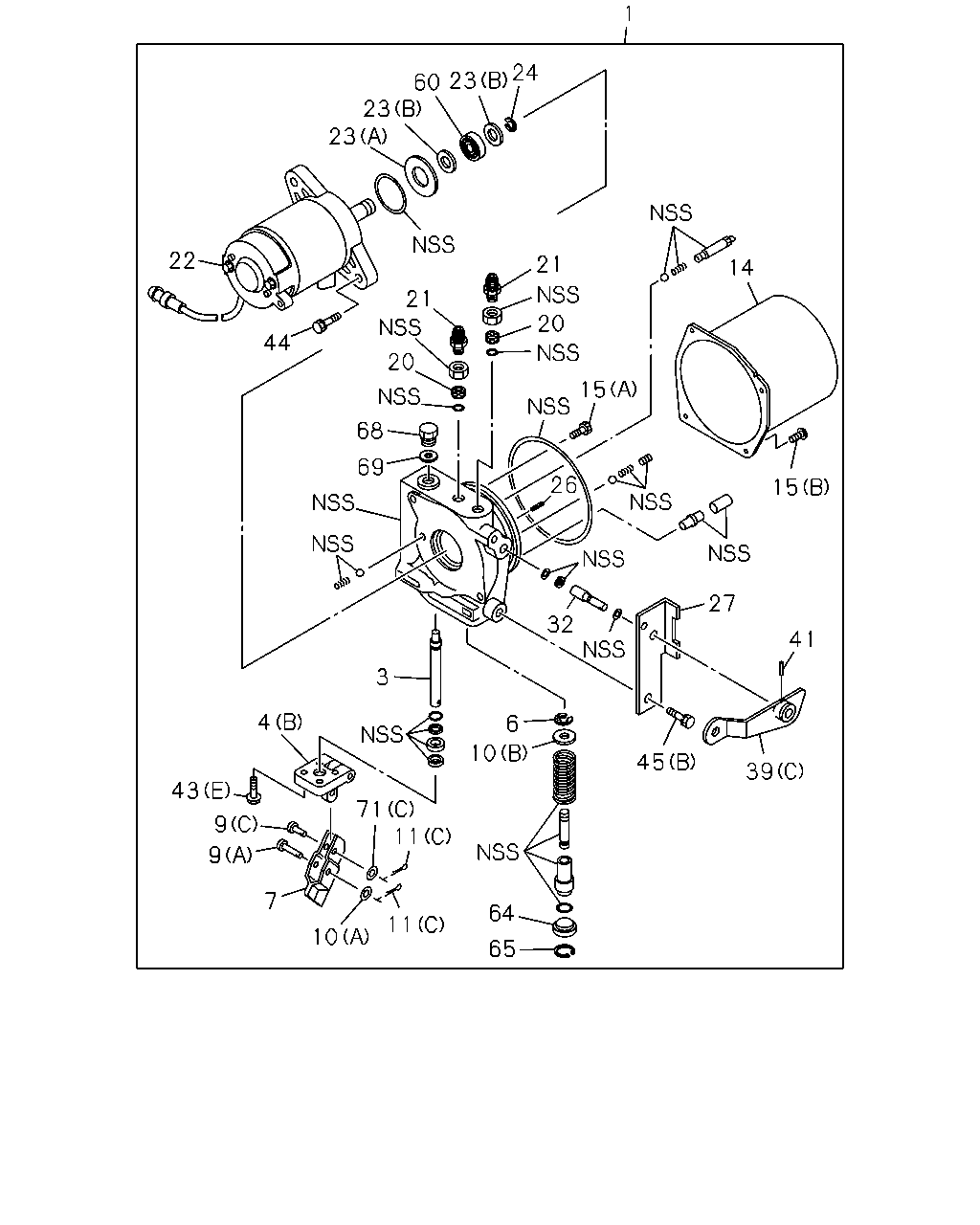

[516A] '09/12-'14/8 COMPONENT;OIL PUMP (67 parça)

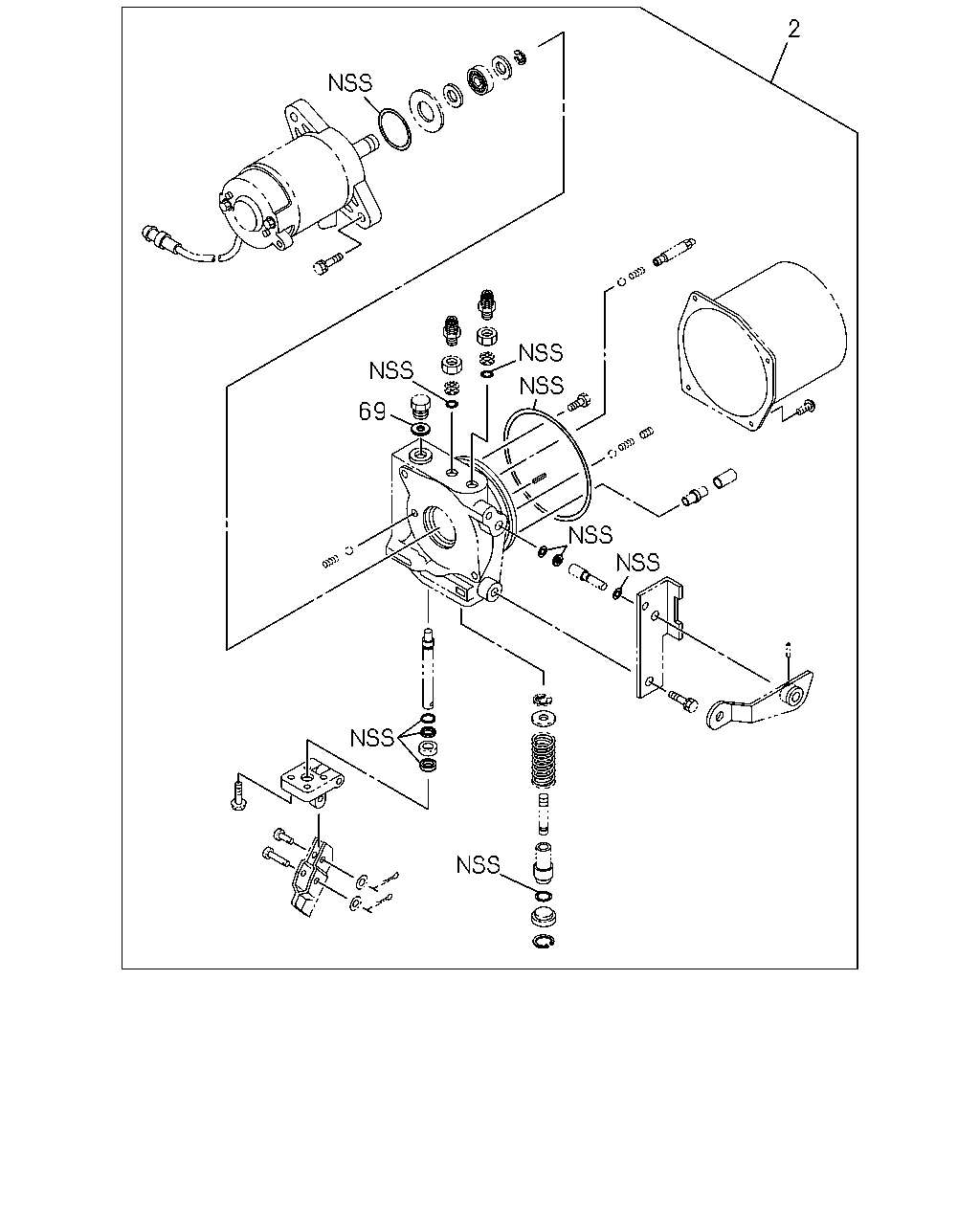

[516A] '09/12- REPAIR KIT;OIL PUMP (3 parça)
▶
52
50
51
45
1
9
10
47
45
43
39
63
43
11
9
10
8
63
11
39
71
67
16
39
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0407-1408
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
8
LINK; OIL PUMP
6WG1 TC-S(97L)
1-53457-155-0
01
1
0512-
8
LINK; OIL PUMP
1-53458-726-0
01
1
0407-0511
8
LINK; OIL PUMP
6WF1 TC-C(1B8)
1-53458-726-0
01
1
0512-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0407-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0407-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0407-0911
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
0912-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0407-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0407-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0407-0605
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0407-0911
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0407-0606
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
16
CAP
ID=9.0
8-94207-303-0
01
1
0407-
39
LEVER; OIL PUMP
6WG1 TC-S(97L) (D)
8-97608-198-0
01
1
0512-
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0407-
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (A)
1-53458-775-1
01
1
0512-
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (B)
1-53458-870-0
01
1
0512-
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28050-820-0
02
1
0805-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28680-820-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28650-820-0
01
1
0601-0804
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28050-820-0
01
1
0805-
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28681-020-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0407-0911
43
BOLT; LEVER
(E) M5X16
1-53457-206-0
03
1
0912-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0407-
47
NUT; LEVER
6WG1 TC-S(97L) M8 FLANGE
0-91150-108-0
01
1
0512-0602
47
NUT; LEVER
6WG1 TC-S(97L) M8 FLANGE
0-91180-108-0
01
1
0603-
47
NUT; LEVER
M10 FLANGE
0-91150-210-0
01
1
0407-0511
47
NUT; LEVER
6WF1 TC-C(1B8) M10 FLANGE
0-91150-210-0
01
1
0512-0602
47
NUT; LEVER
6WF1 TC-C(1B8) M10 FLANGE
0-91180-210-0
01
1
0603-
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28081-016-0
02
1
0407-0512
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
0601-
51
BRACKET; OIL PUMP
6WG1 TC-S(97L)
8-97606-599-1
01
1
0512-
51
BRACKET; OIL PUMP
1-53458-690-0
01
1
0407-0511
51
BRACKET; OIL PUMP
6WF1 TC-C(1B8)
1-53458-690-0
01
1
0512-
52
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
52
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0805-
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
0407-
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
0407-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0407-0911
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0407-
51
50
52
45
1
9
10
47
45
43
39
63
43
9
10
11
8
63
11
39
71
6
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0407-1408
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
6
RING; SNAP
1-53458-411-0
01
1
0407-
8
LINK; OIL PUMP
6WG1 TC-S(97L)
1-53457-155-0
01
1
0512-
8
LINK; OIL PUMP
1-53458-726-0
01
1
0407-0511
8
LINK; OIL PUMP
6WF1 TC-C(1B8)
1-53458-726-0
01
1
0512-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0407-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0407-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0407-0911
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
0912-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0407-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0407-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0407-0605
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0407-0911
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0407-0606
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
39
LEVER; OIL PUMP
6WG1 TC-S(97L) (D)
8-97608-198-0
01
1
0512-
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0407-
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (A)
1-53458-775-1
01
1
0512-
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (B)
1-53458-870-0
01
1
0512-
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28050-820-0
02
1
0805-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28680-820-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28650-820-0
01
1
0601-0804
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28050-820-0
01
1
0805-
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28681-020-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0407-0911
43
BOLT; LEVER
(E) M5X16
1-53457-206-0
03
1
0912-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0407-
47
NUT; LEVER
6WG1 TC-S(97L) M8 FLANGE
0-91150-108-0
01
1
0512-0602
47
NUT; LEVER
6WG1 TC-S(97L) M8 FLANGE
0-91180-108-0
01
1
0603-
47
NUT; LEVER
M10 FLANGE
0-91150-210-0
01
1
0407-0511
47
NUT; LEVER
6WF1 TC-C(1B8) M10 FLANGE
0-91150-210-0
01
1
0512-0602
47
NUT; LEVER
6WF1 TC-C(1B8) M10 FLANGE
0-91180-210-0
01
1
0603-
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28081-016-0
02
1
0407-0512
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
0601-
51
BRACKET; OIL PUMP
6WG1 TC-S(97L)
8-97606-599-1
01
1
0512-
51
BRACKET; OIL PUMP
1-53458-690-0
01
1
0407-0511
51
BRACKET; OIL PUMP
6WF1 TC-C(1B8)
1-53458-690-0
01
1
0512-
52
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
52
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
02
1
0805-
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
0407-
67
BUSHING
T=6 OD=17.5
9-33659-249-0
02
1
0407-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0407-0911
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0407-
1
14
24
23
60
23
23
22
44
21
21
20
20
68
15
69
26
15
27
41
32
39
45
6
10
3
64
65
9
9
7
71
11
10
12
4
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0407-1408
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
3
PISTON; MANUAL
1-53458-842-0
01
1
0407-0911
3
PISTON; MANUAL
1-53457-204-0
01
1
0912-
4
BRACKET; OIL PUMP
(C)
8-98281-606-0
01
1
1409-
4
BRACKET; OIL PUMP
(A)
1-53458-566-0
01
1
0407-0911
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
0912-
6
RING; SNAP
1-53458-411-0
01
1
0407-
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0407-0911
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
0912-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0407-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0407-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0407-0911
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
0912-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0407-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0407-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0407-0605
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0407-0911
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0407-0606
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
12
BOOT; OIL PUMP
1-53458-560-0
01
1
0407-0911
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0407-
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0407-
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0407-
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0407-
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0407-
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0407-
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0407-
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0407-1408
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0407-
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0407-
27
COVER; OIL PUMP
1-53458-568-0
01
1
0407-
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0407-
39
LEVER; OIL PUMP
6WG1 TC-S(97L) (D)
8-97608-198-0
01
1
0512-
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0407-
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (A)
1-53458-775-1
01
1
0512-
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (B)
1-53458-870-0
01
1
0512-
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0407-
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28050-820-0
02
1
0805-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28680-820-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28650-820-0
01
1
0601-0804
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28050-820-0
01
1
0805-
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28681-020-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0407-0911
43
BOLT; LEVER
(E) M5X16
1-53457-206-0
03
1
0912-
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0407-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0407-
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0407-
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0407-1408
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0407-
68
PLUG; FILLER
1-53458-428-0
01
1
0407-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0407-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0407-0911
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0407-
2
69
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL PUMP
1-85579-058-0
01
1
0407-0911
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
0912-
12
BOOT; OIL PUMP
1-53458-560-0
01
1
0407-0911
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0407-
1
14
15
41
39
45
27
32
6
10
64
65
10
11
11
71
3
4
4
43
9
9
7
69
68
20
21
21
20
15
26
24
23
60
23
23
22
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0407-1408
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
3
PISTON; MANUAL
1-53458-842-0
01
1
0407-0911
3
PISTON; MANUAL
1-53457-204-0
01
1
0912-
4
BRACKET; OIL PUMP
(C)
8-98281-606-0
01
1
1409-
4
BRACKET; OIL PUMP
(A)
1-53458-566-0
01
1
0407-0911
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
0912-
6
RING; SNAP
1-53458-411-0
01
1
0407-
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0407-0911
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
0912-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0407-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0407-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0407-0911
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
0912-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0407-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0407-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0407-0605
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0407-0911
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0407-0606
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0407-
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0407-
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0407-
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0407-
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0407-
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0407-
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0407-
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0407-1408
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0407-
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0407-
27
COVER; OIL PUMP
1-53458-568-0
01
1
0407-
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0407-
39
LEVER; OIL PUMP
6WG1 TC-S(97L) (D)
8-97608-198-0
01
1
0512-
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0407-
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (A)
1-53458-775-1
01
1
0512-
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (B)
1-53458-870-0
01
1
0512-
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0407-
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28050-820-0
02
1
0805-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28680-820-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28650-820-0
01
1
0601-0804
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28050-820-0
01
1
0805-
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28681-020-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0407-0911
43
BOLT; LEVER
(E) M5X16
1-53457-206-0
03
1
0912-
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0407-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0407-
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0407-
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0407-1408
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0407-
68
PLUG; FILLER
1-53458-428-0
01
1
0407-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0407-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0407-0911
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0407-
1
24
23
60
23
23
22
44
21
21
20
68
69
3
4
43
9
9
7
10
11
71
11
64
65
20
15
26
32
6
10
45
39
41
27
15
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
0407-1408
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
3
PISTON; MANUAL
1-53458-842-0
01
1
0407-0911
3
PISTON; MANUAL
1-53457-204-0
01
1
0912-
4
BRACKET; OIL PUMP
(C)
8-98281-606-0
01
1
1409-
4
BRACKET; OIL PUMP
(A)
1-53458-566-0
01
1
0407-0911
4
BRACKET; OIL PUMP
(B)
1-53457-205-0
01
1
0912-
6
RING; SNAP
1-53458-411-0
01
1
0407-
7
SOCKET; OIL PUMP
1-53458-565-1
01
1
0407-0911
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
0912-
9
PIN; OIL PUMP
(B) L=27.7
1-09987-141-0
02
1
0407-
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
0407-
9
PIN; OIL PUMP
(C)
1-53458-844-0
01
1
0407-0911
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
0912-
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
0407-
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
0407-
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
9-09160-708-0
02
1
0407-0605
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22
0-91610-708-0
02
1
0606-
11
PIN; SPLIT,OIL PUMP
(A)
1-53458-058-0
01
1
0407-0911
11
PIN; SPLIT,OIL PUMP
(C)
1-53457-209-0
02
1
0912-
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
9-08223-817-0
02
1
0407-0606
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
0607-
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
0407-
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
0407-
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
0407-
20
FILTER; OIL PUMP
1-53457-081-0
02
1
0407-
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
0407-
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
0407-
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
0407-
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
0407-1408
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
0407-
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
0407-
27
COVER; OIL PUMP
1-53458-568-0
01
1
0407-
32
VALVE; OIL PUMP
1-53458-569-0
01
1
0407-
39
LEVER; OIL PUMP
6WG1 TC-S(97L) (D)
8-97608-198-0
01
1
0512-
39
LEVER; OIL PUMP
(C)
1-53458-567-0
01
1
0407-
39
LEVER; OIL PUMP
(A)
1-53458-775-1
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (A)
1-53458-775-1
01
1
0512-
39
LEVER; OIL PUMP
(B)
1-53458-870-0
01
1
0407-0511
39
LEVER; OIL PUMP
6WF1 TC-C(1B8) (B)
1-53458-870-0
01
1
0512-
41
PIN; SPR,LEVER
1-53458-019-0
01
1
0407-
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28680-820-0
02
1
0512-0512
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28650-820-0
02
1
0601-0804
43
BOLT; LEVER
6WG1 TC-S(97L) (D) M8X20 FLANGE
0-28050-820-0
02
1
0805-
43
BOLT; LEVER
(B) M8X20 FLANGE
0-28680-820-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28680-820-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28650-820-0
01
1
0601-0804
43
BOLT; LEVER
6WF1 TC-C(1B8) (B) M8X20 FLANGE
0-28050-820-0
01
1
0805-
43
BOLT; LEVER
(C) M10X20 FLANGE
0-28681-020-0
01
1
0407-0511
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28681-020-0
01
1
0512-0512
43
BOLT; LEVER
6WF1 TC-C(1B8) (C) M10X20 FLANGE
0-28651-020-0
01
1
0601-
43
BOLT; LEVER
(A) M5X12
1-53458-420-0
02
1
0407-0911
43
BOLT; LEVER
(E) M5X16
1-53457-206-0
03
1
0912-
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
0407-
45
BOLT; COVER
(A) M8X20 FLANGE
0-28680-820-0
02
1
0407-0512
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0601-
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
0407-
60
BEARING; OIL PUMP
1-53458-423-0
01
1
0407-
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
0407-1408
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
0407-
68
PLUG; FILLER
1-53458-428-0
01
1
0407-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0407-
71
NUT; PUSH
(A)
1-53458-845-0
01
1
0407-0911
71
NUT; PUSH
(C)
1-53457-208-0
01
1
0912-
71
NUT; PUSH
(B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0407-
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL PUMP
1-85579-058-0
01
1
0407-0911
2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
0912-
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
0407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
