◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#30077) — 363 parça
çizim 87872
202 202 294 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR
CAB UP +110MM<TGG> 		1-53450-670-1 01 1 0407-0511
173 MEMBER; CAB MTG RR 1-53450-670-1 01 1 0512-1003
173 MEMBER; CAB MTG RR 8-98166-139-0 01 1 1004-
174 OUTRIGGER
6WG1 TC-S(97L) 		1-53456-418-3 01 1 0512-
174 OUTRIGGER 1-53456-277-3 01 1 0407-0511
174 OUTRIGGER
6WF1 TC-C(1B8) 		1-53456-277-3 01 1 0512-1003
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1004-
174 OUTRIGGER 1-53456-278-3 01 1 0407-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 0407-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0407-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0407-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0407-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0407-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0407-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0407-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0407-
294 MEMBER; FLOATING 1-53454-949-2 01 1 0407-

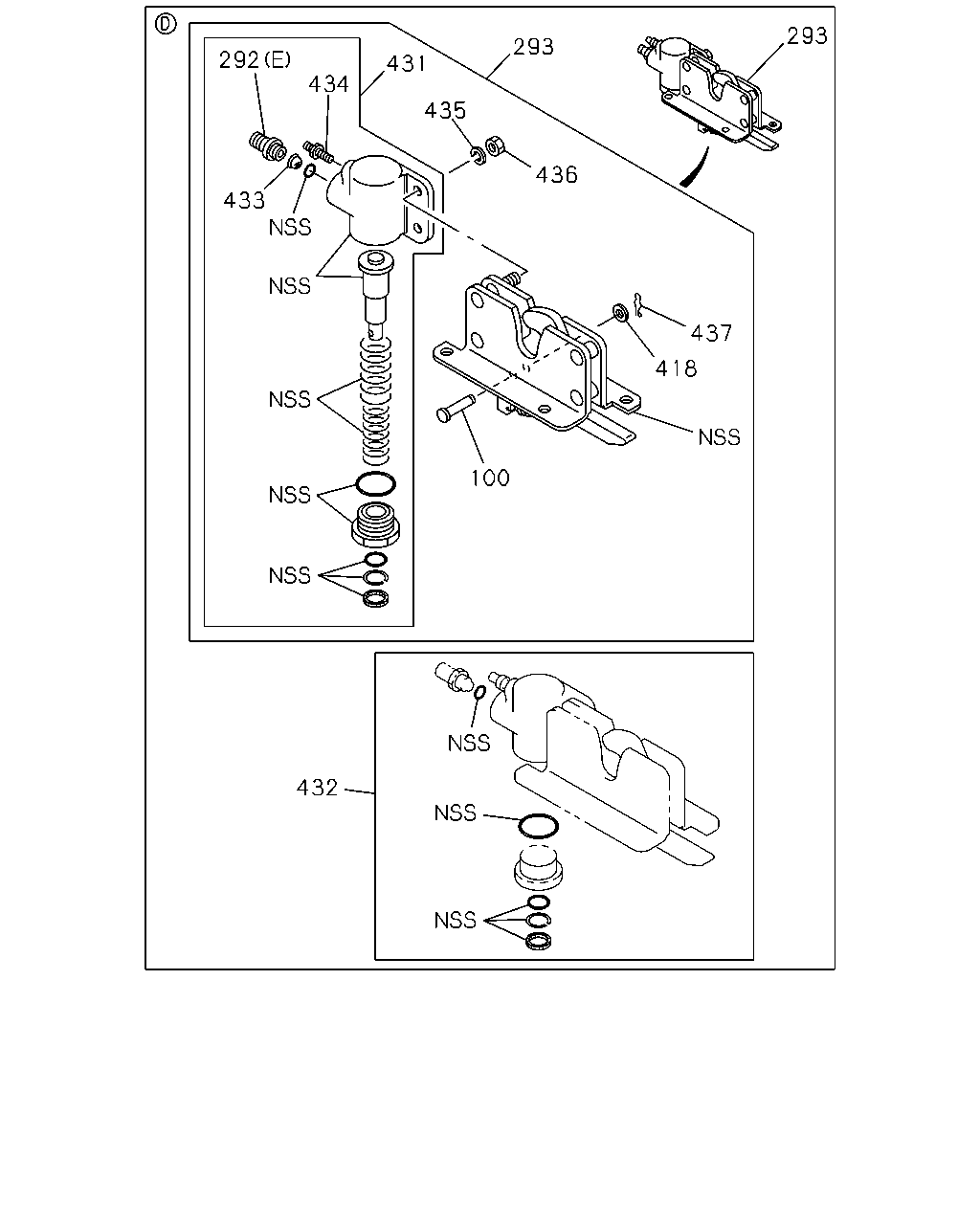

çizim 87874
293 293 292 431 434 435 436 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
100 PIN; JOINT 1-53458-831-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0407-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0407-
418 WASHER; PL,PIN 1-53458-059-0 01 1 0407-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0407-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0407-
433 FILTER; AIR CYL 1-53458-048-0 01 1 0407-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0407-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0407-
436 NUT; AIR CYL 1-53458-528-0 02 1 0407-
437 PIN; SNAP 1-53458-526-0 01 1 0407-
çizim 87968
202 202 203 69 72 204 205 65 70 204 203
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 0407-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0407-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0407-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0407-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0407-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0407-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0407-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0407-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0407-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0407-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0407-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0407-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0407-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0407-

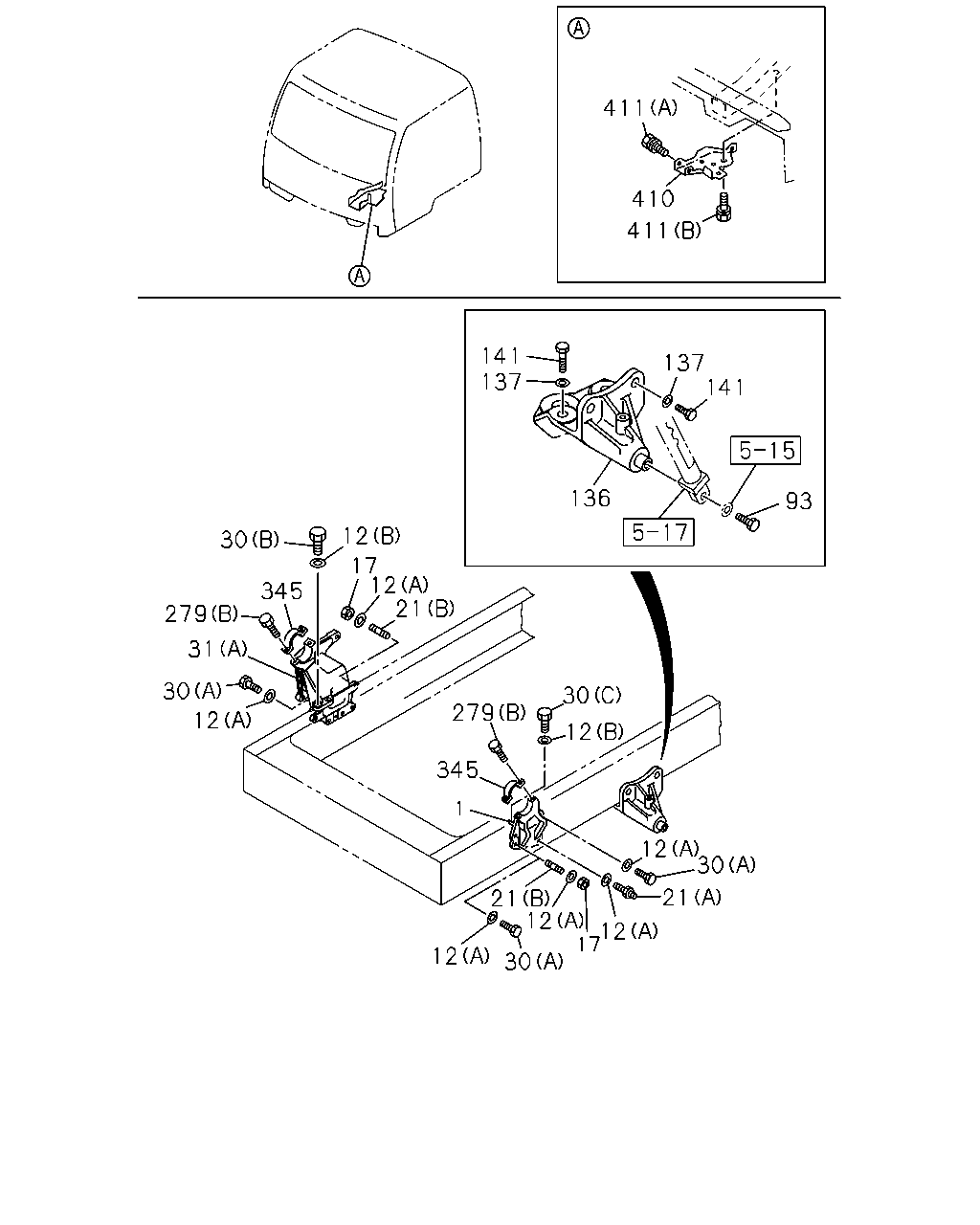

çizim 89226
411 410 411 141 137 137 141 136 93 12 30 17 12 21 345 279 31 30 30 279 12 12 345 1 12 30 21 12 21 12 1 12 30
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG
CAB UP +110MM<TGG> 		1-53453-312-0 01 1 0407-0511
1 BRACKET; CAB MTG 1-53453-312-0 01 1 0512-0802
1 BRACKET; CAB MTG 8-98094-536-0 01 1 0803-
12 WASHER; LK,BRKT
CAB UP +110MM<TGG> (A) ID=16.2 		1-09503-223-0 11 1 0407-0511
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-223-0 11 1 0512-
12 WASHER; LK,BRKT
CAB UP +110MM<TGG> (B) ID=15 		9-09651-069-0 04 1 0407-0511
12 WASHER; LK,BRKT
(B) ID=15 		9-09651-069-0 04 1 0512-1201
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 04 1 1202-
17 NUT; BRKT,CAB TILT
CAB UP +110MM<TGG> M16 		9-99110-516-0 01 1 0407-0511
17 NUT; BRKT,CAB TILT
M16 		9-99110-516-0 01 1 0512-0512
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 0601-
21 STUD; BRKT,CAB TILT
CAB UP +110MM<TGG> (A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 0407-0511
21 STUD; BRKT,CAB TILT
(A) M12X20,M16X45 L=76 		1-09029-090-0 02 1 0512-
21 STUD; BRKT,CAB TILT
CAB UP +110MM<TGG> (B) M16X50 L=74 		1-09300-117-0 01 1 0407-0511
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 0512-
30 BOLT; CAB FRT FOOT
CAB UP +110MM<TGG> (C) M14X45 		9-92061-445-0 02 1 0407-0511
30 BOLT; CAB FRT FOOT
(C) M14X45 		9-92061-445-0 02 1 0512-
30 BOLT; CAB FRT FOOT
CAB UP +110MM<TGG> (A) M16X45 		9-92061-645-0 08 1 0407-0511
30 BOLT; CAB FRT FOOT
(A) M16X45 		9-92061-645-0 08 1 0512-
30 BOLT; CAB FRT FOOT
(B) M14X60 		9-92061-460-0 02 1 0407-0512
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 02 1 0601-
31 BRACKET; CAB
6WG1 TC-S(97L) (E) 		8-97606-793-0 01 1 0512-
31 BRACKET; CAB
CAB UP +110MM<TGG> (A) 		1-44226-159-0 01 1 0407-0511
31 BRACKET; CAB
6WF1 TC-C(1B8) (C) 		1-81549-016-0 01 1 0512-
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0407-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0407-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0407-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0407-0511
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0512-
93 BOLT; PIN
CAB UP +110MM<TGG> M10X30 		1-09000-283-0 01 1 0407-0511
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0512-
136 BRACKET; OIL CYL 1-53458-829-0 01 1 0407-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0407-1201
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202-
141 BOLT; BRKT
M14X50 		9-92061-450-0 04 1 0407-0512
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0601-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0512
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0407-0512
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0601-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0407-0512
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0601-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0407-
345 CAP; CAB 1-53458-336-3 02 1 0407-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0407-
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0407-0904
411 BOLT; REINFORCEMENT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905-
411 BOLT; REINFORCEMENT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0407-

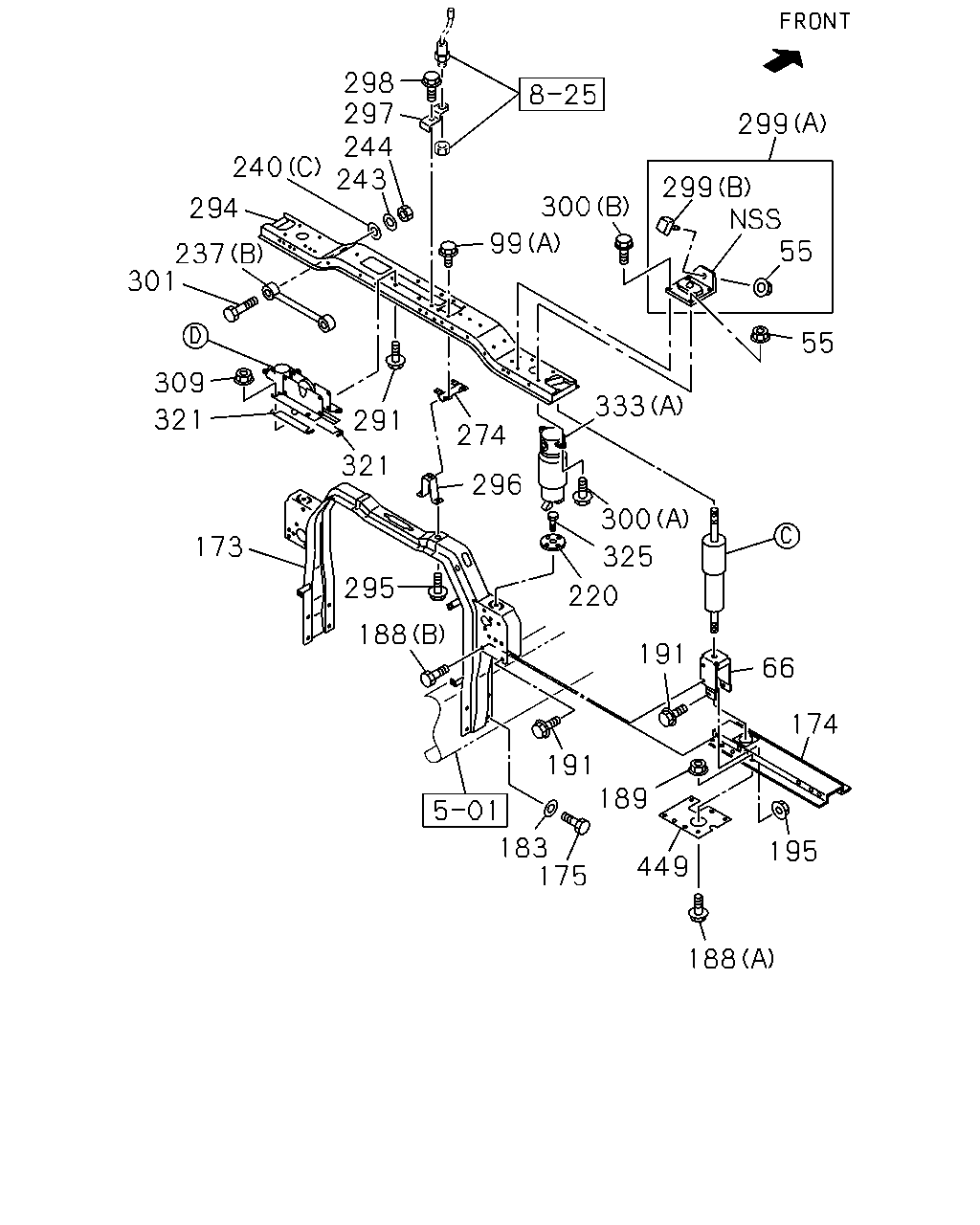

çizim 104184
298 297 244 243 299 240 299 55 300 294 99 237 301 55 309 333 321 291 274 321 296 300 173 325 295 220 188 191 66 174 191 189 183 175 195 449 188
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 04 1 0512-0602
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 02 1 0603-
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 06 1 0407-0511
55 NUT; RUBBER
M8 FLANGE 		0-91150-108-0 02 1 0512-0602
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 04 1 0603-
66 BRACKET; S/ABS
CAB UP +110MM<TGG> 		1-53458-755-1 01 1 0407-0511
66 BRACKET; S/ABS 1-53458-755-1 01 1 0512-1204
66 BRACKET; S/ABS 8-98214-572-0 01 1 1205-
66 BRACKET; S/ABS
CAB UP +110MM<TGG> 		1-53458-786-0 01 1 0407-0511
66 BRACKET; S/ABS 1-53458-786-0 01 1 0512-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0407-
173 MEMBER; CAB MTG RR
CAB UP +110MM<TGG> 		1-53450-670-1 01 1 0407-0511
173 MEMBER; CAB MTG RR 1-53450-670-1 01 1 0512-1003
173 MEMBER; CAB MTG RR 8-98166-139-0 01 1 1004-
174 OUTRIGGER
6WG1 TC-S(97L) 		1-53456-418-3 01 1 0512-
174 OUTRIGGER 1-53456-277-3 01 1 0407-0511
174 OUTRIGGER
6WF1 TC-C(1B8) 		1-53456-277-3 01 1 0512-1003
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1004-
174 OUTRIGGER 1-53456-278-3 01 1 0407-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
175 BOLT; MEMBER TO FRAME
M14X40 		9-92061-440-0 08 1 0407-0512
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0601-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0407-1201
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1202-
188 BOLT; OUTRIGGER
CAB UP +110MM<TGG> (A) M10X20 FLANGE 		0-28681-020-0 04 1 0407-0511
188 BOLT; OUTRIGGER
(A) M10X20 FLANGE 		0-28681-020-0 04 1 0512-0512
188 BOLT; OUTRIGGER
(A) M10X20 FLANGE 		0-28651-020-0 04 1 0601-
188 BOLT; OUTRIGGER
(B) M10X25 FLANGE 		0-28681-025-0 08 1 0407-0512
188 BOLT; OUTRIGGER
(B) M10X25 FLANGE 		0-28651-025-0 08 1 0601-
189 NUT; OUTRIGGER
CAB UP +110MM<TGG> M10 FLANGE 		0-91150-210-0 04 1 0407-0511
189 NUT; OUTRIGGER
M10 FLANGE 		0-91150-210-0 04 1 0512-0602
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0603-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28681-025-0 07 1 0407-0512
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0601-
195 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 04 1 0407-0602
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0603-
220 GUIDE; SPR 1-53458-648-1 02 1 0407-
237 ROD ASM; LATERAL
6WG1 TC-S(97L) (C) 		1-33671-987-0 01 1 0512-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0407-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0407-0511
237 ROD ASM; LATERAL
6WF1 TC-C(1B8) (C) 		1-33670-773-0 01 1 0512-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0407-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0407-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0407-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0407-0605
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
243 WASHER; LK,LATERAL ROD
ID=12.2 		9-09150-512-0 02 1 0407-0603
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0604-
244 NUT; LATERAL ROD
M12 		9-99110-512-0 02 1 0407-0512
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0601-
274 PIN 1-53458-996-0 01 1 0407-
291 BOLT; RATCH
M10X25 FLANGE 		0-28681-025-0 04 1 0407-0512
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
294 MEMBER; FLOATING 1-53454-949-2 01 1 0407-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28681-020-0 02 1 0407-0512
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
296 STOPPER; UPR 1-53458-973-1 01 1 0407-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0407-
298 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0512
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
299 RUBBER; MTG
6WG1 TC-S(97L) (A) 		1-53366-194-0 02 1 0512-0812
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0901-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0407-
299 RUBBER; MTG
(A) 		1-53366-156-0 02 1 0407-0511
299 RUBBER; MTG
6WF1 TC-C(1B8) (A) 		1-53366-156-0 02 1 0512-0812
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0512
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0407-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0407-
309 NUT
M10 FLANGE 		0-91150-210-0 04 1 0407-0602
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0407-
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0512
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
333 SPRING
(B) 		1-52110-142-4 02 1 0407-
333 SPRING
(A) 		1-52110-143-4 02 1 0407-
449 BRACKET; OUTRIGGER
CAB UP +110MM<TGG> 		1-53456-279-0 01 1 0407-0511
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0512-

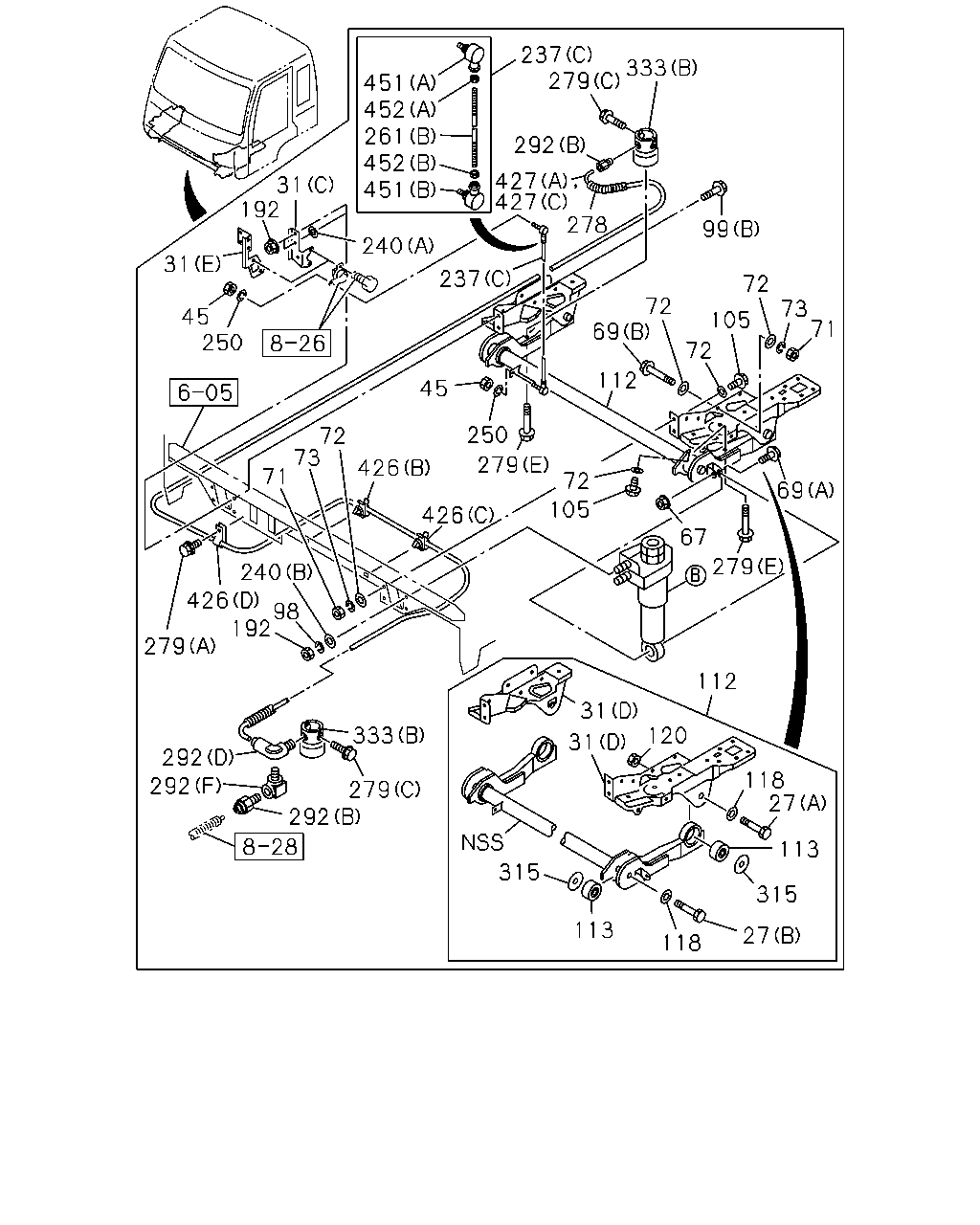

çizim 104187
237 333 279 451 452 261 452 451 292 31 192 427 427 278 99 240 31 237 72 72 69 73 71 45 250 105 72 112 45 250 72 73 71 279 426 72 69 105 426 67 279 240 426 98 192 279 112 31 333 120 31 292 118 27 292 279 292 113 315 315 113 27 118
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0407-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0407-
31 BRACKET; CAB
6WG1 TC-S(97L) (E) 		8-97606-793-0 01 1 0512-
31 BRACKET; CAB
CAB UP +110MM<TGG> (A) 		1-44226-159-0 01 1 0407-0511
31 BRACKET; CAB
6WF1 TC-C(1B8) (C) 		1-81549-016-0 01 1 0512-
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0407-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0407-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0407-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0407-0511
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0512-
45 NUT
M5 		9-99110-405-0 04 1 0407-0512
45 NUT
M5 		0-91110-505-0 04 1 0601-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91150-212-0 02 1 0407-0602
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0603-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0407-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0407-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0407-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0407-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0407-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0407-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0407-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0512
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0407-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 08 1 0407-
112 ARM ASM; LINK,CAB FRT SUSP
6WG1 TC-S(97L) 		1-53450-684-1 01 1 0512-
112 ARM ASM; LINK,CAB FRT SUSP 1-53450-647-2 01 1 0407-0511
112 ARM ASM; LINK,CAB FRT SUSP
6WF1 TC-C(1B8) 		1-53450-647-3 01 1 0512-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0407-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0407-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		9-99110-518-0 02 1 0407-0512
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0601-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0512-
192 NUT; BRKT FIX
M10 		1-09984-142-0 06 1 0407-0511
192 NUT; BRKT FIX
M10 		1-09984-142-0 02 1 0512-
237 ROD ASM; LATERAL
6WG1 TC-S(97L) (C) 		1-33671-987-0 01 1 0512-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0407-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0407-0511
237 ROD ASM; LATERAL
6WF1 TC-C(1B8) (C) 		1-33670-773-0 01 1 0512-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0407-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0407-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0407-
240 WASHER; PL,BRKT
(C) ID=12.5 		9-09160-512-0 02 1 0407-0605
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0606-
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 0407-0603
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0604-
261 ROD; LINK
6WG1 TC-S(97L) (B) 		9-08410-506-0 01 1 0512-0606
261 ROD; LINK
6WG1 TC-S(97L) (B) 		0-84100-506-0 01 1 0607-
261 ROD; LINK
(B) 		9-08410-507-0 01 1 0407-0511
261 ROD; LINK
6WF1 TC-C(1B8) (B) 		9-08410-507-0 01 1 0512-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0407-
278 COVER
SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0407-1105
278 COVER
L=750 ID=7 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1106-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0512
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0407-0512
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0601-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0407-0512
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0601-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0407-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0407-
333 SPRING
(B) 		1-52110-142-4 02 1 0407-
333 SPRING
(A) 		1-52110-143-4 02 1 0407-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0407-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0407-
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 0407-
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0407-0606
426 CLIP
(E) ID=7 L=32 		0-95234-665-0 01 1 0607-
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
426 CLIP
(D) ID=11 L=16 		0-95235-025-0 01 1 0607-
427 TUBE
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0512-0701
427 TUBE
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702-
427 TUBE
(C) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0702-
427 TUBE
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0407-0511
427 TUBE
(A) L=1300 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0407-0701
451 JOINT; BALL
(B) 		1-09760-103-1 02 1 0407-0511
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512-
451 JOINT; BALL
(A) 		1-09760-104-1 02 1 0407-0511
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0407-0511
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 02 1 0407-0511
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601-

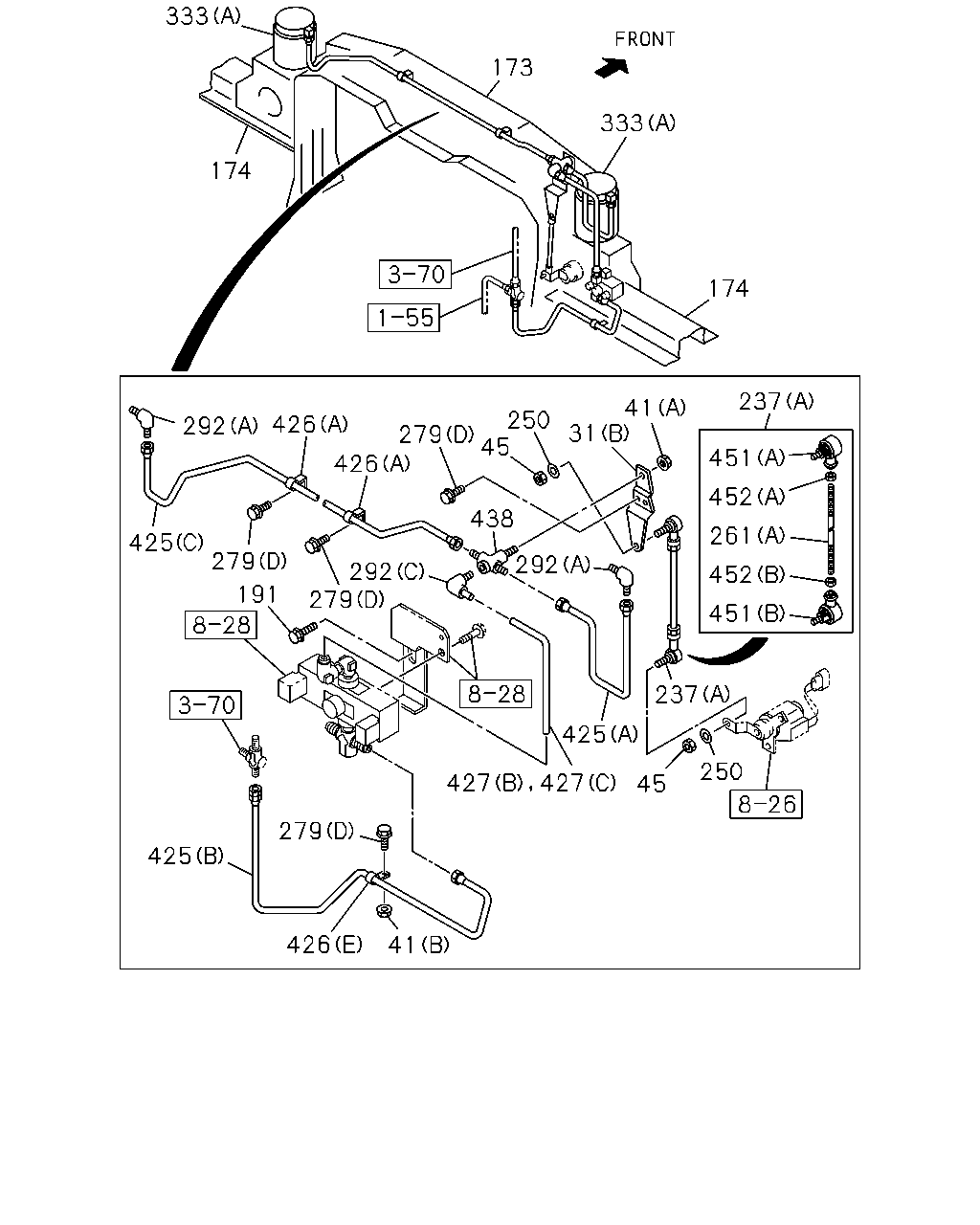

çizim 104188
333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 292 279 452 191 451 237 425 250 45 279 425 426 41
BalonParca AdiParca NoAdetTipApplied Date
31 BRACKET; CAB
6WG1 TC-S(97L) (E) 		8-97606-793-0 01 1 0512-
31 BRACKET; CAB
CAB UP +110MM<TGG> (A) 		1-44226-159-0 01 1 0407-0511
31 BRACKET; CAB
6WF1 TC-C(1B8) (C) 		1-81549-016-0 01 1 0512-
31 BRACKET; CAB
(D) 		1-53453-224-5 01 1 0407-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0407-
31 BRACKET; CAB
(B) 		1-53458-374-1 01 1 0407-
31 BRACKET; CAB
(C) 		1-81549-016-0 01 1 0407-0511
31 BRACKET; CAB
(A) 		1-44226-178-1 01 1 0512-
41 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0407-0602
41 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0603-
41 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0602
41 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603-
45 NUT
M5 		9-99110-405-0 04 1 0407-0512
45 NUT
M5 		0-91110-505-0 04 1 0601-
173 MEMBER; CAB MTG RR
CAB UP +110MM<TGG> 		1-53450-670-1 01 1 0407-0511
173 MEMBER; CAB MTG RR 1-53450-670-1 01 1 0512-1003
173 MEMBER; CAB MTG RR 8-98166-139-0 01 1 1004-
174 OUTRIGGER
6WG1 TC-S(97L) 		1-53456-418-3 01 1 0512-
174 OUTRIGGER 1-53456-277-3 01 1 0407-0511
174 OUTRIGGER
6WF1 TC-C(1B8) 		1-53456-277-3 01 1 0512-1003
174 OUTRIGGER
6WF1 TC-C(1B8) 		8-98158-645-0 01 1 1004-
174 OUTRIGGER 1-53456-278-3 01 1 0407-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28681-025-0 07 1 0407-0512
191 BOLT; BRKT FIX
M10X25 FLANGE 		0-28651-025-0 07 1 0601-
237 ROD ASM; LATERAL
6WG1 TC-S(97L) (C) 		1-33671-987-0 01 1 0512-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0407-
237 ROD ASM; LATERAL
(C) 		1-33670-773-0 01 1 0407-0511
237 ROD ASM; LATERAL
6WF1 TC-C(1B8) (C) 		1-33670-773-0 01 1 0512-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0407-
250 WASHER; LK
ID=5.1 		9-09150-505-0 04 1 0407-0603
250 WASHER; LK
ID=5.1 		0-91510-505-0 04 1 0604-
261 ROD; LINK
6WG1 TC-S(97L) (B) 		9-08410-506-0 01 1 0512-0606
261 ROD; LINK
6WG1 TC-S(97L) (B) 		0-84100-506-0 01 1 0607-
261 ROD; LINK
(B) 		9-08410-507-0 01 1 0407-0511
261 ROD; LINK
6WF1 TC-C(1B8) (B) 		9-08410-507-0 01 1 0512-
261 ROD; LINK
(A) 		9-08410-514-0 01 1 0407-
279 BOLT
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0512
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
279 BOLT
(E) M8X60 FLANGE 		0-28080-860-0 02 1 0407-0512
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0601-
279 BOLT
(B) M12X40 FLANGE 		0-28091-240-0 04 1 0407-0512
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0601-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
279 BOLT
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0407-0511
279 BOLT
(A) M8X25 W/LK&PL WASHER 		1-09980-548-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0407-
292 CONNECTOR; CAB SUSPENSION
(C) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0407-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-
333 SPRING
(B) 		1-52110-142-4 02 1 0407-
333 SPRING
(A) 		1-52110-143-4 02 1 0407-
425 PIPE ASM; AIR
CAB UP +110MM<TGG> (B) 		1-49122-659-0 01 1 0407-0511
425 PIPE ASM; AIR
(B) 		1-49122-659-0 01 1 0512-
425 PIPE ASM; AIR
(A) L=298 		1-47494-961-1 01 1 0407-
425 PIPE ASM; AIR
(C) L=1149 SERVICED BY L=1200 		1-47428-816-0 01 1 0407-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 0407-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0407-
426 CLIP
(C) ID=5.8 L=8 		8-94155-681-0 02 1 0407-
426 CLIP
(E) ID=7 L=32 		9-09524-665-0 01 1 0407-0606
426 CLIP
(E) ID=7 L=32 		0-95234-665-0 01 1 0607-
426 CLIP
(D) ID=11 L=16 		9-09525-025-0 01 1 0407-0606
426 CLIP
(D) ID=11 L=16 		0-95235-025-0 01 1 0607-
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0407-
451 JOINT; BALL
(B) 		1-09760-103-1 02 1 0407-0511
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0512-
451 JOINT; BALL
(A) 		1-09760-104-1 02 1 0407-0511
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0512-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 02 1 0407-0511
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0512-
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 02 1 0407-0511
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512
452 NUT; BALL JOINT
(A) M5 		9-99110-405-0 01 1 0512-0512
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
