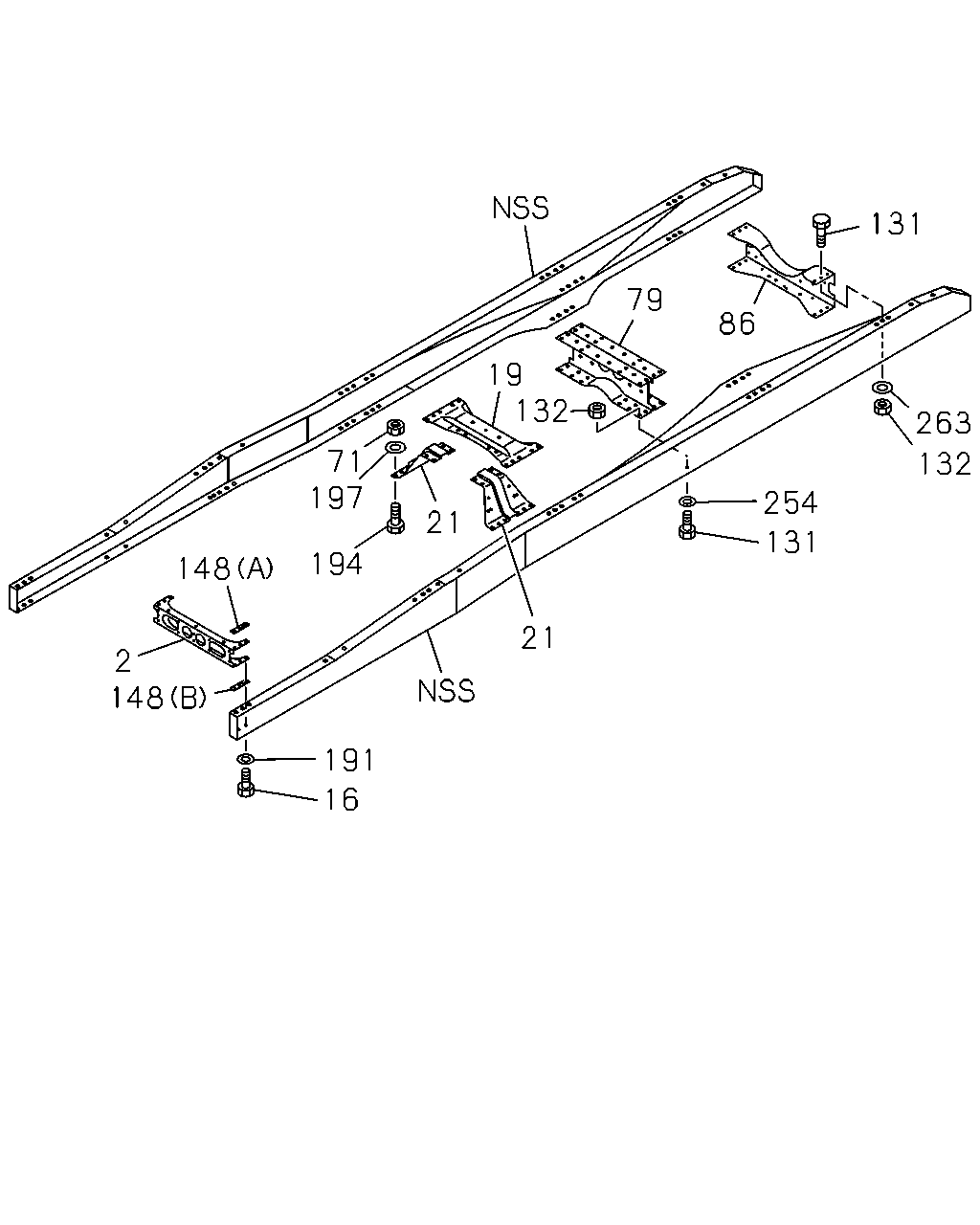

5-01 — FRAME AND OTHER PARTS (#30076) — 80 parça
çizim 87662
131 79 86 19 132 263 71 197 132 21 254 131 194 148 21 2 148 191 16
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-975-4 01 1 0407-0511
2 MEMBER; CROSS,1ST 8-97604-959-3 01 1 0512-
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		9-92061-640-0 02 1 0407-0512
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20951-640-0 02 1 0601-
19 MEMBER; CROSS,2ND 1-53174-265-0 01 1 0407-
21 GUSSET; 2ND CROSS 1-53164-226-1 01 1 0407-
21 GUSSET; 2ND CROSS 1-53164-227-1 01 1 0407-
71 NUT; 2ND C/MBR
M14 		9-99110-514-0 08 1 0407-0512
71 NUT; 2ND C/MBR
M14 		0-91110-514-0 08 1 0601-
79 MEMBER; CROSS,TRUNNION ASM 1-53182-042-2 01 1 0407-
86 MEMBER; CROSS,RR SUSP RR 1-53182-044-0 01 1 0407-
131 BOLT; END C/MBR
M18X60 		9-91066-860-0 16 1 0407-0805
131 BOLT; END C/MBR
M18X60 		8-98036-497-0 16 1 0806-
131 BOLT; END C/MBR
M12X40 		9-92061-240-0 02 1 0407-0512
131 BOLT; END C/MBR
M12X40 		0-20951-240-0 02 1 0601-
132 NUT; END C/MBR
6WG1 TC-S(97L) M12 		0-91110-512-0 02 1 0512-0512
132 NUT; END C/MBR
M12 		0-91110-512-0 02 1 0601-
132 NUT; END C/MBR
M12 		9-99110-512-0 02 1 0407-0511
132 NUT; END C/MBR
6WF1 TC-C(1B8) M12 		9-99110-512-0 02 1 0512-0512
132 NUT; END C/MBR
M18 		9-99110-518-0 16 1 0407-0512
132 NUT; END C/MBR
M18 		0-91110-518-0 16 1 0601-
148 SPACER; C/MBR
(A) UPPER 		1-53168-400-1 02 1 0407-
148 SPACER; C/MBR
(B) LOWER 		1-53168-403-1 02 1 0407-
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2 		1-09503-223-0 02 1 0407-
194 BOLT; 2ND C/MBR
M14X60 		9-92061-460-0 08 1 0407-0512
194 BOLT; 2ND C/MBR
M14X60 		0-20951-460-0 08 1 0601-
197 WASHER; PL,2ND C/MBR
ID=15 		9-09651-069-0 08 1 0407-1201
197 WASHER; PL,2ND C/MBR
ID=15 		8-98010-627-1 08 1 1202-
254 WASHER; PL,C/MBR
ID=19 		9-09160-518-0 32 1 0407-
263 WASHER; PL,SUB FRAME
ID=12.5 		9-09164-512-0 04 1 0407-

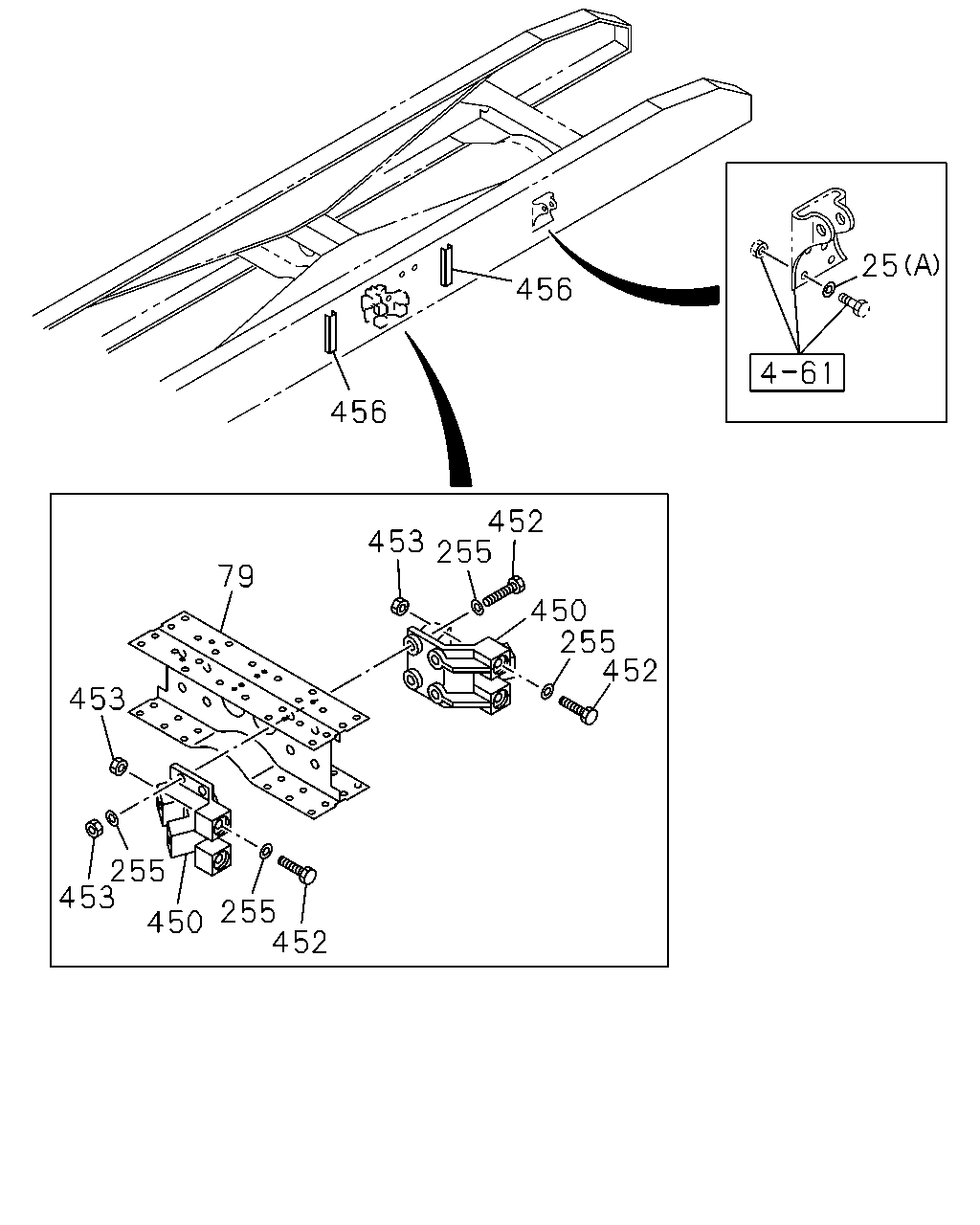

çizim 104185
25 456 456 452 453 255 79 450 255 452 453 255 453 255 452 450
BalonParca AdiParca NoAdetTipApplied Date
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0407-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 24 1 0407-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 24 1 1202-
79 MEMBER; CROSS,TRUNNION ASM 1-53182-042-2 01 1 0407-
255 WASHER; PL,BRKT
ID=16.2 		1-09503-223-0 16 1 0407-
450 BRACKET; V ROD 1-53353-122-1 04 1 0407-
452 BOLT; V ROD
M16X90 		1-09000-675-0 16 1 0407-
453 NUT; V ROD
M16 FLANGE 		1-09440-066-0 16 1 0407-
456 PATCH; STOPPER 1-53119-203-0 04 1 0407-

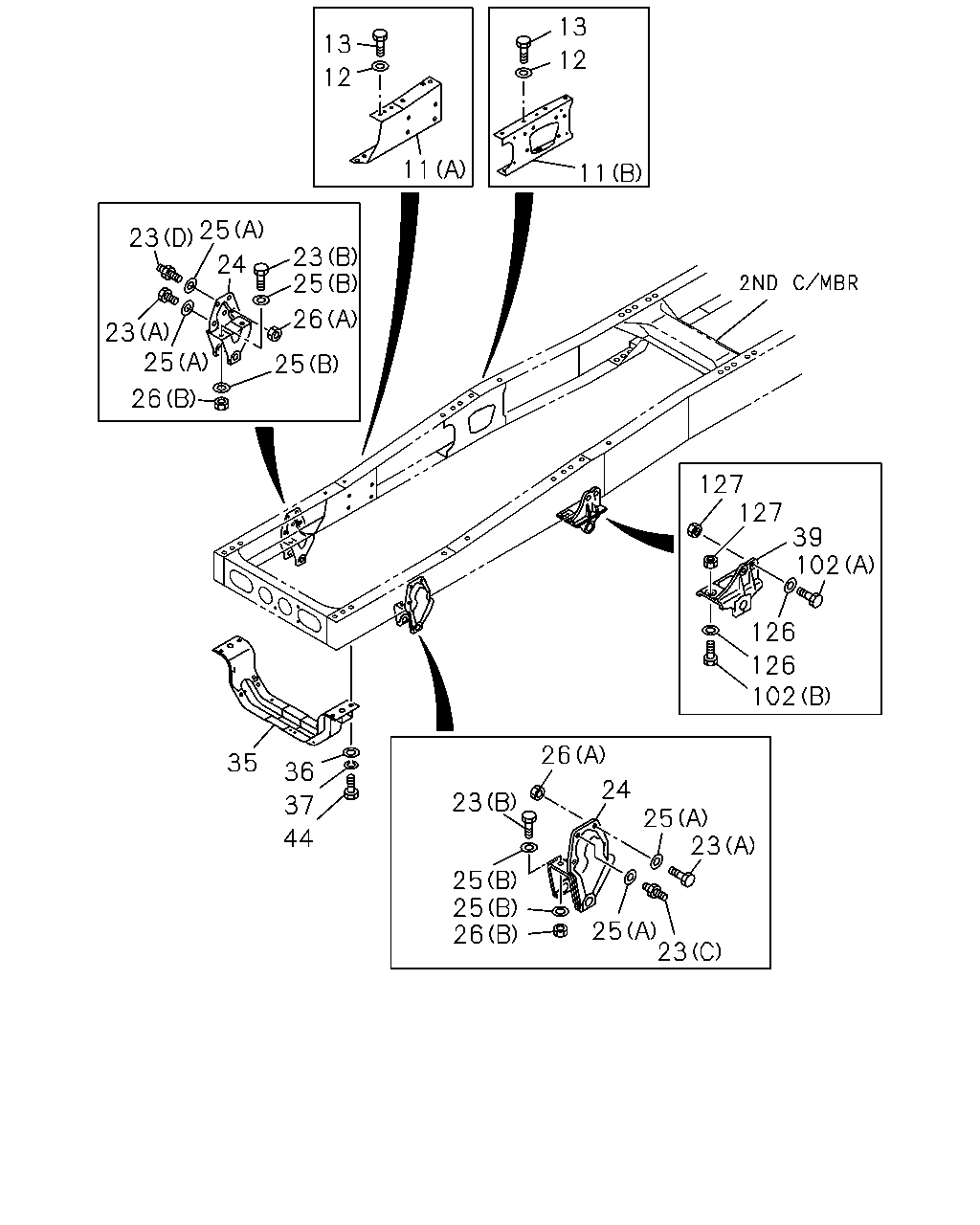

çizim 104190
13 13 12 12 11 11 25 23 23 25 24 26 23 25 25 26 127 127 39 102 126 126 102 26 35 36 24 23 37 25 23 44 25 25 26 25 23
BalonParca AdiParca NoAdetTipApplied Date
11 BRACKET; ENG MTG
(A) 		1-53211-367-1 01 1 0407-
11 BRACKET; ENG MTG
(A) 		1-53211-368-1 01 1 0407-
11 BRACKET; ENG MTG
(B) 		1-53221-230-4 01 1 0407-
11 BRACKET; ENG MTG
(B) 		1-53221-231-4 01 1 0407-
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 04 1 0407-1201
12 WASHER; PL,BRKT,ENG MTG
ID=15 		8-98010-627-1 04 1 1202-
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 04 1 0407-0512
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 04 1 0601-
23 BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100 		1-09029-075-0 01 1 0407-
23 BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81 		1-09029-103-0 02 1 0407-
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 05 1 0407-0512
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 0601-
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0407-0512
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 0407-
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 0407-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0407-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 24 1 0407-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 24 1 1202-
26 NUT; BRKT,SPR
6WG1 TC-S(97L) (B) M16 		0-91110-516-0 04 1 0512-0512
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 08 1 0407-0512
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 08 1 0601-
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0407-0511
26 NUT; BRKT,SPR
6WF1 TC-C(1B8) (B) M16 		9-99110-516-0 04 1 0512-0512
35 MEMBER; UNDER 1-53174-263-2 01 1 0407-
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 0407-
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 0407-0603
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 0604-
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 0407-
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 0407-
44 BOLT; UNDER MBR
M16X60 		9-92061-660-0 04 1 0407-0512
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 0601-
102 BOLT; BRKT,RR SPR
(A) M14X40 		9-92061-440-0 04 1 0407-0512
102 BOLT; BRKT,RR SPR
(A) M14X40 		0-20951-440-0 04 1 0601-
102 BOLT; BRKT,RR SPR
(B) M14X50 		9-92061-450-0 04 1 0407-0512
102 BOLT; BRKT,RR SPR
(B) M14X50 		0-20951-450-0 04 1 0601-
126 WASHER; PL,BRKT
ID=15 		9-09651-069-0 08 1 0407-1201
126 WASHER; PL,BRKT
ID=15 		8-98010-627-1 08 1 1202-
127 NUT; BRKT
M14 		9-99110-514-0 04 1 0407-0512
127 NUT; BRKT
M14 		0-91110-514-0 04 1 0601-
