◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#30075) — 57 parça

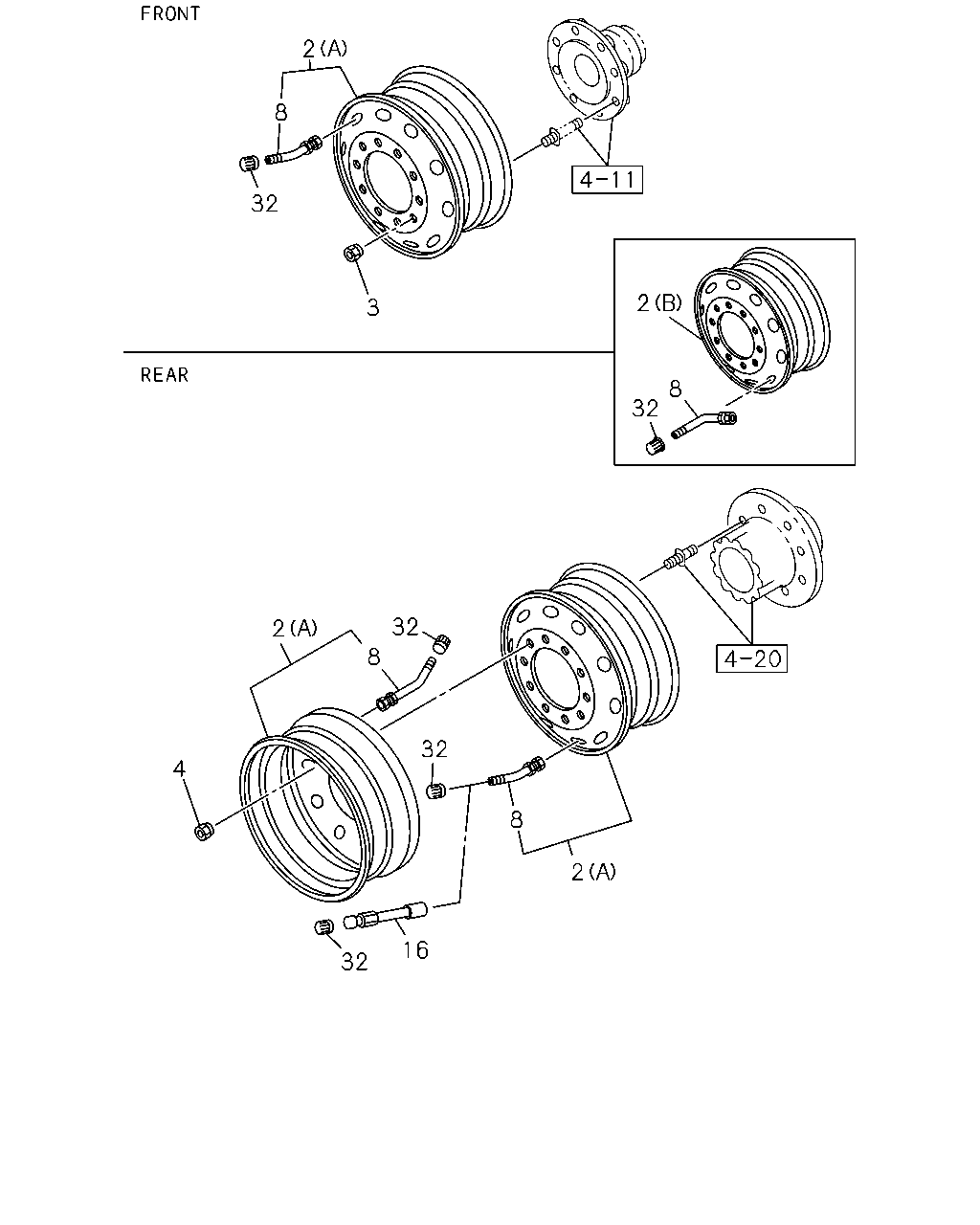

çizim 104275
2 8 32 2 3 8 32 32 2 8 32 4 8 2 16 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (A) SPARE 		1-42350-638-1 01 1 0407-0511
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (A) SPARE 		1-42350-638-1 01 1 0512-0602
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-638-1 01 1 0512-0602
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) SPARE 		1-42350-730-0 01 1 0603-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-730-0 01 1 0603-1205
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (A) 		1-42350-638-1 10 1 0407-0511
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (A) 		1-42350-638-1 10 1 0512-0602
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) 		1-42350-730-0 10 1 0603-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) 		8-98217-247-0 10 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> (B) 		8-98281-497-0 10 1 1408-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) 		1-42350-661-0 10 1 0407-0407
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) 		1-42350-694-0 10 1 0408-0511
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) 		1-42350-694-0 10 1 0512-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) SPARE 		1-42350-661-0 01 1 0407-0407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) SPARE 		1-42350-694-0 01 1 0408-0511
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (A) SPARE 		1-42350-694-0 01 1 0512-
2 WHEEL; DISC
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-694-0 01 1 0512-
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5 		1-42333-050-1 20 1 0407-0511
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0512-0907
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908-
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5 		1-42333-050-1 40 1 0407-0511
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 40 1 0512-0907
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 0908-
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-041-1 01 1 0407-0511
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-041-1 01 1 0512-0602
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-041-1 01 1 0512-0602
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-020-3 01 1 0603-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0603-1205
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-041-1 10 1 0407-0511
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-041-1 10 1 0512-0602
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-020-3 10 1 0603-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-048-0 10 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> FRONT,REAR 		1-42370-019-3 10 1 1408-
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42370-040-0 10 1 0407-0407
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42370-044-0 10 1 0408-0511
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) FRONT,REAR 		1-42370-044-0 10 1 0512-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-040-0 01 1 0407-0407
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-044-0 01 1 0408-0511
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE 		1-42370-044-0 01 1 0512-
8 VALVE; TIRE
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-044-0 01 1 0512-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		1-42370-024-0 04 1 0407-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 		8-98167-052-0 04 1 1004-
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		1-42370-015-2 04 1 0407-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) L=115 		8-98167-051-0 04 1 1004-
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> 		1-42374-001-0 01 1 0603-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 01 1 0603-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED LEMMERZ SILVER<TGT> 		1-42374-001-0 10 1 0603-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0407-0503
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 06 1 0407-0503
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
