Isuzu WW
▶
TRUCKS
▶
EXY
▶
10956 - EXY NEW ZEALAND
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

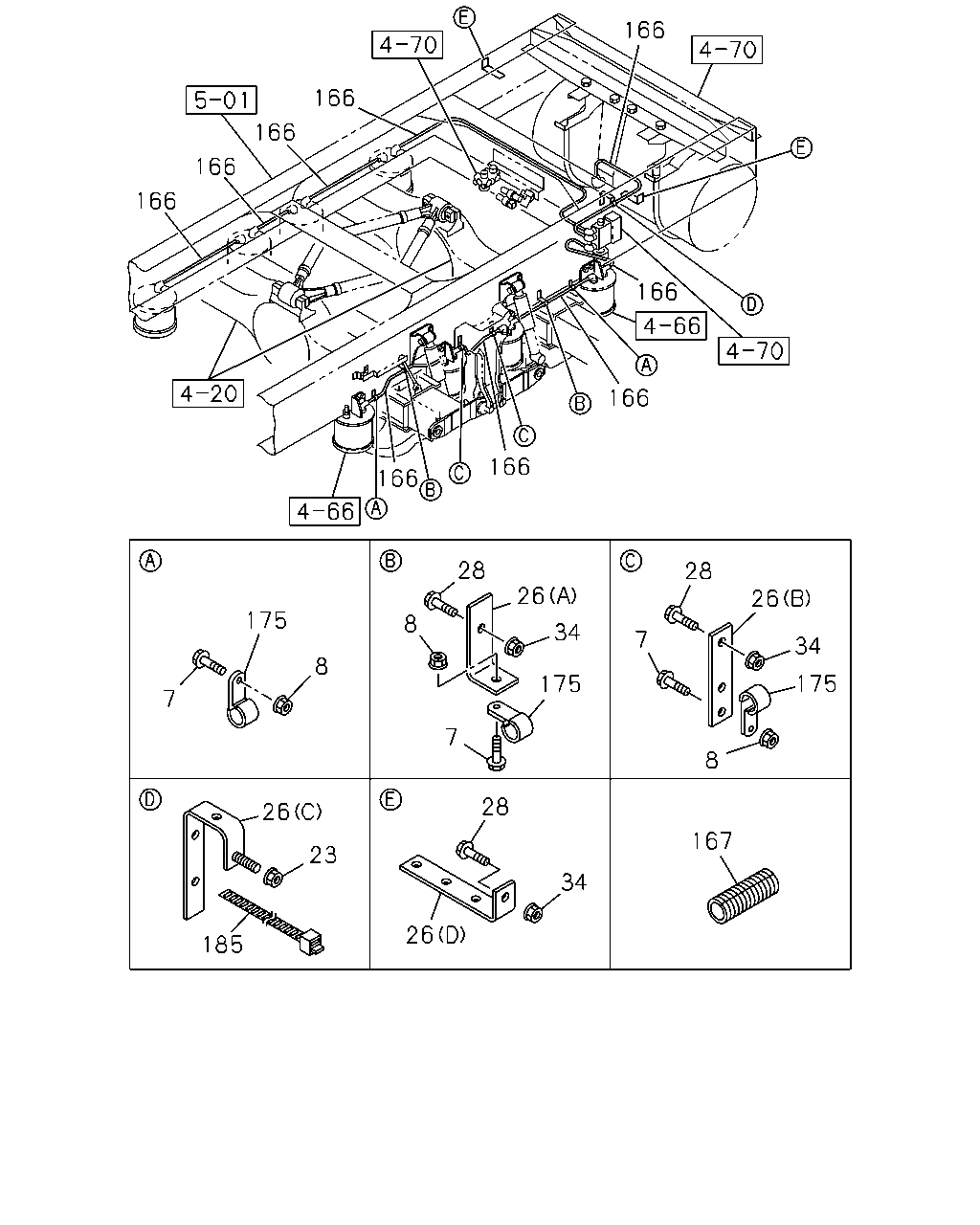

4-71 — AIR SUSPENSION PIPING
(#30074) — 24 parça
166
166
166
166
166
166
166
166
166
28
28
26
26
175
8
34
7
34
8
175
175
7
7
8
28
26
167
23
34
26
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
14
1
0407-0512
7
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
14
1
0601-
7
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
04
1
0407-0512
7
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
04
1
0601-
8
NUT; CLIP
M8 FLANGE
0-91150-108-0
14
1
0407-0602
8
NUT; CLIP
M8 FLANGE
0-91180-108-0
14
1
0603-
23
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0407-0602
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
26
BRACKET; CLIP
(A) L=75
1-47477-119-0
08
1
0407-
26
BRACKET; CLIP
(B) L=105
1-47477-409-0
04
1
0407-
26
BRACKET; CLIP
(C)
1-47479-333-0
01
1
0407-
26
BRACKET; CLIP
(D) L=120 H=35
1-82698-088-0
02
1
0407-
28
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0407-0512
28
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0601-
28
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
12
1
0407-0512
28
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
12
1
0601-
34
NUT; BRKT
M8 FLANGE
0-91150-108-0
14
1
0407-0602
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
14
1
0603-
166
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
10
1
0407-
166
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
01
1
0407-
167
TUBE; CORRUGATE
SERVICED BY L=4000 ID=13
1-87411-023-0
01
1
0407-
175
CLIP
ID=9 L=20
9-09524-835-0
18
1
0407-0606
175
CLIP
ID=9 L=20
0-95234-835-0
18
1
0607-
185
CLIP; NYLON TUBE
L=350
1-09707-183-0
03
1
0407-
