◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10956 - EXY NEW ZEALAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#30070) — 109 parça

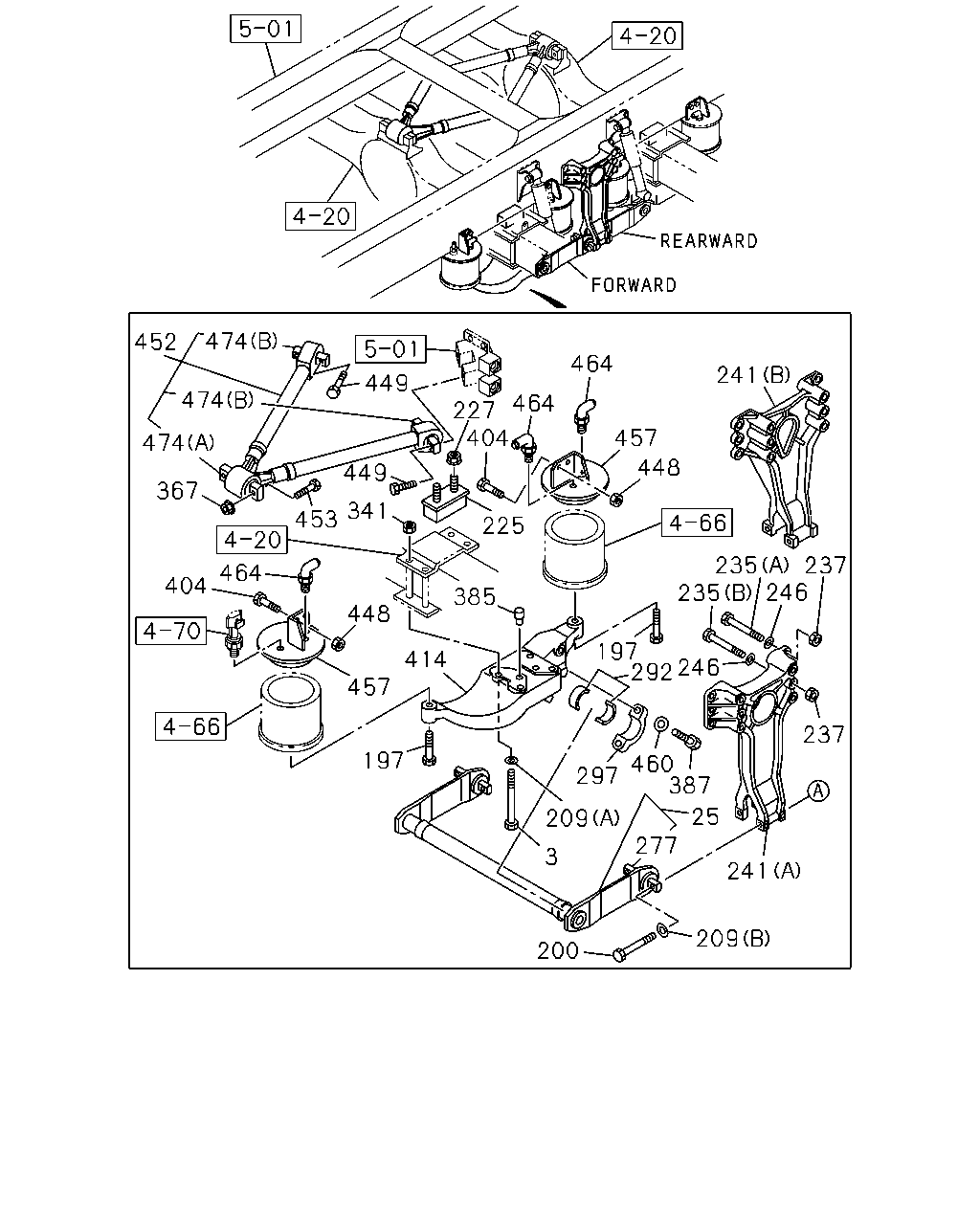

çizim 104183
452 474 474 474 449 464 227 464 241 367 449 453 341 404 448 464 225 404 457 385 414 457 197 448 235 237 246 235 197 292 246 237 241 209 200 3 297 387 460 25 209 277
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM 1-09000-762-1 16 1 0407-0805
3 BOLT; BEAM 8-98019-969-0 16 1 0806-
25 BAR ASM; STAB,RR SUSP 1-51771-254-2 02 1 0407-
197 BOLT 1-09044-116-0 08 1 0407-
200 BOLT; BRKT
M18X190 		1-09000-772-1 04 1 0407-
209 WASHER; PL
(A) ID=25 		1-09503-282-0 16 1 0407-
209 WASHER; PL
(B) ID=19 		9-09160-518-0 04 1 0407-
225 RUBBER; CUSHION,RR SPR 1-53366-041-2 04 1 0407-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0407-0602
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0603-
235 BOLT; TORQUE ROD
(A) M20X60 		1-09000-752-0 12 1 0407-
235 BOLT; TORQUE ROD
(B) M20X150 		1-09000-754-0 12 1 0407-
237 NUT; TORQUE ROD
M20 		9-99110-520-0 20 1 0407-0512
237 NUT; TORQUE ROD
M20 		0-91110-520-0 20 1 0601-
241 BRACKET; TORQUE ROD
(A) 		1-53361-089-1 02 1 0407-1212
241 BRACKET; TORQUE ROD
(B) 		8-98215-730-1 02 1 1301-
246 WASHER; TORQUE ROD 1-09503-313-0 24 1 0407-0805
246 WASHER; TORQUE ROD
ID=21 		8-98010-403-0 24 1 0806-
277 BUSHING; STAB,RR UPR 1-51519-184-1 04 1 0407-
292 BUSHING; RUBBER,STAB 1-51779-126-0 04 1 0407-
297 CAP; STAB BAR 1-52175-025-0 04 1 0407-
341 NUT; BEAM
M24 		9-99110-524-0 16 1 0407-0512
341 NUT; BEAM
M24 		0-91110-524-0 16 1 0601-
367 NUT
M24 FLANGE 		1-42334-045-1 04 1 0407-0805
367 NUT
M24 FLANGE 		8-98019-963-0 04 1 0806-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 08 1 0407-
387 BOLT; CAP FIX,STAB BAR
M18X55 		1-09000-757-2 08 1 0407-0805
387 BOLT; CAP FIX,STAB BAR
M18X55 		8-98019-973-0 08 1 0806-
404 BOLT; PLATE
M14X45 FLANGE 		1-09044-117-0 16 1 0407-
414 BEAM; AIR SPR
FORWARD LH,REARWARD RH 		1-52171-300-1 02 1 0407-
414 BEAM; AIR SPR
FORWARD RH,REARWARD LH 		1-52171-301-1 02 1 0407-
448 NUT; PLATE
M14 FLANGE 		1-09440-086-0 16 1 0407-0706
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 16 1 0707-
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 08 1 0407-0805
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 08 1 0806-1102
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 08 1 1103-
452 ROD ASM; V
FORWARD 		1-51510-769-1 01 1 0407-0512
452 ROD ASM; V
FORWARD 		8-97609-115-0 01 1 0601-
452 ROD ASM; V
REARWARD 		1-51510-772-1 01 1 0407-0512
452 ROD ASM; V
REARWARD 		8-97609-116-0 01 1 0601-
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 04 1 0407-0805
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 04 1 0806-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		1-52171-285-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		1-52171-285-2 01 1 0407-0511
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-502-0 01 1 0512-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		1-52171-285-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		1-52171-285-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		1-52171-286-2 01 1 0407-0511
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-503-0 01 1 0512-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		1-52171-286-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		1-52171-286-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		1-52171-286-2 01 1 0407-
460 WASHER; CAP
ID=19 		1-09503-312-0 08 1 0407-
464 UNION; AIR
DIN8 & M16 ELBOW 		1-09661-520-0 14 1 0407-
474 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 02 1 0407-0512
474 REPAIR KIT; V-ROD
(A) 		8-97609-171-0 02 1 0601-
474 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 04 1 0407-0512
474 REPAIR KIT; V-ROD
(B) 		8-97609-172-0 04 1 0601-

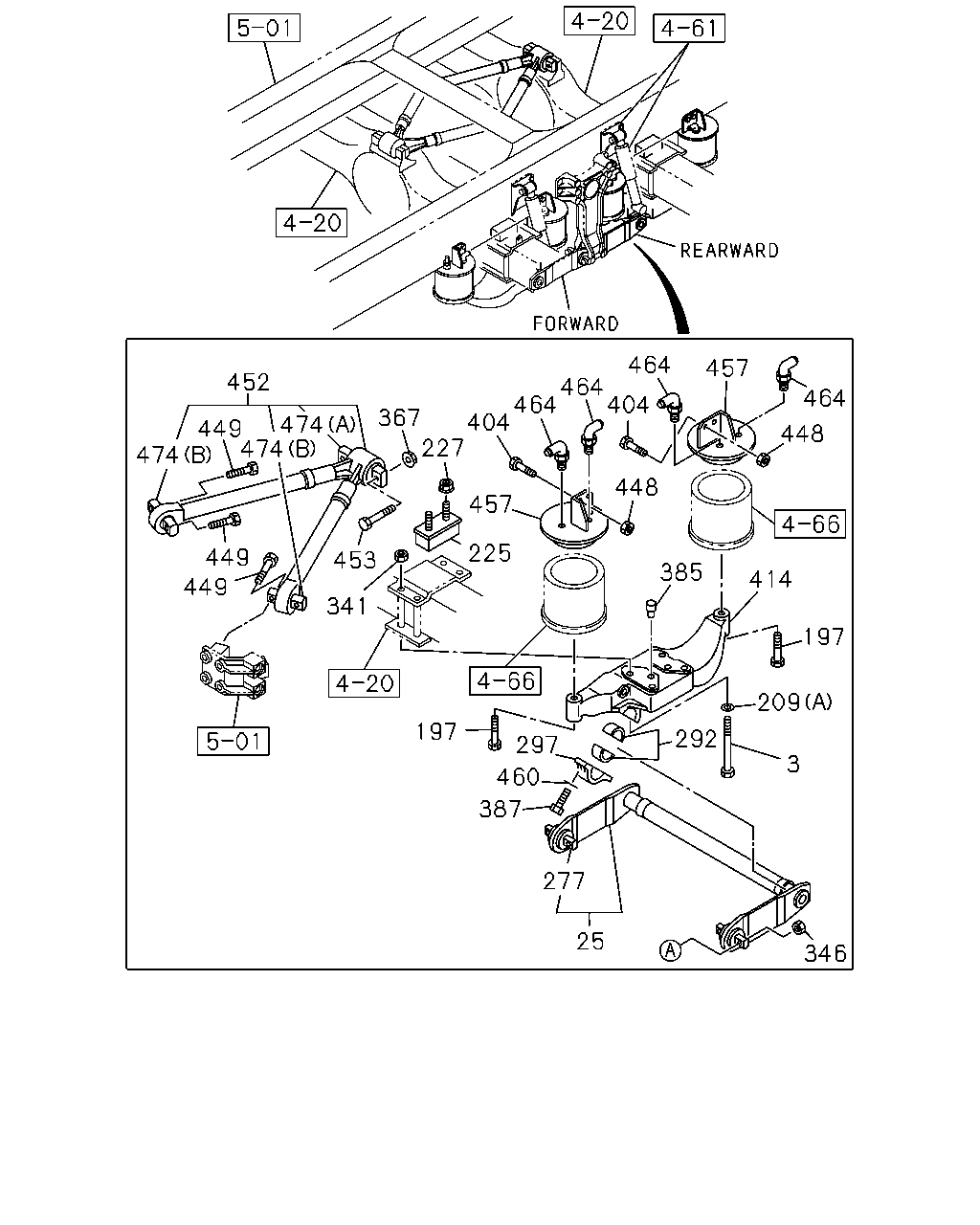

çizim 104191
464 457 452 464 464 404 404 227 464 367 449 474 474 474 448 448 457 225 449 453 385 414 449 341 197 209 197 292 297 3 460 387 277 25 346
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM 1-09000-762-1 16 1 0407-0805
3 BOLT; BEAM 8-98019-969-0 16 1 0806-
25 BAR ASM; STAB,RR SUSP 1-51771-254-2 02 1 0407-
197 BOLT 1-09044-116-0 08 1 0407-
209 WASHER; PL
(A) ID=25 		1-09503-282-0 16 1 0407-
209 WASHER; PL
(B) ID=19 		9-09160-518-0 04 1 0407-
225 RUBBER; CUSHION,RR SPR 1-53366-041-2 04 1 0407-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 08 1 0407-0602
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0603-
277 BUSHING; STAB,RR UPR 1-51519-184-1 04 1 0407-
292 BUSHING; RUBBER,STAB 1-51779-126-0 04 1 0407-
297 CAP; STAB BAR 1-52175-025-0 04 1 0407-
341 NUT; BEAM
M24 		9-99110-524-0 16 1 0407-0512
341 NUT; BEAM
M24 		0-91110-524-0 16 1 0601-
346 NUT; BRKT
M18 SELF LOCK 		1-09464-032-0 04 1 0407-0805
346 NUT; BRKT
M18 SELF LOCK 		8-98010-391-0 04 1 0806-
367 NUT
M24 FLANGE 		1-42334-045-1 04 1 0407-0805
367 NUT
M24 FLANGE 		8-98019-963-0 04 1 0806-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 08 1 0407-
387 BOLT; CAP FIX,STAB BAR
M18X55 		1-09000-757-2 08 1 0407-0805
387 BOLT; CAP FIX,STAB BAR
M18X55 		8-98019-973-0 08 1 0806-
404 BOLT; PLATE
M14X45 FLANGE 		1-09044-117-0 16 1 0407-
414 BEAM; AIR SPR
FORWARD LH,REARWARD RH 		1-52171-300-1 02 1 0407-
414 BEAM; AIR SPR
FORWARD RH,REARWARD LH 		1-52171-301-1 02 1 0407-
448 NUT; PLATE
M14 FLANGE 		1-09440-086-0 16 1 0407-0706
448 NUT; PLATE
M14 FLANGE 		8-98010-395-0 16 1 0707-
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 08 1 0407-0805
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 08 1 0806-1102
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 08 1 1103-
452 ROD ASM; V
FORWARD 		1-51510-769-1 01 1 0407-0512
452 ROD ASM; V
FORWARD 		8-97609-115-0 01 1 0601-
452 ROD ASM; V
REARWARD 		1-51510-772-1 01 1 0407-0512
452 ROD ASM; V
REARWARD 		8-97609-116-0 01 1 0601-
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 04 1 0407-0805
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 04 1 0806-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		1-52171-285-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		1-52171-285-2 01 1 0407-0511
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-502-0 01 1 0512-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		1-52171-285-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		1-52171-285-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		1-52171-286-2 01 1 0407-0511
457 PLATE; AIR SPRING,UPR
FORWARD FRONT 		8-97604-503-0 01 1 0512-
457 PLATE; AIR SPRING,UPR
FORWARD REAR 		1-52171-286-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
REARWARD FRONT 		1-52171-286-2 01 1 0407-
457 PLATE; AIR SPRING,UPR
REARWARD REAR 		1-52171-286-2 01 1 0407-
460 WASHER; CAP
ID=19 		1-09503-312-0 08 1 0407-
464 UNION; AIR
DIN8 & M16 ELBOW 		1-09661-520-0 14 1 0407-
474 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 02 1 0407-0512
474 REPAIR KIT; V-ROD
(A) 		8-97609-171-0 02 1 0601-
474 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 04 1 0407-0512
474 REPAIR KIT; V-ROD
(B) 		8-97609-172-0 04 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
