◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85A - POWER TAKE OFF CONTROL ▶
2-85A — POWER TAKE OFF CONTROL (#3007) — 68 parça

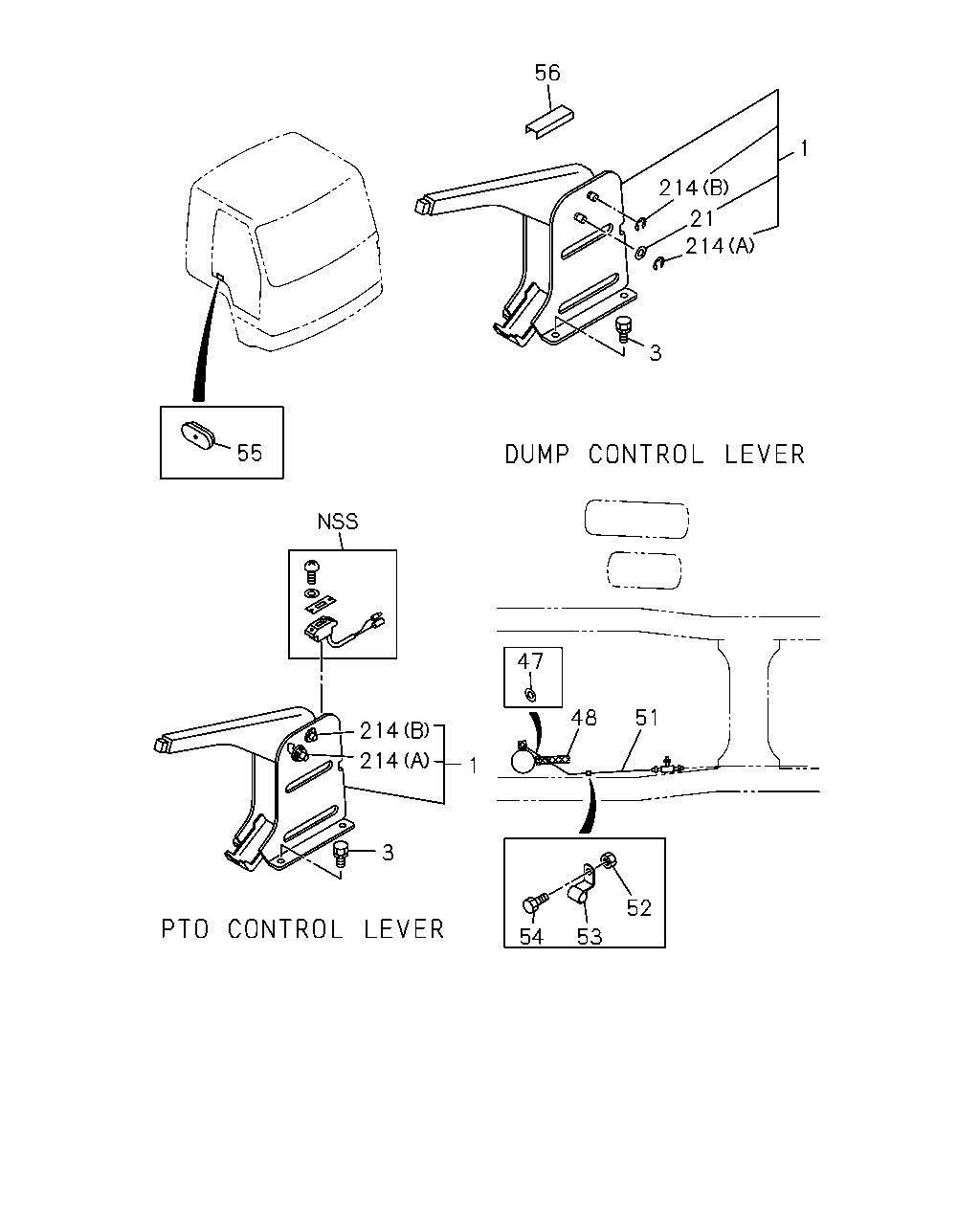

çizim 36978
52 53 54 3 1 214 214 48 47 51 55 56 214 1 21 214 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 LEVER ASM; PTO & DUMP CONT
CVR&RHD(CVR5M*) DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) 		1-38300-100-6 01 1 9002-9306 ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
CVR&RHD(CVR5M*) MIXER TRUCK<RA2> 		1-38300-100-6 01 1 9002-9306 ●
1 LEVER ASM; PTO & DUMP CONT
CVR&RHD(CVR5M*) PTO CONTROL(SV6) EXC. HONG KONG EQUIPMENT(PQ1),GOVERNOR CONTROL<W69> 		1-38300-100-6 01 1 9002-9306 ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) 		1-38300-100-6 01 1 9002-9306 ●
1 LEVER ASM; PTO & DUMP CONT
CVR&LHD(CVR6M*) DUMP CONTROL LEVER<RC4> 		1-38300-103-5 01 1 9002- ● ● ● ●
1 LEVER ASM; PTO & DUMP CONT
CVR SHORT CHASSIS&LHD(CVR6MC) MIXER TRUCK<RA2> 		1-38300-103-5 01 1 9002- ●
1 LEVER ASM; PTO & DUMP CONT
CVR&LHD(CVR6M*) PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> 		1-38300-103-5 01 1 9002- ●
1 LEVER ASM; PTO & DUMP CONT
CVR LONG CHASSIS&RHD(CVR5MF) PTO CONTROL(SV6) GOVERNOR CONTROL<W69> EXC. HONG KONG EQUIPMENT(PQ1) 		1-38300-104-7 01 1 9002-9306 ●
1 LEVER ASM; PTO & DUMP CONT
CVR LONG CHASSIS&LHD(CVR6MF) PTO CONTROL(SV6) GOVERNOR CONTROL<W69> 		1-38300-106-4 01 1 9002-9411 ●
1 LEVER ASM; PTO & DUMP CONT
CVR LONG CHASSIS&LHD(CVR6MF) PTO CONTROL(SV6) GOVERNOR CONTROL<W69> 		1-38300-106-4 01 1 9505- ●
1 LEVER ASM; PTO & DUMP CONT
HONG KONG EQUIPMENT(PQ1) DUMP CONTROL LEVER<RC4> 		1-38300-105-5 01 1 9002- ● ● ●
1 LEVER ASM; PTO & DUMP CONT
HONG KONG EQUIPMENT(PQ1) PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> 		1-38300-105-5 01 1 9002- ●
1 LEVER ASM; PTO & DUMP CONT
CVR LONG CHASSIS&RHD(CVR5MF) DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) 		1-38300-100-6 01 1 9307- ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ● ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
MIXER TRUCK<RA2> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205-9306 ● ● ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
MIXER TRUCK<RA2> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205-9306 ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205-9306 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9307- ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9307- ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) DUMP CONTROL LEVER<RC4> M8X25 W/LK&PL WASHER 		9-01960-825-0 03 1 9002-9204 ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) PTO CONTROL(SV6) M8X25 W/LK&PL WASHER 		9-01960-825-0 03 1 9002-9204 ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) DUMP CONTROL LEVER<RC4> M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9307- ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) PTO CONTROL(SV6) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9307- ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) DUMP CONTROL LEVER<RC4> M8X25 W/LK&PL WASHER 		0-50140-825-0 03 1 9307- ● ● ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) PTO CONTROL(SV6) M8X25 W/LK&PL WASHER 		0-50140-825-0 03 1 9307- ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=8.4 		9-09160-508-0 01 1 9002-9306 ● ● ● ● ●
21 WASHER; PL,CONT LEVER
PTO CONTROL(SV6) ID=8.4 		9-09160-508-0 01 1 9002-9306 ●
21 WASHER; PL,CONT LEVER
MIXER TRUCK<RA2> ID=8.4 		9-09160-508-0 01 1 9002-9306 ●
21 WASHER; PL,CONT LEVER
DUMP CONTROL LEVER<RC4> ID=8.4 		9-09160-508-0 01 1 9307- ● ●
21 WASHER; PL,CONT LEVER
PTO CONTROL(SV6) ID=8.4 		9-09160-508-0 01 1 9307- ●
47 GASKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18 		9-09572-510-0 02 1 9002- ● ● ● ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=360 		0-07150-360-0 01 1 9002- ● ● ● ● ●
51 PIPE ASM; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=821 SERVICED BY L=900 		1-47434-407-0 01 1 9002-9004 ● ● ● ● ●
51 PIPE ASM; AIR,UNION TO MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=823 SERVICED BY L=900 		1-47434-385-0 01 1 9005- ● ● ● ● ●
52 NUT; PIPE CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09110-408-0 01 1 9002- ● ● ● ● ●
53 CLIP; AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=6 H=20 L=20 		1-09700-603-0 01 1 9002- ● ● ● ● ●
54 BOLT; PIPE CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28010-825-0 01 1 9002-9204 ● ● ● ● ●
54 BOLT; PIPE CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28080-825-0 01 1 9205- ● ● ● ● ●
55 GROMMET; CABLE
EXC. MIXER TRUCK<RA2>,DUMP CONTROL LEVER<RC4>, PTO CONTROL(SV6) 		1-09983-068-0 01 1 9002-9306 ● ● ● ● ●
55 GROMMET; CABLE
HONG KONG EQUIPMENT(PQ1) 		1-09983-068-0 01 1 9002-9306 ● ● ●
55 GROMMET; CABLE
EXC. HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9307-9411 ● ● ●
55 GROMMET; CABLE
HONG KONG EQUIPMENT(PQ1) 		1-09983-068-0 01 1 9307-9411 ● ● ●
55 GROMMET; CABLE
HONG KONG EQUIPMENT(PQ1) 		1-09983-068-0 01 1 9412-9504 ● ● ●
55 GROMMET; CABLE
EXC. HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9412-9504 ● ● ●
55 GROMMET; CABLE
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> 		1-09983-068-0 01 1 9412-9504 ● ●
55 GROMMET; CABLE
EXC. HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9505- ● ● ●
55 GROMMET; CABLE
HONG KONG EQUIPMENT(PQ1) 		1-09983-068-0 01 1 9505- ● ● ●
56 PATCH; DUMP CONT BRKT
DUMP CONTROL LEVER<RC4> 		1-79998-219-0 01 1 9002-9306 ● ● ● ● ●
56 PATCH; DUMP CONT BRKT
PTO CONTROL(SV6) 		1-79998-219-0 01 1 9002-9306 ●
56 PATCH; DUMP CONT BRKT
MIXER TRUCK<RA2> 		1-79998-219-0 01 1 9002-9306 ●
56 PATCH; DUMP CONT BRKT
DUMP CONTROL LEVER<RC4> 		1-79998-219-0 01 1 9307- ● ● ●
56 PATCH; DUMP CONT BRKT
PTO CONTROL(SV6) 		1-79998-219-0 01 1 9307- ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (A) ID=6 		9-09185-406-0 01 1 9002-9411 ● ●
214 RING; SNAP,LK BOLT
PTO CONTROL(SV6) (A) ID=6 		9-09185-406-0 01 1 9002-9411 ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (A) ID=6 		9-09185-406-0 01 1 9412-9504 ● ● ●
214 RING; SNAP,LK BOLT
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> (A) ID=6 		9-09185-406-0 01 1 9412-9504 ● ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (A) ID=6 		9-09185-406-0 01 1 9505- ● ●
214 RING; SNAP,LK BOLT
PTO CONTROL(SV6) (A) ID=6 		9-09185-406-0 01 1 9505- ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (B) ID=8 		9-09185-408-0 01 1 9002-9411 ● ●
214 RING; SNAP,LK BOLT
PTO CONTROL(SV6) (B) ID=8 		9-09185-408-0 01 1 9002-9411 ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (B) ID=8 		9-09185-408-0 01 1 9412-9504 ● ● ●
214 RING; SNAP,LK BOLT
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> (B) ID=8 		9-09185-408-0 01 1 9412-9504 ● ●
214 RING; SNAP,LK BOLT
DUMP CONTROL LEVER<RC4> (B) ID=8 		9-09185-408-0 01 1 9505- ● ●
214 RING; SNAP,LK BOLT
PTO CONTROL(SV6) (B) ID=8 		9-09185-408-0 01 1 9505- ●
