4-25 — REAR FINAL DRIVE (#30060) — 767 parça

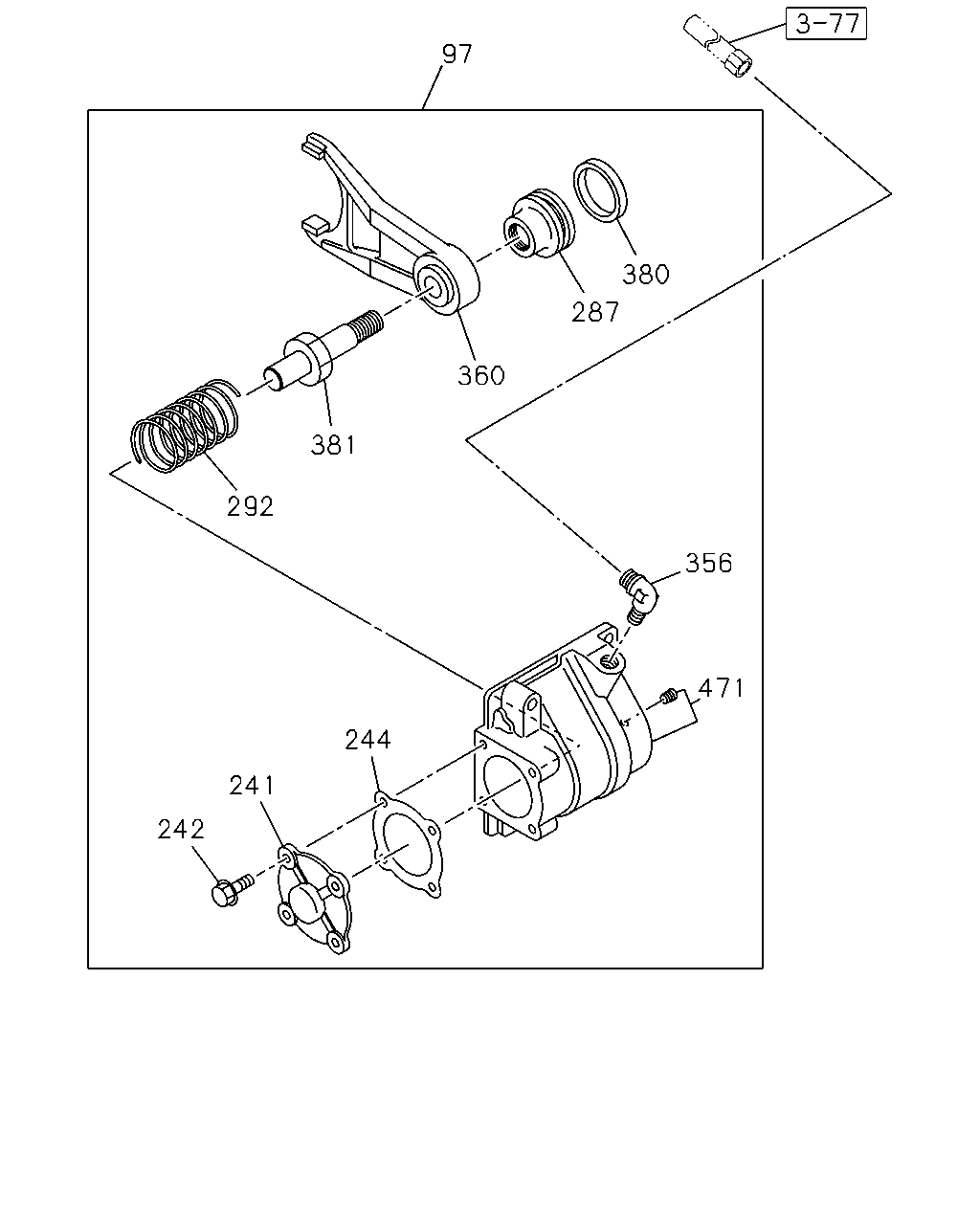

97 380 287 360 381 292 244 241 242 471 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	0407-0511	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	0512-	●	●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	0407-0511	●	●
241	COVER; SHIFT HSG	1-48266-011-0	01	1	0512-	●	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	0407-0511	●	●
242	BOLT; COVER M8X20	0-20800-820-0	04	1	0512-	●	●	●
244	GASKET; COVER	1-48269-062-0	01	1	0407-0511	●	●
244	GASKET; COVER	1-48269-062-0	01	1	0512-	●	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	0407-0511	●	●
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	0512-	●	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	0407-0511	●	●
292	SPRING; PISTON	1-48265-007-0	01	1	0512-	●	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0407-0511	●	●
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0512-	●	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	0407-0511	●	●
360	FORK; SHIFT	1-48269-063-0	01	1	0512-	●	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	0407-0511	●	●
380	GASKET; PISTON	1-48269-064-0	01	1	0512-	●	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	0407-0511	●	●
381	ROD; SHIFT	1-48263-005-0	01	1	0512-	●	●	●
471	CYLINDER ASM; SHIFT UNIT	1-48269-224-0	01	1	0512-	●	●	●

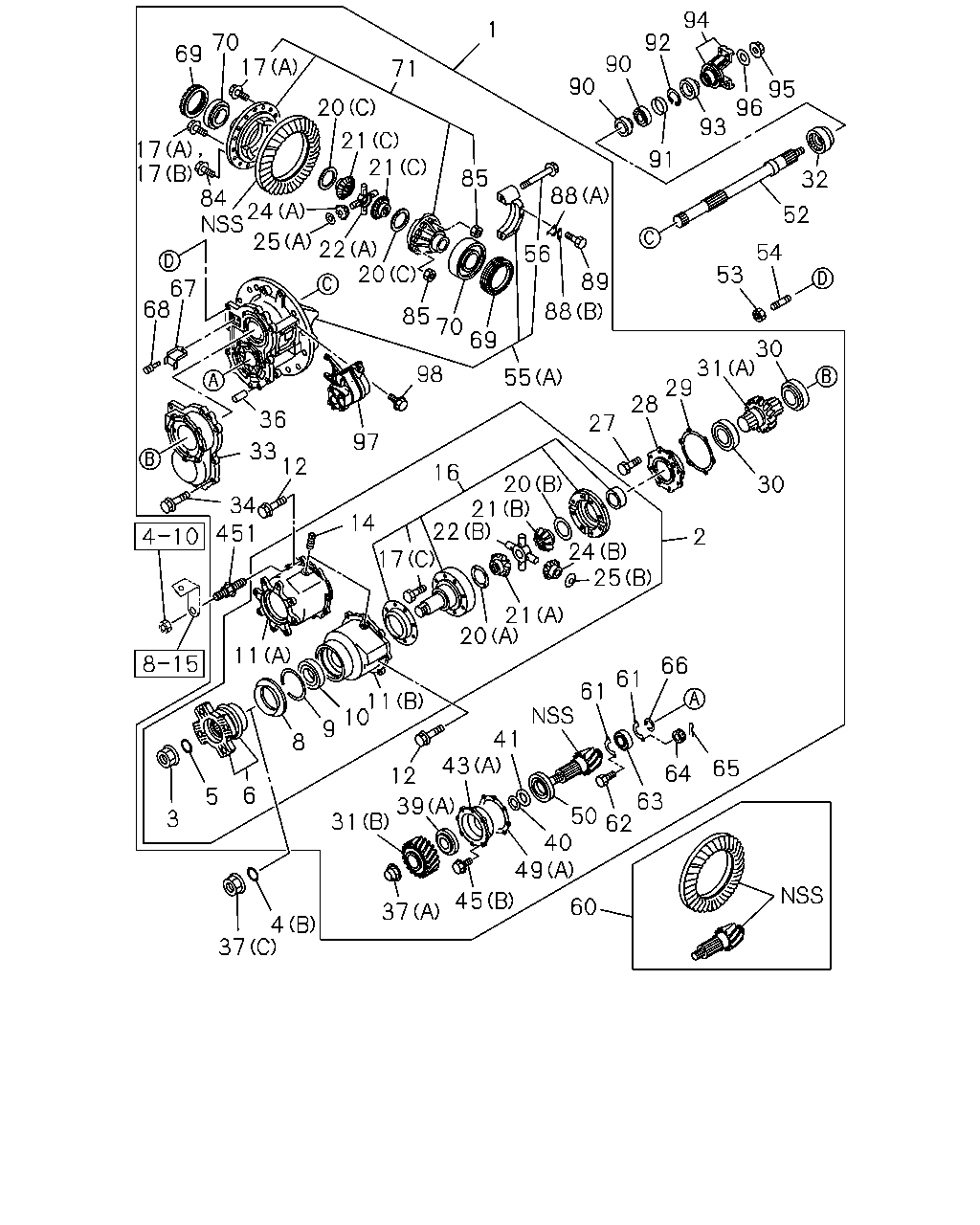

94 1 70 17 92 69 90 71 90 95 96 20 93 21 21 17 17 84 24 25 91 85 32 88 52 22 20 54 56 53 89 67 68 88 85 70 69 30 31 29 28 98 55 36 27 97 33 12 16 20 21 22 24 17 25 30 34 451 14 2 21 20 11 66 61 11 10 61 9 41 8 43 65 64 63 50 62 40 49 12 6 5 39 31 3 45 60 37 4 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-800-0	01	1	0512-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-719-0	01	1	0512-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-243-0	01	1	0512-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-241-0	01	1	0512-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-431-0	01	1	0512-		●
1	DRIVE ASM; FINAL,RR FORWARD 41/10	1-41002-720-0	01	1	0407-0511	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-720-0	01	1	0512-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41002-258-0	01	1	0407-	●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41002-907-0	01	1	0407-0511		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-907-0	01	1	0512-		●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41002-429-0	01	1	0407-		●
2	DIFF ASM; INTER,FINAL EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-41320-027-0	01	1	0512-	●	●	●
2	DIFF ASM; INTER,FINAL	1-41320-029-0	01	1	0407-0511	●	●
2	DIFF ASM; INTER,FINAL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-41320-029-0	01	1	0512-	●	●	●
3	NUT; INPUT SHAFT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M46 FLANGE	1-09449-071-0	01	1	0512-	●	●	●
4	GASKET; FLANGE,FINAL PINION (B) ID=57	1-09623-386-0	01	1	0407-0511	●	●
4	GASKET; FLANGE,FINAL PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=57	1-09623-386-0	01	1	0512-	●	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0407-0511	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0512-	●	●	●
5	GASKET; INPUT SHAFT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=57	1-09623-386-0	01	1	0512-	●	●	●
6	FLANGE ASM; INPUT SHAFT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-37245-343-0	01	1	0512-	●	●	●
8	SEAL; OIL,INPUT SHAFT	1-09625-323-0	01	1	0407-0511	●	●
8	SEAL; OIL,INPUT SHAFT	1-09625-323-0	01	1	0512-	●	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	0407-0511	●	●
9	RING; SNAP,BRG,INPUT	1-09587-058-0	01	1	0512-	●	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	0407-0511	●	●
10	BEARING; INPUT SHAFT NSK	1-09800-173-0	01	1	0512-	●	●	●
11	COVER; INTER AXLE DIFF EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-41323-023-0	01	1	0512-	●	●	●
11	COVER; INTER AXLE DIFF (A)	1-41323-032-0	01	1	0407-0511	●	●
11	COVER; INTER AXLE DIFF BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-41323-032-0	01	1	0512-	●	●	●
12	BOLT; COVER TO CASE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28781-235-0	08	1	0512-0512	●	●	●
12	BOLT; COVER TO CASE EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28751-235-0	08	1	0601-	●	●	●
12	BOLT; COVER TO CASE M12X35 FLANGE	0-28781-235-0	07	1	0407-0511	●	●
12	BOLT; COVER TO CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28781-235-0	07	1	0512-0512	●	●	●
12	BOLT; COVER TO CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X35 FLANGE	0-28751-235-0	07	1	0601-	●	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	0407-0511	●	●
14	PLUG; FILLER PT1/2	9-09204-521-0	01	1	0512-	●	●	●
16	SHAFT ASM; INPUT	1-41340-063-0	01	1	0407-0511	●	●
16	SHAFT ASM; INPUT	1-41340-063-0	01	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (C) M14X75 FLANGE	1-09070-008-0	08	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (C) M14X75 FLANGE	1-09070-008-0	08	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.7	1-41562-127-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.7	1-41562-127-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0512-	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0407-0511	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0407-0511	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0512-0911	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0512-0911	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-162-0	02	1	0912-	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-162-0	02	1	0912-	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-037-2	01	1	0407-0407	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-136-0	01	1	0408-0511	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-136-0	01	1	0512-0905	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-156-0	01	1	0906-	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-109-0	01	1	0407-0407	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-137-0	01	1	0408-0511	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-137-0	01	1	0512-0905	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-157-0	01	1	0906-	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	0407-0511	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	0512-	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0407-0511	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0407-0511	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0512-	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0512-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0407-0511	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0407-0511	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0512-0911	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0512-0911	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-052-0	04	1	0912-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-052-0	04	1	0912-	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-032-0	04	1	0407-0407	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-042-0	04	1	0408-0511	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-042-0	04	1	0512-0905	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-049-0	04	1	0906-	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	0407-0511	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	0512-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0407-0511	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0407-0511	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0512-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0512-	●	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28781-025-0	08	1	0407-0511	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28781-025-0	08	1	0512-0512	●	●	●
27	BOLT; BRG RET M10X25 FLANGE	0-28751-025-0	08	1	0601-	●	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-015-0	01	1	0407-0511	●	●
28	RETAINER; BRG,DRIVE GEAR	1-41353-015-0	01	1	0512-	●	●	●
29	SHIM; BRG RET T=0.30	1-41355-039-0	AR	1	0407-0511	●	●

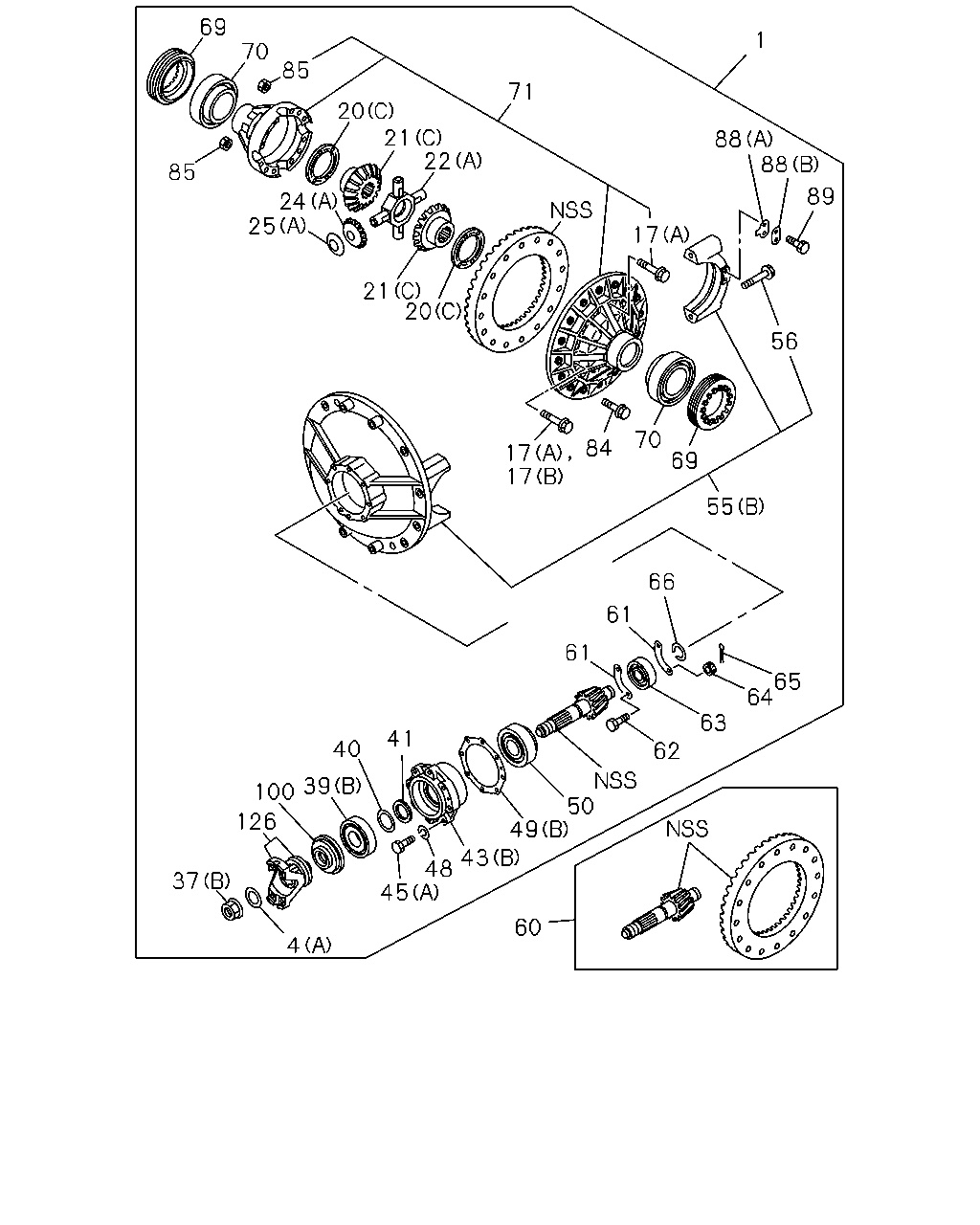

29	SHIM; BRG RET T=0.30	1-41355-039-0	AR	1	0512-	●	●	●
29	SHIM; BRG RET T=0.40	1-41355-040-0	AR	1	0407-0511	●	●
29	SHIM; BRG RET T=0.40	1-41355-040-0	AR	1	0512-	●	●	●
29	SHIM; BRG RET T=0.50	1-41355-041-0	AR	1	0407-0511	●	●
29	SHIM; BRG RET T=0.50	1-41355-041-0	AR	1	0512-	●	●	●
29	SHIM; BRG RET T=1.00	1-41355-042-0	AR	1	0407-0511	●	●
29	SHIM; BRG RET T=1.00	1-41355-042-0	AR	1	0512-	●	●	●
30	BEARING; TAPER ROLLER JTEKT	1-09812-215-0	02	1	0407-0511	●	●
30	BEARING; TAPER ROLLER JTEKT	1-09812-215-0	02	1	0512-	●	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-216-0	02	1	0407-0511	●	●
30	BEARING; TAPER ROLLER NSK	1-09812-216-0	02	1	0512-	●	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-034-0	01	1	0407-0511	●	●
31	GEAR; DRIVEN,HELICAL (A) Z=31	1-41351-034-0	01	1	0512-	●	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-034-0	01	1	0407-0511	●	●
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-034-0	01	1	0512-	●	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	0407-0511	●	●
32	SLEEVE; CLU,DIFF LK	1-41356-002-0	01	1	0512-	●	●	●
33	CASE; POWER DIVIDER	1-41321-026-1	01	1	0407-0511	●	●
33	CASE; POWER DIVIDER	1-41321-026-1	01	1	0512-	●	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28781-235-0	11	1	0407-0511	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28781-235-0	11	1	0512-0512	●	●	●
34	BOLT; CASE TO CARRIER M12X35 FLANGE	0-28751-235-0	11	1	0601-	●	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	0407-0511	●	●
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	0512-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0407-0511	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0512-	●	●	●
37	NUT; DRIVING PINION (C) M46 FLANGE	1-09449-071-0	01	1	0407-0511	●	●
37	NUT; DRIVING PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M46 FLANGE	1-09449-071-0	01	1	0512-	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	0407-0511	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0512-	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	0407-0511	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	0512-	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	0407-0511	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	0512-	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28781-440-0	08	1	0407-0511	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28781-440-0	08	1	0512-0512	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	0601-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0407-0511	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	0512-	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0407-0511	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0407-0511	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0512-	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0512-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0407-0511	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0407-0511	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0512-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0512-	●	●	●
52	SHAFT; OUTPUT	1-41343-023-0	01	1	0407-0511	●	●
52	SHAFT; OUTPUT	1-41343-023-0	01	1	0512-	●	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	0407-0511	●	●
53	NUT; FINAL DRIVE SET M16	9-99110-516-0	02	1	0512-0512	●	●	●
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	02	1	0601-	●	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	0407-0511	●	●
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	02	1	0512-	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	0407-0511	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	0512-	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	0407-0511	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	0512-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0407-0511	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0407-0511	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0512-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0512-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/9	1-41210-497-0	01	1	0512-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/9	1-41210-380-2	01	1	0512-			●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/10	1-41210-499-0	01	1	0407-0509	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/10	1-41210-567-0	01	1	0510-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/10	1-41210-566-0	01	1	0407-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 43/11	1-41210-624-0	01	1	0407-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/11	1-41210-623-0	01	1	0407-		●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0407-0511	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0407-0511	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0512-	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0512-	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0407-0511	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0407-0511	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0512-	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0512-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0407-0511	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0407-0511	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0512-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0512-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0407-0511	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0407-0511	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0512-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0512-	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0407-0511	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0407-0511	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0512-0512	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0512-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0407-0511	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0407-0511	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0512-0805	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0512-0805	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0407-0511	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0407-0511	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0512-	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0512-	●	●	●
67	PICKUP; OIL,CARRIER	1-41129-010-0	01	1	0407-0511	●	●
67	PICKUP; OIL,CARRIER	1-41129-010-0	01	1	0512-	●	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	0407-0511	●	●
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0512-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0407-0511	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0407-0511	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0512-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0512-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0407-0511	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0407-0511	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0512-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0512-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0407-0511	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0407-0511	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0512-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0512-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0407-0511	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0407-0511	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0512-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0512-	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0407-0511	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0407-0511	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0512-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0512-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	0407-0511	●	●
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	0512-	●	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	0407-0511	●	●
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	0512-	●	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0407-0511	●	●
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	0512-	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	0407-0511	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	0512-	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	0407-0511	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	0512-	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	0407-0511	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	0512-	●	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	0407-0511	●	●
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	0512-	●	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	0407-0511	●	●
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	0512-	●	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	0407-0511	●	●
97	SHIFT UNIT; DIFF LOCK	1-48260-059-1	01	1	0512-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	0407-0511	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28181-050-0	01	1	0512-0512	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	0601-	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	0407-0511	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28781-025-0	03	1	0512-0512	●	●	●
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	0601-	●	●	●
451	STUD; COVER TO CASE M12X20,M12X35 L=66.5	1-09049-031-0	01	1	0407-0511	●	●
451	STUD; COVER TO CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12X20,M12X35 L=66.5	1-09049-031-0	01	1	0512-	●	●	●

69 1 70 85 71 20 21 22 88 88 85 24 25 89 17 21 20 56 70 84 17 17 69 55 66 61 61 65 64 63 41 40 62 50 49 43 48 45 39 100 126 37 60 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR REARWARD 39/9	1-41001-800-0	01	1	0512-			●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-719-0	01	1	0512-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 39/9	1-41002-243-0	01	1	0512-			●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-241-0	01	1	0512-	●
1	DRIVE ASM; FINAL,RR EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-431-0	01	1	0512-		●
1	DRIVE ASM; FINAL,RR FORWARD 41/10	1-41002-720-0	01	1	0407-0511	●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 41/10	1-41002-720-0	01	1	0512-	●
1	DRIVE ASM; FINAL,RR REARWARD 41/10	1-41002-258-0	01	1	0407-	●
1	DRIVE ASM; FINAL,RR FORWARD 43/11	1-41002-907-0	01	1	0407-0511		●
1	DRIVE ASM; FINAL,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FORWARD 43/11	1-41002-907-0	01	1	0512-		●
1	DRIVE ASM; FINAL,RR REARWARD 43/11	1-41002-429-0	01	1	0407-		●
4	GASKET; FLANGE,FINAL PINION (B) ID=57	1-09623-386-0	01	1	0407-0511	●	●
4	GASKET; FLANGE,FINAL PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=57	1-09623-386-0	01	1	0512-	●	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0407-0511	●	●
4	GASKET; FLANGE,FINAL PINION (A) ID=42	9-09921-116-0	01	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (C) M14X75 FLANGE	1-09070-008-0	08	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (C) M14X75 FLANGE	1-09070-008-0	08	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (A) M14X121 FLANGE	1-09044-006-0	08	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0407-0511	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0512-	●	●	●
17	BOLT; DIFF CAGE SETTING (B) M14X95 FLANGE	1-09044-007-0	04	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.8	1-41562-120-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.9	1-41562-121-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.0	1-41562-122-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.1	1-41562-123-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.2	1-41562-124-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.3	1-41562-125-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=3.4	1-41562-126-1	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.7	1-41562-127-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (A) T=2.7	1-41562-127-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.8	1-41562-128-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=2.9	1-41562-129-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.0	1-41562-130-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.1	1-41562-131-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.2	1-41562-132-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.3	1-41562-133-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (B) T=3.4	1-41562-134-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.80	1-41562-169-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=2.90	1-41562-170-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.00	1-41562-171-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.10	1-41562-172-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.20	1-41562-173-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.30	1-41562-174-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0407-0511	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0512-	●	●	●
20	WASHER; THRUST,SIDE GEAR (C) T=3.40	1-41562-175-0	AR	1	0512-	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0407-0511	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0407-0511	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0512-0911	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-123-0	02	1	0512-0911	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-162-0	02	1	0912-	●	●	●
21	GEAR; SIDE,DIFF (C) Z=16	1-41561-162-0	02	1	0912-	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-037-2	01	1	0407-0407	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-136-0	01	1	0408-0511	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-136-0	01	1	0512-0905	●	●	●
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-156-0	01	1	0906-	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-109-0	01	1	0407-0407	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-137-0	01	1	0408-0511	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-137-0	01	1	0512-0905	●	●	●
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-157-0	01	1	0906-	●	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	0407-0511	●	●
22	SPIDER; DIFF PINION (B)	1-41521-050-2	01	1	0512-	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0407-0511	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0407-0511	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0512-	●	●	●
22	SPIDER; DIFF PINION (A) OD=32	1-41521-002-1	01	1	0512-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0407-0511	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0407-0511	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0512-0911	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-040-0	04	1	0512-0911	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-052-0	04	1	0912-	●	●	●
24	GEAR; PINION,DIFF (A) Z=10	1-41551-052-0	04	1	0912-	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-032-0	04	1	0407-0407	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-042-0	04	1	0408-0511	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-042-0	04	1	0512-0905	●	●	●
24	GEAR; PINION,DIFF (B) Z=10	1-41551-049-0	04	1	0906-	●	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	0407-0511	●	●
25	WASHER; THRUST,PINION (B) ID=29 OD=60	1-41562-119-0	04	1	0512-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0407-0511	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0407-0511	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0512-	●	●	●
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-001-0	04	1	0512-	●	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0407-0511	●	●
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	0512-	●	●	●
37	NUT; DRIVING PINION (C) M46 FLANGE	1-09449-071-0	01	1	0407-0511	●	●
37	NUT; DRIVING PINION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M46 FLANGE	1-09449-071-0	01	1	0512-	●	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	0407-0511	●	●
37	NUT; DRIVING PINION (B) M39 FLANGE	1-09449-056-2	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (A) JTEKT	1-09812-218-0	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (B) NSK	1-09812-086-0	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (B) NTN	9-00093-072-1	01	1	0512-	●	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	0407-0511	●	●
39	BEARING; FINAL PINION (B) JTEKT	9-00093-206-2	01	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0407-0511	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0512-	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0407-0511	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0512-	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	0512-	●	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	0407-0511	●	●
43	CAGE; FINAL PINION (A)	1-41151-062-0	01	1	0512-	●	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	0407-0511	●	●
43	CAGE; FINAL PINION (B) T=75	1-41151-005-0	01	1	0512-	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28781-440-0	08	1	0407-0511	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28781-440-0	08	1	0512-0512	●	●	●
45	BOLT; FINAL PINION CAGE (B) M14X40 FLANGE	0-28751-440-0	08	1	0601-	●	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0407-0511	●	●
45	BOLT; FINAL PINION CAGE (A) M14X50	0-16806-450-0	08	1	0512-	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0407-0511	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0512-0603	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-081-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-082-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-083-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (A) T=1.00	1-41154-084-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=1.000	1-41154-009-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.500	1-41154-010-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.300	1-41154-104-0	AR	1	0512-	●	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	0407-0511	●	●
49	SHIM; FINAL PINION CAGE (B) T=0.400	1-41154-105-0	AR	1	0512-	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0407-0511	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0407-0511	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0512-	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	0512-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0407-0511	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0407-0511	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0512-	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	0512-	●	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	0407-0511	●	●
55	CARRIER; DIFF (A)	1-41310-052-0	01	1	0512-	●	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	0407-0511	●	●
55	CARRIER; DIFF (B)	1-41110-120-1	01	1	0512-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0407-0511	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0407-0511	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0512-	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0512-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/9	1-41210-497-0	01	1	0512-			●
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/9	1-41210-380-2	01	1	0512-			●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/10	1-41210-499-0	01	1	0407-0509	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 41/10	1-41210-567-0	01	1	0510-	●
60	GEAR SET; FINAL DRIVE,RR REARWARD 41/10	1-41210-566-0	01	1	0407-	●
60	GEAR SET; FINAL DRIVE,RR FORWARD 43/11	1-41210-624-0	01	1	0407-		●
60	GEAR SET; FINAL DRIVE,RR REARWARD 43/11	1-41210-623-0	01	1	0407-		●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0407-0511	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0407-0511	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0512-	●	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	0512-	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0407-0511	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0407-0511	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0512-	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	0512-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0407-0511	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0407-0511	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0512-	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0512-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0407-0511	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0407-0511	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0512-	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0512-	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0407-0511	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0407-0511	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0512-0512	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0512-0512	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0407-0511	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0407-0511	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0512-0805	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0512-0805	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0407-0511	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0407-0511	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0512-	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0407-0511	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0512-	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0512-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0407-0511	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0407-0511	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0512-	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0512-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0407-0511	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0407-0511	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0512-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-269-0	01	1	0512-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0407-0511	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0407-0511	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0512-	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0512-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0407-0511	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0407-0511	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0512-	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0407-0511	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0512-	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0512-	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0407-0511	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0407-0511	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0512-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0512-0512	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0407-0511	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0512-	●	●	●
126	COUPLING; DRIVING PINION	1-37245-396-0	01	1	0407-0511	●	●
126	COUPLING; DRIVING PINION	1-37245-396-0	01	1	0512-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
