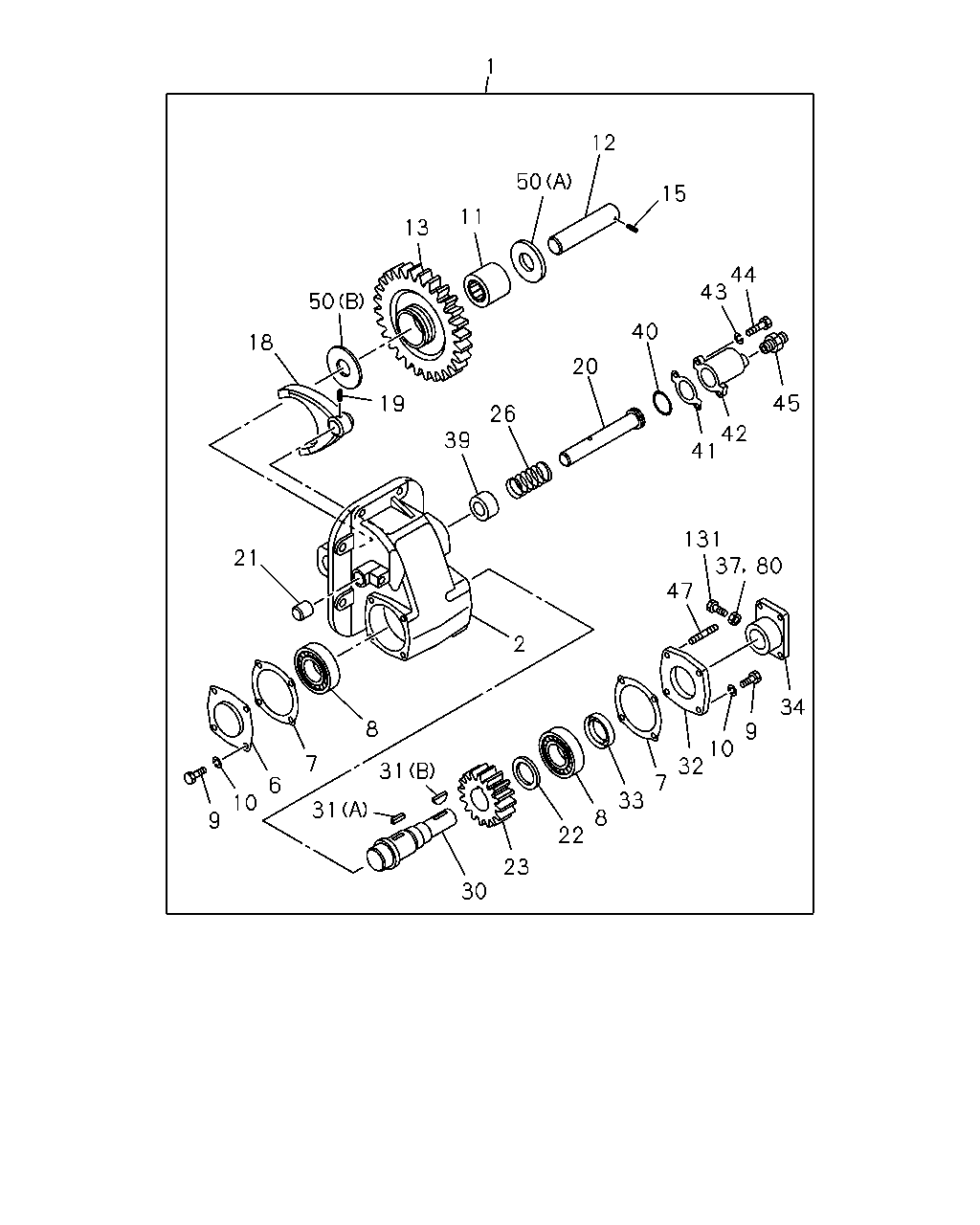

2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#3006) — 69 parça

30 23 22 8 33 7 32 10 9 34 80 37 131 47 2 8 31 31 7 6 10 9 21 39 26 20 40 41 42 45 44 43 15 12 1 50 11 13 50 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-253-2	01	1	9002-9306	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-249-1	01	1	9002-9105			●	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-247-1	01	1	9106-			●	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-057-1	01	1	9002-9306	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-035-2	01	1	9002-9105			●	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-065-0	01	1	9106-			●	●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-006-0	01	1	9002-	●	●	●	●	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-003-0	02	1	9002-9105	●	●	●	●	●
7	GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-003-0	02	1	9106-9306	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-00098-057-0	02	1	9002-	●	●	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	07	1	9106-9306	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	07	1	9002-9105	●	●	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	08	1	9106-			●	●	●
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	10	1	9002-9007	●	●	●	●	●
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	08	1	9008-	●	●	●	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	9002-	●	●	●	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-006-0	01	1	9002-9105	●	●	●	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-006-0	01	1	9106-9306	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-018-0	01	1	9106-			●	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	1-38241-065-0	01	1	9002-9306	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35	1-38241-056-0	01	1	9002-			●	●	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	9002-	●	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-014-0	01	1	9002-9007	●	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-025-0	01	1	9008-9105	●	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-025-0	01	1	9106-9306	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-027-0	01	1	9106-			●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	9002-	●	●	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-027-1	01	1	9002-9105	●	●	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-027-1	01	1	9106-9306	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-049-0	01	1	9106-			●	●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	9002-	●	●	●	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-041-0	01	1	9002-9306	●	●	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-057-0	01	1	9002-9105	●	●	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-057-0	01	1	9106-9306	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-087-0	01	1	9106-			●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9002-9105	●	●	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-001-0	01	1	9106-9306	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-0	01	1	9106-			●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-007-0	01	1	9002-9105	●	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-007-0	01	1	9106-9202	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-020-0	01	1	9203-9306	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-019-0	01	1	9106-9202			●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-023-0	01	1	9203-			●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	9-08011-235-0	01	1	9002-9105	●	●	●	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	9-08011-235-0	01	1	9106-9306	●	●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	9-08050-732-0	01	1	9002-	●	●	●	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-010-0	01	1	9002-9105	●	●	●	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-010-0	01	1	9106-9306	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-016-0	01	1	9106-			●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09924-142-0	01	1	9002-	●	●	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-013-1	01	1	9002-	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09111-508-0	01	1	9002-	●	●	●	●	●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	9002-9105	●	●	●	●	●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	9106-9306	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	9002-	●	●	●	●	●
41	GASKET; CYL TO CASE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-009-0	01	1	9002-9306	●	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9002-9105	●	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	9106-9306	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	9106-			●	●	●
43	WASHER; LK,AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9007	●	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28	9-02351-028-0	02	1	9002-9007	●	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28181-025-0	02	1	9008-	●	●	●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	9002-	●	●	●	●	●
47	STUD; COVER FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-04501-016-0	01	1	9002-9306	●	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-045-0	01	1	9002-	●	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38226-052-0	01	1	9002-	●	●	●	●	●
80	NUT; OUTPUT SHAFT COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M10	9-09111-410-0	01	1	9002-9306	●	●	●	●	●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X18	9-02050-818-0	01	1	9002-9007	●	●	●	●	●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20	0-20800-820-0	01	1	9008-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
