4-10 — FRONT AXLE (#30057) — 219 parça

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 128 91 127 91 111 87 82 234 103 234 87 296 93 87 103 87 93 303 304 234 105 237 304 3 303 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

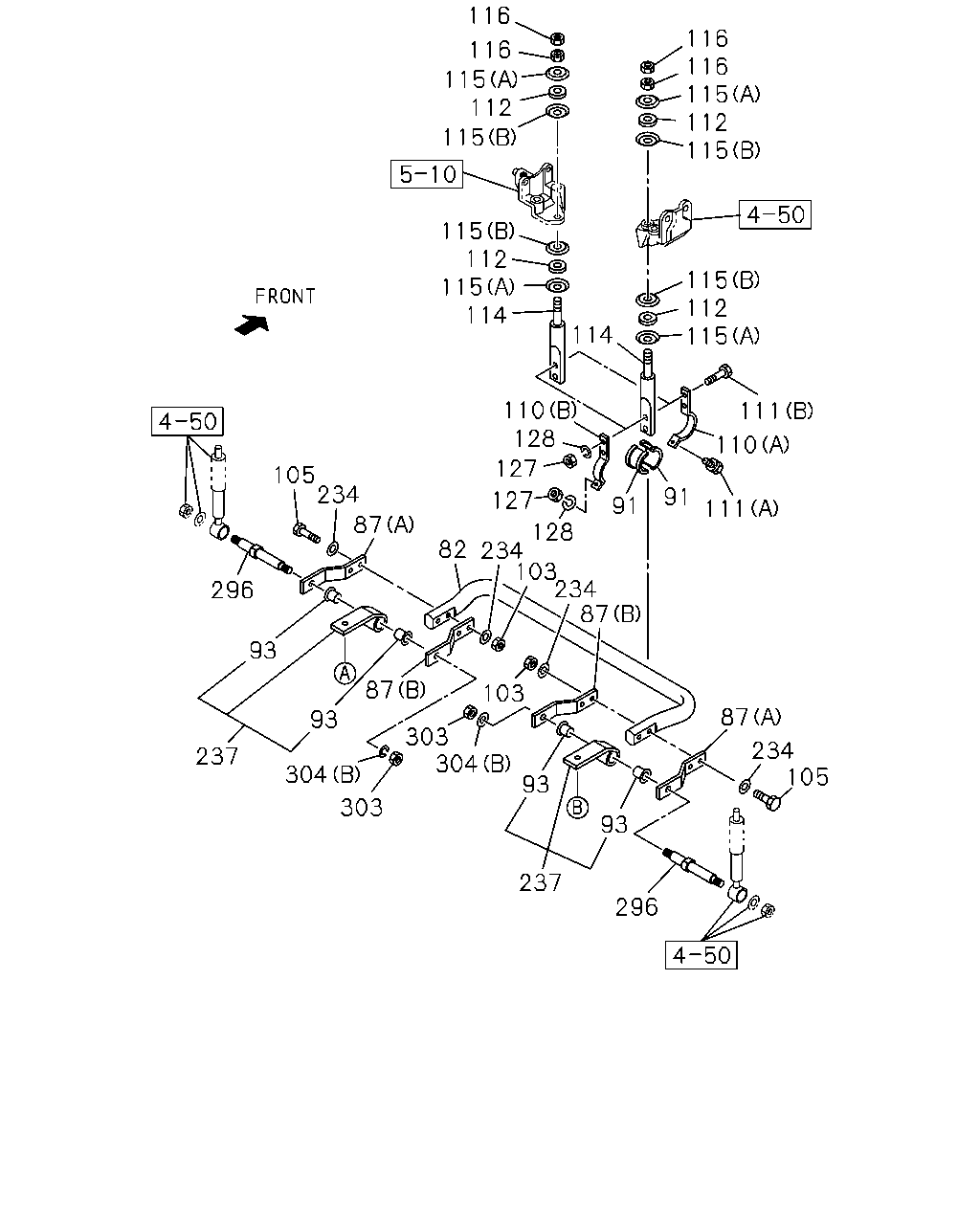

3	KING PIN SET (A)	1-87831-111-7	02	1	0407-0801
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-
82	BAR; STAB,FRT SUSP	1-51771-136-1	01	1	0407-
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0407-0912
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0407-0912
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR	1-51779-087-1	04	1	0407-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0407-
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0407-0512
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0407-0910
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0407-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0407-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0407-0910
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0407-0910
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD	9-51631-039-0	04	1	0407-
114	ROD; STAB BAR	1-51773-072-2	02	1	0407-
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.5	9-51631-040-0	04	1	0407-
115	WASHER; CENTER,STAB TO FRAME (B) ID=20.8	9-51631-041-0	04	1	0407-
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0407-0512
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP M12	9-99110-412-0	06	1	0407-0512
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0407-0603
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0407-0910
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0407-
296	PIN; STAB	1-51682-145-2	02	1	0407-0907
296	PIN; STAB	8-98022-874-1	02	1	0908-
303	NUT; PIN M20	9-99110-520-0	02	1	0407-0512
303	NUT; PIN M20	0-91110-520-0	02	1	0601-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0407-0709
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0407-0907
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-

2 1 33 34 30 21 48 313 295 295 48 30 21 80 66 45 32 25 59 58 80 44 40 220 36 44 59 275 66 61 8 6 68 81 58 304 74 2 313 74 17 68 18 45 61 8 3 3 6 8 304 21 48 295 48 44 44 295 21 45 21 44 44 21 8 6 33 8 6 33 48 48 32 32 25 34 6 8 25 34 6 8 8 8 45 21 44 48 44 21 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

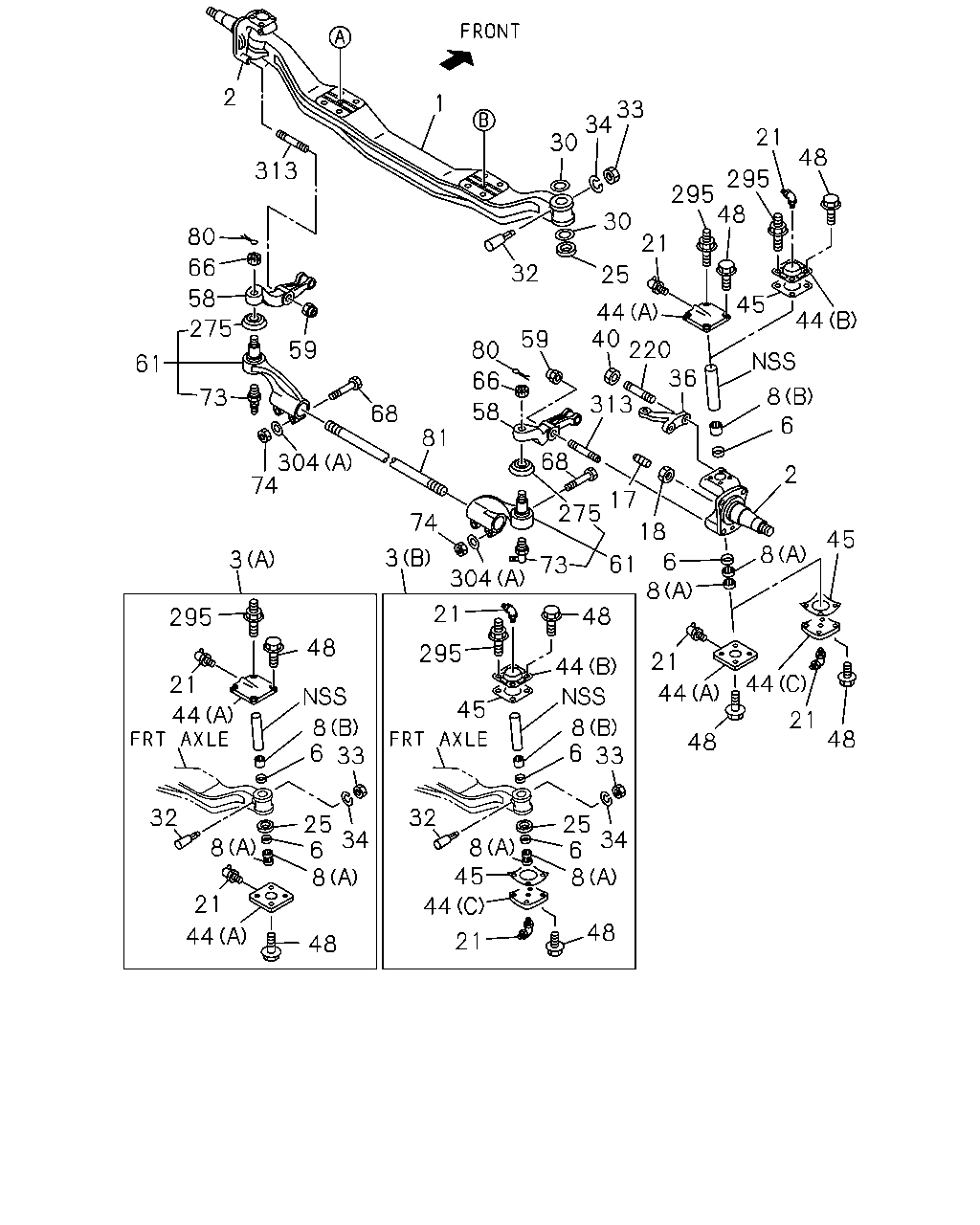

1	AXLE; FRT	1-43111-107-9	01	1	0407-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0407-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0407-
3	KING PIN SET (A)	1-87831-111-7	02	1	0407-0801
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-
6	SEAL; KING PIN	9-09926-024-0	04	1	0407-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0407-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0407-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	0407-
17	BOLT; STOPPER KNUCKLE M18X38	1-09009-164-0	02	1	0407-0601
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0602-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0407-
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0407-0512
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0407-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0407-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0407-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0407-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0512-
36	ARM; KNUCKLE	1-43133-083-1	01	1	0407-0511
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0407-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0407-0801
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-
48	BOLT; COVER M10X25 FLANGE	0-28781-025-0	12	1	0407-0512
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	0601-
58	ARM; TIE ROD	1-43134-049-4	01	1	0407-
58	ARM; TIE ROD	1-43135-049-4	01	1	0407-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0407-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
61	ROD END; TIE ROD	1-43150-856-0	01	1	0407-1009
61	ROD END; TIE ROD	8-98105-073-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-100-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-857-0	01	1	0407-1009
61	ROD END; TIE ROD	8-98105-074-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-101-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0407-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0407-0709
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0407-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	1-43151-154-0	01	1	0407-
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0407-0704
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0407-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0407-0704
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0705-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0407-0709
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0407-0907
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0407-0704
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-

2 1 33 34 30 21 48 313 295 295 48 30 21 80 66 45 32 25 58 275 44 40 220 36 44 59 80 59 61 66 8 6 73 313 58 68 81 68 304 74 2 17 275 74 18 45 8 3 3 6 8 61 73 304 21 48 295 48 44 44 295 21 45 21 44 44 21 8 6 33 8 6 33 48 48 32 32 25 34 6 8 25 34 6 8 8 8 45 21 44 48 44 21 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

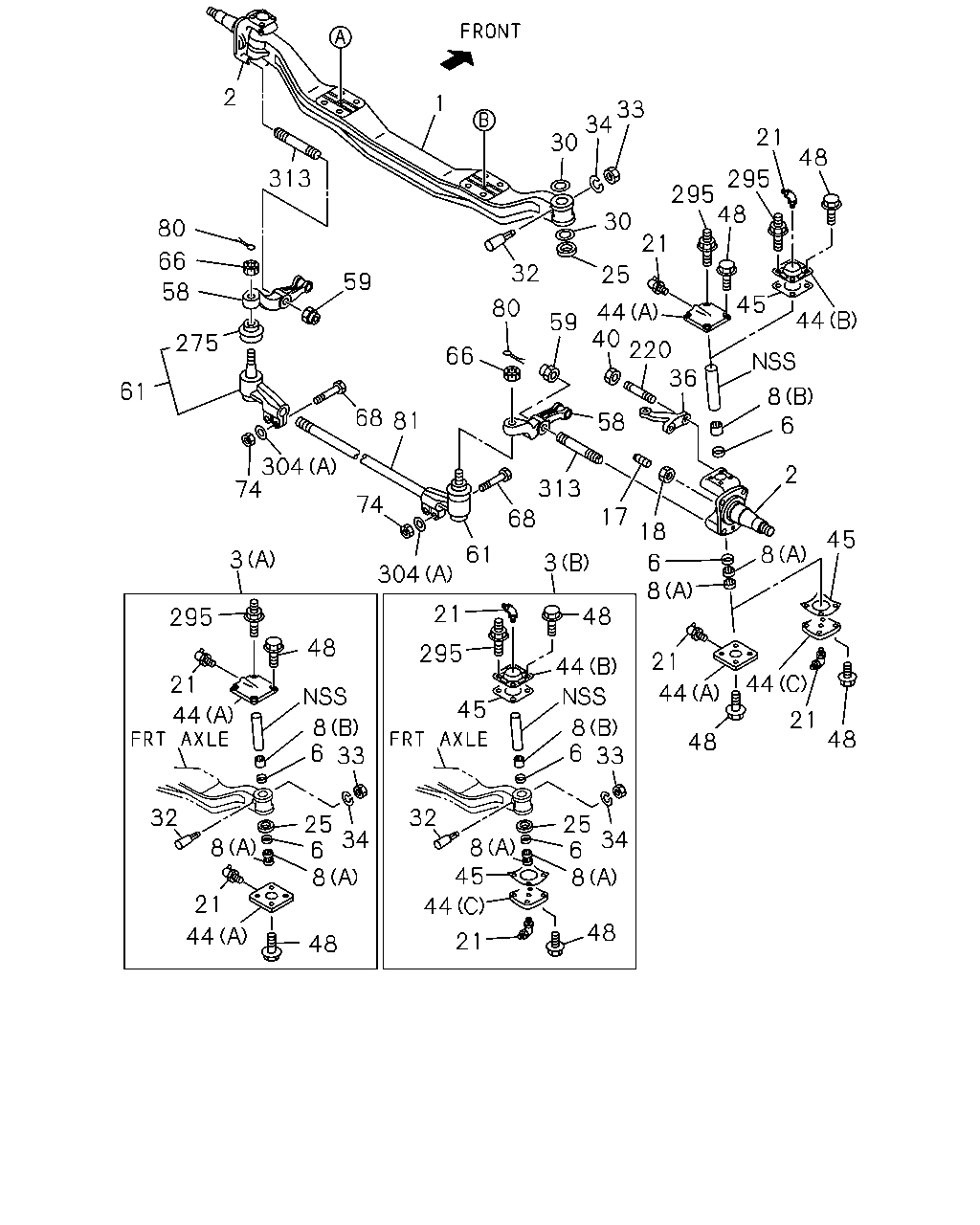

1	AXLE; FRT	1-43111-107-9	01	1	0407-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	0407-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	0407-
3	KING PIN SET (A)	1-87831-111-7	02	1	0407-0801
3	KING PIN SET (B)	1-87831-349-2	02	1	0802-
6	SEAL; KING PIN	9-09926-024-0	04	1	0407-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0407-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0407-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	0407-
17	BOLT; STOPPER KNUCKLE M18X38	1-09009-164-0	02	1	0407-0601
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0602-0705
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-
18	NUT; STOPPER BOLT,KNUCKLE OCTAGON M18	1-09469-011-1	01	1	0407-
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	9-99110-518-0	02	1	0407-0512
18	NUT; STOPPER BOLT,KNUCKLE HEXAGON M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0407-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0407-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0407-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0407-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0407-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0407-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0407-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-083-3	01	1	0512-
36	ARM; KNUCKLE	1-43133-083-1	01	1	0407-0511
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0407-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN (C)	8-98100-655-0	02	1	0802-
44	COVER; KING PIN (A)	1-43175-025-0	04	1	0407-0801
44	COVER; KING PIN (B)	8-98100-654-0	02	1	0802-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	0802-
48	BOLT; COVER M10X25 FLANGE	0-28781-025-0	12	1	0407-0512
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	0601-
58	ARM; TIE ROD	1-43134-049-4	01	1	0407-
58	ARM; TIE ROD	1-43135-049-4	01	1	0407-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0407-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
61	ROD END; TIE ROD	1-43150-856-0	01	1	0407-1009
61	ROD END; TIE ROD	8-98105-073-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-100-0	01	1	1307-
61	ROD END; TIE ROD	1-43150-857-0	01	1	0407-1009
61	ROD END; TIE ROD	8-98105-074-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-101-0	01	1	1307-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0407-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0407-0709
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0710-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0407-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0407-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	1-43151-154-0	01	1	0407-
220	STUD; KNUCKLE ARM	1-09300-119-2	02	1	0407-0704
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	0705-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0407-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0407-0704
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0705-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0407-0709
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0710-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0407-0907
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-
313	STUD; TIE ROD ARM	1-09300-119-2	04	1	0407-0704
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	0705-

274 267 272 265 295 274 268

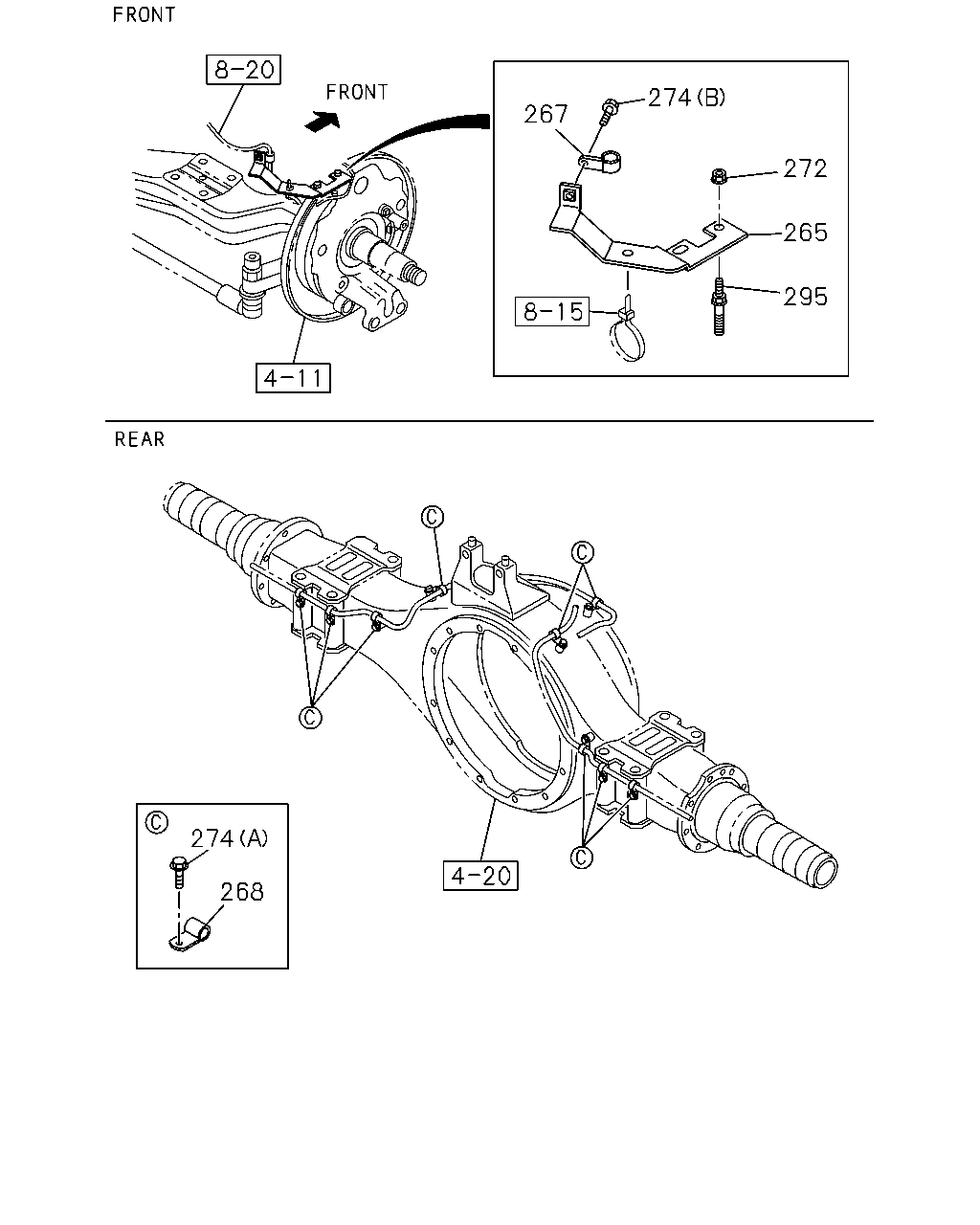

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	0407-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	0407-
267	CLIP; HARNESS ID=11 L=20	9-09525-035-0	02	1	0407-0606
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	0607-
268	CLIP; HARNESS ID=11 L=20	9-09525-035-0	09	1	0407-0606
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	09	1	0607-
272	NUT; CLIP M12 FLANGE	0-91150-212-0	01	1	0407-0511
272	NUT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 FLANGE	0-91150-212-0	01	1	0512-0602
272	NUT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 FLANGE	0-91180-212-0	01	1	0603-
272	NUT; CLIP M10 FLANGE	0-91150-110-0	04	1	0407-0602
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	0603-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28080-810-0	09	1	0407-0512
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	09	1	0601-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	1-09049-014-1	04	1	0407-0704
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	0705-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
