Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#30052) — 353 parça

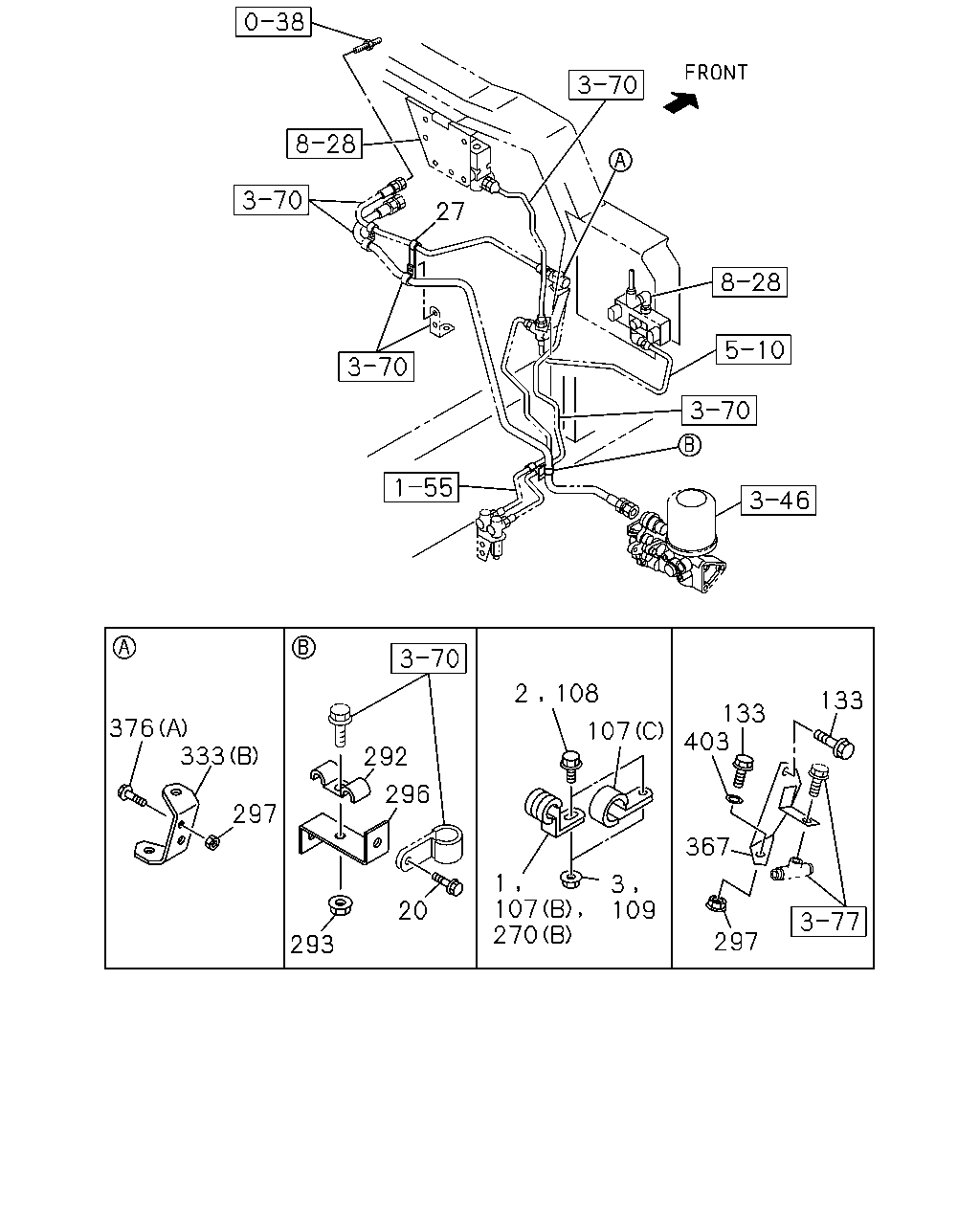

27 2 108 133 133 403 376 333 107 292 296 297 367 1 107 270 3 109 20 297 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0407-0511
1	CLIP; AIR PIPE 6WF1 TC-C(1B8) ID=6 H=20 L=20	1-09700-603-0	01	1	0512-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0601-
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0511
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	01	1	0512-0602
3	NUT; CLIP,AIR PIPE 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	01	1	0603-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-
27	CLIP; FLEX HOSE ID=11 L=50	9-09525-085-0	01	1	0407-0606
27	CLIP; FLEX HOSE ID=11 L=50	0-95235-085-0	01	1	0607-
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	09	1	0407-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	09	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0512-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0407-0511
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0407-
270	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	0407-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0407-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
296	BRACKET; CLIP	1-47479-698-0	01	1	0407-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0407-0407
297	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	0408-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-
297	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0407-0602
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-
333	BRACKET; BRK AIR PIPE (A)	1-79907-110-0	01	1	0407-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-
367	BRACKET ASM	1-47479-692-1	01	1	0407-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
403	WASHER; PL ID=12.5 OD=26	9-09164-612-0	01	1	0407-

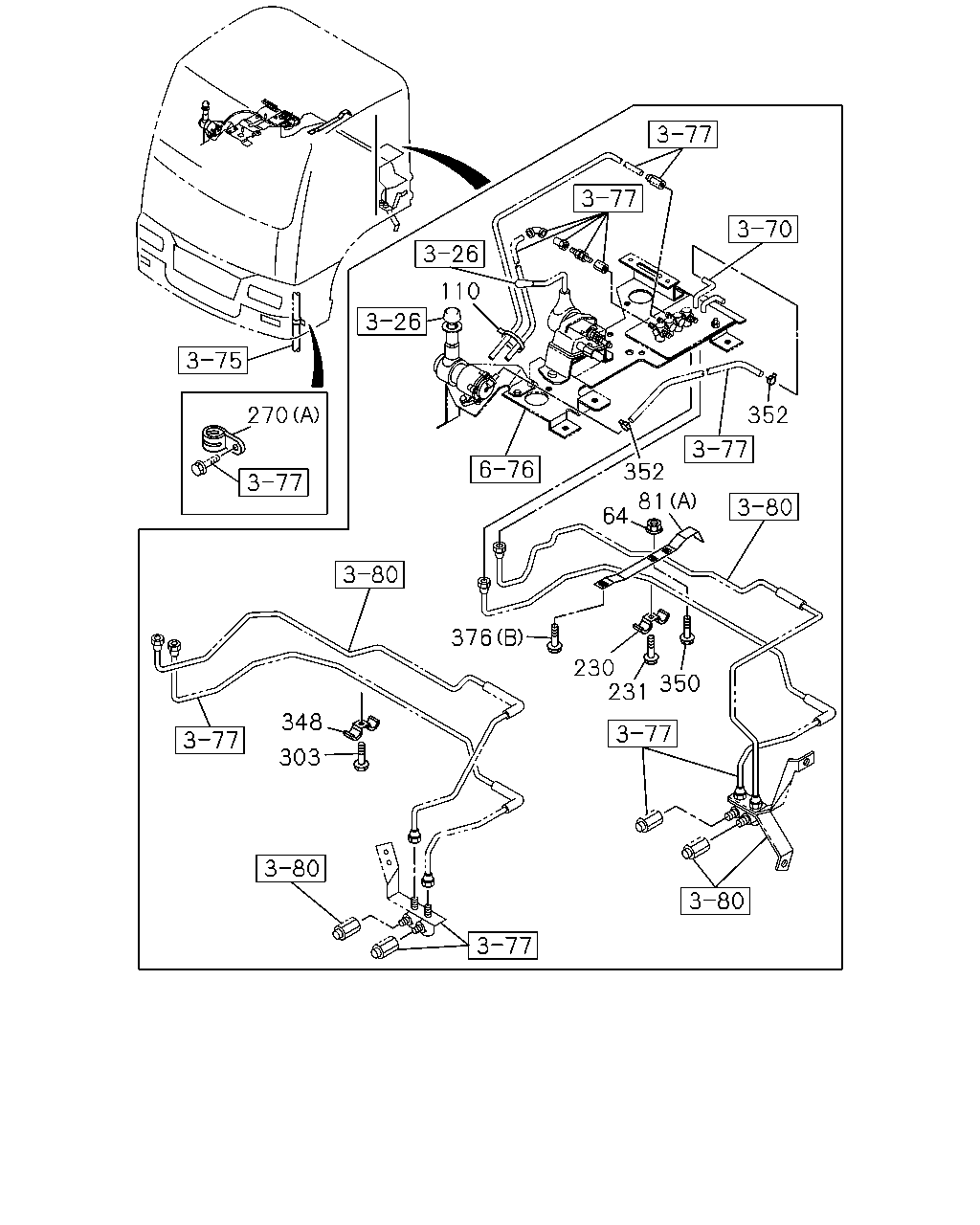

110 352 270 352 81 64 376 230 231 350 348 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0407-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-
81	BRACKET; CLIP (D)	1-47479-562-0	02	1	0407-0410
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0411-
110	CLIP; BAND,NYLON TUBE L=140	5-09707-031-1	02	1	0407-
230	CLIP; PIPE,AIR ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	0407-
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0407-
270	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	0407-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	0407-
350	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0407-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0407-
376	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
376	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-

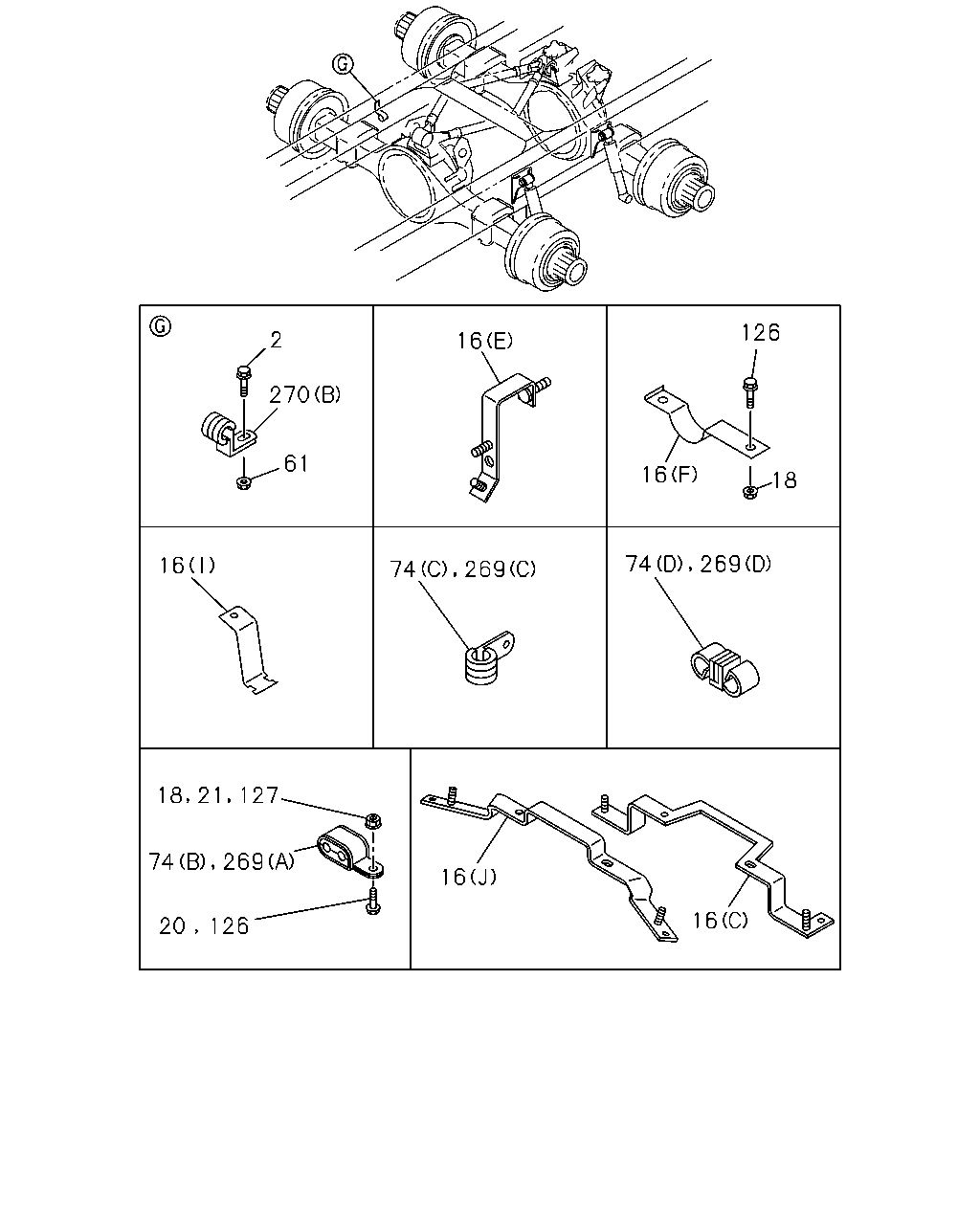

126 2 16 270 61 16 18 16 127 16 16 20 126 74 269 74 269 74 269 18 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0601-
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	07	1	0512-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	07	1	0407-0511
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0512-0610
16	BRACKET; PIPE CLIP (K) L=80 H=30	8-97617-944-0	01	1	0611-
16	BRACKET; PIPE CLIP (A)	1-47479-840-0	01	1	0407-
16	BRACKET; PIPE CLIP (F)	1-47479-845-0	02	1	0407-
16	BRACKET; PIPE CLIP (I)	1-47479-889-0	01	1	0407-0511
16	BRACKET; PIPE CLIP (I)	1-47471-398-0	01	1	0512-
16	BRACKET; PIPE CLIP (J)	1-47479-896-0	01	1	0407-
16	BRACKET; PIPE CLIP (D)	1-47479-962-1	01	1	0407-
16	BRACKET; PIPE CLIP (C)	1-47479-963-0	01	1	0407-
16	BRACKET; PIPE CLIP (E)	1-47479-968-0	01	1	0407-
16	BRACKET; PIPE CLIP (G)	1-82698-467-0	01	1	0407-
16	BRACKET; PIPE CLIP (H)	1-82699-996-1	01	1	0407-
18	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0602
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0407-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0407-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0407-0602
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-
74	CLIP; NYLON TUBE (C) ID=16 L=28	1-09700-872-0	02	1	0407-
74	CLIP; NYLON TUBE (C) ID=35 L=33	1-09700-945-0	01	1	0407-
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	02	1	0407-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-0407
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0408-0511
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	0512-
74	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	02	1	0407-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	07	1	0407-0512
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	09	1	0512-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	09	1	0407-0511
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	09	1	0603-
269	CLIP; BAND,NYLON TUBE (C) ID=16 L=28	1-09700-872-0	02	1	0407-
269	CLIP; BAND,NYLON TUBE (C) ID=35 L=33	1-09700-945-0	02	1	0407-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	02	1	0407-0511
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0512-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0407-0511
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	0407-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	0407-
269	CLIP; BAND,NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0407-
270	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	0407-

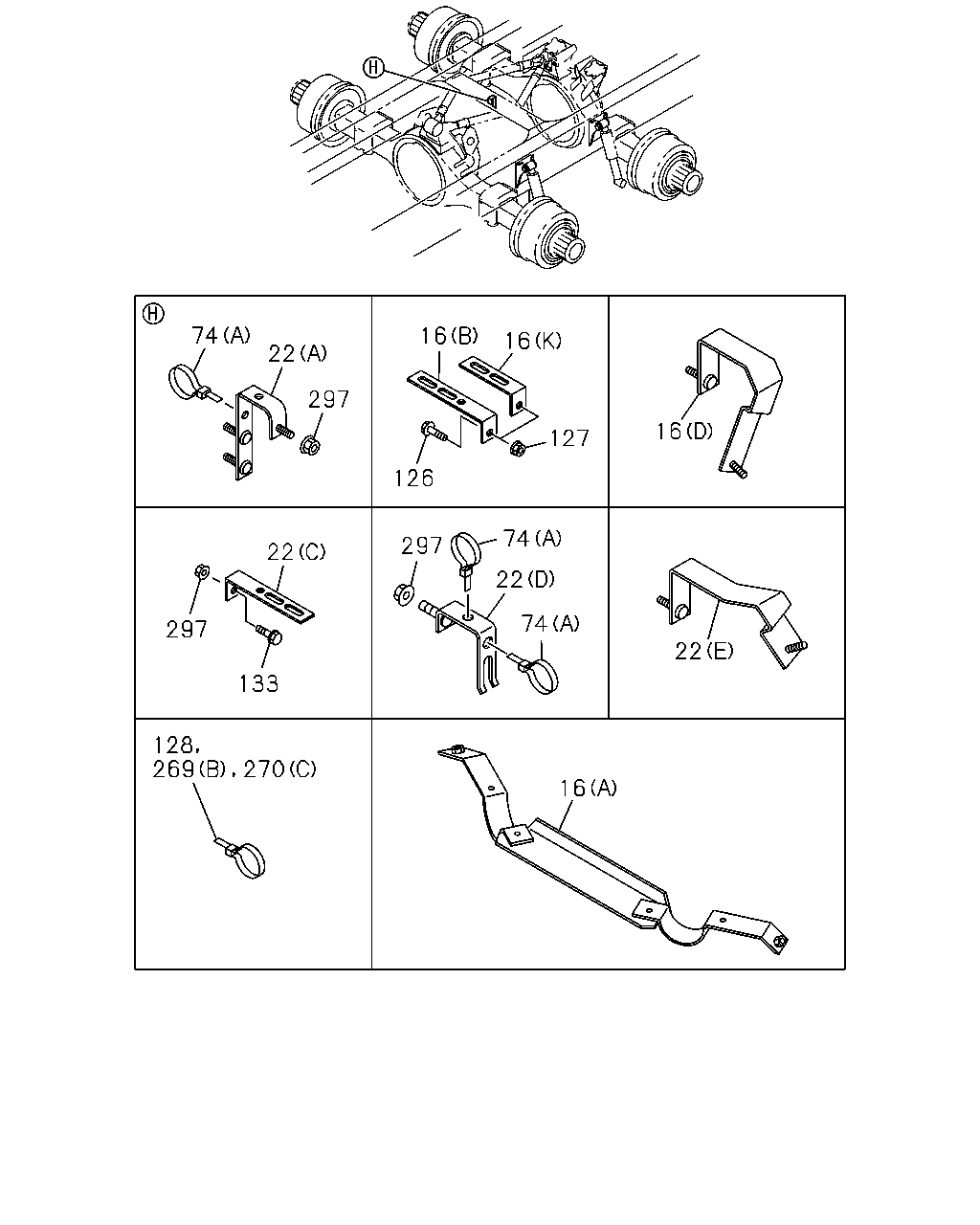

74 16 16 22 297 16 127 126 74 297 22 2 74 297 22 133 128 16 269 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0407-0511
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0601-
2	BOLT; CLIP FIX 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0601-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	07	1	0512-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	07	1	0407-0511
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0512-0610
16	BRACKET; PIPE CLIP (K) L=80 H=30	8-97617-944-0	01	1	0611-
16	BRACKET; PIPE CLIP (A)	1-47479-840-0	01	1	0407-
16	BRACKET; PIPE CLIP (F)	1-47479-845-0	02	1	0407-
16	BRACKET; PIPE CLIP (I)	1-47479-889-0	01	1	0407-0511
16	BRACKET; PIPE CLIP (I)	1-47471-398-0	01	1	0512-
16	BRACKET; PIPE CLIP (J)	1-47479-896-0	01	1	0407-
16	BRACKET; PIPE CLIP (D)	1-47479-962-1	01	1	0407-
16	BRACKET; PIPE CLIP (C)	1-47479-963-0	01	1	0407-
16	BRACKET; PIPE CLIP (E)	1-47479-968-0	01	1	0407-
16	BRACKET; PIPE CLIP (G)	1-82698-467-0	01	1	0407-
16	BRACKET; PIPE CLIP (H)	1-82699-996-1	01	1	0407-
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	03	1	0407-
22	BRACKET; CLIP (A)	1-47479-329-0	02	1	0407-
22	BRACKET; CLIP (D)	1-47479-381-2	01	1	0407-0407
22	BRACKET; CLIP (D)	1-47479-381-2	02	1	0408-
22	BRACKET; CLIP (E)	1-47479-961-1	01	1	0407-
22	BRACKET; CLIP (B)	1-82698-467-0	01	1	0407-
74	CLIP; NYLON TUBE (C) ID=16 L=28	1-09700-872-0	02	1	0407-
74	CLIP; NYLON TUBE (C) ID=35 L=33	1-09700-945-0	01	1	0407-
74	CLIP; NYLON TUBE (B) ID=11X2 L=42	1-09701-306-0	02	1	0407-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-0407
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	0408-0511
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	15	1	0512-
74	CLIP; NYLON TUBE (D) ID=12 & 12	1-09709-280-1	02	1	0407-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	04	1	0407-0512
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	07	1	0407-0512
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	07	1	0601-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0511
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0512-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	09	1	0512-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	09	1	0407-0511
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0512-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	09	1	0603-
128	CLIP; NYLON TUBE L=350	1-09707-183-0	08	1	0407-0511
128	CLIP; NYLON TUBE L=350	1-09707-183-0	09	1	0512-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0512-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0407-0511
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
269	CLIP; BAND,NYLON TUBE (C) ID=16 L=28	1-09700-872-0	02	1	0407-
269	CLIP; BAND,NYLON TUBE (C) ID=35 L=33	1-09700-945-0	02	1	0407-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	02	1	0407-0511
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0512-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	04	1	0407-0511
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	0407-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	05	1	0407-
269	CLIP; BAND,NYLON TUBE (D) ID=12 & 12	1-09709-280-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
270	CLIP; NYLON TUBE (A) ID=28 L=40	1-09700-995-1	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=18 L=25 H=50	1-09701-096-0	01	1	0407-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0407-
270	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	0407-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	07	1	0407-0407
297	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	0408-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-
297	NUT; BRKT M12 FLANGE	0-91150-212-0	01	1	0407-0602
297	NUT; BRKT M12 FLANGE	0-91180-212-0	01	1	0603-

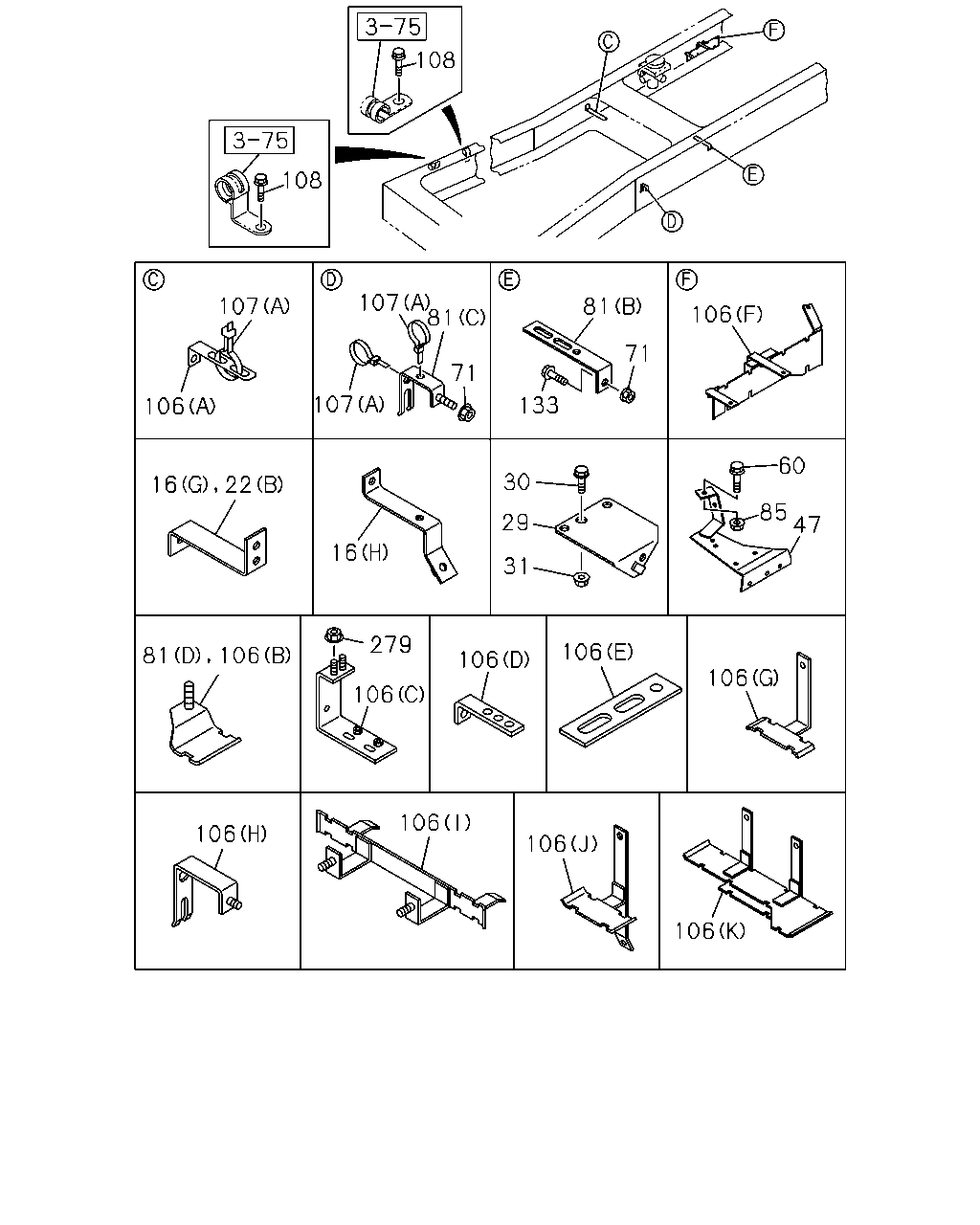

108 108 107 81 107 81 106 71 71 107 133 106 60 30 16 22 85 47 29 16 31 279 106 81 106 106 106 106 106 106 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	07	1	0512-
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	07	1	0407-0511
16	BRACKET; PIPE CLIP (B) L=100 H=30	1-47477-645-2	01	1	0512-0610
16	BRACKET; PIPE CLIP (K) L=80 H=30	8-97617-944-0	01	1	0611-
16	BRACKET; PIPE CLIP (A)	1-47479-840-0	01	1	0407-
16	BRACKET; PIPE CLIP (F)	1-47479-845-0	02	1	0407-
16	BRACKET; PIPE CLIP (I)	1-47479-889-0	01	1	0407-0511
16	BRACKET; PIPE CLIP (I)	1-47471-398-0	01	1	0512-
16	BRACKET; PIPE CLIP (J)	1-47479-896-0	01	1	0407-
16	BRACKET; PIPE CLIP (D)	1-47479-962-1	01	1	0407-
16	BRACKET; PIPE CLIP (C)	1-47479-963-0	01	1	0407-
16	BRACKET; PIPE CLIP (E)	1-47479-968-0	01	1	0407-
16	BRACKET; PIPE CLIP (G)	1-82698-467-0	01	1	0407-
16	BRACKET; PIPE CLIP (H)	1-82699-996-1	01	1	0407-
22	BRACKET; CLIP (C) L=100 H=30	1-47477-645-2	03	1	0407-
22	BRACKET; CLIP (A)	1-47479-329-0	02	1	0407-
22	BRACKET; CLIP (D)	1-47479-381-2	01	1	0407-0407
22	BRACKET; CLIP (D)	1-47479-381-2	02	1	0408-
22	BRACKET; CLIP (E)	1-47479-961-1	01	1	0407-
22	BRACKET; CLIP (B)	1-82698-467-0	01	1	0407-
29	BRACKET; CLIP,AIR PIPE	1-47479-408-0	01	1	0407-
30	BOLT; CLIP BRKT M10X25 FLANGE	0-28681-025-0	02	1	0407-0512
30	BOLT; CLIP BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
31	NUT; CLIP BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0602
31	NUT; CLIP BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
47	BRACKET; PIPE CLIP	1-47479-325-0	01	1	0407-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28680-830-0	02	1	0407-0512
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0601-
71	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	0407-0602
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0603-
81	BRACKET; CLIP (A)	1-47477-483-0	01	1	0407-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0407-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0407-
81	BRACKET; CLIP (D)	1-47479-562-0	02	1	0407-0410
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0411-
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0407-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	04	1	0407-
106	BRACKET; TUBE CLIP (H)	1-47479-381-2	01	1	0407-
106	BRACKET; TUBE CLIP (I)	1-47479-553-0	01	1	0407-
106	BRACKET; TUBE CLIP (B)	1-47479-562-0	02	1	0407-0410
106	BRACKET; TUBE CLIP (B) W/STUD M8X20	1-47471-209-0	02	1	0411-
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0407-
106	BRACKET; TUBE CLIP (G)	1-47479-870-0	01	1	0407-0511
106	BRACKET; TUBE CLIP (J)	1-47471-060-0	01	1	0512-
106	BRACKET; TUBE CLIP (F)	1-47479-954-0	01	1	0407-0511
106	BRACKET; TUBE CLIP (K)	8-97609-025-0	01	1	0512-
106	BRACKET; TUBE CLIP (D) L=120 H=35	1-82699-970-0	01	1	0407-0905
106	BRACKET; TUBE CLIP (D)	1-82698-358-0	01	1	0906-
107	CLIP; NYLON TUBE (C) ID=24 L=27	1-09700-809-0	01	1	0512-
107	CLIP; NYLON TUBE (C) ID=25 L=50	1-09701-019-0	01	1	0512-
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	03	1	0407-0511
107	CLIP; NYLON TUBE (B) ID=31 H=30 L=35	1-09700-994-0	02	1	0512-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	13	1	0407-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	09	1	0407-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	09	1	0601-
133	BOLT; BRKT M6X10 FLANGE	0-28080-610-0	01	1	0407-0512
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0511
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	10	1	0512-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	10	1	0601-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	09	1	0407-0511
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0407-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0407-0512
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	03	1	0407-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	16	1	0407-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	16	1	0603-

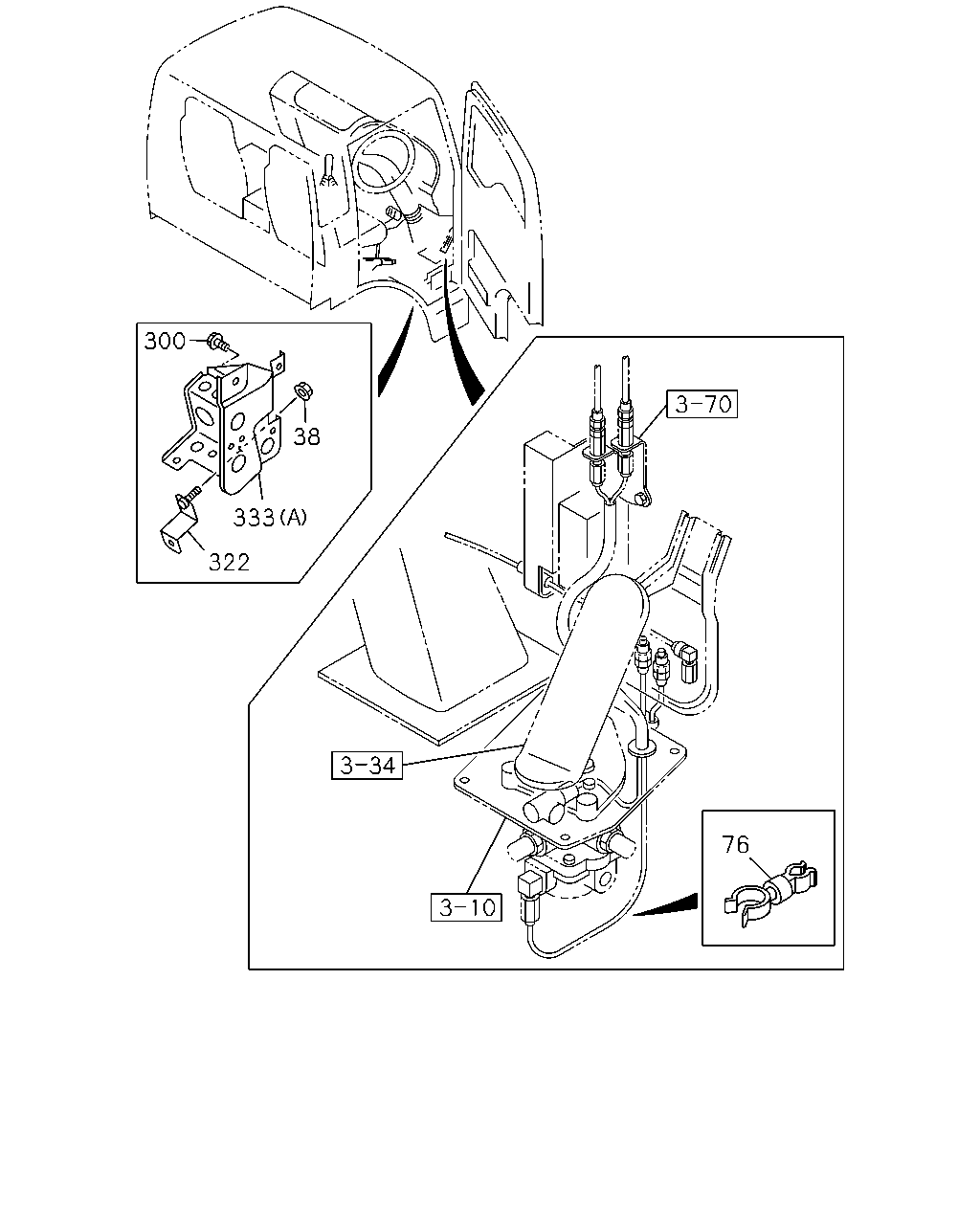

300 38 333 322 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0702
76	CLIP; NYLON TUBE ID=6.35 & 6.35	1-09709-273-1	02	1	0407-0511
76	CLIP; NYLON TUBE 6WF1 TC-C(1B8) ID=6.35 & 6.35	1-09709-273-1	02	1	0512-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0407-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
322	BRACKET; CLIP	1-79996-360-0	01	1	0407-0601
322	BRACKET; CLIP	1-79996-659-1	01	1	0602-0702
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0407-
333	BRACKET; BRK AIR PIPE (A)	1-79907-110-0	01	1	0407-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
