Isuzu WW
▶
TRUCKS
▶
EXY
▶
10956 - EXY NEW ZEALAND
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#30048) — 15 parça
◀
[358A] NO.2 (14 parça)

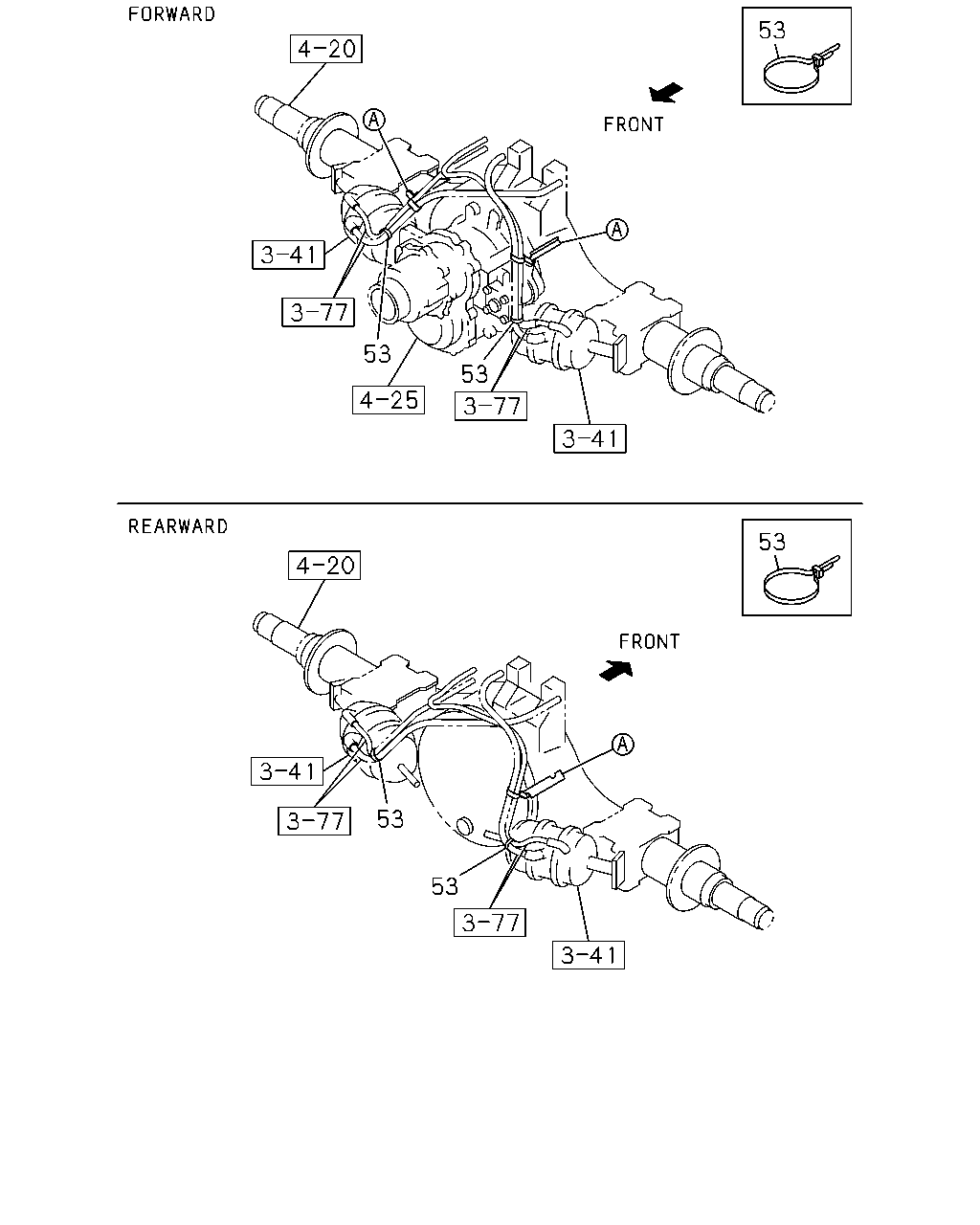

[358A] NO.1 (1 parça)
▶
9
38
153
138
138
69
69
9
153
9
9
153
153
138
69
138
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
06
1
0407-0512
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
06
1
0601-
38
NUT; CLIP FIX
M8 FLANGE
0-91150-108-0
01
1
0407-0602
38
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0603-
69
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0407-0512
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
69
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
0407-0512
69
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0601-
138
CLIP; TUBE
ID=35 L=33
1-09700-945-0
05
1
0407-
153
BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) FORWARD
1-42129-488-1
01
1
0512-
153
BRACKET; NYLON TUBE
(A) REARWARD
1-42129-493-1
01
1
0407-
153
BRACKET; NYLON TUBE
(C) FORWARD
1-42129-494-0
01
1
0407-0511
153
BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) FORWARD
1-42129-494-0
01
1
0512-
153
BRACKET; NYLON TUBE
(B) FORWARD
1-42129-499-0
01
1
0407-
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
L=250
1-09707-126-0
04
1
0407-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
