3-20 — AIR TANK (#30041) — 289 parça

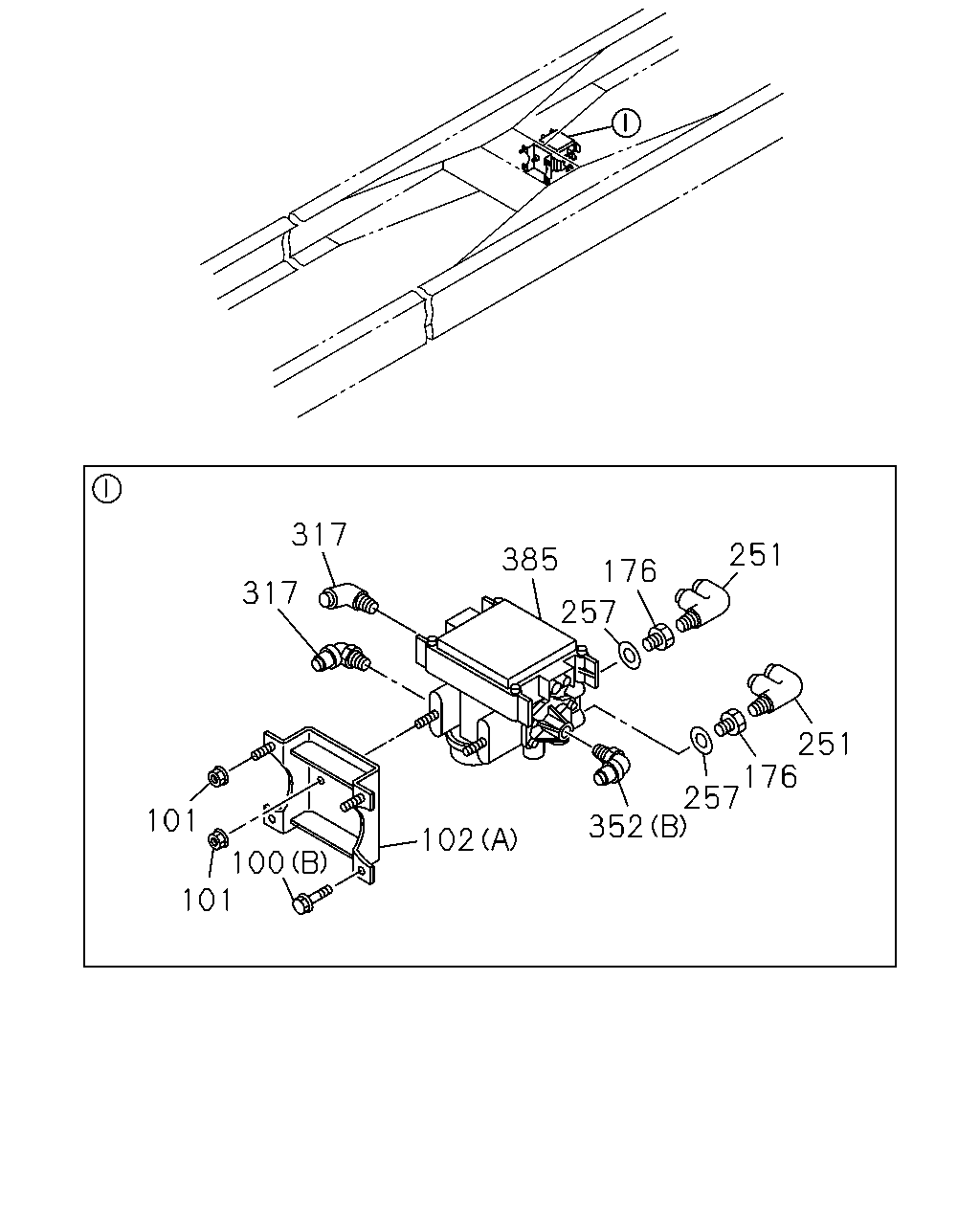

çizim 87906
317 251 385 176 317 257 251 176 257 352 101 102 100 101
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0512
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
100 BOLT; MODULATOR
(A) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0512
100 BOLT; MODULATOR
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
100 BOLT; MODULATOR
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0407-0512
100 BOLT; MODULATOR
(D) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0512
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0512
100 BOLT; MODULATOR
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601-
100 BOLT; MODULATOR
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0603-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 03 1 0603-
101 NUT; MODULATOR
M10 FLANGE 		0-91150-210-0 02 1 0407-0602
101 NUT; MODULATOR
M10 FLANGE 		0-91180-210-0 02 1 0603-
101 NUT; MODULATOR
M12 FLANGE 		0-91150-212-0 02 1 0407-0602
101 NUT; MODULATOR
M12 FLANGE 		0-91180-212-0 02 1 0603-
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 02 1 0407-0511
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512-
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512-
102 BRACKET; MODULATOR
(C) 		1-47479-787-0 01 1 0407-
102 BRACKET; MODULATOR
(A) 		1-47479-951-0 01 1 0407-0605
102 BRACKET; MODULATOR
(A) 		8-98048-082-0 01 1 0606-
176 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 02 1 0407-
251 CONNECTOR; DELIVERY
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0407-
257 GASKET; PLUG
ID=22.5 		9-09571-422-0 02 1 0407-
317 CONNECTOR; MODULATOR
DIN12 & M22 ELBOW 		1-09661-521-0 02 1 0407-
352 CONNECTOR; STRAIGHT
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0407-
352 CONNECTOR; STRAIGHT
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-
385 MODULATOR 1-48240-247-0 01 1 0407-

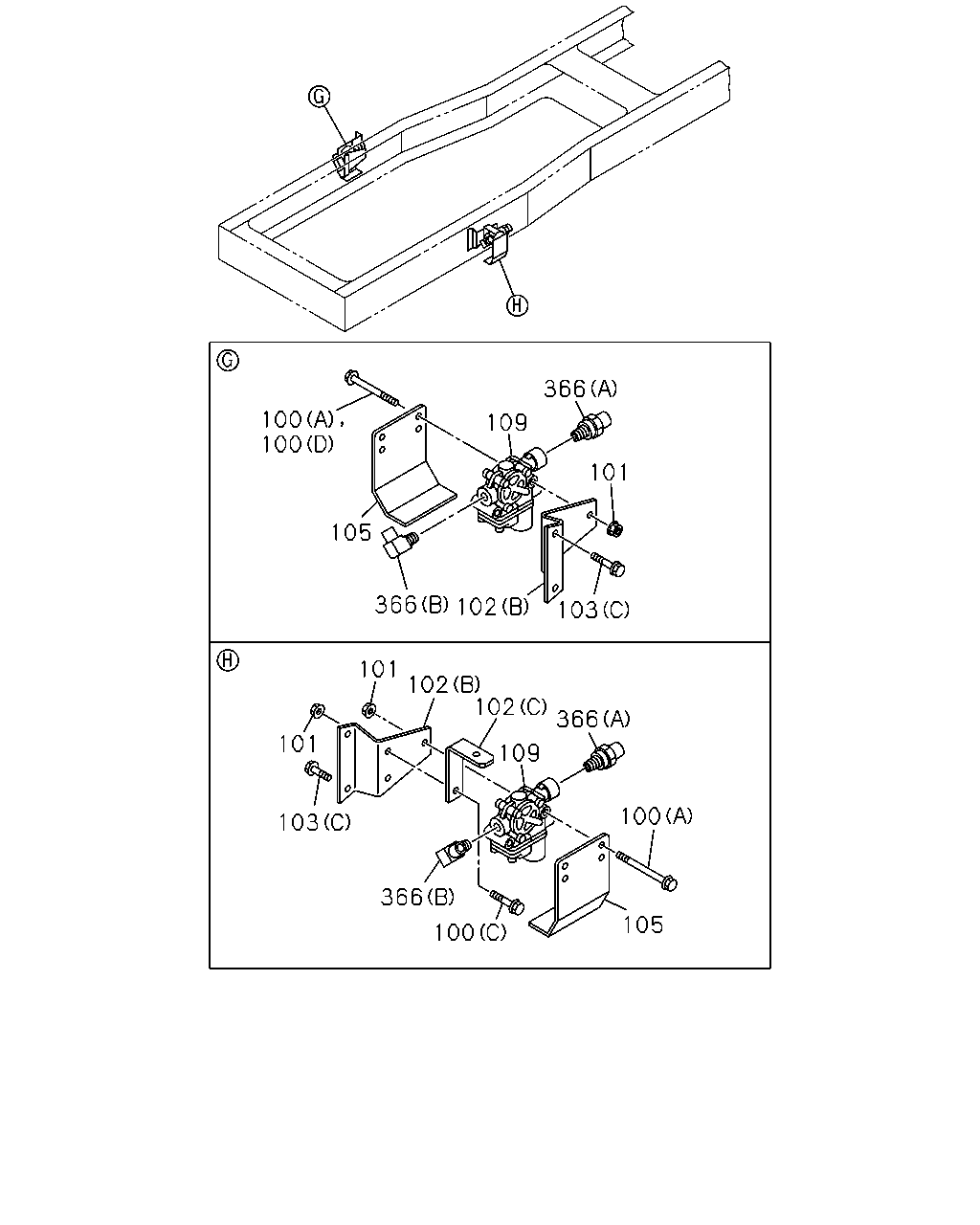

çizim 87934
366 100 100 109 101 105 103 101 102 102 366 101 109 100 103 366 105 100 366 102
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0512
100 BOLT; MODULATOR
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
100 BOLT; MODULATOR
(A) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0512
100 BOLT; MODULATOR
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
100 BOLT; MODULATOR
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0407-0512
100 BOLT; MODULATOR
(D) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0512
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 02 1 0407-0512
100 BOLT; MODULATOR
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601-
100 BOLT; MODULATOR
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 02 1 0603-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 03 1 0603-
101 NUT; MODULATOR
M10 FLANGE 		0-91150-210-0 02 1 0407-0602
101 NUT; MODULATOR
M10 FLANGE 		0-91180-210-0 02 1 0603-
101 NUT; MODULATOR
M12 FLANGE 		0-91150-212-0 02 1 0407-0602
101 NUT; MODULATOR
M12 FLANGE 		0-91180-212-0 02 1 0603-
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 02 1 0407-0511
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512-
102 BRACKET; MODULATOR
(B) 		1-47479-550-0 01 1 0512-
102 BRACKET; MODULATOR
(C) 		1-47479-787-0 01 1 0407-
102 BRACKET; MODULATOR
(A) 		1-47479-951-0 01 1 0407-0605
102 BRACKET; MODULATOR
(A) 		8-98048-082-0 01 1 0606-
103 BOLT; BRKT
(A) M14X35 		0-20801-435-0 04 1 0407-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (A) M14X35 		0-20801-435-0 04 1 0512-0512
103 BOLT; BRKT
6WF1 TC-C(1B8) (A) M14X35 		0-20851-435-0 04 1 0601-
103 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0512
103 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0407-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28681-030-0 04 1 0512-0512
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
105 COVER; MODULATOR 1-47479-434-1 01 1 0407-
105 COVER; MODULATOR 1-47479-434-1 01 1 0407-
109 MODULATOR; FRT 1-48240-083-1 02 1 0407-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0407-
366 CONNECTOR; NYLON TUBE
(B) 		1-09661-575-0 02 1 0407-

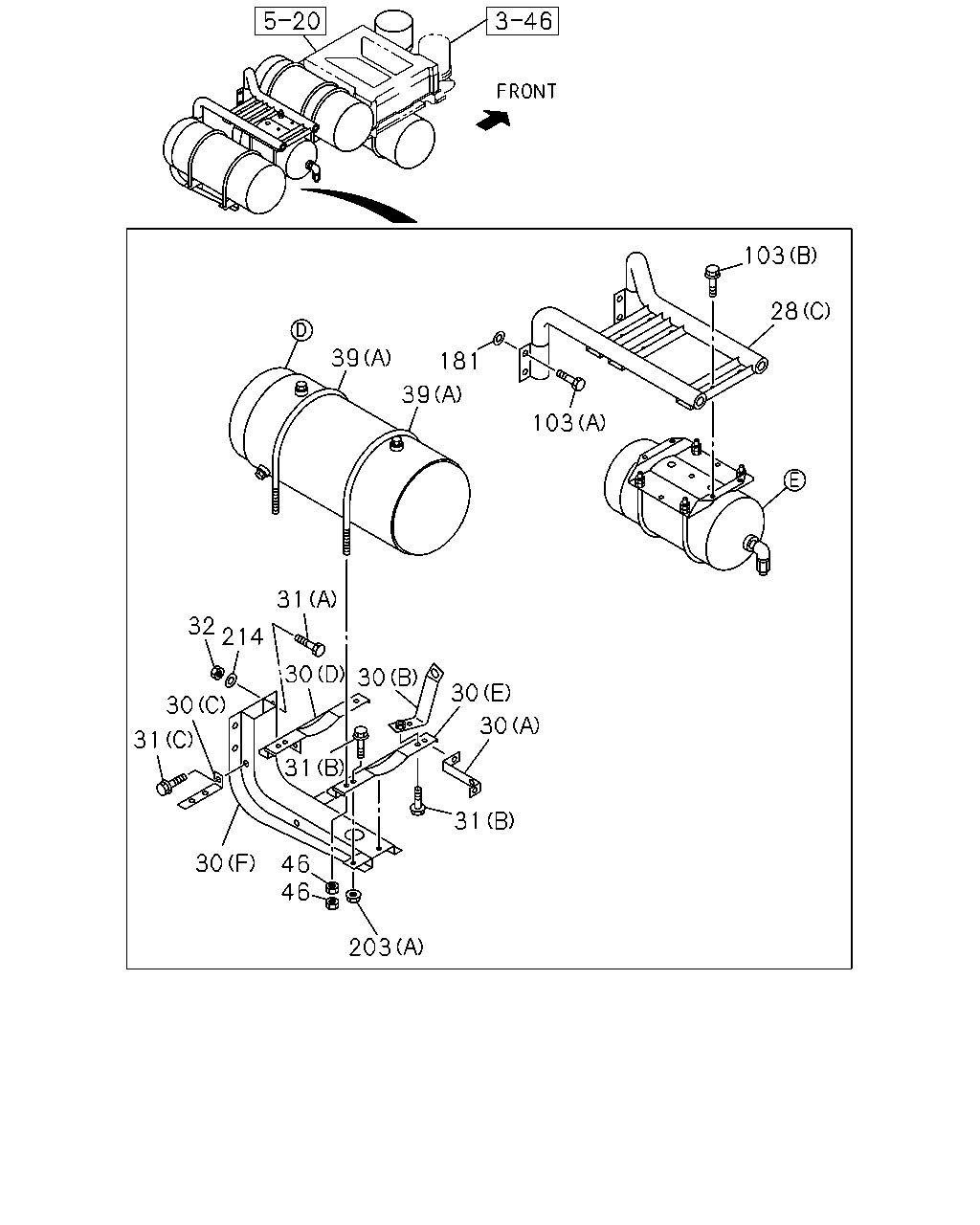

çizim 87964
103 28 39 181 39 103 31 32 214 30 30 30 30 30 31 31 31 30 46 46 203
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0407-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0407-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (B) 		1-48317-473-2 01 1 0512-
28 BRACKET; AIR TANK
(C) 		1-48317-985-1 01 1 0407-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (C) 		1-48317-985-1 01 1 0512-
30 BRACKET; AIR TANK,SUB
(A) 		1-33659-142-0 01 1 0407-
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-014-1 01 1 0407-
30 BRACKET; AIR TANK,SUB
(D) 		1-48316-026-0 01 1 0407-
30 BRACKET; AIR TANK,SUB
(F) 		1-48317-979-6 01 1 0407-
30 BRACKET; AIR TANK,SUB
(E) 		1-48317-994-2 01 1 0407-
30 BRACKET; AIR TANK,SUB
(C) 		1-82699-208-1 01 1 0407-0511
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20801-450-0 04 1 0407-0512
31 BOLT; BRKT TO FRAME
(A) M14X50 		0-20851-450-0 04 1 0601-
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0407-0512
31 BOLT; BRKT TO FRAME
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28681-225-0 04 1 0407-0512
31 BOLT; BRKT TO FRAME
(B) M12X25 FLANGE 		0-28651-225-0 04 1 0601-
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 03 1 0512-0512
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 03 1 0601-
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 02 1 0407-0512
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 02 1 0601-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0407-0511
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0407-0511
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0407-0511
39 U-BOLT; AIR TANK
6WF1 TC-C(1B8) (B) L=210 		1-48317-458-1 02 1 0512-
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0407-0511
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511
46 NUT; U-BOLT
6WF1 TC-C(1B8) M8 		9-09110-408-0 08 1 0512-0512
46 NUT; U-BOLT
6WF1 TC-C(1B8) M8 		0-91110-508-0 08 1 0601-
103 BOLT; BRKT
(A) M14X35 		0-20801-435-0 04 1 0407-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (A) M14X35 		0-20801-435-0 04 1 0512-0512
103 BOLT; BRKT
6WF1 TC-C(1B8) (A) M14X35 		0-20851-435-0 04 1 0601-
103 BOLT; BRKT
(C) M8X35 FLANGE 		0-28680-835-0 02 1 0407-0512
103 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 0601-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0407-0511
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28681-030-0 04 1 0512-0512
103 BOLT; BRKT
6WF1 TC-C(1B8) (B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
181 WASHER; LK,AIR TANK
ID=14.2 		9-09150-514-0 04 1 0407-0511
181 WASHER; LK,AIR TANK
6WF1 TC-C(1B8) ID=14.2 		9-09150-514-0 04 1 0512-0603
181 WASHER; LK,AIR TANK
6WF1 TC-C(1B8) ID=14.2 		0-91510-514-0 04 1 0604-
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0602
203 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603-
203 NUT
(B) M16 		9-99110-516-0 01 1 0407-0512
203 NUT
(B) M16 		0-91110-516-0 01 1 0601-
203 NUT
(C) M18 		9-99110-518-0 03 1 0407-0512
203 NUT
(C) M18 		0-91110-518-0 03 1 0601-
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		9-09150-514-0 04 1 0407-0603
214 WASHER; LK,BRKT TO FRAME
ID=14.2 		0-91510-514-0 04 1 0604-

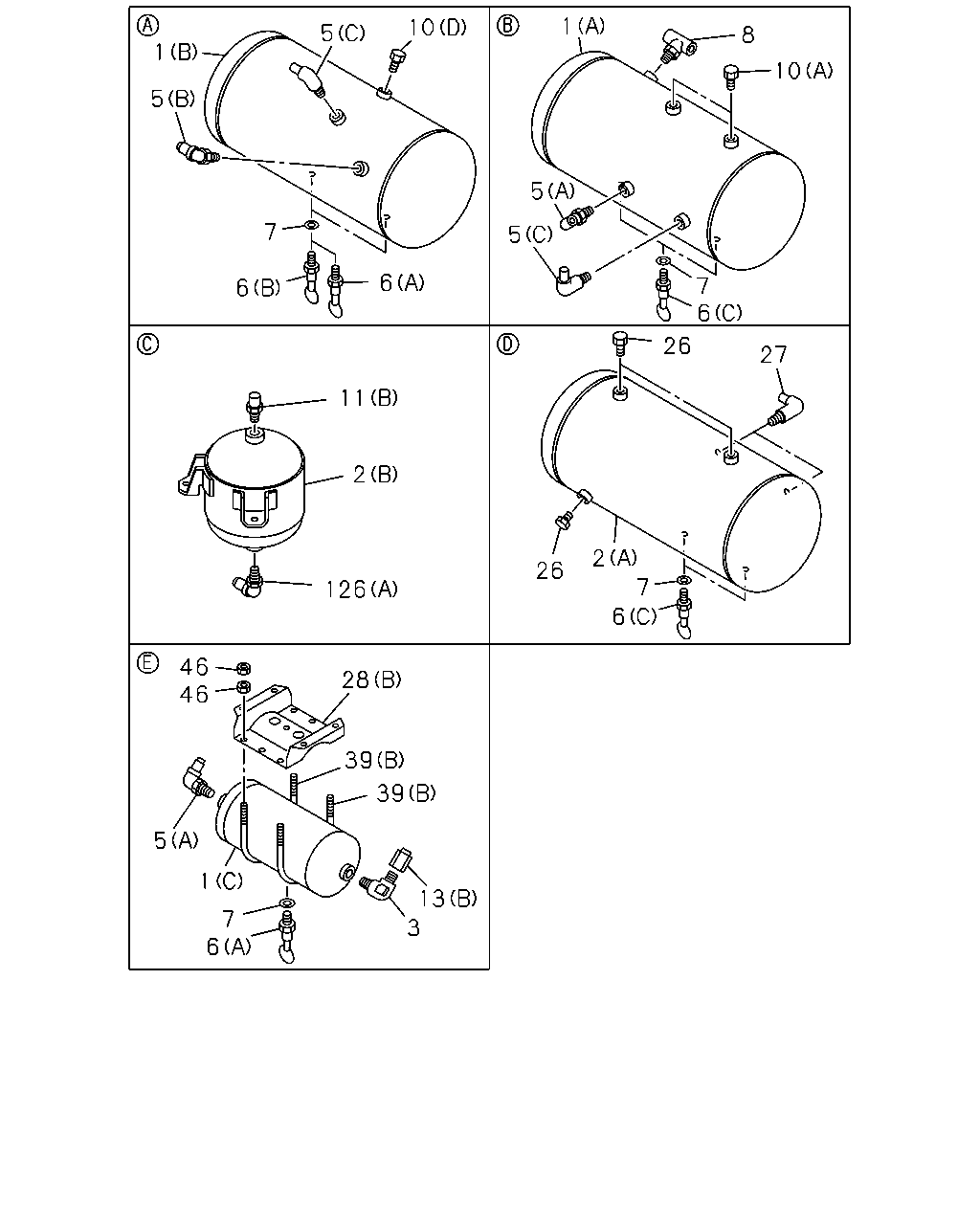

çizim 89360
1 10 5 8 1 10 5 5 7 5 6 7 6 6 26 27 11 2 2 26 7 126 6 46 46 28 39 39 5 1 13 7 6 3
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 0407-0511
1 TANK ASM; AIR
6WF1 TC-C(1B8) (C) 		1-48371-165-3 01 1 0512-
1 TANK ASM; AIR
(A) 		1-48371-226-3 01 1 0407-
1 TANK ASM; AIR
(B) 		1-48371-227-4 01 1 0407-
2 TANK; AIR
(B) 		1-48371-166-3 01 1 0407-
2 TANK; AIR
(A) 		1-48371-226-3 01 1 0407-
3 VALVE; CHECK,AIR TANK 1-48410-605-0 01 1 0407-0511
3 VALVE; CHECK,AIR TANK
6WF1 TC-C(1B8) 		1-48410-605-0 01 1 0512-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-0511
5 UNION; AIR TANK
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512-
5 UNION; AIR TANK
6WF1 TC-C(1B8) (A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0512-
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0407-
5 UNION; AIR TANK
(C) 		1-09661-550-0 01 1 0407-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-006-1 01 1 0407-
6 COCK; DRAIN,AIR TANK
(C) W/COVER 		1-48312-004-2 02 1 0407-
6 COCK; DRAIN,AIR TANK
(C) W/COVER 		1-48312-004-2 02 1 0407-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 0407-0511
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 0407-0511
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 0512-
6 COCK; DRAIN,AIR TANK
6WF1 TC-C(1B8) (A) 		1-48312-015-0 01 1 0512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0407-0511
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0407-0511
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0512-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 0407-0511
7 GASKET; DRAIN COCK
6WF1 TC-C(1B8) ID=14 		1-09630-145-0 01 1 0512-
8 CONNECTOR; AIR TANK 1-09661-568-0 01 1 0407-
10 PLUG; AIR TANK
6WG1 TC-S(97L) (C) PT1/4 		9-99204-513-0 05 1 0512-
10 PLUG; AIR TANK
(D) M22 		1-09661-502-0 01 1 0407-
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0407-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0407-
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 03 1 0407-0511
10 PLUG; AIR TANK
6WF1 TC-C(1B8) (C) PT1/4 		9-99204-513-0 03 1 0512-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0407-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0407-
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407-
13 ADAPTER; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0407-0511
13 ADAPTER; NYLON TUBE
6WF1 TC-C(1B8) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0512-
26 PLUG; SUB AIR TANK
M22 		1-09661-502-0 03 1 0407-
27 UNION; ELBOW,AIR TANK 1-09661-570-0 02 1 0407-
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0407-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0407-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (B) 		1-48317-473-2 01 1 0512-
28 BRACKET; AIR TANK
(C) 		1-48317-985-1 01 1 0407-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (C) 		1-48317-985-1 01 1 0512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0407-0511
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0407-0511
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0407-0511
39 U-BOLT; AIR TANK
6WF1 TC-C(1B8) (B) L=210 		1-48317-458-1 02 1 0512-
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0407-0511
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511
46 NUT; U-BOLT
6WF1 TC-C(1B8) M8 		9-09110-408-0 08 1 0512-0512
46 NUT; U-BOLT
6WF1 TC-C(1B8) M8 		0-91110-508-0 08 1 0601-
126 CONNECTOR; ELBOW
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0407-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-
126 CONNECTOR; ELBOW
(D) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 0407-
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0407-
çizim 103886
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 0407-0512
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 0601-

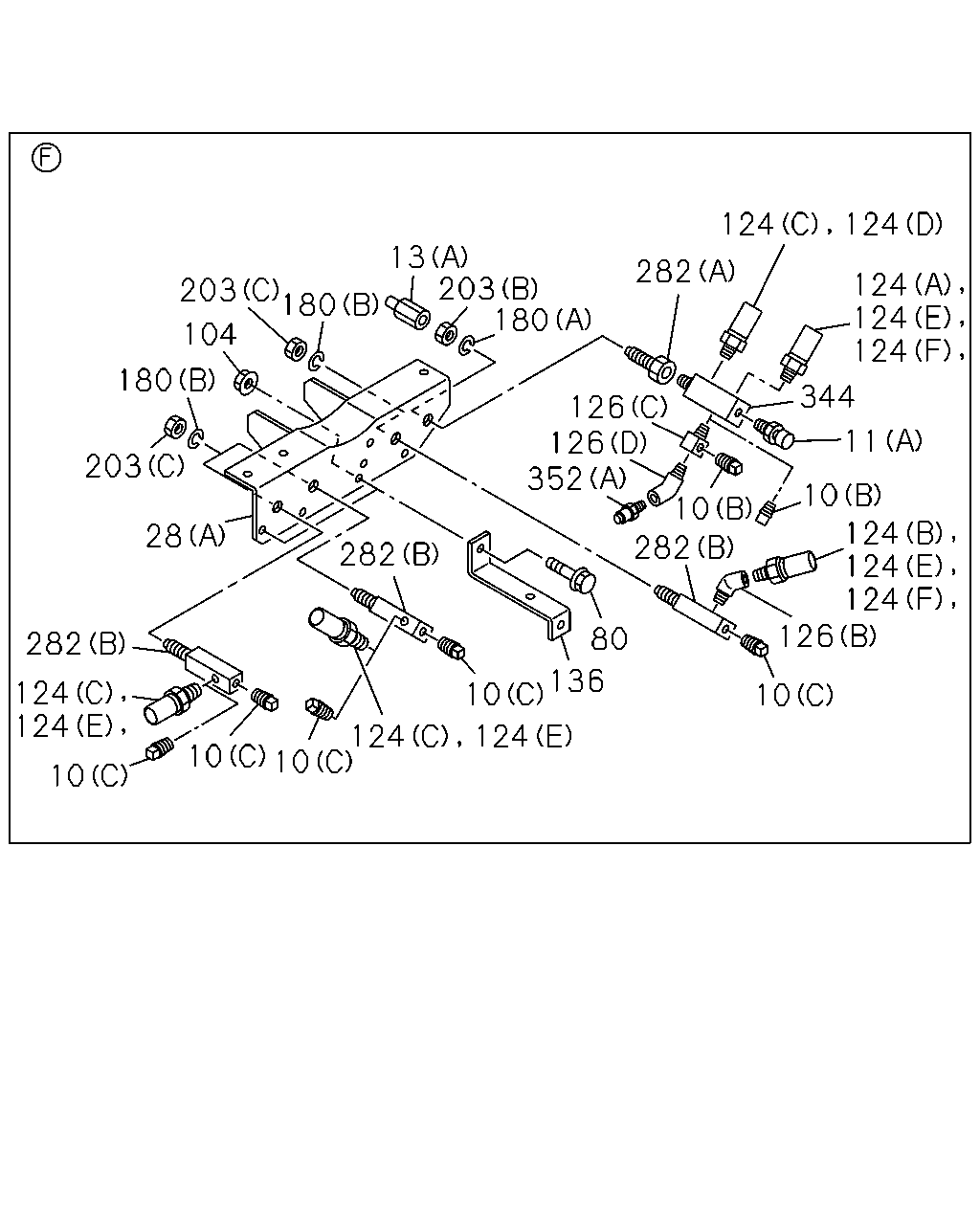

çizim 103887
124 124 13 203 180 282 124 124 124 203 180 104 126 126 352 180 344 11 203 10 124 124 124 126 10 282 28 282 80 282 136 10 124 124 10 124 10 10 124 10
BalonParca AdiParca NoAdetTipApplied Date
10 PLUG; AIR TANK
6WG1 TC-S(97L) (C) PT1/4 		9-99204-513-0 05 1 0512-
10 PLUG; AIR TANK
(D) M22 		1-09661-502-0 01 1 0407-
10 PLUG; AIR TANK
(A) 		1-09661-569-0 02 1 0407-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0407-
10 PLUG; AIR TANK
(C) PT1/4 		9-99204-513-0 03 1 0407-0511
10 PLUG; AIR TANK
6WF1 TC-C(1B8) (C) PT1/4 		9-99204-513-0 03 1 0512-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0407-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0407-
13 ADAPTER; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0407-
13 ADAPTER; NYLON TUBE
(B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0407-0511
13 ADAPTER; NYLON TUBE
6WF1 TC-C(1B8) (B) DIN8 & M20 STRAIGHT 		1-09661-381-0 01 1 0512-
28 BRACKET; AIR TANK
(A) 		1-47479-675-1 01 1 0407-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0407-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (B) 		1-48317-473-2 01 1 0512-
28 BRACKET; AIR TANK
(C) 		1-48317-985-1 01 1 0407-0511
28 BRACKET; AIR TANK
6WF1 TC-C(1B8) (C) 		1-48317-985-1 01 1 0512-
80 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0512
80 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606
80 BOLT; BRKT
6WF1 TC-C(1B8) M8X16 FLANGE 		0-28050-816-0 02 1 0607-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-0606
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0607-
104 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0607-
124 SWITCH; AIR PRESSURE
(B) 		1-48340-065-0 01 1 0407-0511
124 SWITCH; AIR PRESSURE
6WF1 TC-C(1B8) (E) 		1-48340-065-0 04 1 0512-
124 SWITCH; AIR PRESSURE
(C) 		1-48340-066-0 03 1 0407-0511
124 SWITCH; AIR PRESSURE
(D) 		1-48340-066-0 01 1 0512-
124 SWITCH; AIR PRESSURE
(A) 		1-48340-067-0 01 1 0407-0511
124 SWITCH; AIR PRESSURE
6WG1 TC-S(97L) (F) 		1-48340-065-0 02 1 0512-
126 CONNECTOR; ELBOW
(C) PT3/8 3WAY 		1-09661-300-0 01 1 0407-
126 CONNECTOR; ELBOW
(A) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0407-
126 CONNECTOR; ELBOW
(D) R3/8 ELBOW 45 DEGREES 		1-09664-209-0 01 1 0407-
126 CONNECTOR; ELBOW
(B) R1/4 & RC1/4 		1-09664-211-0 01 1 0407-
136 BRACKET; CLIP 1-33659-142-0 02 1 0407-0606
136 BRACKET; CLIP
6WF1 TC-C(1B8) 		1-33659-142-0 02 1 0607-
180 WASHER; LK
(A) ID=16.2 		9-09150-516-0 01 1 0407-0603
180 WASHER; LK
(A) ID=16.2 		0-91510-516-0 01 1 0604-
180 WASHER; LK
(B) ID=18.2 		9-09150-518-0 03 1 0407-0603
180 WASHER; LK
(B) ID=18.2 		0-91510-518-0 03 1 0604-
203 NUT
(A) M12 FLANGE 		0-91150-212-0 01 1 0407-0602
203 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0603-
203 NUT
(B) M16 		9-99110-516-0 01 1 0407-0512
203 NUT
(B) M16 		0-91110-516-0 01 1 0601-
203 NUT
(C) M18 		9-99110-518-0 03 1 0407-0512
203 NUT
(C) M18 		0-91110-518-0 03 1 0601-
282 UNION; 2 WAY
(A) 		1-09650-222-1 01 1 0407-
282 UNION; 2 WAY
(B) 		1-09661-593-0 03 1 0407-
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0407-
352 CONNECTOR; STRAIGHT
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0407-
352 CONNECTOR; STRAIGHT
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0407-

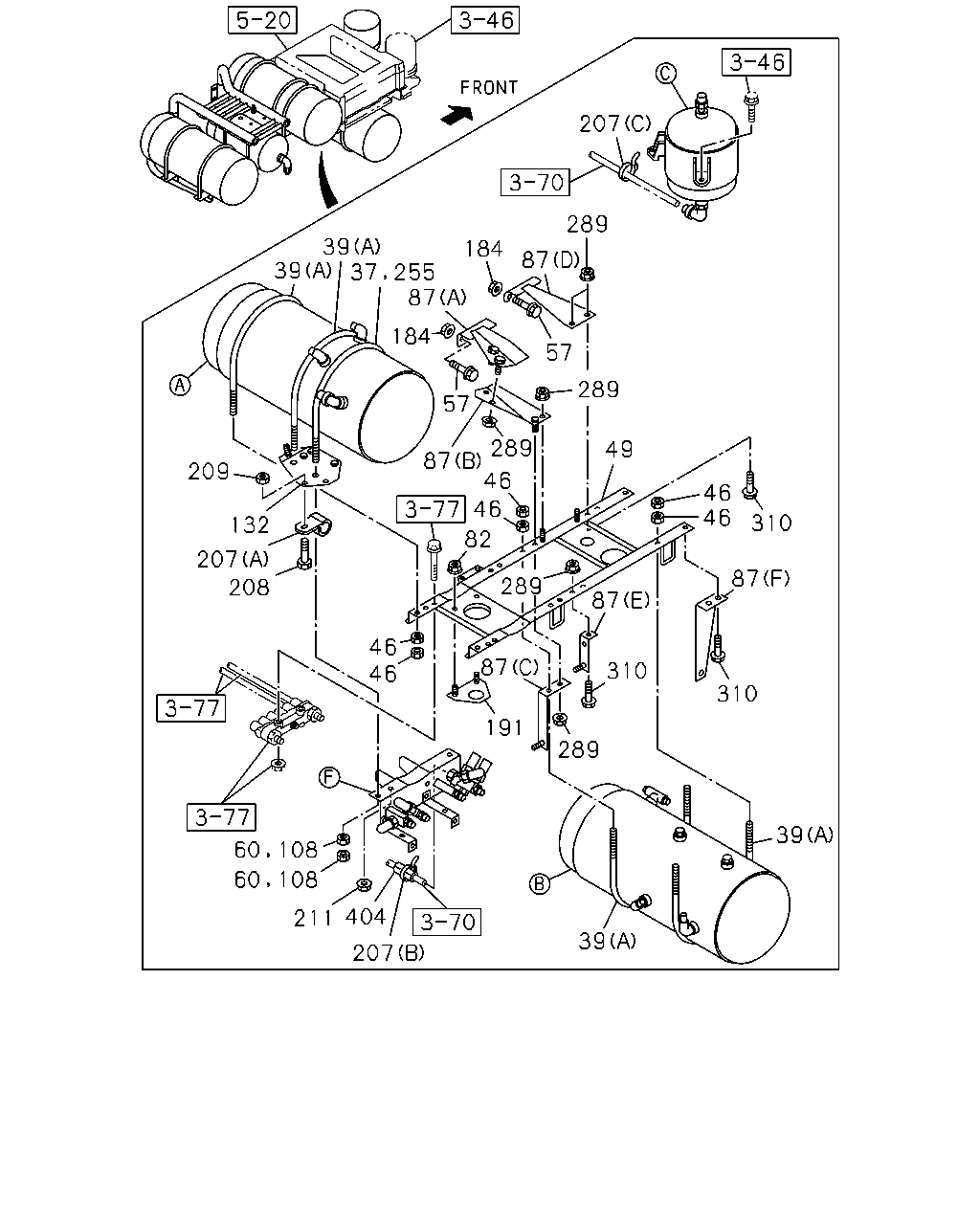

çizim 103893
207 289 39 87 184 87 39 184 57 289 57 289 87 46 49 209 46 46 46 310 132 82 289 87 207 208 87 46 46 87 310 310 191 289 39 60 108 108 60 404 211 39 207 37 255
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
L=303 		1-48317-087-2 01 1 0407-0409
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 02 1 0407-0511
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 06 1 0512-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0407-0511
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0407-0511
39 U-BOLT; AIR TANK
6WF1 TC-C(1B8) (B) L=210 		1-48317-458-1 02 1 0512-
46 NUT; U-BOLT
M8 		9-09110-408-0 16 1 0407-0511
46 NUT; U-BOLT
M8 		9-09110-408-0 24 1 0512-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511
46 NUT; U-BOLT
M8 		9-09110-408-0 08 1 0407-0511
46 NUT; U-BOLT
6WF1 TC-C(1B8) M8 		9-09110-408-0 08 1 0512-0512
46 NUT; U-BOLT
6WF1 TC-C(1B8) M8 		0-91110-508-0 08 1 0601-
49 BRACKET; AIR TANK 1-48316-046-1 01 1 0407-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0407-0512
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
60 NUT; AIR TANK FIX
M8 		9-09110-408-0 04 1 0407-0409
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47479-470-2 01 1 0407-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47479-541-1 01 1 0407-
87 BRACKET; AIR PIPE JOINT
(F) 		1-47479-620-0 01 1 0407-
87 BRACKET; AIR PIPE JOINT
(D) 		1-47479-690-0 01 1 0407-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-707-0 01 1 0407-
87 BRACKET; AIR PIPE JOINT
(A) 		1-47479-944-0 01 1 0407-
108 NUT; CONNECTOR
M8 		9-09110-408-0 04 1 0410-0512
108 NUT; CONNECTOR
M8 		0-91110-508-0 04 1 0601-
132 BRACKET; STRING GUIDE 1-47479-947-0 01 1 0407-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407-0602
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
191 BRACKET; STOPPER,AIR TANK 1-48316-015-1 01 1 0407-
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 26 1 0407-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 0407-
207 CLIP; AIR PIPE
(A) ID=6 L=20 		9-09524-535-0 01 1 0407-
207 CLIP; AIR PIPE
(A) ID=16 L=20 		9-09525-535-0 01 1 0407-0606
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
208 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0407-0512
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
209 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0407-0602
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603-
255 BOLT; CONN
L=303 		1-48317-087-2 01 1 0410-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 09 1 0407-0602
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 09 1 0603-
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 05 1 0407-0511
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 05 1 0512-0512
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 05 1 0512-0512
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0607
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0607
310 BOLT; CLIP,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 10 1 0608-
404 SLEEVE; RUBBER
ID=15 OD=19 L=50 		1-09337-014-0 05 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
