3 - Brakes, Brake System
▶

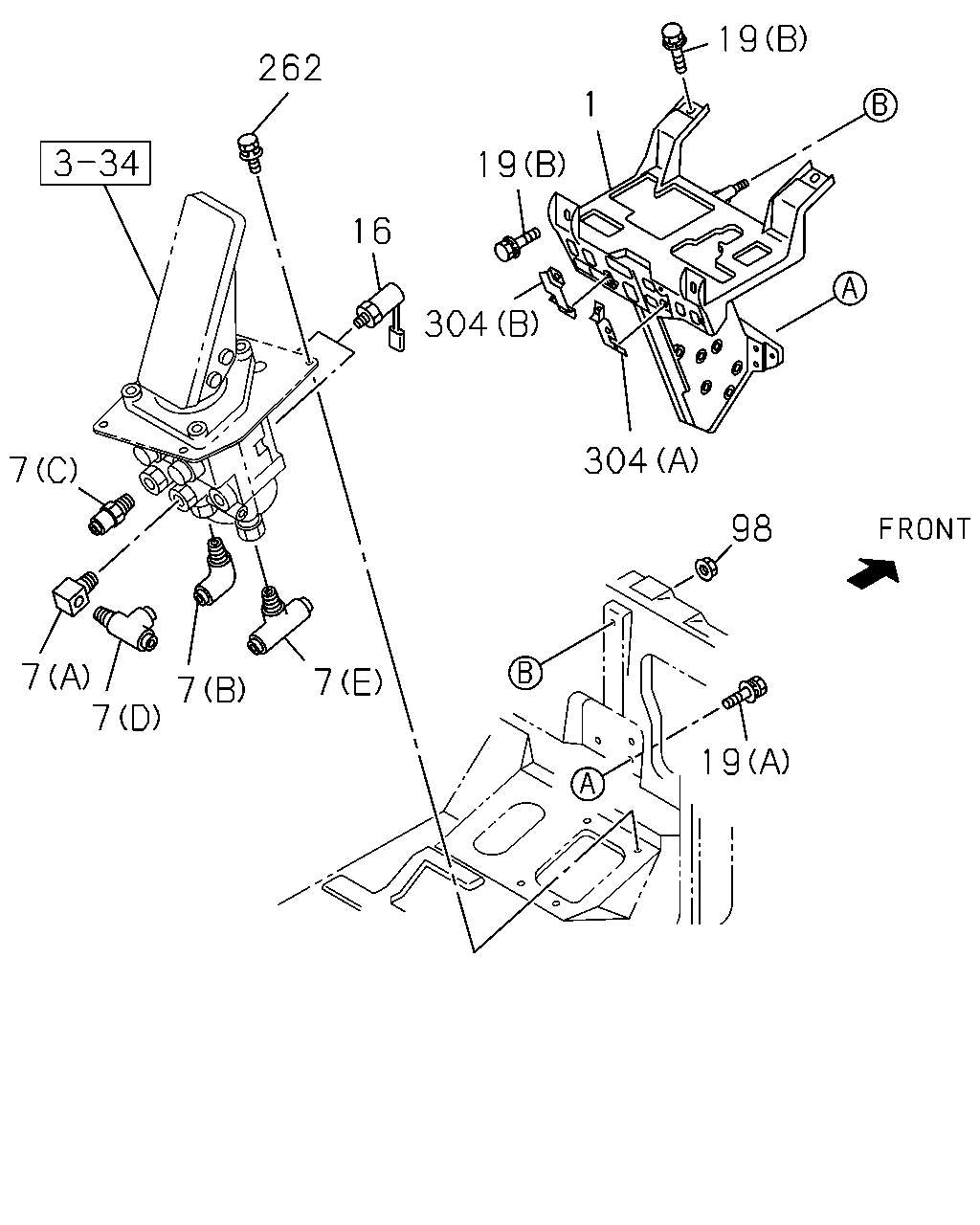

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#30039) — 21 parça
19
262
1
19
16
304
304
7
98
7
7
7
7
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
1-73908-191-7
01
1
0407-
7
CONNECTOR; BRK VALVE
6WG1 TC-S(97L) (E)
1-09661-537-0
01
1
0512-0704
7
CONNECTOR; BRK VALVE
6WG1 TC-S(97L) (E) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
0705-
7
CONNECTOR; BRK VALVE
6WG1 TC-S(97L) (D) DIN8 & R3/8 & RC1/4 3WAY
1-09661-687-0
01
1
0512-
7
CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW
1-09660-696-0
01
1
0407-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0407-
7
CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0407-
7
CONNECTOR; BRK VALVE
(D)
1-09660-969-0
01
1
0407-0511
7
CONNECTOR; BRK VALVE
6WF1 TC-C(1B8) (D)
1-09660-969-0
01
1
0512-
7
CONNECTOR; BRK VALVE
(E)
1-09660-970-0
01
1
0407-0511
7
CONNECTOR; BRK VALVE
6WF1 TC-C(1B8) (E)
1-09660-970-0
01
1
0512-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
0407-0511
16
SWITCH; STOP LAMP
6WF1 TC-C(1B8) GREEN
1-82410-176-1
02
1
0512-
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0407-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0407-0904
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0407-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0407-0904
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
304
SUPPORT ASM; PEDAL BRKT
(A)
1-73996-341-1
01
1
0407-
304
SUPPORT ASM; PEDAL BRKT
(B)
1-73996-342-1
01
1
0407-
