3-41 — REAR BRAKE POWER CHAMBER (#30037) — 224 parça

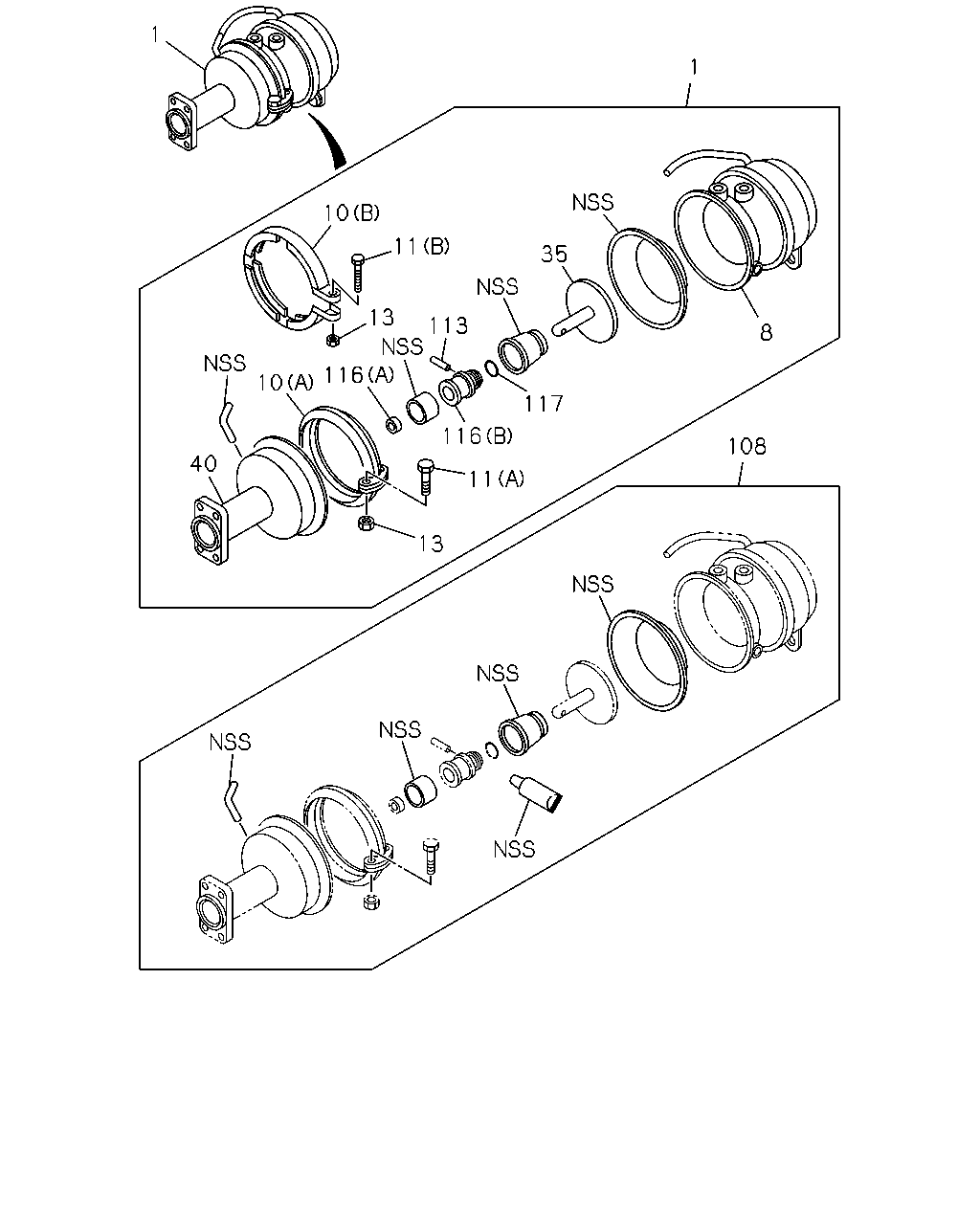

1 1 10 11 35 13 113 8 116 10 117 116 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0512-1005
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0512-1005
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0512-1005
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0512-1005
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	02	1	0407-0511
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	02	1	0407-0511
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0512-0901
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0512-0901
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0407-0901
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0407-0901
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-
13	NUT; CLAMP RING	1-48269-147-0	04	1	0407-0901
13	NUT; CLAMP RING	1-48269-147-0	04	1	0407-0901
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0407-0511
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0407-0511
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0512-0910
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0512-0910
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-086-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-086-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-175-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-175-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-088-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-088-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-176-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-176-1	01	1	0512-
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0407-0511
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0407-0511
108	REPAIR KIT; SPR CHAMBER	1-85576-327-0	02	1	0512-0910
108	REPAIR KIT; SPR CHAMBER	1-85576-327-0	02	1	0512-0910
108	REPAIR KIT; SPR CHAMBER	8-98146-980-0	02	1	0911-
108	REPAIR KIT; SPR CHAMBER	8-98146-980-0	02	1	0911-
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0407-0910
113	PIN; SPR CHAMBER	1-48269-153-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0407-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0407-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0407-0910
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-

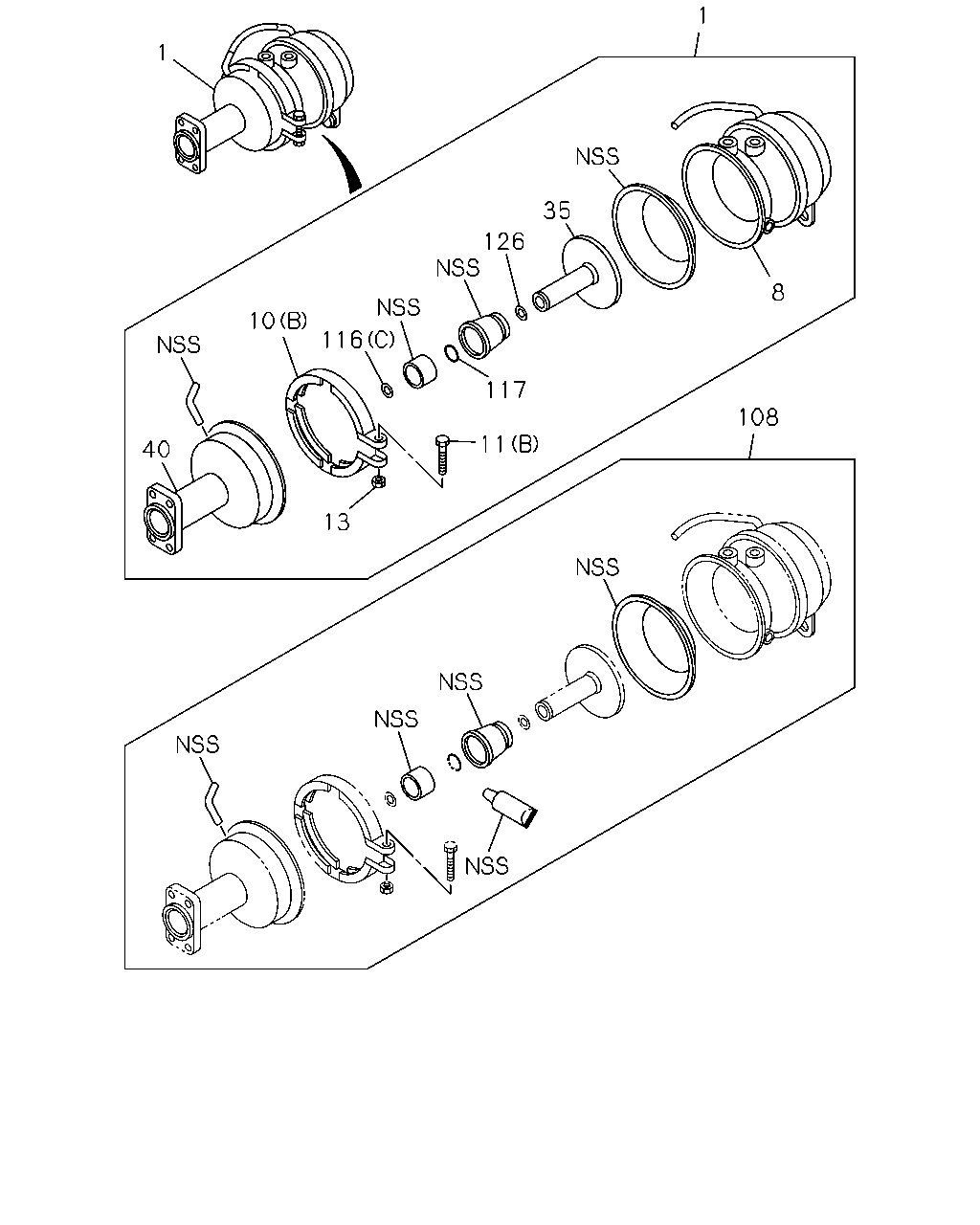

1 1 35 126 8 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-098-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0512-1005
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0512-1005
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-100-1	01	1	0407-0511
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0512-1005
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0512-1005
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	02	1	0407-0511
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	02	1	0407-0511
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0512-0901
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0512-0901
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0407-0901
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0407-0901
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-
13	NUT; CLAMP RING	1-48269-147-0	04	1	0407-0901
13	NUT; CLAMP RING	1-48269-147-0	04	1	0407-0901
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0407-0511
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0407-0511
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0512-0910
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0512-0910
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-086-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-086-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-175-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-175-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-088-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-088-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-176-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-176-1	01	1	0512-
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0407-0511
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0407-0511
108	REPAIR KIT; SPR CHAMBER	1-85576-327-0	02	1	0512-0910
108	REPAIR KIT; SPR CHAMBER	1-85576-327-0	02	1	0512-0910
108	REPAIR KIT; SPR CHAMBER	8-98146-980-0	02	1	0911-
108	REPAIR KIT; SPR CHAMBER	8-98146-980-0	02	1	0911-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0407-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0407-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0407-0910
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
126	SHIM	8-98146-965-0	AR	1	0911-
126	SHIM	8-98146-965-0	AR	1	0911-

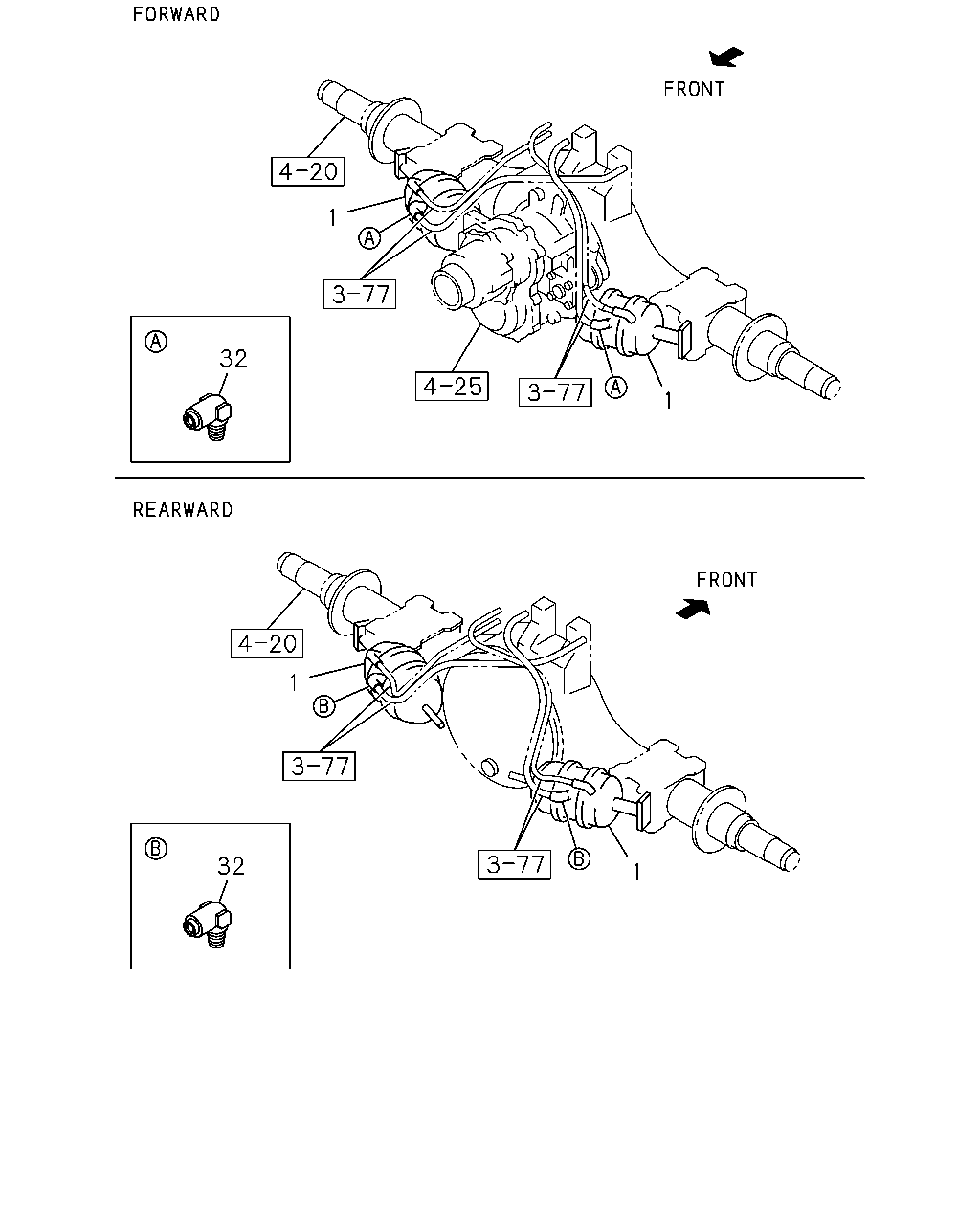

1 32 1 1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0407-
32	CONNECTOR; SPR CHAMBER DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0407-

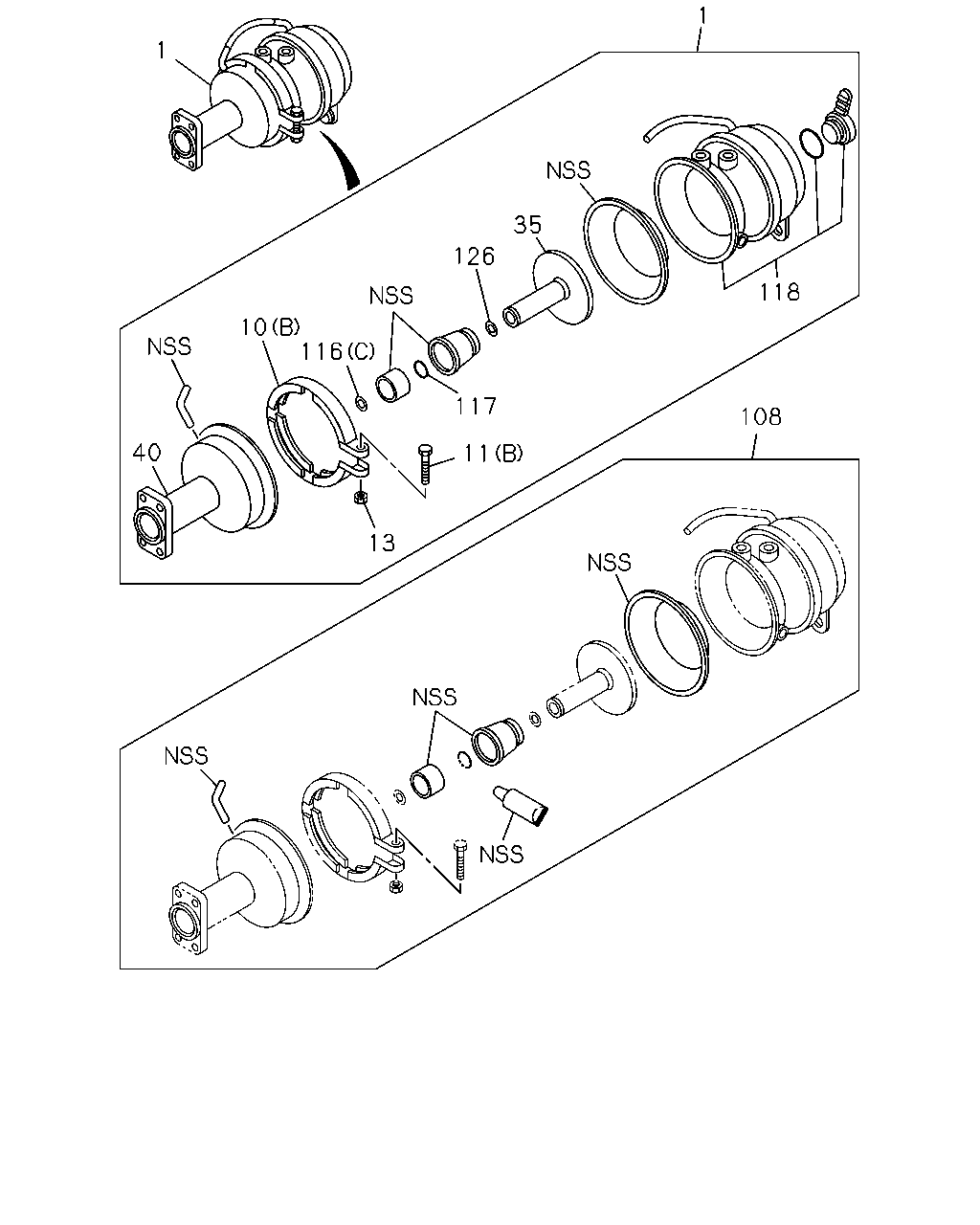

1 1 35 126 118 10 116 117 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-829-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-879-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-700-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-099-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-830-1	01	1	0407-0511
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-880-1	01	1	0512-0910
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-701-0	01	1	0911-1005
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-100-0	01	1	1006-
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	02	1	0407-0511
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-150-0	02	1	0407-0511
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0512-0901
10	RING; CLAMP,SPR CHAMBER (A)	1-48269-149-0	02	1	0512-0901
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-
10	RING; CLAMP,SPR CHAMBER (B)	1-48269-256-0	02	1	0902-
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0407-0901
11	BOLT; CLAMP RING (A)	1-48269-146-0	04	1	0407-0901
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-
11	BOLT; CLAMP RING (B)	1-48269-257-0	02	1	0902-
13	NUT; CLAMP RING	1-48269-147-0	04	1	0407-0901
13	NUT; CLAMP RING	1-48269-147-0	04	1	0407-0901
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-
13	NUT; CLAMP RING	1-48269-147-0	02	1	0902-
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0407-0511
35	PLATE; ROD END,SPR CHAMBER	1-48263-023-0	02	1	0407-0511
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0512-0910
35	PLATE; ROD END,SPR CHAMBER	1-48263-022-0	02	1	0512-0910
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	0911-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-086-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-086-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-175-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-175-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-088-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-088-0	01	1	0407-0511
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-176-1	01	1	0512-
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-176-1	01	1	0512-
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0407-0511
108	REPAIR KIT; SPR CHAMBER	1-85576-328-0	02	1	0407-0511
108	REPAIR KIT; SPR CHAMBER	1-85576-327-0	02	1	0512-0910
108	REPAIR KIT; SPR CHAMBER	1-85576-327-0	02	1	0512-0910
108	REPAIR KIT; SPR CHAMBER	8-98146-980-0	02	1	0911-
108	REPAIR KIT; SPR CHAMBER	8-98146-980-0	02	1	0911-
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (A)	1-48269-152-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (C)	8-98146-963-0	02	1	0911-
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0407-0910
116	GUIDE; SPR CHAMBER (B)	1-48269-154-0	02	1	0407-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0407-0910
117	RING; SPR CHAMBER	1-48269-155-0	02	1	0407-0910
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
117	RING; SPR CHAMBER	8-98146-966-0	02	1	0911-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1006-
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1006-
126	SHIM	8-98146-965-0	AR	1	0911-
126	SHIM	8-98146-965-0	AR	1	0911-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
