3-26 — TRAILER CONTROL (#30034) — 228 parça

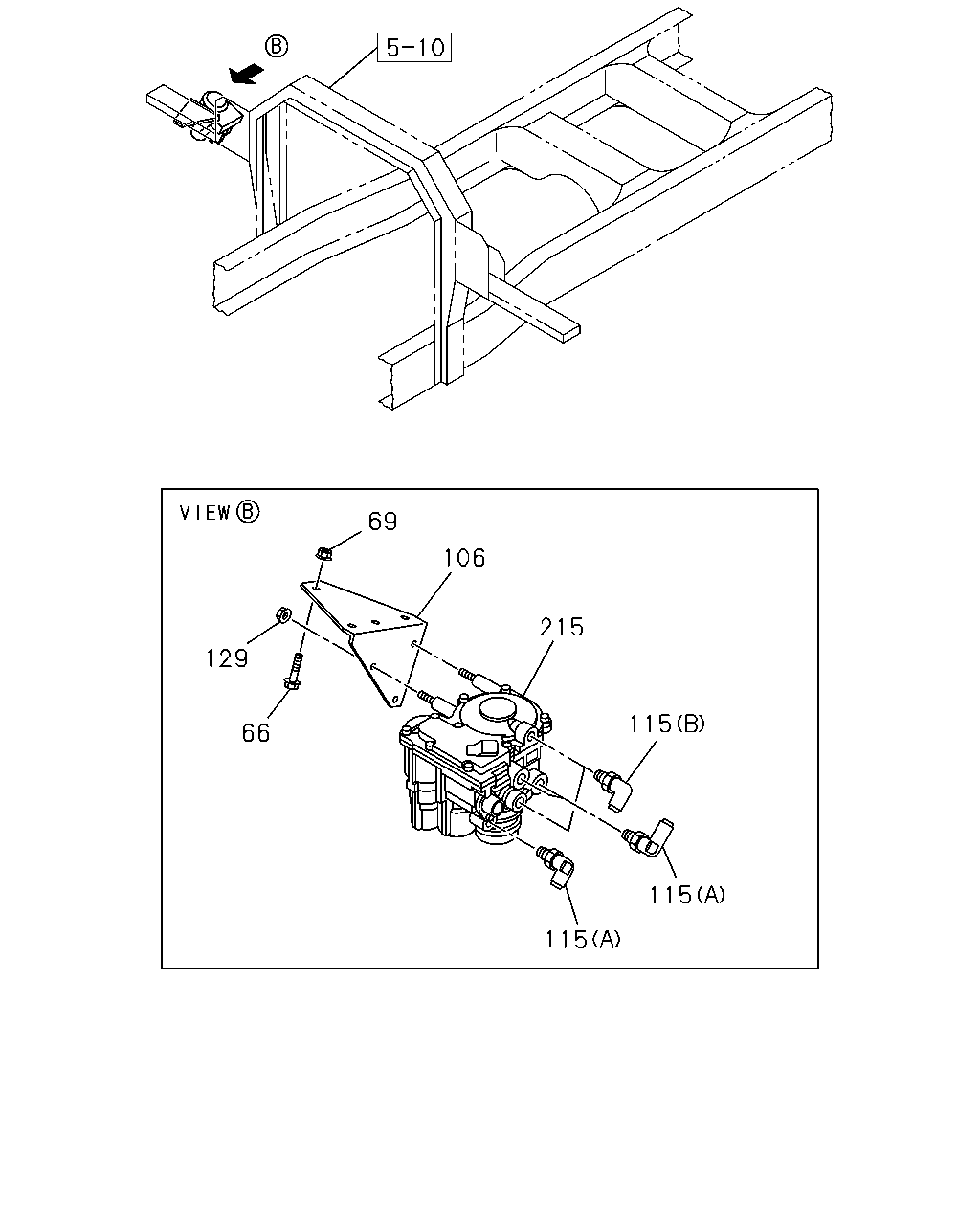

69 106 215 129 115 66 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BOLT; VLV BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0512
66	BOLT; VLV BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
66	BOLT; VLV BRKT M10X25 FLANGE	0-28681-025-0	02	1	0407-0512
66	BOLT; VLV BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
69	NUT; VLV BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
69	NUT; VLV BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
69	NUT; VLV BRKT M10 FLANGE	0-91150-210-0	02	1	0407-0602
69	NUT; VLV BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
106	BRACKET; VLV	1-48495-232-1	01	1	0407-0512
106	BRACKET; VLV	1-48495-273-0	01	1	0601-
115	CONNECTOR; DUAL RELAY VLV (A) DIN12 & M22 ELBOW	1-09661-521-0	03	1	0407-
115	CONNECTOR; DUAL RELAY VLV (B) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0407-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0407-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0407-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0603-
215	VALVE; TRAILER CONT	1-48240-248-0	01	1	0407-0512
215	VALVE; TRAILER CONT	1-48240-191-1	01	1	0601-

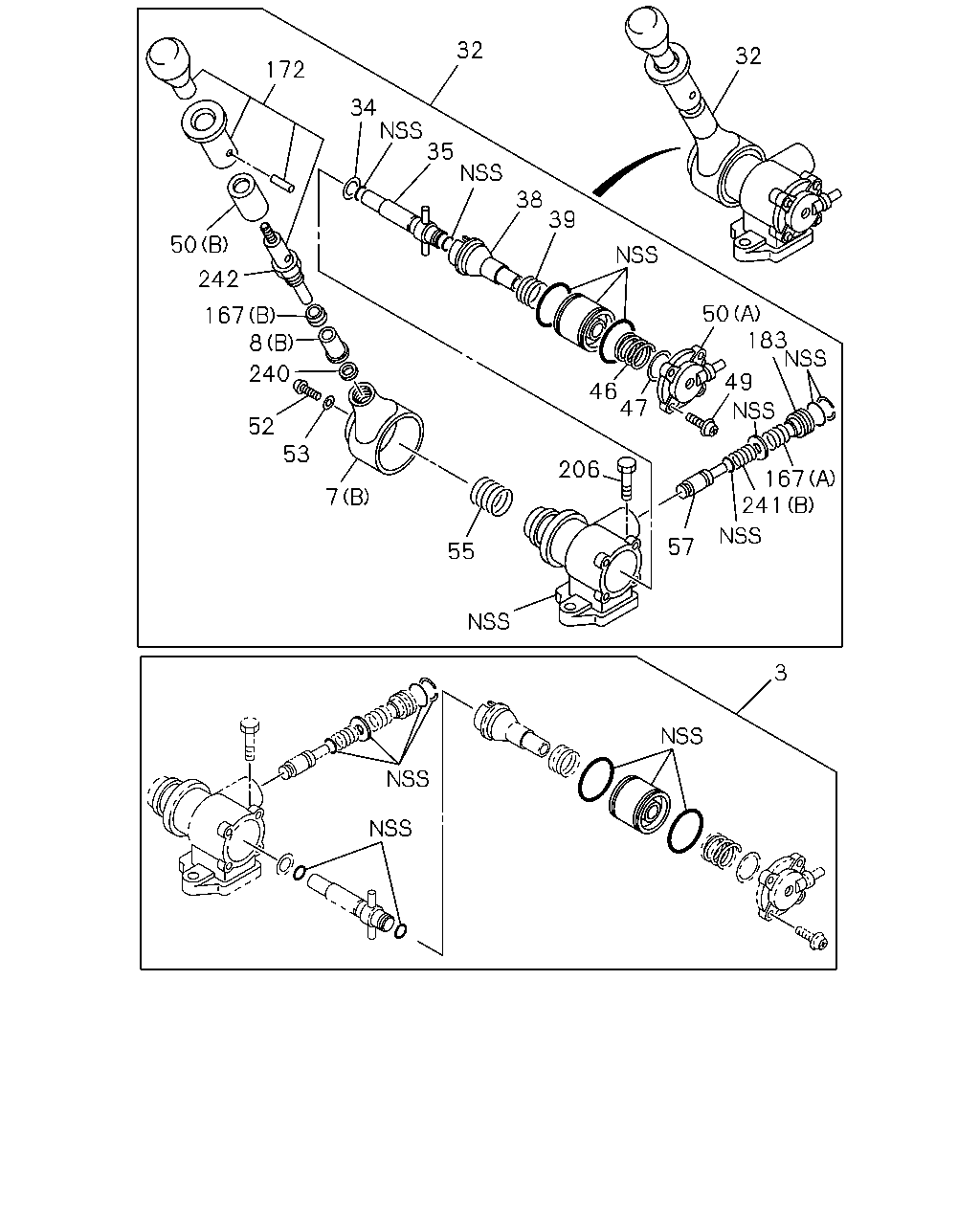

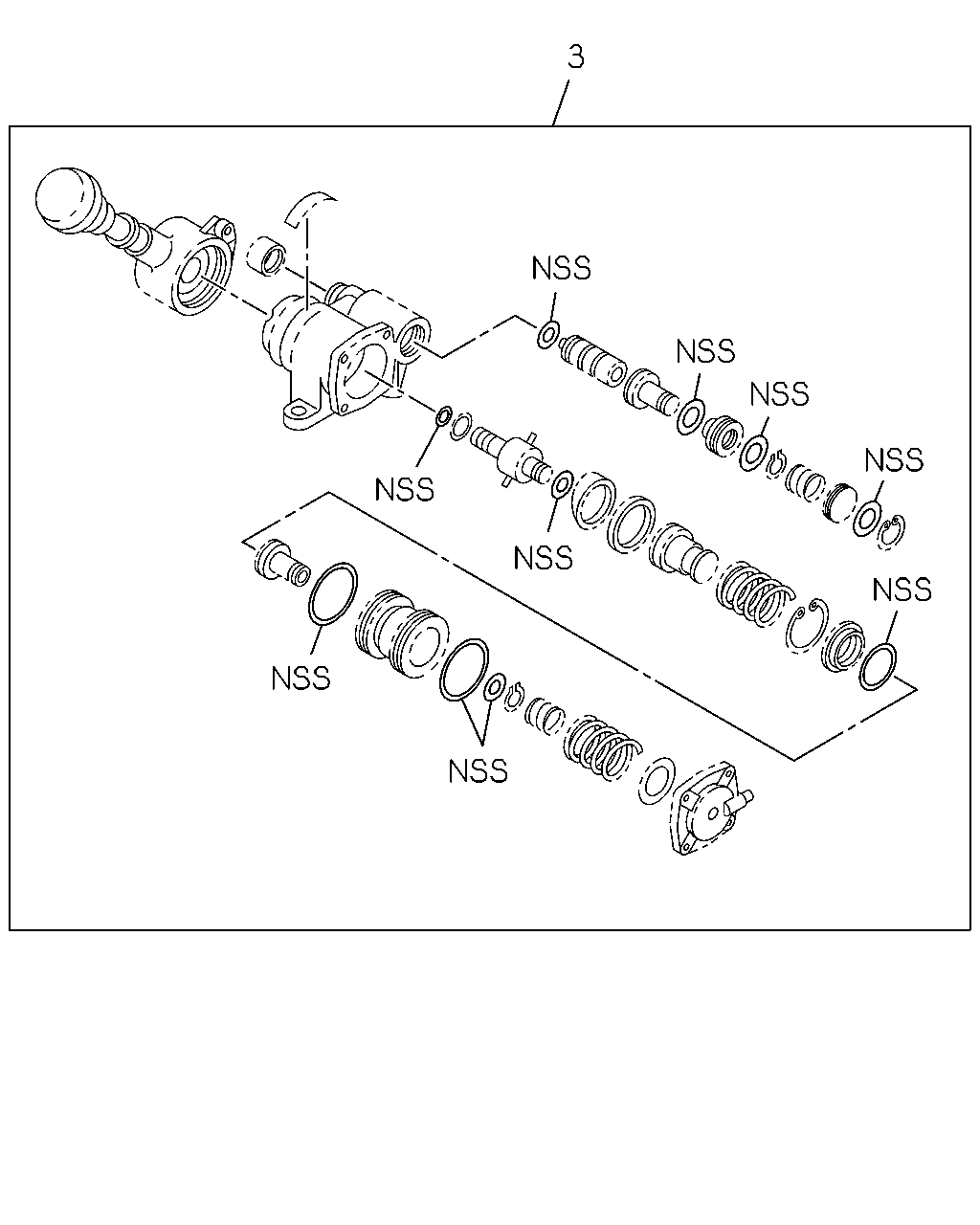

32 32 172 34 35 38 39 50 242 50 183 167 8 240 49 46 47 52 53 167 241 206 7 57 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B>	1-48469-083-0	01	1	0704-
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0407-0703
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N>	1-85576-376-0	01	1	0704-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0407-
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0407-0703
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0704-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0407-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0407-0703
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0704-
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0704-
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0703
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0704-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0407-0703
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0704-
35	HOLDER; CAM FULLER M/T<X9B>	1-48469-054-0	01	1	0704-
35	HOLDER; CAM	1-48469-171-0	01	1	0407-0703
35	HOLDER; CAM MJX M/T<Y9N>	1-48469-171-0	01	1	0704-
38	SEAT; EXH VLV FULLER M/T<X9B>	1-48469-057-0	01	1	0704-
38	SEAT; EXH VLV	1-48469-172-0	01	1	0407-0703
38	SEAT; EXH VLV MJX M/T<Y9N>	1-48469-172-0	01	1	0704-
39	SPRING; RETURN,CAM RING FULLER M/T<X9B>	1-48469-063-0	01	1	0704-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0407-0703
39	SPRING; RETURN,CAM RING MJX M/T<Y9N>	1-48469-150-0	01	1	0704-
46	SPRING; MAIN,PISTON FULLER M/T<X9B>	1-48469-119-0	01	1	0704-
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0407-0703
46	SPRING; MAIN,PISTON MJX M/T<Y9N>	1-48469-173-0	01	1	0704-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0407-0703
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0704-
49	SCREW; COVER FULLER M/T<X9B>	1-48469-120-0	04	1	0704-
49	SCREW; COVER	1-48469-169-0	04	1	0407-0703
49	SCREW; COVER MJX M/T<Y9N>	1-48469-169-0	04	1	0704-
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0704-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0407-0703
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0704-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0407-0703
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0704-
52	SCREW; HANDLE	1-48469-062-0	01	1	0407-0703
52	SCREW; HANDLE	1-48469-062-0	01	1	0704-
53	WASHER; HANDLE	1-48469-061-0	01	1	0407-0703
53	WASHER; HANDLE	1-48469-061-0	01	1	0704-
55	SPRING; RETURN,HANDLE FULLER M/T<X9B>	1-48469-059-0	01	1	0704-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0407-0703
55	SPRING; RETURN,HANDLE MJX M/T<Y9N>	1-48469-155-0	01	1	0704-
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B>	1-48469-076-0	01	1	0704-
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0407-0703
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N>	1-48469-180-0	01	1	0704-
167	SPRING; VALVE (A)	1-48469-177-0	01	1	0407-0703
167	SPRING; VALVE MJX M/T<Y9N> (A)	1-48469-177-0	01	1	0704-
167	SPRING; VALVE (B)	1-48469-184-0	01	1	0407-0703
167	SPRING; VALVE MJX M/T<Y9N> (B)	1-48469-184-0	01	1	0704-
172	KNOB; VALVE	1-48469-203-0	01	1	0407-0703
172	KNOB; VALVE MJX M/T<Y9N>	1-48469-203-0	01	1	0704-
183	RETAINER; VALVE	1-48469-185-0	01	1	0407-0703
183	RETAINER; VALVE MJX M/T<Y9N>	1-48469-185-0	01	1	0704-
206	BOLT; HAND BRK VALVE	1-48469-160-0	01	1	0407-0703
206	BOLT; HAND BRK VALVE MJX M/T<Y9N>	1-48469-160-0	01	1	0704-
240	RING; STOPPER	1-48469-199-0	01	1	0407-0703
240	RING; STOPPER MJX M/T<Y9N>	1-48469-199-0	01	1	0704-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0407-
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0407-0703
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0704-
242	NUT; LK	1-48469-179-0	01	1	0407-0703
242	NUT; LK MJX M/T<Y9N>	1-48469-179-0	01	1	0704-

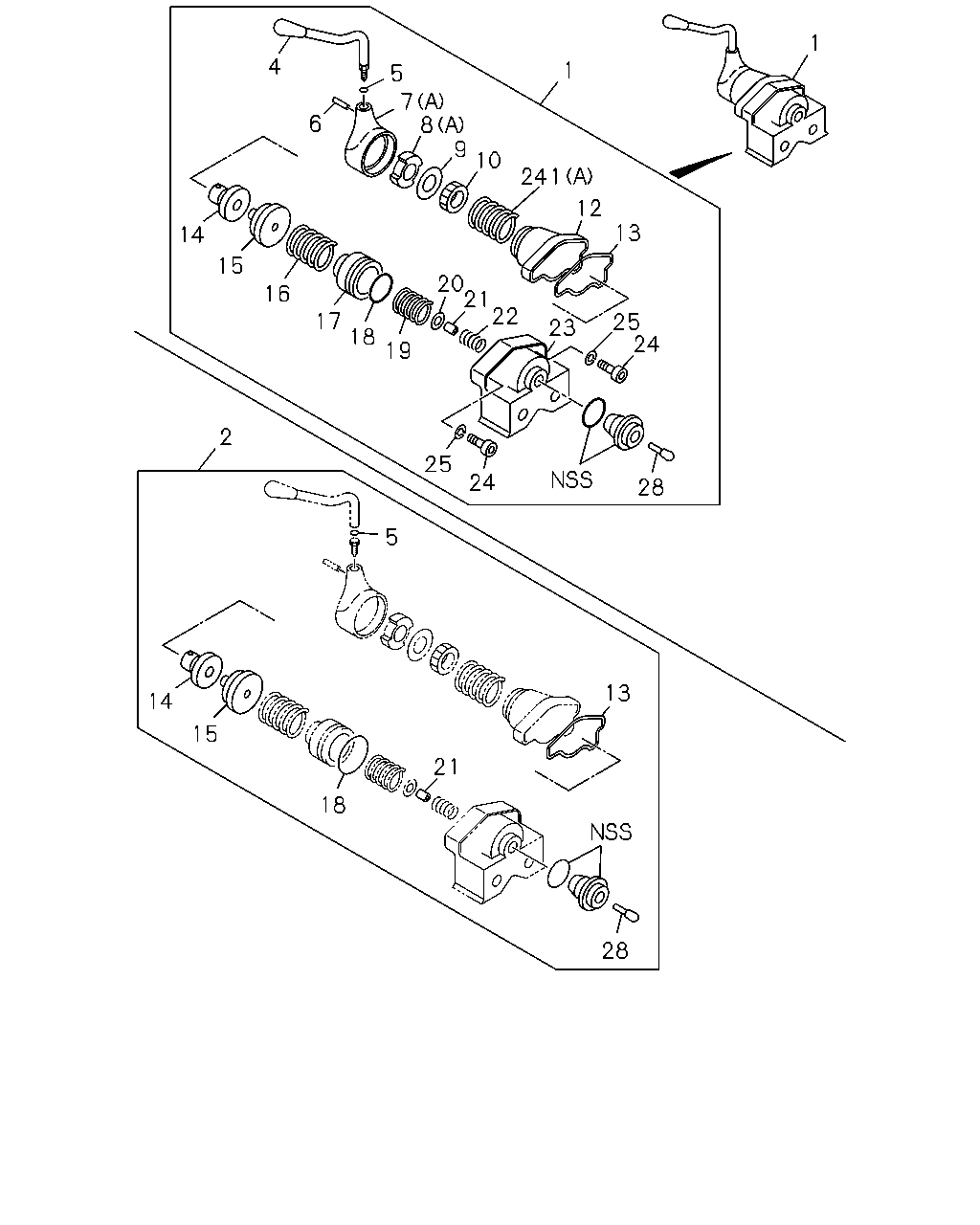

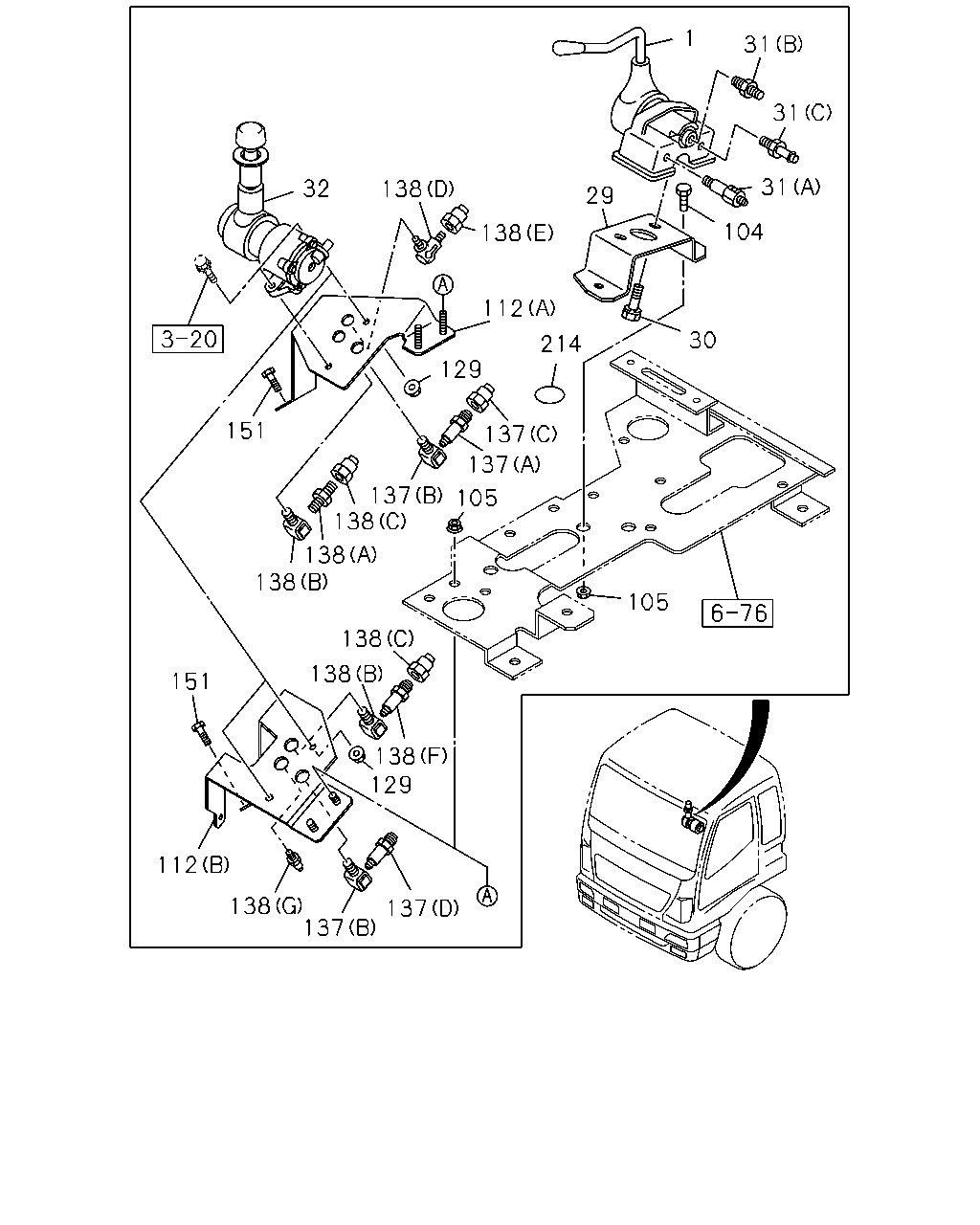

1 31 31 31 32 138 29 104 138 112 30 214 129 151 137 137 137 138 105 138 138 105 138 138 151 138 129 112 138 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0407-
29	BRACKET; HAND BRK	1-79997-357-1	01	1	0407-
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50041-020-0	02	1	0407-0512
30	BOLT; BRKT,HAND BRK VLV M10X20 W/LK WASHER	0-50541-020-0	02	1	0601-
31	CONNECTOR; HAND BRK VLV (A) M14	1-09656-391-2	01	1	0407-
31	CONNECTOR; HAND BRK VLV (C) L=45	8-94338-874-0	01	1	0407-
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	0407-0607
31	CONNECTOR; HAND BRK VLV (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	0608-
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0704-
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0703
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0704-
104	BOLT; BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0612
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0407-0602
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
112	BRACKET; CONT VLV FULLER M/T<X9B> (B)	1-79996-336-1	01	1	0704-
112	BRACKET; CONT VLV (A)	1-79996-387-0	01	1	0407-0703
112	BRACKET; CONT VLV MJX M/T<Y9N> (A)	1-79996-387-0	01	1	0704-
129	NUT; VLV M8 FLANGE	0-91150-108-0	01	1	0407-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	0603-
129	NUT; VLV M8 FLANGE	0-91150-108-0	03	1	0407-0602
129	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0603-
137	CONNECTOR; SUPPLY FULLER M/T<X9B> (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0704-
137	CONNECTOR; SUPPLY (A)	1-09650-352-1	01	1	0407-0703
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (A)	1-09650-352-1	01	1	0704-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	0407-
137	CONNECTOR; SUPPLY (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0407-0703
137	CONNECTOR; SUPPLY MJX M/T<Y9N> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0704-
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (F) M14	1-09656-391-2	01	1	0704-
138	CONNECTOR; DELIVERY FULLER M/T<X9B> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0704-
138	CONNECTOR; DELIVERY (D)	1-09650-263-2	01	1	0407-0703
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (D)	1-09650-263-2	01	1	0704-
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0407-0703
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0704-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	0407-
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0407-
138	CONNECTOR; DELIVERY (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0407-0703
138	CONNECTOR; DELIVERY MJX M/T<Y9N> (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0704-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0409
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0410-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	0407-

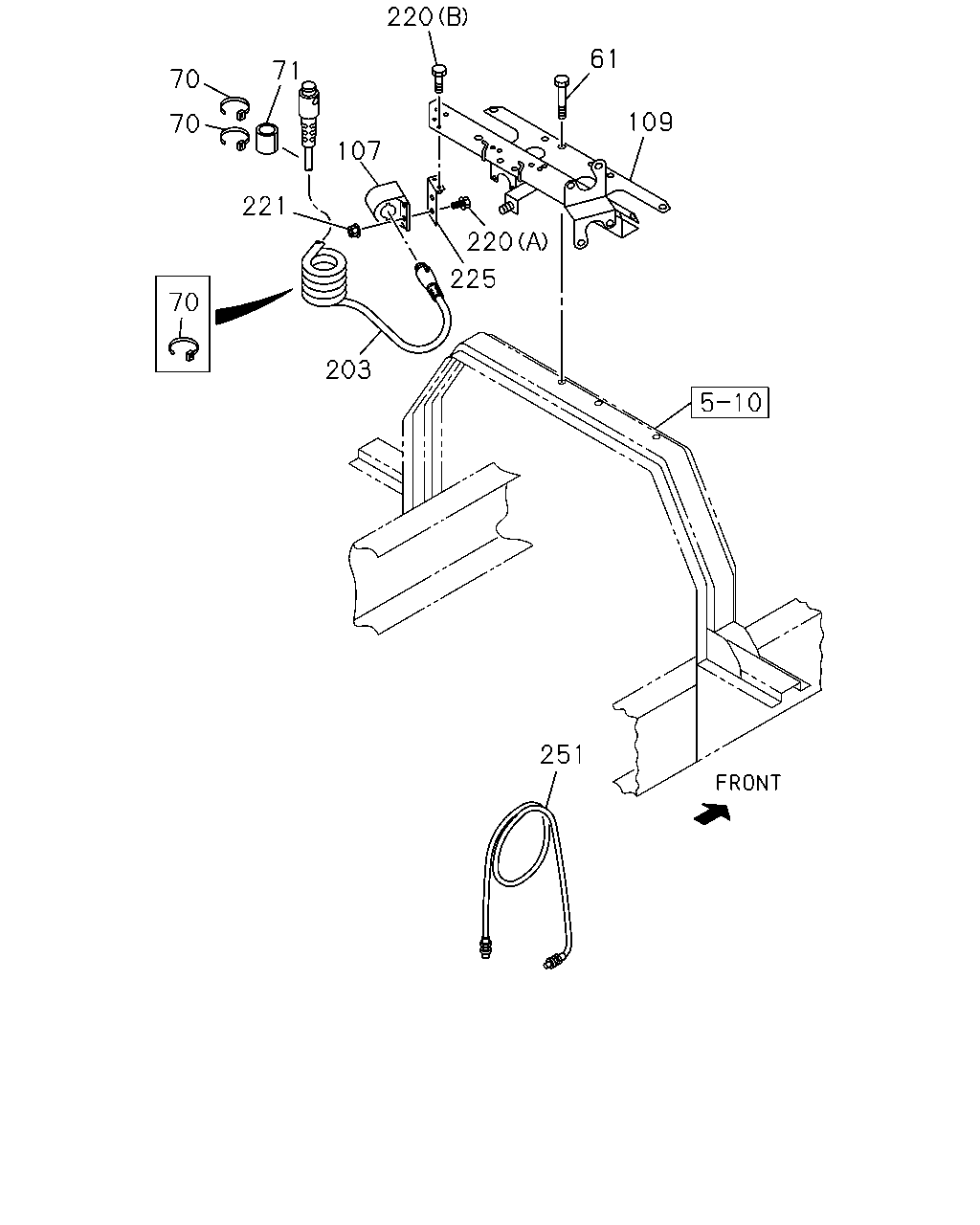

220 61 71 70 109 70 107 221 220 225 70 203 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	BOLT; STEP BOARD M10X30 FLANGE	0-28681-030-0	06	1	0407-0512
61	BOLT; STEP BOARD M10X30 FLANGE	0-28651-030-0	06	1	0601-
70	CLIP; BAND,JUMPER HOSE L=250	5-09707-030-1	10	1	0407-
71	RUBBER; STEP BOARD ID=38.1 L=50	5-09360-835-0	02	1	0407-
107	HANGER; JUMPER HOSE	1-57550-022-1	01	1	0407-
109	BRACKET; HOSE HANGER	1-53497-669-1	01	1	0407-0505
109	BRACKET; HOSE HANGER	1-53497-718-1	01	1	0506-
203	CABLE; JUMPER L=5500	1-82659-201-2	01	1	0407-1009
203	CABLE; JUMPER L=5500	8-98107-178-0	01	1	1010-
220	BOLT; HANGER (A) M6X16 FLANGE	0-28680-616-0	02	1	0407-0512
220	BOLT; HANGER (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-
220	BOLT; HANGER (B) M8X25 FLANGE	0-28680-825-0	02	1	0407-0512
220	BOLT; HANGER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
221	NUT; HANGER M6 FLANGE	0-91150-106-0	02	1	0407-0602
221	NUT; HANGER M6 FLANGE	0-91180-106-0	02	1	0603-
225	BRACKET; HANGER	1-82698-002-0	01	1	0407-
251	CABLE; JUMPER,EBS	1-82659-210-2	01	1	0407-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV FULLER M/T<X9B>	1-48469-083-0	01	1	0704-
3	REPAIR KIT; HAND BRK VLV	1-85576-376-0	01	1	0407-0703
3	REPAIR KIT; HAND BRK VLV MJX M/T<Y9N>	1-85576-376-0	01	1	0704-

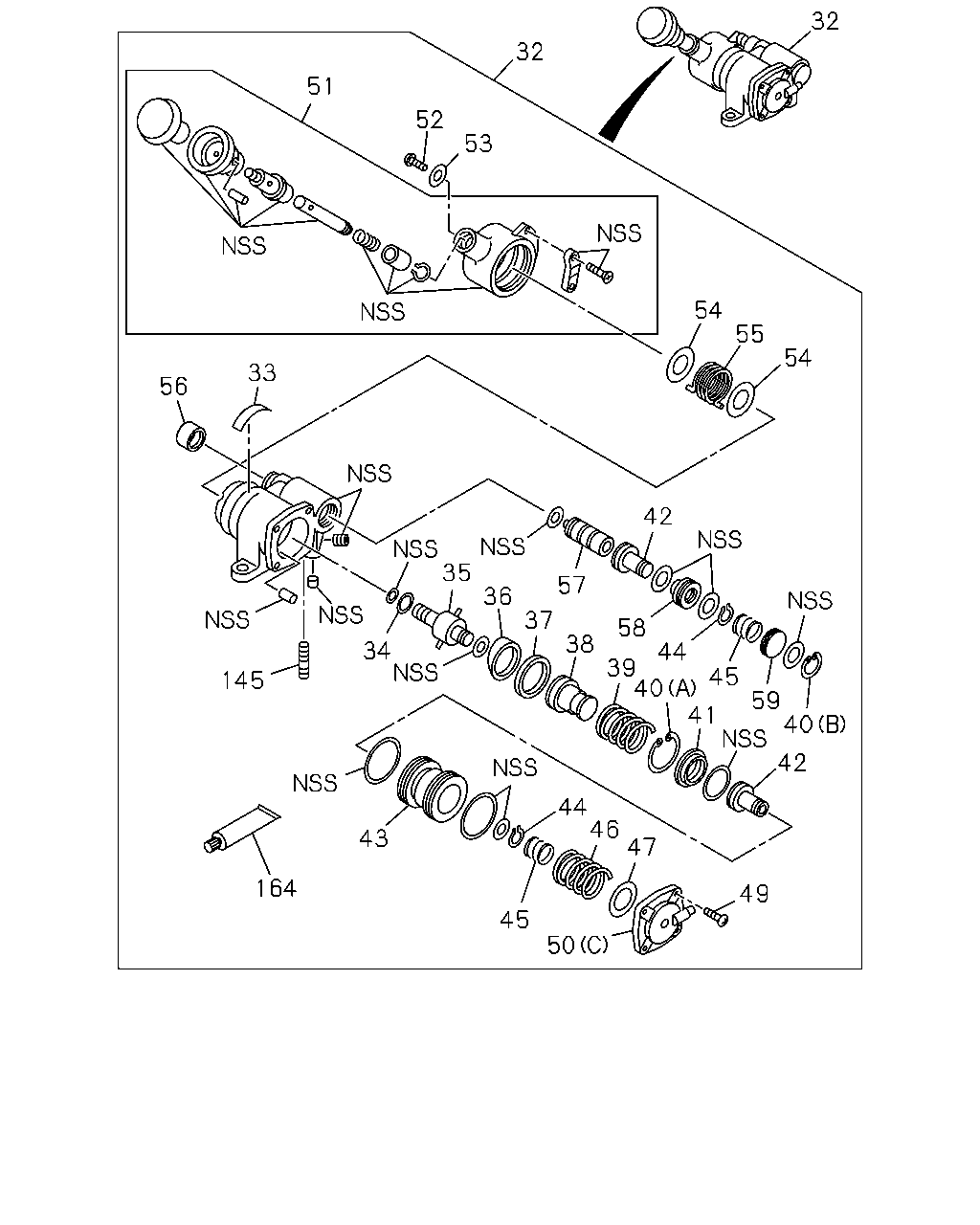

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 34 44 39 40 45 145 41 42 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT FULLER M/T<X9B>	1-48460-316-0	01	1	0704-
32	VALVE; BRK,HAND CONT	1-48460-339-1	01	1	0407-0703
32	VALVE; BRK,HAND CONT MJX M/T<Y9N>	1-48460-339-1	01	1	0704-
33	PLATE; CAUTION FULLER M/T<X9B>	1-48469-121-0	01	1	0704-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0407-0703
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0704-
35	HOLDER; CAM FULLER M/T<X9B>	1-48469-054-0	01	1	0704-
35	HOLDER; CAM	1-48469-171-0	01	1	0407-0703
35	HOLDER; CAM MJX M/T<Y9N>	1-48469-171-0	01	1	0704-
36	RING; CAM FULLER M/T<X9B>	1-48469-056-0	01	1	0704-
37	GUIDE; CAM RING FULLER M/T<X9B>	1-48469-058-0	01	1	0704-
38	SEAT; EXH VLV FULLER M/T<X9B>	1-48469-057-0	01	1	0704-
38	SEAT; EXH VLV	1-48469-172-0	01	1	0407-0703
38	SEAT; EXH VLV MJX M/T<Y9N>	1-48469-172-0	01	1	0704-
39	SPRING; RETURN,CAM RING FULLER M/T<X9B>	1-48469-063-0	01	1	0704-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	0407-0703
39	SPRING; RETURN,CAM RING MJX M/T<Y9N>	1-48469-150-0	01	1	0704-
40	RING; SNAP FULLER M/T<X9B> (A)	1-48469-067-0	01	1	0704-
40	RING; SNAP FULLER M/T<X9B> (B)	1-48469-079-0	01	1	0704-
41	SEAT; FEED VLV FULLER M/T<X9B>	1-48469-066-0	01	1	0704-
42	VALVE; FEED FULLER M/T<X9B>	1-48469-065-0	02	1	0704-
43	PISTON; HAND BRK VLV FULLER M/T<X9B>	1-48469-064-0	01	1	0704-
44	RING; SNAP,FEED VLV FULLER M/T<X9B>	1-48469-068-0	02	1	0704-
45	SPRING; FEED VLV FULLER M/T<X9B>	1-48469-070-0	02	1	0704-
46	SPRING; MAIN,PISTON FULLER M/T<X9B>	1-48469-119-0	01	1	0704-
46	SPRING; MAIN,PISTON	1-48469-173-0	01	1	0407-0703
46	SPRING; MAIN,PISTON MJX M/T<Y9N>	1-48469-173-0	01	1	0704-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0407-0703
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0704-
49	SCREW; COVER FULLER M/T<X9B>	1-48469-120-0	04	1	0704-
49	SCREW; COVER	1-48469-169-0	04	1	0407-0703
49	SCREW; COVER MJX M/T<Y9N>	1-48469-169-0	04	1	0704-
50	COVER; HAND BRK VLV FULLER M/T<X9B> (C)	1-48469-073-0	01	1	0704-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	0407-0703
50	COVER; HAND BRK VLV MJX M/T<Y9N> (A)	1-48469-153-0	01	1	0704-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	0407-0703
50	COVER; HAND BRK VLV MJX M/T<Y9N> (B)	1-48469-196-0	01	1	0704-
51	HANDLE ASM; HAND BRK VLV FULLER M/T<X9B>	1-48469-060-0	01	1	0704-
52	SCREW; HANDLE	1-48469-062-0	01	1	0407-0703
52	SCREW; HANDLE	1-48469-062-0	01	1	0704-
53	WASHER; HANDLE	1-48469-061-0	01	1	0407-0703
53	WASHER; HANDLE	1-48469-061-0	01	1	0704-
54	SEAT; SPRING FULLER M/T<X9B>	1-48469-082-0	02	1	0704-
55	SPRING; RETURN,HANDLE FULLER M/T<X9B>	1-48469-059-0	01	1	0704-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	0407-0703
55	SPRING; RETURN,HANDLE MJX M/T<Y9N>	1-48469-155-0	01	1	0704-
56	BOOT; PLUNGER FULLER M/T<X9B>	1-48469-080-0	01	1	0704-
57	PLUNGER; HAND BRK VLV FULLER M/T<X9B>	1-48469-076-0	01	1	0704-
57	PLUNGER; HAND BRK VLV	1-48469-180-0	01	1	0407-0703
57	PLUNGER; HAND BRK VLV MJX M/T<Y9N>	1-48469-180-0	01	1	0704-
58	HOLDER; FEED VLV FULLER M/T<X9B>	1-48469-077-0	01	1	0704-
59	HOLDER; SPRING FULLER M/T<X9B>	1-48469-078-0	01	1	0704-
145	STUD; HAND BRK VLV FULLER M/T<X9B>	1-48469-069-0	01	1	0704-
164	GREASE; HAND BRK VLV FULLER M/T<X9B>	1-48469-084-0	01	1	0704-

1 4 1 5 7 8 6 9 10 241 12 13 14 15 20 21 22 16 23 17 25 24 18 19 2 25 24 28 5 13 14 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK	1-48100-859-0	01	1	0407-
2	REPAIR KIT; HAND BRK VLV	1-85576-305-0	01	1	0407-
4	HANDLE ASM; BRK VLV	1-48119-580-1	01	1	0407-
5	GASKET; HANDLE	1-48119-128-0	01	1	0407-
6	PIN; SPR	1-48119-143-0	01	1	0407-
7	HEAD; BRK VLV (A)	1-48119-577-1	01	1	0407-
7	HEAD; BRK VLV (B)	1-48469-201-0	01	1	0407-0703
7	HEAD; BRK VLV MJX M/T<Y9N> (B)	1-48469-201-0	01	1	0704-
8	STOPPER; BRK VLV (A)	1-48119-327-0	01	1	0407-
8	STOPPER; BRK VLV (B)	1-48469-200-0	01	1	0407-0703
8	STOPPER; BRK VLV MJX M/T<Y9N> (B)	1-48469-200-0	01	1	0704-
9	WASHER; LK,ADJ	1-48119-123-0	01	1	0407-
10	RING; ADJ	1-48119-122-0	01	1	0407-
12	COVER; BRK VLV	1-48129-319-1	01	1	0407-
13	GASKET; BODY TO COVER	1-48119-120-0	01	1	0407-
14	FOLLOWER; CAM	1-48129-135-0	01	1	0407-
15	CAM; FOLLOWER	1-48129-134-0	01	1	0407-
16	SPRING; GRUDUATING	1-48129-101-0	01	1	0407-
17	PISTON; SPR	1-48129-095-0	01	1	0407-
18	GASKET; BODY	1-48129-096-0	01	1	0407-
19	SPRING; PISTON	1-48129-094-0	01	1	0407-
20	GUIDE; VLV	1-48129-090-0	01	1	0407-
21	VALVE; IN & EXH	1-48121-017-0	01	1	0407-
22	SPRING; VLV	1-48123-024-0	01	1	0407-
23	BODY; BRK VLV	1-48111-060-1	01	1	0407-
24	BOLT; EXH VLV	1-48129-092-0	02	1	0407-
25	WASHER; LK,EXH VLV	1-48129-093-0	02	1	0407-
28	STEM ASM; BRK VLV	1-48129-089-0	01	1	0407-
241	SPRING; RETURN (A)	1-48119-576-0	01	1	0407-
241	SPRING; RETURN (B)	1-48469-182-0	01	1	0407-0703
241	SPRING; RETURN MJX M/T<Y9N> (B)	1-48469-182-0	01	1	0704-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
